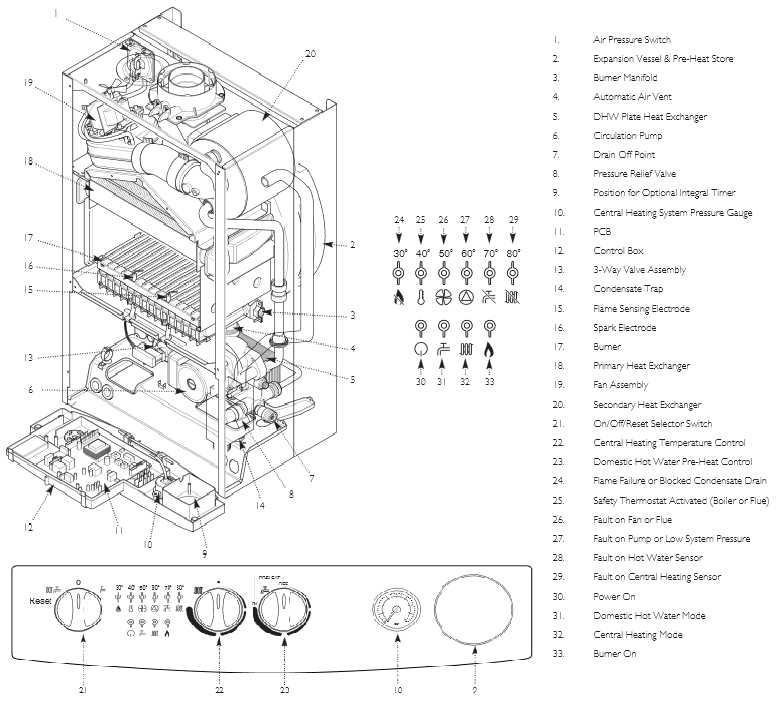

Start by locating the primary heat exchanger and burner assembly–these components demand direct electrical connections to function safely. A 240V mains supply powers the ignition, pump, and fan, while a lower-voltage thermostat circuit controls operation. Check the fuse rating on the live wire; most modern units require at least 3A. If replacing an older model, ensure the new wiring matches the existing terminal block configuration–mismatched connections risk overheating or shorts.
Trace the flow sensor wires–typically thin, twisted pairs–to their controller port. These carry critical data for temperature regulation. A faulty sensor often triggers false low-pressure errors, so verify continuity with a multimeter before proceeding. The printed board should label terminals clearly: L (live), N (neutral), E (earth), and numbered outputs for pumps or diverter valves. Always disconnect power before handling any bare connections.
Examine the diverter valve’s motorised actuator–it operates on a 230V/50Hz supply and switches water flow between heating and domestic circuits. Incorrect wiring here leads to erratic hot water delivery. For systems with an external programmer, confirm compatibility: older mechanical timers may not sync with modern PCB-controlled units. If upgrading, document each wire’s position first–photograph or label them to avoid miswiring during reassembly.
Grounding is non-negotiable. The earth terminal must connect to a dedicated copper rod or the main service panel’s grounding bus. A missing ground risks electrical shock and voids manufacturer warranties. For installations with unvented cylinders, additional safety cutouts (like thermal fuses) require correct integration into the wiring scheme. Always cross-reference the technical manual–generic diagrams rarely account for regional voltage regulations or proprietary components.
To troubleshoot, start by verifying power at the fuse. If the unit fails to ignite, inspect the flame-detection probe; oxidation here disrupts signal transmission. Use emery cloth to clean it, then reset the unit. For persistent faults, test the gas valve solenoid–it should click audibly when energised. Silence indicates a blown fuse or PCB failure, warranting component-level diagnostics rather than guesswork.
Key Electrical Layout of a Modern Heating Unit
Start by locating the power supply terminals–typically labeled L (live), N (neutral), and E (earth)–on the control board. These should connect to a dedicated 240V circuit with a minimum 16A fuse or breaker. Verify the wiring gauge: 2.5mm² copper cables are standard for safe current handling, but check local regulations for exact requirements. Incorrect sizing risks overheating or tripped protection.
Identify the printed board’s relay switches for ignition, pump, and fan operation. The ignition relay activates the spark generator, which requires a 2-3 second delay before gas valve opens–ensure the PCB firmware enforces this timing. Bypass or manual override voids safety certifications. If replacing a faulty relay, match the coil voltage (usually 12V DC) and contact rating (typically 10A at 250V AC).
Critical Sensor Integration
Integrate the NTC temperature probes–the flow and return sensors–directly into the mainboard’s analog inputs. Resistance values at 25°C should read approximately 10kΩ, dropping to 1kΩ at 85°C. Deviations outside ±5% indicate probe failure. Clean sensor contacts with isopropyl alcohol; oxidation distorts readings, triggering false overheating locks. For digital interfaces, confirm the I²C addresses (often 0x48 or 0x49) align with the controller’s firmware.
Include a flow turbine or Hall-effect sensor for water detection. Position it downstream of the heat exchanger, angled 45° to minimize debris buildup. Voltage output ranges from 0-5V, corresponding to 0-12L/min flow rates. Calibrate by comparing sensor output against a container-fill test–discrepancies over 0.3L/min require recalibration via the PCB’s potentiometer or software adjustment.
Ground all metallic components to the chassis using 4mm² green/yellow cables. The earth bond resistance between the gas inlet and any accessible metal part must not exceed 0.1Ω. Use a calibrated multimeter set to continuity mode for verification; higher readings signal corroded connections or missing star washers. Double-check thebonding jumper between the unit and nearby metal pipes–omission violates EN 806-4 standards.
Advanced Troubleshooting Shortcuts
For intermittent faults, probe the PCB’s test points labeled TP1 through TP5. TP3 typically outputs a 3.3V PWM signal for the diverter valve; absence indicates a microcontroller reset. Compare readings against the schematic’s reference voltages (±0.1V tolerance). If the system locks on error code E123 (example), bridge the reset pins (often RST and GND) for 10 seconds–this clears non-volatile memory only if the underlying fault is resolved.
Critical Elements in a Condensing Heat System Wiring Layout
Always locate the power supply terminals first–typically marked L (live), N (neutral), and E (earth). These connections feed 230V AC to the control board and must comply with local wiring codes, including dedicated RCD protection. Verify cable cross-sections: 1.5mm² for standard feeds, 2.5mm² if additional pumps or diverter valves are present. Incorrect sizing risks overheating and nuisance tripping.
Control Board and Sensor Interfaces
The PCB integrates temperature probes, pressure switches, and flame detection circuits. Identify the NTC thermistors–usually positioned on flow/return pipes–and confirm their resistance values at 25°C (typically 10kΩ for modern units). A faulty probe triggers error codes; bypass testing involves substituting with a known-good sensor. Note the gas valve relay traces; corrosion here causes ignition failures. Clean contacts with DeoxIT or replace the relay if chatter is audible.
Diverter valves demand precise wiring–misrouted cables lead to heating mode failures. Trace the three-way valve motor wires (often color-coded: brown=common, yellow=DHW, blue=heating). Use a multimeter in resistance mode to check coil continuity (50–150Ω range). If stuck, manually rotate the spindle with pliers while flushing the system to dislodge debris. Replace the motor if rotation resistance exceeds 5Nm.
Safety Devices and Overrides
The pressure relief valve circuit includes a microswitch that must trip at 3 bar. Test by isolating the power, attaching a gauge, and forcing a simulated overpressure–verify the switch cuts off the spark generator. Similarly, the flue gas thermostat (set to ~70°C) prevents condensation damage; bypass it only for diagnostic purposes, then reset immediately. Document all safety device thresholds before servicing.
Fan and pump wires require polarisation–reverse connections cause immediate stalling. For EC motors, confirm the hall sensor PCB alignment (visible through the motor housing). If the fan spins erratically, inspect the air intake for blockages (e.g., insect nests). Pumps with on-board electronics often share a common neutral; separate feeds prevent ground loops. Always disconnect the capacitor before capacitance testing to avoid shorting the winding.

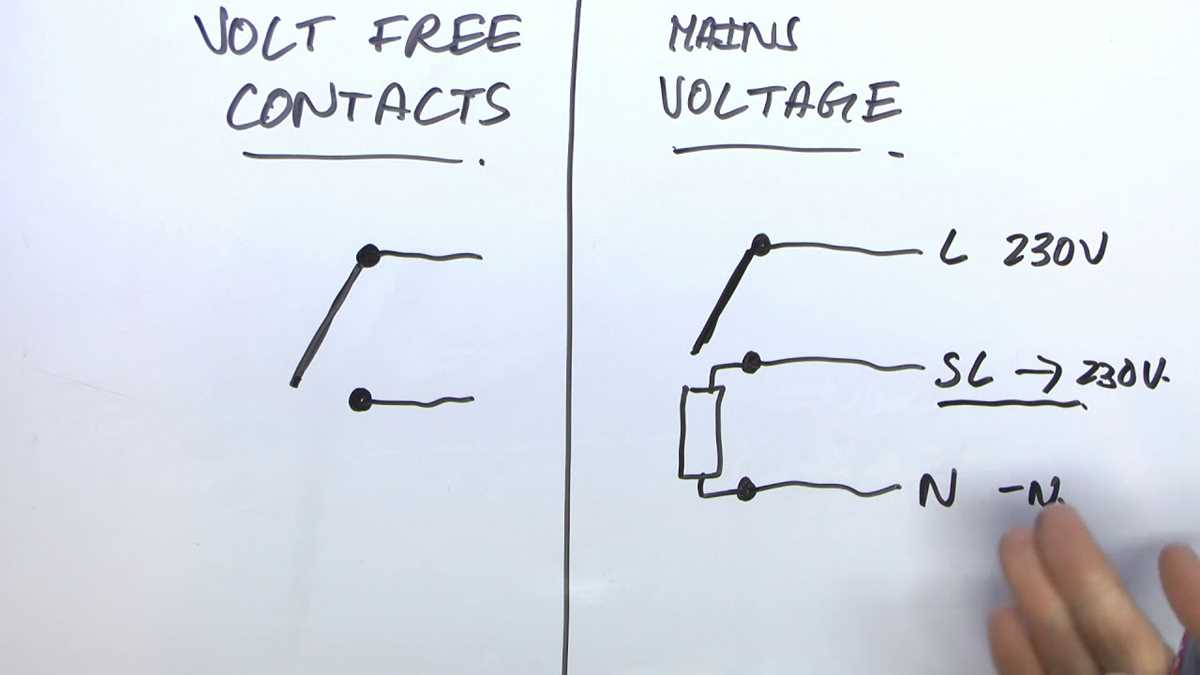

How to Identify Power Connections in Heating System Schematics
Locate the terminal block in the wiring layout–usually a row of labeled screws or push-fit connectors. Most modern units mark positions L (live), N (neutral), and E/⊕ (earth) directly on the casing or adjacent legend. Verify labels match IEC/BS standards: live must be brown, neutral blue, earth green/yellow.
Use a multimeter set to 230V AC mode to test connections without power. Probe between live and neutral terminals; readings should show ~230V under normal conditions. Cross-check live-to-earth (~230V) and neutral-to-earth (~0V) for proper polarity. Record measurements in a table:
| Terminal Pair | Expected Voltage | Typical Reading |
|---|---|---|
| L–N | 220–240V | 228V |
| L–E | 220–240V | 232V |
| N–E | 0V | 1.2V |
Trace cables back to their origin–live wires follow thick brown cores toward the fuse or main switch, neutral wires congregate at busbar junctions before looping to pumps or sensors. Earth leads route to a separate ground lug, often bolted to the metal chassis.
Inspect wire connections for signs of overheating: discolored terminals, brittle insulation, or melted plastic shrouds indicate faulty joins requiring immediate tightening or replacement. Tighten loose strands with a torque screwdriver to manufacturer specifications–typically 0.5Nm for push terminals, 1.2Nm for screw types.
Check continuity between earth and exposed metal components using a multimeter’s ohmmeter mode. Ideal resistance below 0.1Ω confirms proper bonding; higher readings suggest corroded connections or broken earth wires needing re-termination.
Follow circuit paths beyond immediate terminals–live feeds split into safety switches, thermostats, or motor capacitors. Neutral lines merge toward the main return plate, while earth wires link to external grounding rods or system-wide bonding points marked with green tape.
Label each connection with adhesive markers once verified: L1/L2 for dual-phase variants, N for neutral buses, E for earth points. Snap photos of the labeled setup for future reference during servicing or expansions.
Step-by-Step Guide to Testing Temperature Controls and Detectors in Heating Units
Before testing, isolate the power supply at the main switch. Failure to do so risks electric shock or damaging sensitive components. Locate the service panel adjacent to the heating unit–typically marked with a warning label–and flip the breaker to the OFF position. Verify isolation by attempting to power the system; no response confirms the unit is safely de-energized.
Gather Necessary Tools and Safety Equipment
- Insulated multimeter (minimum 600V rating)
- Non-contact voltage detector
- Small flathead screwdriver (for terminal access)
- Insulated gloves (rated CAT III or higher)
- Torch (for dimly lit installations)
- Reference manual for your specific model (for pin configurations)
Avoid improvising with makeshift tools–loose wires or incorrect readings can lead to false diagnostics or system faults.
Inspect the thermostat wiring first. Detach the wall-mounted temperature regulator’s cover–usually secured by one or two screws–and identify the terminals. Label each wire with masking tape before disconnecting to prevent misplacement. Common terminal markings include R (power), W (heat call), G (fan), and C (common). Use the multimeter in continuity mode to verify no breaks exist in the wiring between the thermostat and the appliance. Probe each wire at both ends; a continuous beep confirms integrity.
Testing the Temperature Sensor
Access the appliance’s internal sensor–often situated near the heat exchanger or flue passage. Disconnect its connector (typically a two-pin plug) and set the multimeter to resistance (ohms) mode. Refer to the technical specifications for the correct resistance range at room temperature (e.g., 10–15 kΩ at 20°C). Insert the probes into the sensor’s pins. A reading outside the expected range indicates a faulty sensor requiring replacement. If within range, proceed to test under heat simulation by gently warming the sensor with a hairdryer–resistance should drop as temperature rises.
Check the control board for error codes if the sensor tests correctly. Most modern heating units display fault codes via LED flashes or a digital interface. Consult the manual to decode these signals (e.g., three rapid flashes might indicate an overheating sensor). Clear any stored faults by resetting the unit–usually via a recessed button on the board–and monitor for recurrence. Persistent faults suggest a deeper issue, such as a defective control module or faulty relay.
Reconnect all components in reverse order, ensuring terminal screws are tightened to 0.5–0.7 Nm torque–over-tightening can strip threads, while loose connections cause intermittent faults. Restore power and observe the system for 10–15 minutes. Monitor the temperature regulator’s response: the appliance should ignite within 30 seconds of a heat demand. If delays occur, recheck the sensor’s placement and wiring for interference or loose connections.
Document all readings and actions taken. Record sensor resistance values, thermostat continuity results, and any error codes encountered. This log serves as a baseline for future diagnostics and helps track recurring issues. If problems persist, compare readings with the manufacturer’s troubleshooting guide or consult a licensed technician–attempting unsupervised repairs on gas-carrying components violates safety regulations in most jurisdictions.
