Use ISO/DIN 72551 or SAE J1128 schemes as a baseline–these define resistance values, conductor cross-sections, and sheathing tolerances. The European standard flags critical circuits: red for 12V ignition, black/yellow for high-current starter cables (minimum 16 mm²), blue for switched 12V accessories (maximum 2.5 mm²), and brown exclusively for chassis return. Deviate from these only when manufacturer schematics explicitly call for a regional variant, such as JASO D605 used in Japanese domestic models.
Trace paths backward: every splice point must match the printed circuit identifier–example, T3/5 on a Volkswagen harness pinpoints terminal 5 on connector T3. Label crimp ferrules with heat-shrink sleeves; 3M 311 or TE Connectivity PIDG kits prevent misalignment. Avoid combining high-impedance sensor wires (≤ 0.35 mm²) with inductive loads: a 300 mA Throttle Position Sensor signal next to a 20 A fuel pump relay can induce 60 mV ripple.

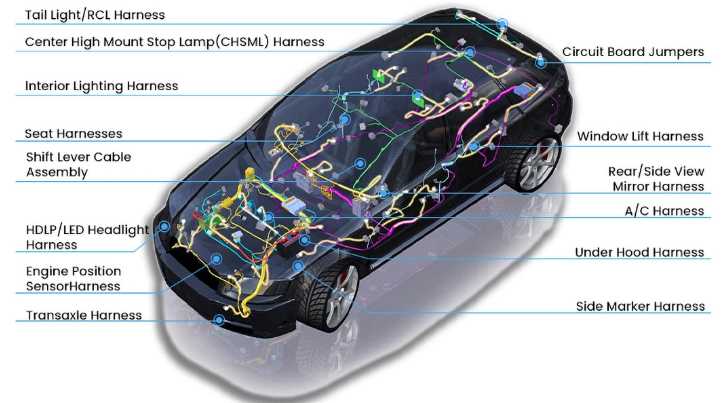

Group subcircuits in zones: Zone 1 (engine bay) uses heat-resistant XLPE insulation rated to 125 °C, while Zone 5 (interior lighting) accepts PVC with 80 °C rating. Verify continuity with a Fluke 87V before power-up: yellow/blue stripe on a Ford CAN bus must measure 60 Ω ± 5 % between pins 6 and 14 at the OBD-II port.
Secure excess length in polyethylene convolute tubing (minimum 25 mm diameter) rather than vinyl tape–vibration cycles in subframe mounts loosen adhesive bonds within 1 200 km. Use Deutsch DTM or AMP Superseal connectors for waterproof junctions; silicone grease degrades polycarbonate housings–substitute Dow Corning 44 dielectric compound.
Decoding Vehicle Electrical Schematics with Standard Hues
Always begin by identifying the ground return paths–typically black or brown stripes–before tracing power feeds. These serve as the baseline for troubleshooting shorts or open circuits. A missing ground can mimic intermittent failures, wasting hours of diagnosis on what appears as a faulty component.
Compare factory-issued schematics against aftermarket manuals; discrepancies in stripe patterns (e.g., red with blue vs. blue with red tracer) can indicate manufacturing year splits or regional variations. Toyota’s 1998-2002 Corolla, for instance, uses a solid green for the MAF sensor on US models but a green/black stripe elsewhere.
Matching Terminals to Wire Gauges
Use a micrometer to verify conductor diameter against the legend’s AWG rating. A 14-gauge wire (1.6mm core) rated for 15A will overheat if mistakenly connected to a 20A circuit, even if the insulation appears identical. Common offenders include trailer harness adapters, where mismatched gauges cause voltage drops at trailer lights.
Label splices during repairs with heat-shrink tubing marked in permanent ink. Blue for data buses, yellow for constant 12V, and striped combinations (e.g., purple/green) for ISO-specific signals. Avoid relying on tape alone–it degrades under hood temperatures, leaving future technicians guessing.
Regional Color Variations
German DIN standards diverge sharply from JIS or SAE conventions. VW’s 2003+ models use brown for power seats (a role reserved for purple in American systems); reversing these connections can fry the seat control module. Keep a laminated reference card listing OEM-specific codes–Bosch, Delphi, and Denso share no universal scheme.
For hybrid and EV systems, note high-voltage cables (orange) are segmented differently: Toyota bundles orange/black for traction batteries, while Tesla uses solid orange with foil shielding. Never assume continuity based on hue alone–use a CAT III-rated multimeter with a minimum 1000V rating before probing these circuits.

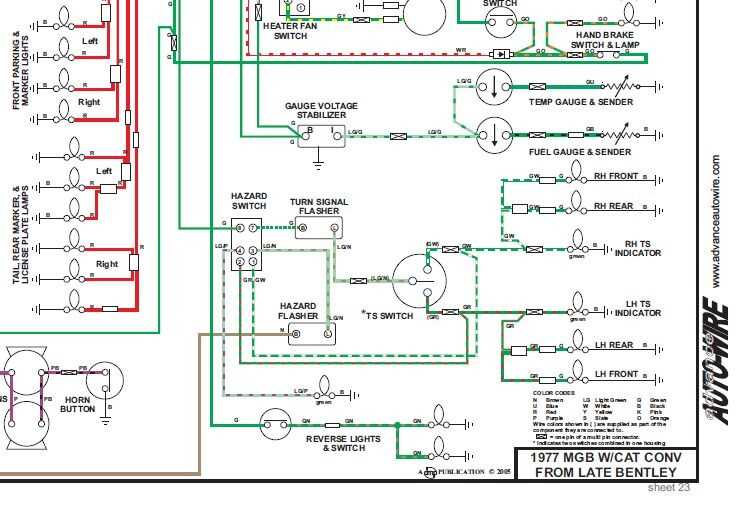

Decoding Electrical Circuit Maps in Vehicles: A Practical Guide

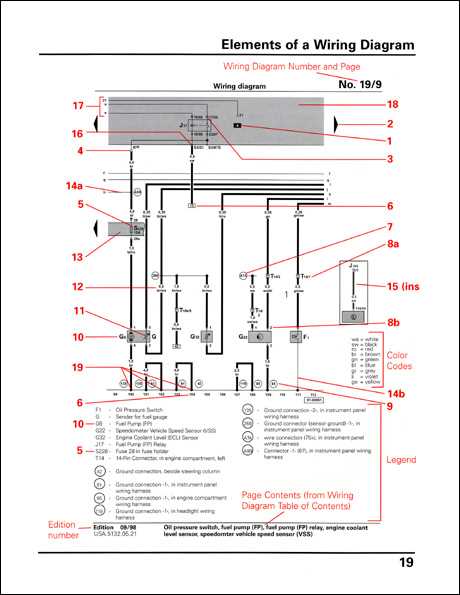

Begin by locating the legend on the schematic–this section lists every conductor’s hue alongside its function. Most manufacturers use standard abbreviations like BLK for black, RED for red, and YEL for yellow. Verify these match the actual lines on the chart before tracing circuits to avoid misinterpretation.
Solid lines represent individual paths, while striped markings indicate dual-function conductors. A white conductor with a blue stripe, for instance, might serve as both a power feed and a signal carrier. Reference the legend to confirm striped variants, as their purpose varies between makes and models.
Ground paths often use black or brown conductors but exceptions exist–some European models employ green for grounding. Check symbols: a ground is typically marked with a downward-pointing triangle or the letter “G.” Never assume; cross-check with the schematic’s note section.
Identifying Power Sources and Switches
Trace thick lines–usually red, orange, or purple–to their origin, typically the battery or fuse block. These are primary supply routes with the highest current. Follow them through relays and switches, noting how a single line branches into multiple thinner paths as it distributes voltage to components.
Switches interrupt power flow; they’re marked by a break in the line with a small arc or rectangle. A switch labeled “IG1” might control ignition-sourced voltage, while “ACC” denotes accessory mode power. Measure voltage at these points to confirm functionality if diagnosing faults.
Modules like ECUs and control units appear as rectangles with multiple incoming and outgoing lines. Each pin is numbered; match these numbers to the legend to determine wire hues entering and exiting the unit. Mistakes here lead to incorrect component replacement or wasted diagnostic time.
Handling Variations Across Brands
Toyota uses WHT for white, Nissan occasionally swaps pink and violet, and Ford often employs tan for sensor signals. Refer to brand-specific manuals or online databases like Mitchell1 or ALLDATA for precise decoding. Never rely on memory when working across different vehicles.
Twisted pairs–two conductors wrapped together–denote shielded or critical data lines like CAN bus communications. These are usually blue or green with a secondary hue. Avoid probing or splicing these; interference disrupts electronic systems.
If the schematic lacks a clear legend, probe the vehicle’s harness directly with a multimeter. Set it to continuity or resistance mode, then manually trace each conductor from connector to component. Record findings to build a custom reference for future troubleshooting.
Manufacturer-Specific Electrical Cable Norms
For accurate vehicle circuit tracing, memorize these primary manufacturer conventions:
- Toyota/Lexus: Black (B) for ground, white-red (W-R) for ignition-switched power, and blue-yellow (B-Y) for illumination circuits. Bypass generic “red for power” assumptions–Toyota employs red (R) exclusively for airbag systems.

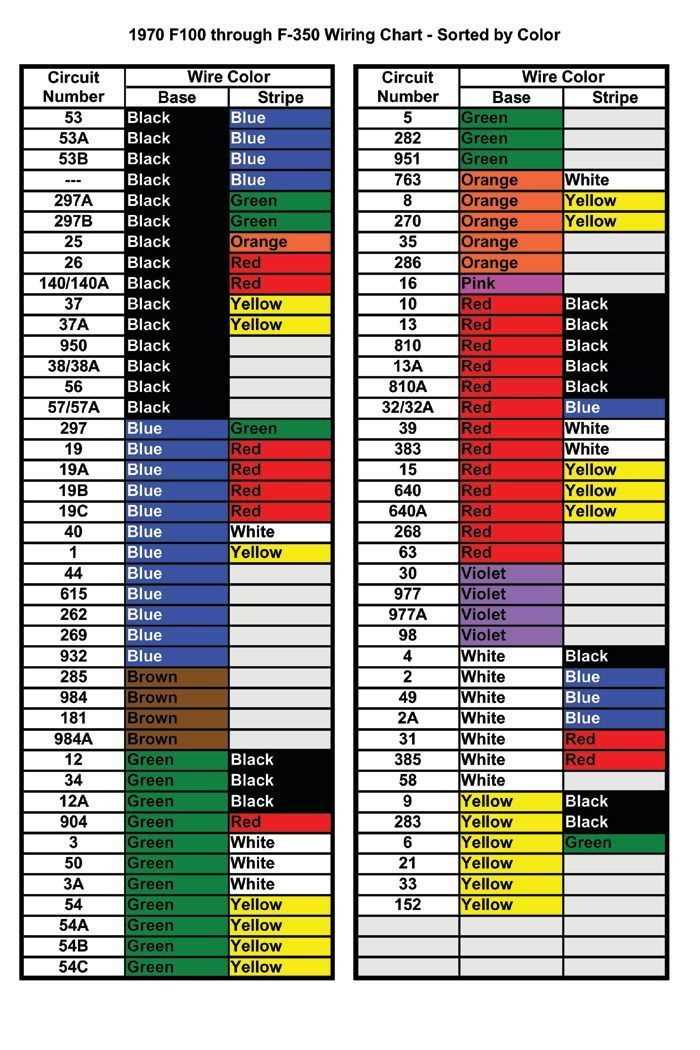

- Ford: Orange (O) denotes 12V constant, light green (LG) handles stop lamp circuits, and dark green-yellow (DG-Y) carries fuel pump signals. Note: 2008+ models introduce gray-violet (GY-V) for CAN bus high lines.
- BMW: Violet (V) is always battery positive, brown-white (BR-W) serves as chassis ground, and black-green (B-G) routes sensor signals. Pre-2000 models use yellow-black (Y-B) for ABS control.
- GM: Pink (PK) for ignition feed, dark green (DG) for A/C clutch, and tan (TN) for airbag circuits. Post-2010 Cruze models repurpose light blue (LB) for serial data.
- Volkswagen/Audi: Red-black (R-B) for 30 (battery), brown (BR) for 31 (ground), and black-red (B-R) for 15 (ignition). Golf Mk7+ uses green-red (G-R) for EV battery monitoring.
Cross-manufacturer anomalies demand verification via OEM documentation before any intervention. Hyundai/Kia split switch circuits between dark green (DG) and yellow-black (Y-B); Nissan consolidates multiple functions under single hues like solid white (W) carrying both horn and trailer brake signals in Titan models. Always probe with a multimeter–never trust insulation hues alone.
Step-by-Step Guide to Tracing Circuits Using Electrical Schematics
Begin by identifying the power source for the circuit you’re examining. Locate the battery or fuse box indication on the schematic–these are typically marked with bold lines, thicker traces, or symbols like “+” or “B+”. Trace the main feed line from this point to its first junction, noting any splices, connectors, or components along the path. Use a multimeter set to continuity mode to verify connections physically; place one probe on the live terminal and the other at subsequent points along the route to confirm uninterrupted flow. Record each measurement in a log with corresponding reference designators from the schematic to avoid revisiting tested sections.
Isolate the load–whether it’s a bulb, motor, sensor, or module–by following the secondary lines branching from the main feed. Schematics often depict loads with standardized symbols (e.g., a resistor shape for resistive elements, a coiled line for inductors, or a shaded rectangle for integrated modules). Cross-reference these symbols with the legend if unfamiliar. Check for relay-operated circuits; these are critical fault points where control signals may fail even if power is present. Test relay coils by applying 12V directly to their control pins (terminals 85 and 86) and listening for an audible click–absence indicates a defective relay or corroded contacts. For complex networks, segment the circuit into sub-loops and tackle each sequentially.
| Component | Symbol | Testing Method | Typical Voltage Drop |
|---|---|---|---|
| Switch (closed) | ⏣ | Measure across terminals | <0.1V |
| Fuse (intact) | ⎓ | Check both blades with multimeter | 0V |
| Ground connection | ⏚ | Probe chassis to terminal | <0.2V |
| Relay coil | ⊞ | Apply 12V to pins 85/86 | N/A |
Verify return paths to ground, which are often overlooked. Schematics denote grounds with downward-pointing arrows, chassis symbols, or GND labels. Corrosion at these points creates resistance, causing voltage drops that mimic component failure. Scrape paint or rust from the grounding point and reattach firmly. For circuits with multiple grounds (e.g., ECU-controlled systems), ensure each has a dedicated path–shared grounds can introduce interference. Use a voltage drop test: with the circuit active, measure between the load’s ground terminal and the battery’s negative post; readings above 0.5V indicate a compromised ground. Document every step, including failed tests and corrective actions, to streamline future diagnostics.
