Begin by isolating the main breaker controlling the climate unit before inspecting connections. Labeling each cable with masking tape prevents misalignment later–small errors here lead to voltage inconsistencies. For 13,500 BTU models, confirm the red (power) and black (ground) leads connect to a dedicated 30-amp circuit, not shared with other appliances. Oversized wiring (minimum 10 AWG) is non-negotiable; undersized cables risk overheating under sustained loads.
Trace the internal PCB to identify the capacitor’s terminals first–the smaller prong marked “common” must link to the white neutral wire, while the larger receives the compressor input. Reverse polarity here guarantees premature failure. Test continuity with a multimeter before securing terminal screws; loose connections corrode faster under vibration. For older units lacking fuse holders, splice a 15-amp inline fuse within 12 inches of the battery’s positive terminal to meet safety codes.
High-altitude installations require a voltage regulator between the thermostat and fan motor to prevent coil burnout above 6,000 feet. Replace standard 14-gauge thermostat wires with shielded 16-gauge if runs exceed 15 feet–signal degradation causes erratic cycling. Mark the low-pressure cutoff switch on the refrigerant line schematic with a yellow highlighter; bypassing it during troubleshooting voids warranties. Always ground the chassis to the RV’s frame with 6 AWG copper wire, not steel straps.
For dual-zone setups, split the compressor relay into parallel circuits, ensuring each evaporator coil draws no more than 50% rated amperage. Use a double-pole 30-amp breaker to prevent nuisance trips. Keep condensation drains clear–clogs trigger float switches unnecessarily, disrupting operation. Verify the control board’s jumpers; dip switches 3 and 4 must align with the unit’s BTU rating or cooling cycles shorten drastically.
Understanding Your RV Cooling System Electrical Layout
Check the thermostat connections first–these regulate power delivery to the unit. Locate the red wire (12V DC) and yellow wire (signal) on the control board; improper attachment here disrupts fan and compressor startup. Test continuity with a multimeter: resistance should read below 1 ohm across these terminals. Higher values indicate corroded contacts or broken strands, requiring splice or terminal replacement.
Trace the 30-amp power feed from the breaker panel. The black conductor delivers 120V AC, while the white neutral and green/bare ground must terminate at separate bus bars–no shared screws. Use 10 AWG copper wire for the run; smaller gauges overheat under sustained loads. Verify the breaker matches the unit’s label: 20-amp breakers on 13.5K BTU models trip prematurely, while undersized protection risks wire damage.
Examine the start capacitor (typically 40-60 µF for mid-size units) mounted near the compressor. Swollen or leaking casings mean failure; replace with identical voltage (370V AC) and tolerance (±5%). Connect the run capacitor (5-10 µF) in parallel with the start capacitor via a potential relay–incorrect polarity stalls compressor rotation. Label each wire before disassembly to avoid miswiring.
Common Faults and Quick Fixes
- No cooling, fan runs: Test the overload protector on the compressor. Press the reset button; if it snaps back, measure resistance across the terminals (should be 0 ohms cold). If open, replace the thermal disc.
- Intermittent shutdowns: Inspect the power cord inlet for carbon tracking (dark streaks between prongs). Sand the contacts lightly with 220-grit paper, then apply dielectric grease to prevent oxidation.
- Excessive noise: Remove the shroud and check the condenser coils. Bent fins restrict airflow; straighten with a fin comb (12-fin/inch spacing). Vacuum debris with a soft brush attachment–never use compressed air, which embeds dust deeper.
On the interior evaporator assembly, confirm the blower motor receives 120V AC at the speed selector switch. Set the meter to AC voltage mode; probe the yellow (common) and black (high speed) wires while turning the switch. Less than 110V suggests a failing switch or loose spade connector. Replace the switch if the contacts show pitting or discoloration.
Safety and Maintenance Checks
- Monthly: Tighten all terminal screws with a torque driver (12 in-lbs for #8 screws). Loose connections generate heat, degrading wire insulation over time.
- Quarterly: Clean the air filter. Wash in mild detergent, rinse, and air-dry–no oils or fabric softeners, which coat fibers and reduce efficiency.
- Annually: Lubricate the blower motor bearings. Use SAE 20 non-detergent oil; two drops per port. Avoid over-lubricating, which attracts dust and seizes the shaft.
- Before storage: Cap unused wire ends with heat-shrink tubing. Exposed copper oxidizes, increasing resistance and causing voltage drops during startup.
For replacement components, cross-reference the serial plate with the manufacturer’s parts list. A 15K BTU model uses a 1/3 HP compressor; substituting a 1/4 HP unit draws excess current, tripping the breaker under load. Always match the refrigerant charge (30 oz for R-410A systems) during recharging–overfill damages the valve plates.
How to Locate the Main Power Connections in Your RV Cooling System
Begin by removing the exterior shroud covering the rooftop climate control assembly–this typically requires a 1/4-inch nut driver or Phillips screwdriver. Access panels are secured with four to six fasteners, depending on the model year. Once removed, set the cover aside in a safe, dry location to avoid damaging the weatherproof seal.
Directly beneath the shroud, you’ll find the primary electrical interface–a black thermoplastic junction box with two heavy-gauge cables entering from the RV’s main power bus. One cable delivers 120-volt AC current (usually 10-12 AWG, marked with copper strands), while the second handles low-voltage control signals (typically 16-18 AWG, often color-coded for identification). Trace these back to their entry point into the unit’s housing to confirm they match the expected amperage ratings: 15A for standard units, 20A for high-capacity variants.
Identifying Cable Types and Terminals
| Cable Purpose | Gauge (AWG) | Typical Color Coding | Voltage Range |
|---|---|---|---|
| Main power feed | 10-12 | Black (hot), White (neutral), Green (ground) | 120V AC |
| Thermostat control | 16-18 | Red (signal), Yellow (output), Blue (input) | 12-24V DC |
| Capacitor connection | 14 | Brown (motor start), Brown/White (run) | Dual 370V |
Locate the terminal block inside the junction box–it’s a row of screw-down lugs labeled L (line), N (neutral), and G (ground) for the high-voltage side. The control-side terminals often include COM (common), COOL (cool relay), and FAN (fan relay). Avoid touching these terminals when the system is energized; residual charge can remain in capacitors for up to 10 minutes after power-down.

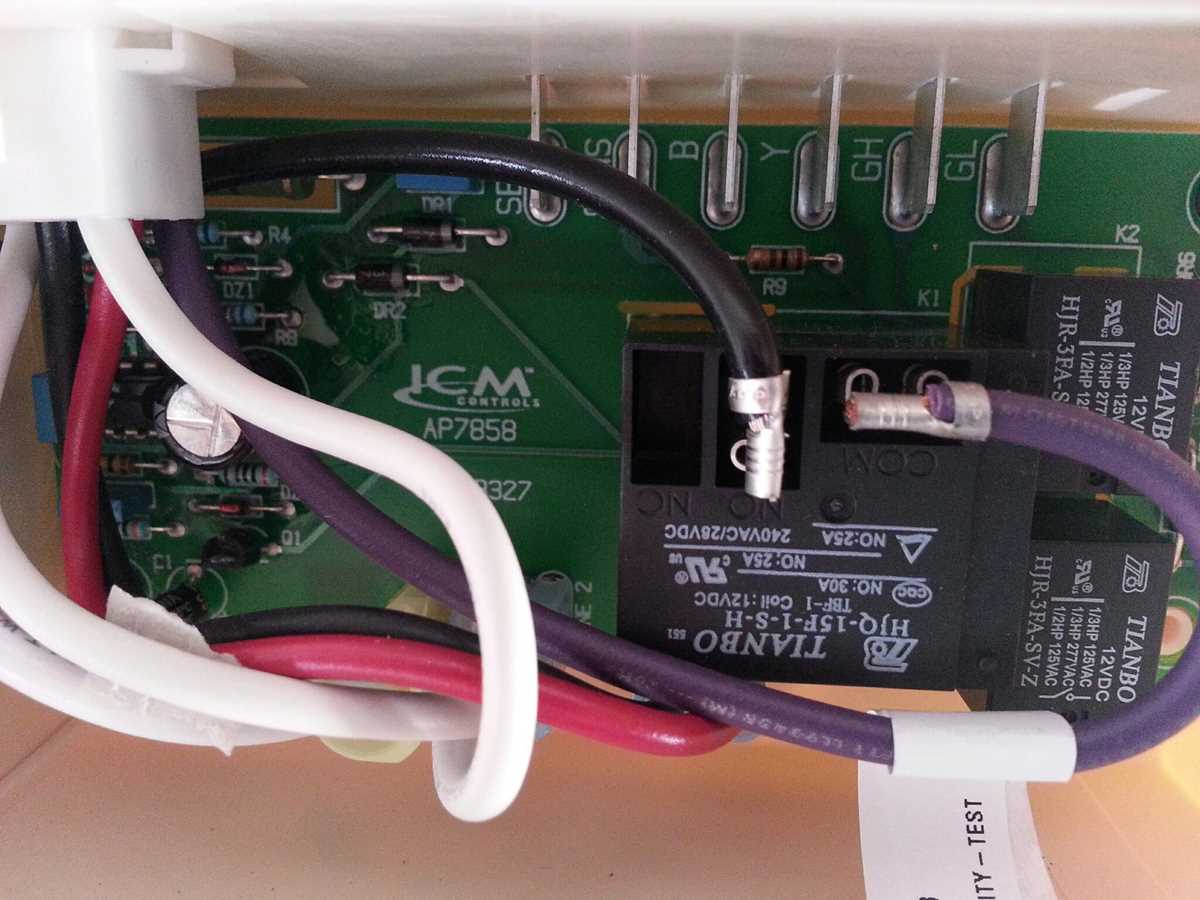

For models with integrated circuit boards, follow the thin red or yellow wiring harness from the junction box to the control module. This two-wire connection bypasses the older bimetallic thermostat setup and directly interfaces with the system’s logic controller. If corrosion is visible on any terminal, clean with a wire brush and apply dielectric grease before reassembling.
Verify the integrity of strain relief grommets where cables enter the housing–cracked or brittle grommets must be replaced to prevent moisture ingress. Tighten all terminal screws to 6-8 inch-pounds of torque; over-tightening can strip threads on older plastic housings.
Safety Checks Before Testing
Use a non-contact voltage tester to confirm the main power feed is de-energized before handling. Probe the capacitor terminals–if the unit has been recently powered, it may hold a lethal charge despite being switched off. Discharge capacitors by shorting the terminals with an insulated screwdriver or a bleed resistor (1kΩ, 2W minimum). Never assume factory-installed safety mechanisms are operational.

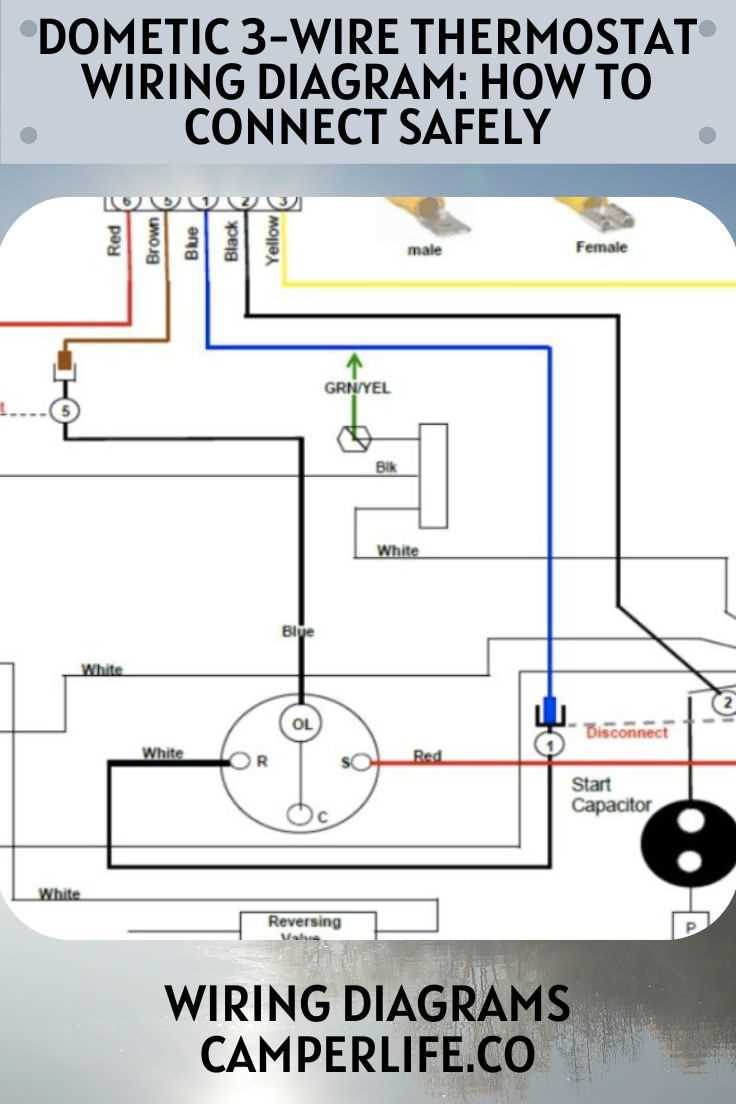

Step-by-Step Guide to Interpreting Your RV Air Conditioner Electrical Blueprint
Locate the power source symbols first–these are typically marked with L1, L2, and a grounding icon. Identify the thickest lines on the chart; they represent the main voltage supply pathways delivering 120V or 240V, depending on the model. Trace these to the compressor unit, ensuring no interruptions like fuses or relays disrupt the flow before reaching the motor. Cross-reference the amperage ratings adjacent to each component to verify compatibility with your circuit breaker’s capacity, usually 15-30 amps for standard units.
Follow the control circuit traces–thin, often red or blue lines–starting at the thermostat. These connect to the indoor fan, capacitor, and outdoor condenser fan. Check for dashed lines or arrows indicating signal direction; these show how commands travel from temperature sensors to relays, triggering cooling cycles. If the schematic includes a start capacitor, note its connection points between the compressor and run capacitor, as improper installation risks damage to the motor windings.
Inspect the safety devices: high- and low-pressure switches, thermal overload protectors, and reverse polarity indicators. These are usually drawn as small circles or triangles near compressor terminals. Confirm their normally closed (NC) or open (NO) states match operational logic–incorrect settings can prevent startup or cause premature shutdowns. Use a multimeter on continuity mode to verify each switch activates under correct pressure/temperature thresholds before finalizing connections.
