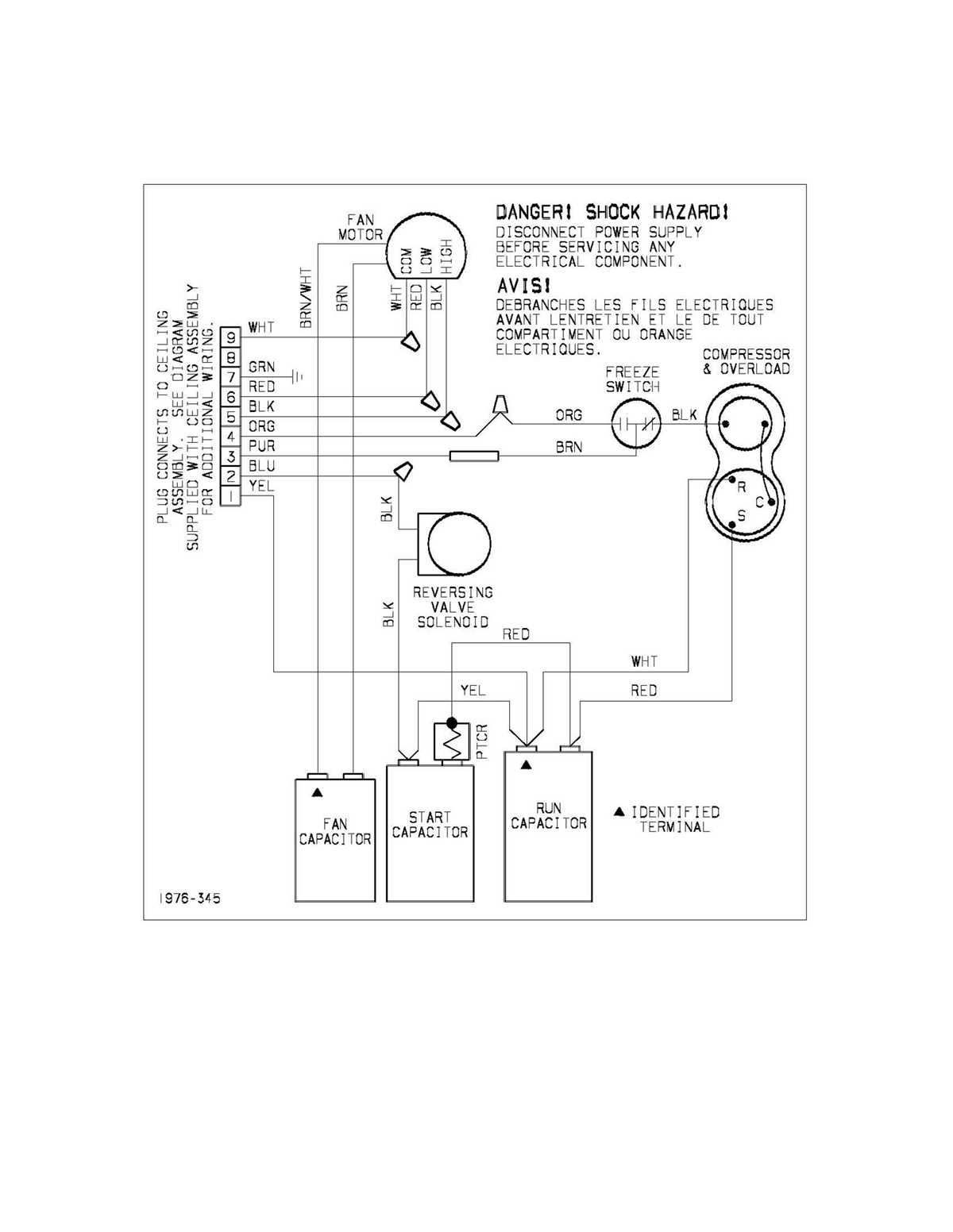

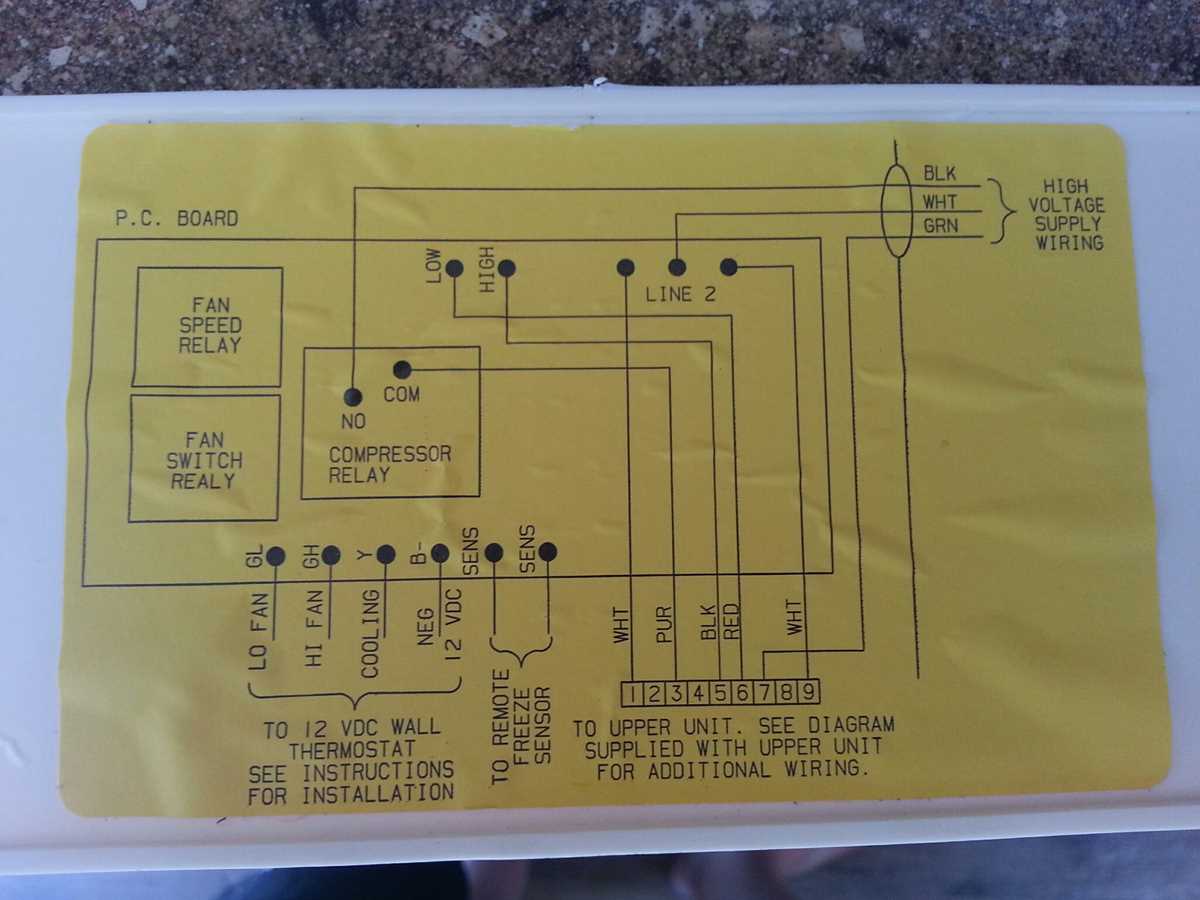

Begin by locating the main power input on the schematic–typically marked at the top left or near the breaker panel. For most RV and mobile climate systems, this connection handles 120V AC or 240V AC, depending on the model’s requirements. Verify the voltage rating against the label on the unit’s compressor or control board before proceeding. A multimeter reading should confirm 110–125V or 220–240V at this point; deviations indicate wiring faults or incorrect connections.
Trace the black (hot) wire from the power source to the compressor relay. This path often includes a thermal overload protector; if missing or bypassed, overheating risks increase significantly. The white (neutral) should run directly to the compressor, while the green or bare (ground) connects to the chassis or designated grounding terminal. Avoid splicing these wires–each must maintain continuous, untapped integrity to prevent shorts or fire hazards.

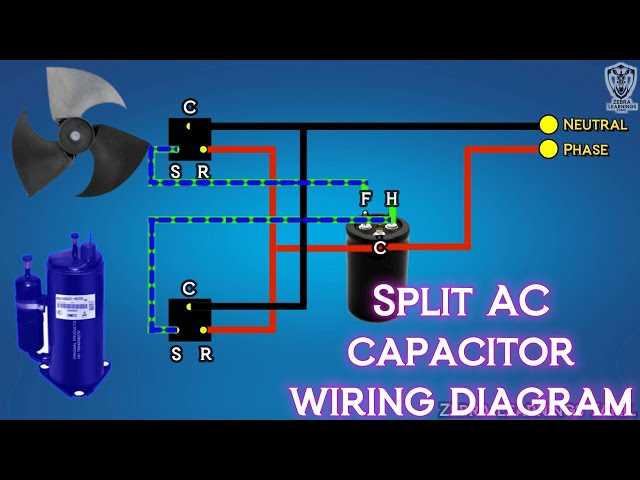

Check the capacitor connections on the schematic, usually depicted as two or three terminals labeled C, F, HERM. The dual-run capacitor (common in split systems) requires start and run wires from the compressor and fan motor, respectively. Mismatched microfarads (μF) lead to inefficient cycling; confirm the capacitor’s rating matches the manufacturer’s spec (35–80 μF typical for compressors, 5–15 μF for fans).
Identify the low-voltage control circuit–often a thin 18–22 gauge wire linking the thermostat, relay, and optional condensate pump. This loop uses 24V AC, supplied by a step-down transformer. If the system fails to start, test the transformer’s output first; a faulty relay or thermostat will exhibit 0V across its terminals when activated.
Study the defrost cycle paths, found in heat pump models. Here, a reversing valve (solenoid-actuated) switches refrigeration flow. The valve’s coil requires 120V or 24V; its common failure mode is a stuck plunger, detectable by measuring resistance (>10Ω) across the coil terminals. Replace valves showing signs of moisture ingress or burnt contacts.
Finally, compare the schematic to physical connections by labeling each wire at both ends before disconnecting anything. Use color-coded markers and photograph the setup for reference. When reassembling, torque terminal screws to 10–12 in-lbs to prevent loose connections, a primary cause of arcing.
Understanding Your Air Conditioner Electrical Schematic
Start by locating the unit’s electrical layout in the technical manual, typically found on pages 12–15. Identify the power input terminals–most models use a split-phase 230V configuration with two hot wires, one neutral, and a ground. Label each wire with colored tape before disconnecting: black for L1 (hot), red for L2 (hot), white for neutral, and green for ground. This prevents misconnections during reassembly.
Verify the compressor relay positioning–it’s usually integrated into the control board or housed in a separate module near the condenser. Trace the heavy-gauge orange or yellow wires leading from the relay to the compressor; these carry high current and require crimp connectors rated for 30A or higher. If replacing the relay, match the coil voltage (typically 24V) and contact rating (25A minimum) to avoid overheating.
Examine the capacitor connections–the start/run capacitor often has three terminals: HERM (compressor), FAN (condenser motor), and COM (common). Use a multimeter set to capacitance mode to check values; a 40–50 µF reading for the fan section and 220–250 µF for the compressor section is standard. Replace if readings deviate by more than 10%. Secure terminals with insulated spade connectors to prevent arching.

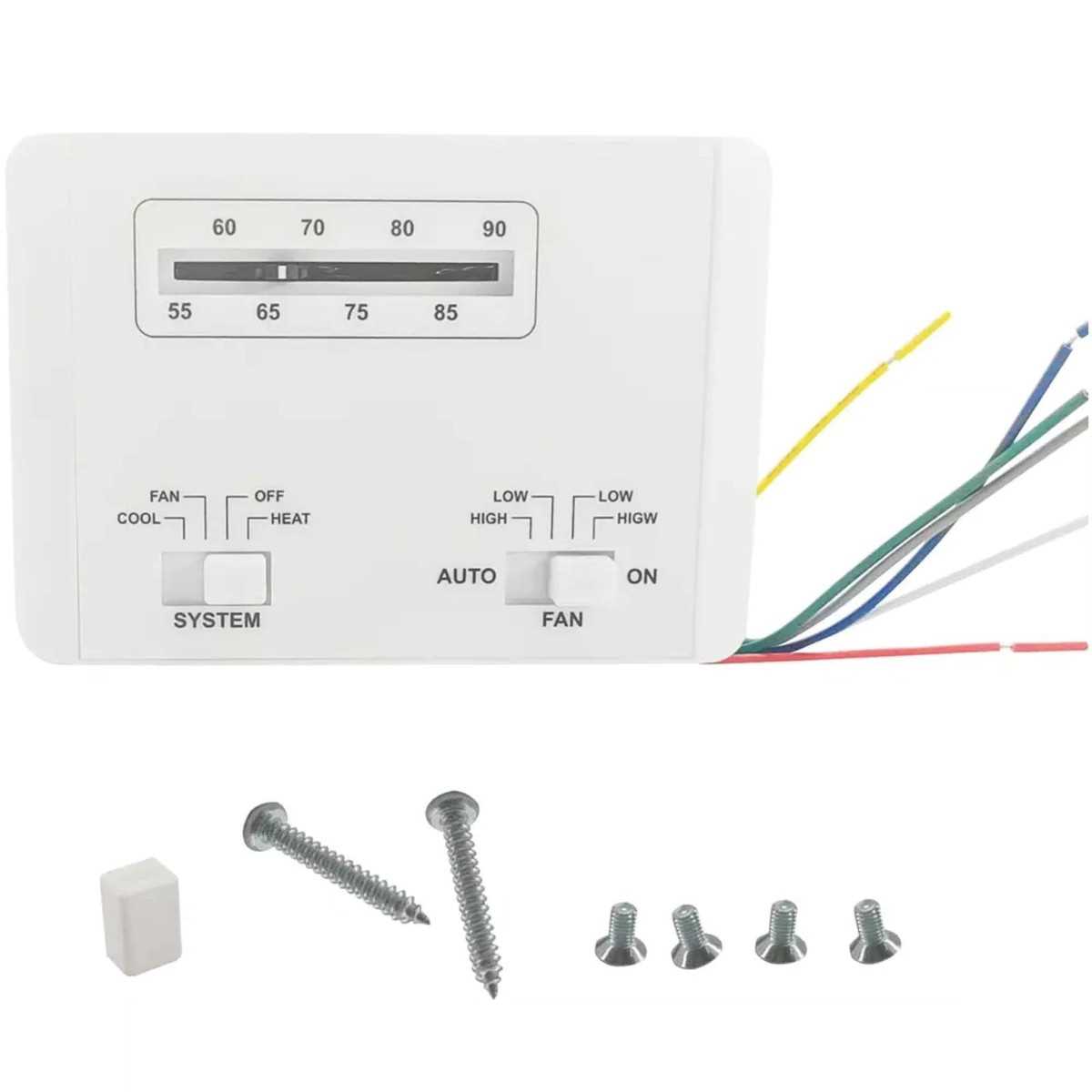

- Thermostat wiring: Connect R (red, 24V power), G (green, fan), Y (yellow, cooling), and C (blue or brown, common) terminals. Use 18-gauge thermostat wire for runs under 50 feet; upgrade to 16-gauge for longer distances.
- Transformer load: The control transformer should output 24VAC at 40VA. Test with a voltmeter; readings outside 22–26VAC indicate a failing transformer.
- Fuse protection: Locate the inline fuse near the compressor contactor. It’s typically 3–5A and glass-encased. Replace with the exact amperage–higher ratings risk damaging the compressor.
Install a hard start kit if the unit struggles to initiate under load (clicking sounds followed by shutdowns). Select a kit with a potential relay and a 140–160 µF start capacitor. Route the kit’s red and blue wires to the compressor terminals, ensuring polarity matches the schematic–reversing wires can destroy the compressor within minutes.
Test the system by setting the thermostat 10°F below ambient temperature. Monitor the amp draw at both compressor and fan terminals using a clamp meter: startup surges should not exceed 40A for 1–2 seconds, and running amps should stabilize at 75–85% of the rated breaker value (e.g., 15A for a 20A circuit). If readings exceed these thresholds, inspect for refrigerant overcharge or faulty motors.
Key Components Identified in HVAC Electrical Schematics
Start by locating the thermostat relays–these regulate power flow to the blower and compressor. Verify their connections match the color-coded labels: red (R) for power input, yellow (Y) for cooling, green (G) for fan, and white (W) for heating. Misaligned wires will trigger error codes or prevent startup. Check the run capacitor next; a swollen casing or oil leakage signals failure, requiring immediate replacement to avoid motor damage. Capacitors rated 35+ microfarads (µF) are standard for compressor circuits.
Critical Circuitry Verification
Test the contactor for pitting on its contacts–oxidation here disrupts voltage delivery to the outdoor unit. Use a multimeter set to continuity mode: zero ohms across terminals 1–3 confirms functionality. For the reversing valve solenoid, measure 24VAC at the coil terminals during heat pump mode; absence indicates a faulty control board or misrouted low-voltage path. Replace fuses rated 3–5A if blown, ensuring they match the system’s max current draw (check the unit’s data plate for specs).
Step-by-Step Guide to Interpreting Air Conditioner Circuit Color Standards
Start by locating the terminal block inside the outdoor unit–typically behind a removable panel. Identify the main power feed first: yellow with a green stripe always denotes the grounding conductor, while red and black usually represent the 240V live terminals. Verify these against the unit’s label; mismatches indicate a non-standard setup requiring caution. Use a multimeter to confirm voltage between red-black (240V), red-neutral (120V), and black-neutral (120V) before proceeding.
| Color | Function | Voltage (Typical) | Verification Method |
|---|---|---|---|
| Red | Primary Live (L1) | 240V (L1-L2), 120V (L1-N) | Measure against black/neutral |
| Black | Secondary Live (L2) | 240V (L1-L2), 120V (L2-N) | Measure against red/neutral |
| White | Neutral | 0V (N-Ground) | Measure against ground |
| Yellow/Green | Ground | 0V | Continuity test to chassis |
| Blue | Common (24V) | 24V (with red) | Measured against 24V red |
For low-voltage controls, trace the thermostat connections: a red 24V wire feeds power, while blue acts as the common return. Brown or orange wires often link to reversing valves or auxiliary heat strips–label these immediately to avoid confusion. Capacitor leads are distinct: purple (hermetic), yellow (fan motor), and black (compressor) connect to their respective components. Cross-reference these with the unit’s schematic; deviations suggest prior modifications or faults.
Check for jumper wires between dual-run capacitors–these bypass the need for separate fan/compressor capacitors in some models. Test continuity on all switches: high-pressure cutouts (usually orange/black), low-pressure cutouts (brown), and defrost thermostats (pink). Replace any wire nuts with corrosion-resistant splices if oxidation is visible. Always re-secure the access panel after verification to prevent moisture ingress.
Common Errors in Reading HVAC Electrical Blueprints
Misidentifying color-coded conductors leads to reversed polarity. Standard AC circuitry uses red for hot, black for neutral, and green for ground–swapping them trips breakers or damages components. Double-check terminal labels against the legend before connecting; a single misaligned wire can compromise compressor protection circuits. Use a multimeter to verify continuity if colors appear faded or non-standard.
Overlooking capacitor symbols creates critical system failures. Start capacitors (often oval-shaped) differ from run capacitors (round/cylindrical) in both function and microfarad ratings. Installations with mismatched values cause failed startups or overheating. Cross-reference part numbers with the schematic’s annotations–never assume visual similarity equals compatibility.
Ignoring dashed or dotted lines indicates phantom loads. On schematics, these represent control circuits or auxiliary power paths (e.g., defrost timers, fan relays). Connecting these incorrectly energizes unintended subsystems, risking short cycles. Trace each line back to its source terminal; use highlighters to separate primary and secondary loops during review.
Assuming identical models share layouts. Variations exist between 13.5 SEER and 16 SEER units, even within the same product line. Verify serial numbers against revision dates–manufacturers update internal configurations without changing external appearances. Skipping this step voids warranties if non-OEM parts are installed on incompatible boards.
