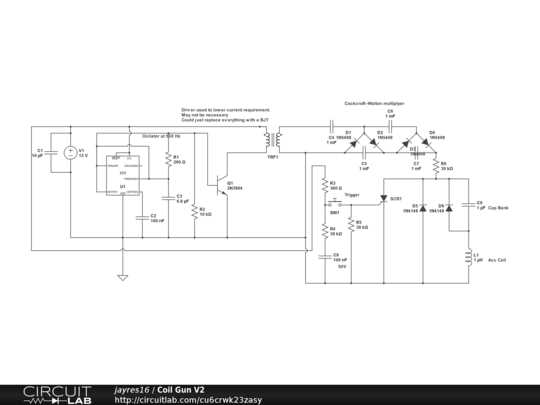

Begin with a pulsed power supply capable of delivering 400–600 volts in short bursts. A standard half-bridge driver IC, like the IR2104, ensures rapid switching of MOSFETs (e.g., IRFZ44N) without cross-conduction. For storage, use low-ESR electrolytic capacitors (2200µF, 450V) or polypropylene film types if weight constraints allow. Place a flyback diode (1N4007) across each MOSFET to clamp inductive spikes to the rail voltage.

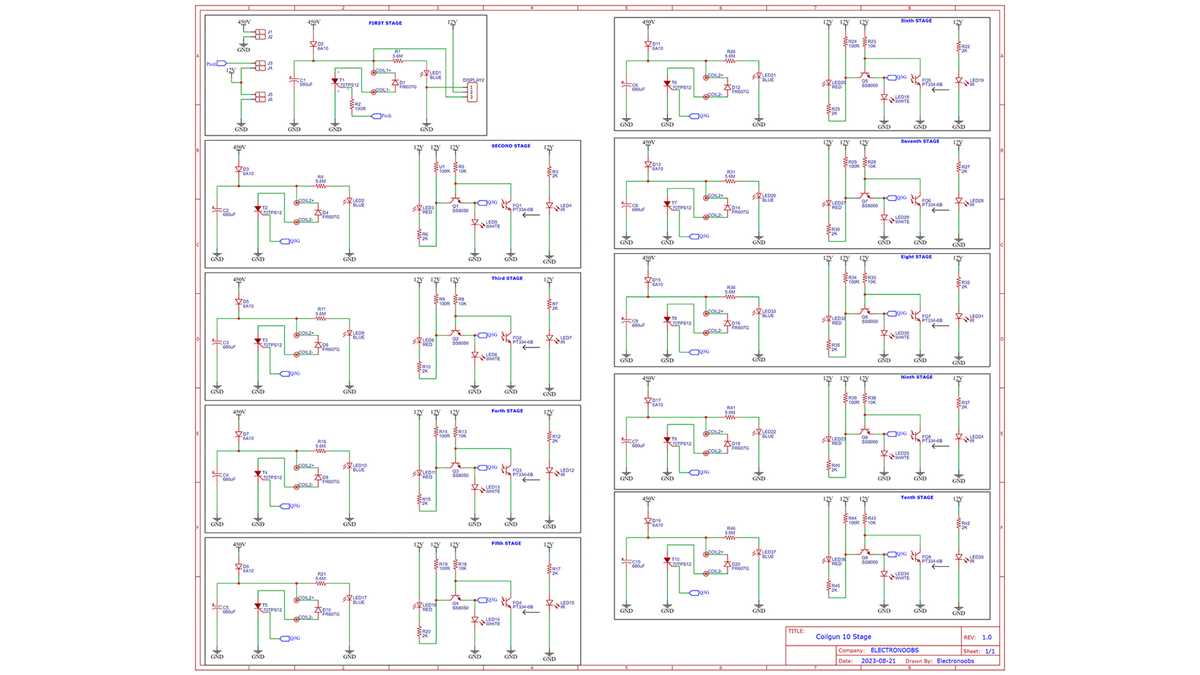

Wind accelerator loops from 18 AWG enameled copper wire around a 10–20 mm diameter non-conductive tube, spacing turns 1–2 mm apart to prevent arcing. A single stage should have 50–100 turns; additional stages require delaying circuits (555 timer or ATtiny microcontroller) to sequence pulses precisely. Use a Hall-effect sensor (AH331) to detect projectiles and trigger subsequent stages.
Ground return paths must handle peak currents of 50–150 amps. Thick wires (8 AWG) or copper braid reduce resistance; solder all joints to prevent localized heating. Measure performance with a current probe (e.g., Tektronix TCP0030) on the power rails–ideal waveforms show sharp rise times (under 10 µs) and minimal ringing.

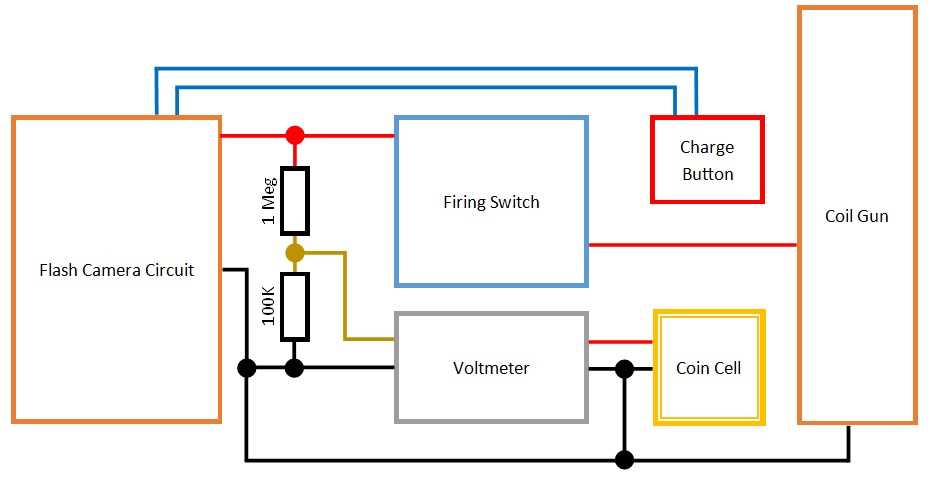

Designing a Compact Electromagnetic Launcher: Key Schematic Elements

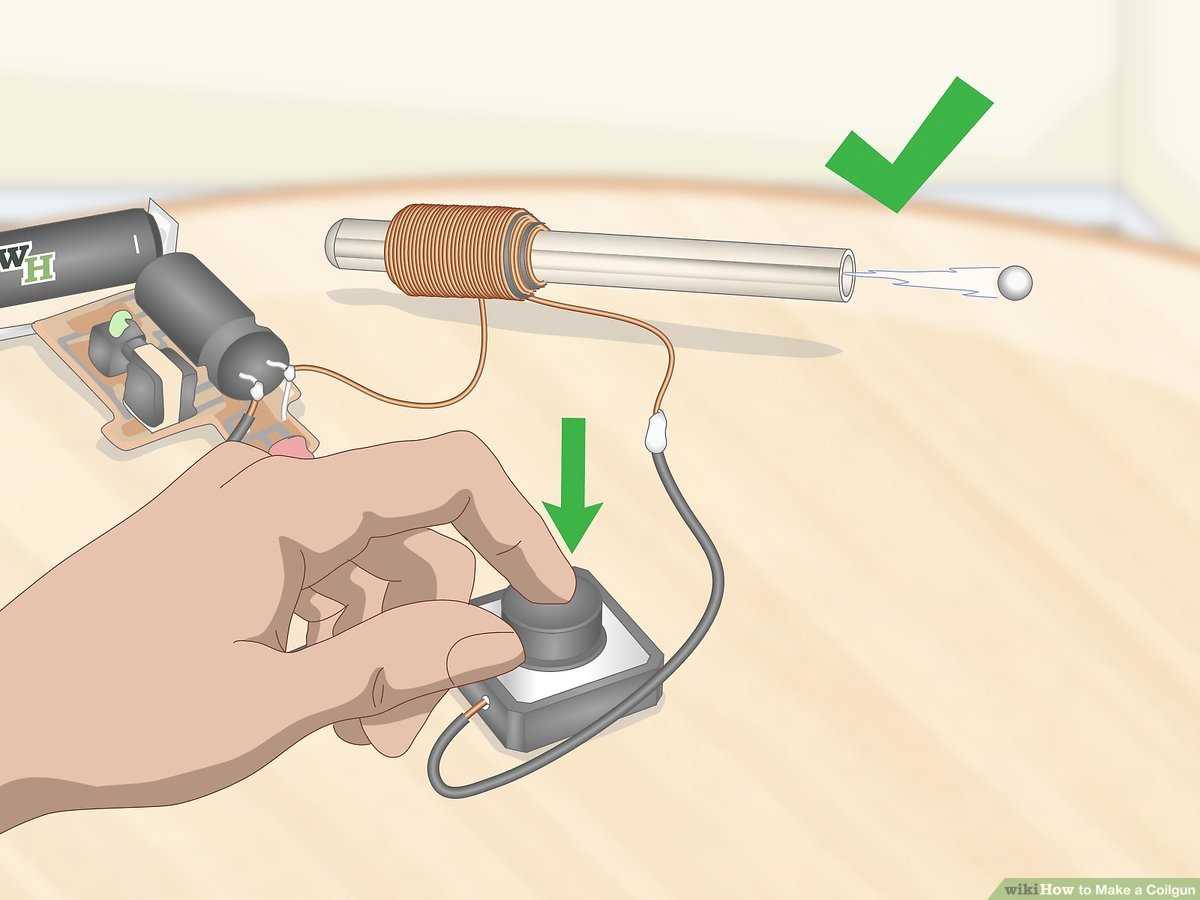

Start with a capacitor bank rated for 2200μF to 4700μF at 350V–450V. Lower values reduce acceleration force but are safer for prototyping. Place a high-current switch (IGBT or SCR) between the bank and helical winding – avoid relays, as arc suppression ruins response time. The winding should consist of 6–12 turns of 18–22 AWG magnet wire, tightly coiled around a 6–8 mm diameter non-conductive tube; looser windings demand more current for identical projectile velocity.
A single-stage setup suffices for projectiles under 3 grams. Beyond this mass, stacking two stages with staggered timing (0.8–1.2 ms delay) prevents deceleration from back-EMF. Each stage draws 80–150A peak; ensure power traces are 2 oz copper or wider. Measure resistance with a Kelvin bridge – anything above 0.1Ω introduces efficiency losses that might require active cooling on sustained firings.
| Component | Optimal Value | Tolerance Range | Failure Mode |
|---|---|---|---|
| Energy Storage | 3300μF | 2200μF–4700μF | Voltage sag <20% |
| Trigger Switch | STGW30NC60WD | IGBT/SCR ≥100A | Thermal runaway |
| Projectile Mass | 2.5 g | 1.5–4.0 g | Ballistic drop >1% |
| Tube Diameter | 7 mm | 6–9 mm | Jamming cycles >5% |
Include a flyback diode (1N5408 or equivalent) across each helical winding to clamp inductive spikes. Without it, switch destruction occurs after 3–5 cycles. For precise timing, use a 555 timer circuit or microcontroller (STM32 or ATtiny), triggering at peak projectile velocity within the first winding segment. Adjust trigger delay empirically – a 50 μs error can reduce velocity by 12–18%.
Ground loops introduce noise that degrades control signal integrity. Isolate low-voltage logic with optocouplers (PC817 or 6N137) and keep power lines physically separated. Test rigs benefit from a shunt resistor (0.01Ω, 10W) in series with the switch to measure current waveforms. A failing waveform (ringing >20% or slow rise time) indicates either poor switch selection or parasitic inductance in traces. Add snubber networks (0.1μF ceramic + 10Ω resistor) if oscillations persist.
For repeatable results, use projectiles with consistent ferromagnetic composition. Pure iron slugs outperform steel alloys (≈18% higher velocity) but wear the barrel faster. Store capacitors at 50% charge to extend lifespan – long-term degradation accelerates above 300V storage. Always discharge through high-wattage resistors before servicing; accidental recharging without load risks explosive failure of dielectric layers.
Selecting the Right Capacitor Bank for Your Electromagnetic Projectile Launcher
Start with a capacitor bank rated for at least 200-400V per stage if targeting small-scale prototypes; higher voltages reduce current demand but require thicker insulation. For medium-power setups, 1000-1600µF per discharge stage strikes a balance between impulse strength and component size. Aluminum electrolytic capacitors dominate budget builds, but their lifespan degrades under frequent high-current pulses–limit cycles to 100-200 firings before replacement.
Low-ESR (Equivalent Series Resistance) capacitors like film or ceramic types outperform electrolytics in pulse applications, enduring 10,000+ cycles with minimal voltage sag. However, their volumetric efficiency drops sharply above 500µF, making them impractical for high-energy setups. Polypropylene film capacitors in the 1-10µF range excel in rapid discharge scenarios but require parallel banks to match the energy storage of bulkier electrolytics.
Match the bank’s stored energy (E = 0.5 × C × V²) to your projectile’s mass and desired velocity. A 30g slug accelerating to 50 m/s demands approximately 37.5J per shot. For a 400V system, this translates to ~470µF; at 800V, the required capacitance drops to ~120µF. Always oversize by 20-30% to account for losses in switching and wiring.
Inrush currents during capacitor charging can exceed 50A in compact systems. Use a resistive or inductive limiter (e.g., 10-20Ω power resistor in series) to prevent transformer saturation or fuse blowing. For repeated operation, integrate a flyback diode to clamp voltage spikes, especially when switching banks with IGBTs or MOSFETs rated below 1.5× the peak charging voltage.
Voltage balancing becomes critical in series-stacked capacitor banks. Without active balancing circuits ( on individual capacitors), weaker units overcharge, risking dielectric breakdown. For passive balancing, add bleeder resistors (e.g., 1MΩ across each capacitor) to equalize leakage currents, though this reduces efficiency in high-repetition setups. Ultra-low-leakage designs () minimize energy waste but increase complexity.
Thermal management dictates reliability. Electrolytic capacitors derate 50% of rated ripple current above 85°C; film types fare better but still require spacing for convection cooling. Mount banks on aluminum heatsinks with thermal adhesive for high-duty-cycle applications, and monitor case temperatures with K-type thermocouples. Avoid stacking capacitors flush–leave 5mm gaps between units to prevent heat buildup.
Short-circuit protection is non-negotiable. Include fast-acting fuses (3-5× the expected pulse current) in series with each bank, or deploy crowbar circuits using SCRs to dump excess energy into a dummy load. For modular designs, use self-healing metallized polypropylene capacitors–they isolate internal faults by vaporizing localized electrode segments, avoiding catastrophic failure.
Optimize bank layout for minimal inductance. Arrange capacitors in a star or circular pattern with heavy-gauge busbars (10-12 AWG) to reduce loop area. For nanosecond-scale discharges, sandwich capacitors between copper plates and solder all connections–even 1nH/cm of stray inductance degrades peak current by >10%. Benchmark performance with a Rogowski coil or current shunt; aim for rise times under 5µs in single-stage systems.
Step-by-Step Assembly of the Triggering Transistor in an Electromagnetic Launcher
Identify the emitter, base, and collector terminals on the switching transistor (e.g., IRF3205, MJE13007) before soldering. Mark each lead with heat-shrink tubing or colored tape to prevent miswiring–emitter to ground, base to the control signal, collector to the projectile accelerator’s low-voltage side. Verify the transistor’s maximum ratings: 60V/110A for IRF3205 ensures compatibility with 12-48V capacitor banks without thermal failure. Use a multimeter in diode mode to confirm the base-emitter junction conducts in one direction before proceeding.
Attach a 1N4007 flyback diode across the accelerator’s windings, cathode to the positive rail, anode to the collector. This suppresses voltage spikes exceeding 1kV during field collapse, protecting the transistor’s gate oxide. Solder the base resistor (470Ω for 5V logic, 1kΩ for 12V) between the control input and transistor base, minimizing signal noise that could cause false triggering. For oscilloscope validation, probe the base-emitter junction–pulse width should match the charging delay (2-10ms) to avoid premature saturation.
Mount the transistor on a heatsink with thermal compound (e.g., Arctic MX-6) if operating above 3A continuous. Secure the assembly with M3 screws through pre-drilled holes, ensuring the heatsink doesn’t short adjacent traces. Test the setup with a 100Ω dummy load before connecting the accelerator: apply a 5V PWM signal (50Hz, 50% duty cycle) and measure collector voltage–it should toggle between supply voltage and near-zero. Replace the transistor if leakage current exceeds 100μA at 25°C, indicating degraded performance.
Integrate an optocoupler (e.g., PC817) between the microcontroller and base resistor if galvanic isolation is required. This prevents ground loops when using high-capacitance banks (>10,000μF). For rapid discharge systems, parallel two transistors (2x IRF3205) with shared base resistors–this doubles current capacity while halving switching losses. Log transient behavior with a 100MHz probe: ring duration should not exceed 2μs to avoid overheating the semiconductor die.
Calculating Solenoid Windings and Conductor Thickness for Peak Projectile Drive
Start with the formula N = (V × t) / (μ₀ × A × B), where N is the turn count, V the applied voltage, t the pulse duration, μ₀ the permeability of free space (4π×10⁻⁷ H/m), A the cross-sectional area of the bore, and B the target magnetic flux density (typically 1.5–2.5 T for Neodymium-based setups).
For a 12 V system with a 5 ms pulse targeting 2 T in a 10 mm bore (A = 7.85×10⁻⁵ m²), N ≈ 95–115 turns. Round up to 120 turns to account for resistive losses and core saturation, then verify with an LCR meter–inductance should fall between 50–150 μH for a single-stage accelerator. Exceeding 200 μH risks excessive rise time, reducing peak field strength.
Select conductor gauge based on current density. For pulsed loads, limit current density to 10–15 A/mm². A 120-turn winding with 4 A average current demands a minimum cross-section of 0.27–0.4 mm². Refer to the AWG table:
- AWG 22 (0.326 mm²): Handles 3.5–4.9 A continuous, suitable for low-energy setups.
- AWG 20 (0.518 mm²): Supports 6–8 A, ideal for mid-power drives (50–100 J).
- AWG 18 (0.823 mm²): Required for high-energy pulses (>150 J) with currents exceeding 10 A.
Magnet wire insulation (polyurethane or enamel) adds 0.05–0.1 mm thickness–account for this in layered windings to avoid bore clearance issues. Overlapping layers should stagger joints by at least 30% of the turn length to prevent eddy currents.
Core Material Impact on Turn Efficiency
Ferrite cores (e.g., 3C90) reduce required turns by 30–45% compared to air cores but saturate at 0.3–0.4 T–scale N up proportionally. Silicon steel laminations (0.35 mm thickness) handle 1.8–2.2 T but add weight; stack laminations perpendicular to the projectile path to minimize hysteresis losses. For air cores, double N and use AWG 18–20 to compensate for lower flux concentration.
Validate calculations with empirical testing. Measure projectile exit velocity (v) using a laser gate or high-speed camera (Δx/Δt), then adjust turns via ΔN ≈ N × (v_target / v_measured)². For a 5 g projectile targeting 50 m/s, exit speeds below 30 m/s indicate insufficient N–increase by 15–20% and retest. Document temperature rise (≤40°C for polyester-insulated wire) to detect resistance drift, which degrades performance at rates >0.4%/°C.
Optimize pulse timing with t_pulse ≈ L / R, where L is inductance and R the winding resistance (include contact and battery resistance). For a 120-turn AWG 20 winding (R ≈ 0.3 Ω, L ≈ 100 μH), t_pulse ≈ 330 μs. Use an IGBT or MOSFET switch rated for >2× the expected current (e.g., IXYS IXFN360N075 for 30 A) to prevent latch-up. Trigger the switch when projectile reaches 60–80% of the bore length for maximum field alignment.
- Calculate N using flux density targets and bore dimensions.
- Choose gauge based on current density limits and pulse energy.
- Adjust for core material (air/ferrite/steel) and layer clearance.
- Test exit velocity and iterate N using squared-velocity correction.
- Set t_pulse to match L/R time constant.
- Select switches rated for >2× peak current.
- Monitor temperature to avoid insulation failure.
