The GRBL v1.1-compatible expansion module requires precise wiring to function correctly with stepper drivers like the A4988 or DRV8825. Connect the STEP, DIR, and ENABLE pins of each driver to the corresponding labeled headers–failure to match these will result in erratic motor behavior or complete inactivity. Verify the +5V and GND connections; reverse polarity here will damage both the board and connected hardware.
Power input must align with your stepper drivers’ voltage requirements. The A4988 tolerates 8–35V, while the DRV8825 handles 8.2–45V. Apply voltage only after confirming the driver’s VMOT and GND are securely fastened–loose connections generate excessive heat or sporadic shutdowns. Use a multimeter to confirm voltage stability before proceeding.
Jumpers beneath each driver dictate microstepping. The default configuration (three jumpers installed) sets 1/16 stepping for the A4988. Remove jumpers to reduce resolution; adding resistors for 1/32 stepping on DRV8825 requires additional soldering. Misconfiguration here leads to missed steps or unnecessary motor whine. Refer to the silkscreen–each header triplet corresponds sequentially to X, Y, and Z axes.
Endstops connect to the S (signal), + (5V), and – (GND) headers. Mechanical switches use S and –, while optical sensors may need +. Ensure pull-up resistors are enabled in firmware–GRBL defaults to active-low endstops. Incorrect wiring triggers false triggers or ignored limits, risking axis collisions.

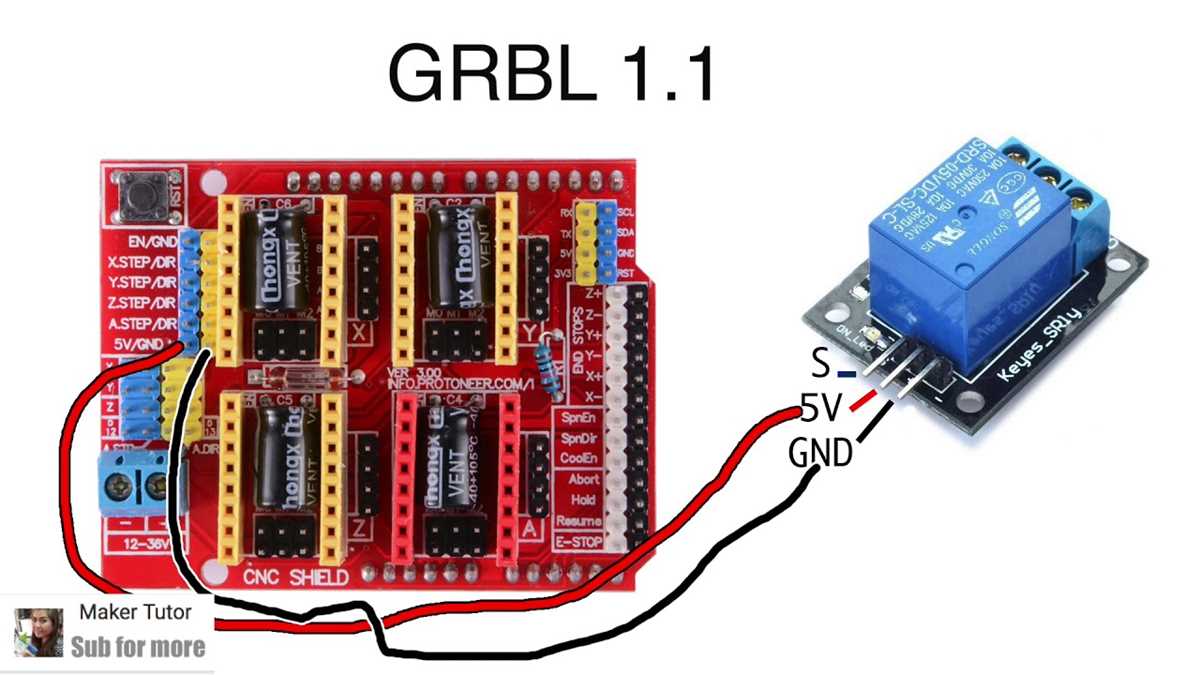

For spindle control, the PWM and DIR headers interface with a relay or solid-state module. A 10kΩ pull-down resistor on PWM prevents floating voltages if using a manual switch. Verify the firmware’s $30 setting matches your spindle’s maximum RPM–mismatched values cause incorrect speed scaling.
Thermal management is critical. A4988 drivers without heatsinks overheat at currents above 1A; DRV8825 fares slightly better but still requires cooling for sustained loads. Mount a 40mm fan directly over the drivers if operating near their limits–airflow should target the black heatsink plates, not just the PCB.
Understanding the Expansion Board V3 Wiring Layout
Begin by identifying the primary power input terminals: they are labeled VMOT and GND. Connect a 12-36V DC supply here–any deviation risks unstable stepper performance. Ensure polarity matches exactly; reversing it will damage the board immediately.
Trace the stepper driver slots DRV8825 or A4988. Each slot has 16 microstepping pins; leave them unbridged for full-step mode, or use jumpers for finer precision. Incorrect jumper placement leads to erratic motor behavior without explicit error flags.
Stepper Motor Connection Logic
The labeled headers X, Y, Z, and A follow standard bipolar wiring: connect each motor coil pair to the corresponding A1/A2 or B1/B2 pins. Swapping A1 with B1 inverts rotation; calibrate during initial testing.
Locate the enable pin row adjacent to the driver slots. A direct GND connection keeps motors energized; pulling it HIGH releases them–critical for manual tool adjustments during setup.
Auxiliary Inputs and Safety Mechanisms
The endstop headers handle mechanical switches: connect normally open contacts between SIG and GND. Arduino interprets a closed switch as triggered–false readings arise from floating SIG pins without pull-ups.
Expansion slots for limit switches or probes utilize additional GND/VCC/SIG headers. Measure continuity before connecting sensors: miswired probes crash axes into machine boundaries.
Examine the spindle enable header. It mirrors GRBL’s spindle on/off signal–use a logic-level MOSFET for PWM control of 12V or 24V loads. Omitting a flyback diode here destroys the MOSFET during power-down cycles.
Verify the reset and abort buttons before first use. Both pull the reset line low; the abort button immediately halts all motion regardless of GRBL state–the only safe method for emergent stops.

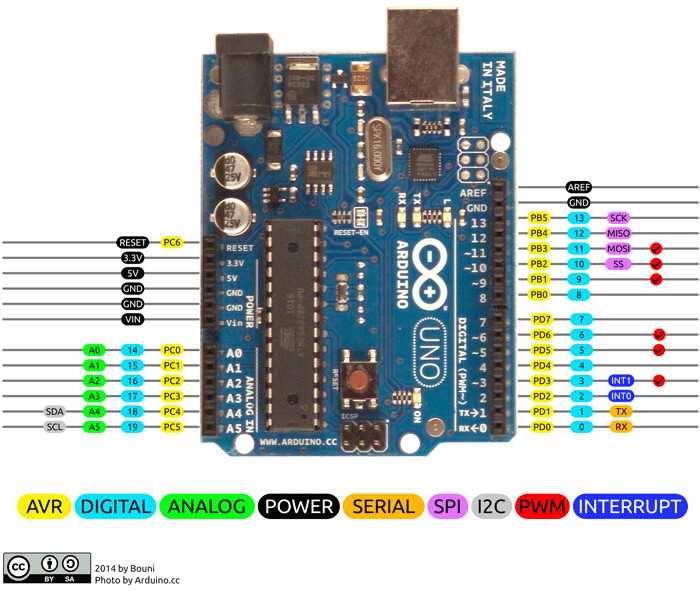

Pinout Configuration and Arduino Compatibility
Match the expansion module’s STEP/DIR pins to Arduino’s digital outputs 2–5 for basic motion control. D2-D3 typically handle the X-axis, D4-D5 the Y-axis, while Z-axis signals often default to A0-A1 or D6-D7, depending on firmware defaults like GRBL. Verify these assignments in the board’s silkscreen layer–manufacturers occasionally remap connections between revisions. For Uno or Nano boards, confirm that both devices share a common ground reference to prevent erratic stepper behavior caused by floating signals.
Enable pins (~EN) on the adapter usually connect to Arduino’s D8; pull this HIGH in setup to keep drivers active during operation. Some stepper drivers, such as A4988 or DRV8825, require microstepping configuration via on-board jumpers–align these settings with the firmware’s expected pulse resolution. For example, a 1/16 microstep setting demands 3200 pulses per revolution in GRBL, directly impacting motion precision.
Firmware-Specific Pin Assignments
Marvin-derived projects repurpose D9 as an auxiliary spindle enable, conflicting with traditional limit switch wiring. Avoid this pitfall by reassigning spindle control to A3 within configuration headers. For TinyG or g2core, consult the JSON pin description files–these override Arduino’s defaults and dictate PWM outputs on D12-D13 for auxiliary functions. Always cross-reference the firmware’s cpu_map.h or config.h before uploading; incorrect mappings risk hardware lock-ups or invalid axis behavior.
Voltage compatibility hinges on the adapter’s optocoupler isolation. Arduino’s 5V logic tolerates most stepper drivers, yet 3.3V boards like the Due necessitate level shifting for reliable signal integrity. Attach external 1kΩ pull-down resistors to limit pins to prevent false triggers from electromagnetic interference–critical in environments with high-current machinery. Leave VMOT disconnected until all motor connections are secure to avert accidental driver damage from transient spikes.
Troubleshooting Incompatible Signals
If stepper motors stutter or miss steps, verify interrupt timing priorities: Arduino’s Tone library preempts timer 2, disrupting precise pulse generation. Replace it with a hardware timer-based approach, such as TimerOne or MsTimer2, to maintain consistent pulse intervals. For projects requiring dual-axis synchronization, repurpose D10-D11 as STEP outputs–ensure corresponding firmware flags are set to prevent PWM conflicts with spindle control.
Stepper Motor Driver Connections and Wiring Guidelines
Ensure the motor driver’s logic voltage (VDD or VMOT) matches the control board’s output–typically 3.3V or 5V. Mismatches can damage drivers or cause erratic behavior. Verify voltage ratings on the driver’s datasheet before connecting.
Use shielded twisted-pair cables for motor wires (A+, A-, B+, B-) to minimize electromagnetic interference (EMI). Route these separately from logic-level signals to prevent crosstalk. Keep wire lengths under 3 meters for NEMA 17 motors; longer runs may require lower impedance cables or active shielding.
Connect step, direction, and enable pins to the controller via short, direct traces or jumper wires. Avoid daisy-chaining enable signals; each driver should have an independent line to the microcontroller. Pull-up or pull-down resistors (10kΩ) on direction pins prevent undefined states during startup.
For microstepping configurations, adhere to the driver’s recommended resistor values or dip-switch settings. Common microstep resolutions include 1/16, 1/32, or 1/64. Higher resolutions increase positional accuracy but reduce torque at higher speeds–balance these based on application needs.
Grounding and Power Distribution
Separate analog and digital grounds (GND) on the driver. Tie them together at a single point near the power supply’s negative terminal to avoid ground loops. For high-current setups, use a star grounding topology to prevent voltage drops affecting logic signals.
Motor power (VMOT) should be supplied by a dedicated power source with appropriate current capacity. For example, a NEMA 17 motor drawing 1.7A per phase requires a power supply rated for at least 3.4A, assuming no simultaneous current draw on all axes. Add a 10%–20% buffer to handle transient spikes.
Heat Management and Protection
Mount drivers on heat sinks if operating near their current limits. For example, DRV8825 drivers dissipate ~1W at 1.5A; exceeding this without cooling risks thermal shutdown. Apply thermal adhesive between the driver and heat sink for optimal heat transfer.
- Add flyback diodes (1N4007) across motor coils if the driver lacks built-in protection to suppress voltage spikes during coil de-energization.
- Use an RC snubber (10Ω resistor + 0.1µF capacitor) across the motor leads for drivers susceptible to ringing (e.g., TB6600).
- Implement current limiting via the driver’s adjustable potentiometer, setting it to the motor’s rated current (e.g., 1.2A for a 1.7A motor to account for driver efficiency).
Test connections incrementally: first logic signals, then motor power, then full functionality. Monitor motor temperature during the first hour of operation–a hand on the casing should feel warm, not hot. Overheating indicates incorrect current settings or insufficient cooling.
Power Supply Requirements and Voltage Regulation
Use a stabilized 12V DC power source with a minimum current rating of 2A for reliable operation. Cheap adapters often fail under load; prefer units with active cooling or industrial-grade components. Verify the output voltage under load–any drop below 11.5V may cause stepper motor stalls or erratic behavior. For high-torque applications, increase the current rating to 3A or more to prevent thermal shutdowns during prolonged use.
- Voltage ripple must stay under 100mV peak-to-peak–use a scope to confirm.
- Avoid powering the board from USB alone; it lacks sufficient current for drivers.
- Fuse the input with a 3A slow-blow type to protect against shorts.
- Add a 1000µF electrolytic capacitor across the power input to smooth transients.
For boards with integrated drivers, like the A4988 or DRV8825, ensure the power supply matches their absolute maximum ratings. These drivers tolerate 8–35V, but 12V strikes the best balance between torque and heat dissipation. Exceeding 24V risks thermal runaway even with heatsinks. Connect a 10kΩ resistor from the enable pin to ground to prevent floating inputs during power-up.
