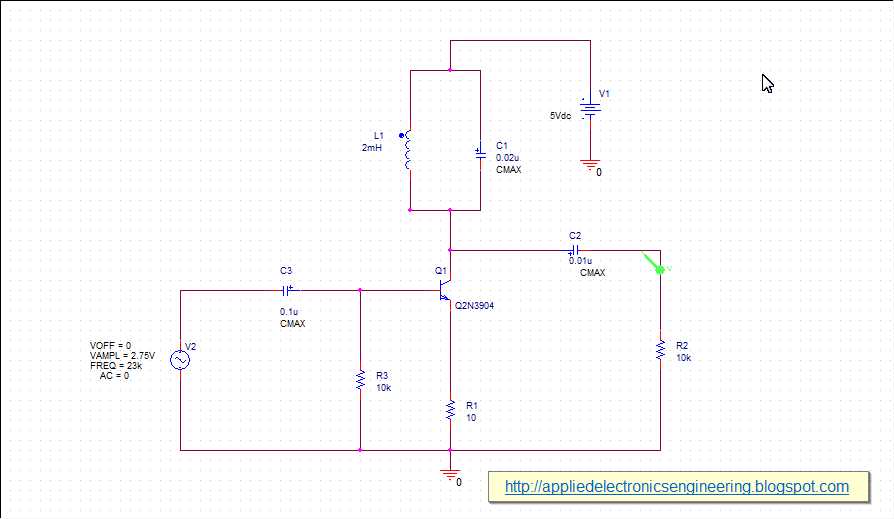

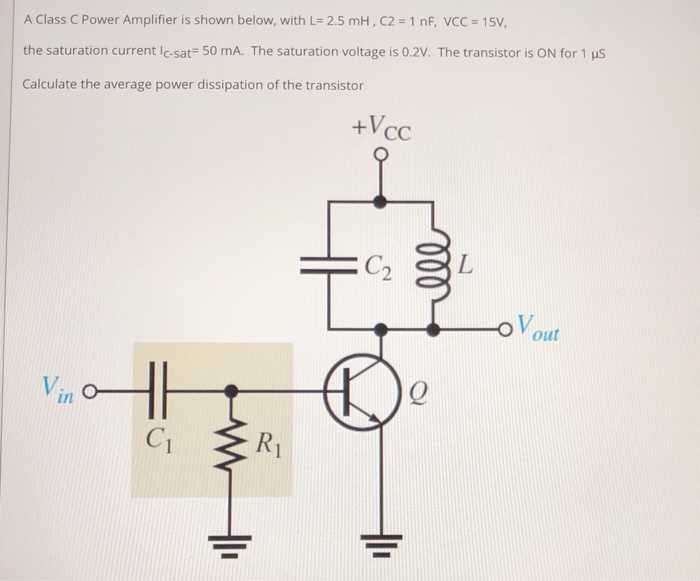

Use a single-transistor configuration for 70-80% efficiency in narrowband RF applications like transmitters or pulsed signal chains. Pair a bipolar junction transistor (2N3866 or MRF150) with a tuned collector network–typically a parallel LC circuit–to suppress harmonics while maximizing output at the desired frequency. Keep component leads short and ground connections direct to minimize parasitic losses.
Optimal biasing sets the stage: A small forward bias (0.6V–0.7V for silicon) via a resistor divider keeps conduction angles tight, typically below 90°, which cuts wasted DC power. Include a low-value emitter resistor (1–5 ohms) for stability, but avoid bypassing it unless thermal runaway is a concern. For higher frequencies (above 50 MHz), replace the resistor with a ferrite bead or inductor to reduce phase shifts.
Match load impedance precisely: For a 50-ohm system, adjust the LC network’s reactance to transform the transistor’s output capacitance (often 5–20 pF) into the correct impedance. Use a variable capacitor or trimmer for fine-tuning–start with a 1:1 ratio and tweak until power peaks without reflections (VSWR under 1.5:1). A directional coupler or spectrum analyzer helps verify output purity.
Avoid these pitfalls: Excessive supply voltage (>18V for small-signal parts) will degrade efficiency and risk thermal failure. Skip electrolytic capacitors near the transistor–parasitic inductance kills performance. Instead, use NP0/C0G ceramics or mica for stability across temperature swings. Shield the layout to prevent feedback loops from input/output coupling back into the bias network.
High-Efficiency RF Power Circuit Layout Essentials
Start with a single-transistor configuration using a bipolar junction transistor (BJT) or MOSFET optimized for 50–500 MHz operation. Bias the active device into cutoff by applying a DC voltage between 10–20% of the supply rail to the base/gate via a high-value resistor (10–100 kΩ). This ensures conduction only at signal peaks, minimizing power dissipation. For example, a 2N2222 BJT at 12V VCC requires a 15 kΩ resistor and 0.1 µF coupling capacitor to achieve a conduction angle of ~120°.
Position the output tank circuit immediately after the transistor’s collector/drain, using a parallel LC network (e.g., 100 pF capacitor + 0.22 µH inductor) tuned to the target frequency. The tank’s Q-factor should exceed 10 to suppress harmonics–calculate component values with f = 1/(2π√(LC)). Add a tapping point on the coil to match the load impedance (typically 50 Ω). For VHF designs, replace the inductor with a stripline etched on the PCB to reduce parasitic losses.
Critical Component Selection
- Input coupling capacitor: 10–100 pF (NPO ceramic) to block DC while passing RF.
- Emitter/source resistor: omit–introduces unnecessary feedback, reducing efficiency.
- RF choke: 1–10 µH (ferrite core) to isolate the tank from the power supply.
- Bypass capacitors: 0.1 µF (ceramic) + 1–10 µF (tantalum) for supply stability.
- Heat sink: Mandatory for >1W output; use TO-220 packages with thermal paste.
Test the configuration with a spectrum analyzer: harmonic distortion at 2f0 should be
Key Components of a Single-Ended RF Power Stage
Select a transistor with a breakdown voltage exceeding twice the supply rail and a current rating at least 30% above the expected peak load. For HF applications below 30 MHz, a reliable choice is the MRF300AN–its ft of 50 MHz ensures rapid collector-current fall times at 75% conduction angles without distorting the pulse envelope. Pair the transistor with a low-Q tank circuit tuned 2–3% below the operating frequency; use a 50 Ω ceramic trimpot in series with a fixed mica capacitor to absorb tuning shifts caused by thermal expansion. Keep lead inductance under 12 nH by mounting components radially on a double-sided FR-4 board with vias every 3 mm.
Drive the base via a toroidal transformer wound on FT50-43 core–12 primary turns, 4 secondary turns–terminated into a 51 Ω resistor to match the transistor input impedance at 10 W output. Add a 100 pF silver-mica capacitor across the base-emitter junction to clamp reverse-bias spikes exceeding -6 V; this preserves device lifetime when driving reactive loads. Bias the transistor with a 1N4148 diode and 10 kΩ resistor to the collector, ensuring a quiescent current below 2 mA for minimal DC offset. Include a π-network low-pass filter–two 330 pF capacitors and a 0.8 μH inductor–between the tank and 50 Ω output; this attenuates harmonic energy by >40 dB at 3× the fundamental while maintaining
Step-by-Step Assembly of a Single-Transistor RF Power Stage on a Prototyping Board
Begin by arranging the components on the breadboard to minimize signal path length. Position the transistor (e.g., 2N3904 or MRF5890) at the center, with its emitter connected to ground via a low-inductance path. Use a 0.1 µF ceramic capacitor between the base and ground to stabilize bias conditions, placed no more than 2 mm from the transistor lead to prevent oscillations.
Bias network setup: Insert a 1 kΩ resistor between the power rail (+12V) and the transistor’s base. Parallel it with a 100 pF capacitor to decouple RF from the DC supply. For the output, connect a 10 pF tuning capacitor between the collector and the load–this forms the core resonant circuit. Adjust the capacitor value (±2 pF) later during testing to match the target frequency (e.g., 10 MHz for HF applications).
Component Placement Reference
| Component | Part Value | Breadboard Row(s) | Notes |
|---|---|---|---|
| Transistor | MRF5890 | E2–E5 | Mount flat; emitter to GND rail |
| Base resistor | 1 kΩ | A1–A3 | Vertical placement |
| Bypass cap | 100 pF | A4–B4 | Directly across base resistor |
| Tuning capacitor | 10 pF | C5–D5 | Adjustable; trimmer type |
| Load coil | 4 turns, 18 AWG | F1–F5 | Air core, 6 mm diameter |
Wire the input signal through a 50 Ω termination resistor and a 1 nF coupling capacitor to the transistor base. Avoid breadboard tracks for the input–use short, direct hook-up wire (≤10 mm) to reduce parasitic capacitance. For the power supply, solder a 100 µF electrolytic capacitor at the breadboard’s power entry point, followed by a 0.1 µF ceramic capacitor in parallel to suppress noise.
Construct the output network by winding a 4-turn air-core coil (18 AWG wire, 6 mm inner diameter) and connecting it in series with the tuning capacitor. Attach an oscilloscope probe or dummy load (50 Ω resistor) to the coil’s free end–this completes the resonant tank. Power the circuit with +12V, then inject a low-level signal (0.2Vpp at 10 MHz) into the input. Monitor the output waveform; expect a half-wave rectified shape. Trim the tuning capacitor in 1 pF steps until the output peaks at the target frequency.
To confirm proper operation, measure current draw: the stage should pull ~50 mA under no-signal conditions and spike to 200–300 mA under drive. If oscillations occur, relocate the transistor’s emitter ground connection to a point closer to the power supply ground, or add a 10 Ω series resistor to the base lead. For prolonged testing, clamp a small heatsink to the transistor using thermal paste–MRF5890 dissipates ~1W at full drive.
Finalize the build by replacing the breadboard’s power rails with thick bus wire (16 AWG) to reduce resistance. Recheck all connections with a continuity tester; a single loose contact can degrade efficiency by 30%. Once validated, transfer the layout to a perfboard, keeping component orientation identical to the prototyping stage.
Optimal Transistor Selection for High-Frequency Power Stages
For RF stages operating above 50 MHz, prioritize SiGe heterojunction bipolar transistors (HBTs) like the Infineon BFP740 or NXP BFU730F. These devices deliver fT values exceeding 50 GHz, minimizing switching losses at peak output currents up to 150 mA while maintaining a collector-emitter breakdown voltage (VCEO) of 4.5 V–critical for preventing avalanche multiplication during high-Q tank circuit oscillations. Ensure junction capacitance (Ccb) remains below 0.4 pF to prevent detuning in narrowband designs; the BFP740’s 0.25 pF spec outperforms lateral DMOSFETs in this regard. Thermal resistance (RthJA) under 100 K/W is non-negotiable; the BFU730F’s 85 K/W in a SOT343 package enables continuous power dissipation up to 1.2 W without derating.
Matching Transistor Parameters to Load Impedance
LDMOSFETs such as NXP MRF300AN excel in applications requiring >20 W output at 1.2 GHz, where their 65 V drain-source breakdown combines with a ruggedized TO-247 package for >15:1 load mismatch survival. For sub-100 MHz stages, the Onsemi NXH25B120L IGBT offers a 1200 V blocking voltage, ideal for pulsed-mode transmitters with 5% duty cycles–its tail current recovery time of 50 ns reduces crossover distortion in enveloping circuits. Avoid planar MOSFETs when drain inductance exceeds 2 nH; their miller capacitance (Crss) spikes past 30 pF, forcing gate drive currents above 2 A to maintain slew rates >200 V/μs, eroding efficiency.
Tuning the Tank Circuit for Maximum Power Output
Begin by measuring the unloaded Q-factor of the coil using an impedance analyzer at the target operating frequency. Values below 150 indicate suboptimal performance; replace the coil with a thicker gauge wire or lower-loss material like Litz wire to reduce skin-effect losses. For frequencies above 10 MHz, consider air-core coils to avoid hysteresis losses inherent in ferrite cores.
Match the tank capacitor’s voltage rating to at least 1.5× the DC supply voltage to prevent dielectric breakdown under reactive voltage spikes. Use a high-Q variable capacitor in parallel with a fixed mica or porcelain capacitor to enable precise tuning while maintaining stability. Avoid ceramic capacitors above 1 MHz due to their nonlinear capacitance characteristics.
Calculate the required capacitance for resonance using the formula C = 1/(4π²f²L), where f is the target frequency and L is the coil inductance. For a 28 MHz tank with a 1.2 µH coil, the resonant capacitance should be approximately 27 pF. Adjust the variable capacitor in 1 pF increments while monitoring RF voltage across the tank with an oscilloscope to identify the peak amplitude point.
Introduce a small resistive load (e.g., 10 kΩ carbon resistor) across the tank during tuning to simulate real-world conditions. Observe the loaded Q-factor; a drop below 70% of the unloaded Q indicates excessive coupling or component losses. Re-verify resonance after each adjustment, as loading effects shift the optimal frequency slightly.
Use a network analyzer to plot the impedance phase angle at resonance. The target phase should be 0° ±2°; deviations suggest parasitic reactance from lead inductance or stray capacitance. Shorten component leads to under 5 mm and route high-current paths away from the tank to minimize EMI-induced detuning.
For push-pull configurations, ensure both halves of the tank circuit are symmetrical. Mismatches in coil turns or capacitor values create imbalance, reducing power output by up to 30%. Measure each side’s inductance and capacitance separately, aiming for less than 2% variance between them. Unequal thermal drift in components can further degrade symmetry; use matched pairs with identical temperature coefficients.
Finalize tuning by sweeping the frequency in 5 kHz steps around resonance while driving the circuit at full input power. The -3 dB bandwidth should be ≤ 2% of the center frequency for efficient operation. If the bandwidth exceeds this, increase the tank’s Q by reducing coupling or upgrading to higher-Q components. Lock the variable capacitor’s position with a non-conductive adhesive once optimal tuning is achieved.
