Begin by connecting the control switch to the power source via a fuse or circuit breaker rated for the load current. Use a 14 AWG wire for standard 120V applications, adjusting gauge for higher voltage or prolonged operation (e.g., 12 AWG for 240V systems). The switch should interrupt the live (hot) conductor, not the neutral, to comply with NEC 404.2(C). Install a flyback diode (1N4007) across the relay coil if using an inductive load to suppress voltage spikes.
For the time-based relay, select a single-pole double-throw (SPDT) or double-pole double-throw (DPDT) configuration based on whether auxiliary contacts are required. A solid-state relay (SSR) with a 0.1-second to 30-minute adjustable range offers precision; mechanical relays (e.g., Omron MY4) suit intervals above 5 seconds. Mount the relay within 3 meters of the load to minimize voltage drop, securing it to a DIN rail or panel with corrosion-resistant fasteners.
Wire the output contact in series with the load. For a 15A resistive load, use at least a 20A relay to handle inrush currents. Route wires away from high-frequency sources (e.g., VFDs) to prevent interference. Label each conductor at both ends per NEC 110.22–include voltage, function, and duration (e.g., “L1 – 120V – MOTOR – 10s HOLD”). Verify operation with a multimeter: measure coil voltage during activation (should match rated voltage) and contact continuity during the hold phase.
To extend reliability, add a snubber circuit (0.1µF capacitor + 100Ω resistor) across relay contacts handling inductive loads. For outdoor installations, seal connections with heat-shrink tubing and apply dielectric grease to terminals. Test under full load for at least 5 cycles; relays rated for 100,000 operations may degrade 50% faster if operating near maximum current. Always install a disconnect switch upstream for maintenance, sized 125% of the load current.
Electronic Switch Deactivation Period Configuration Guide
Begin by connecting the power source directly to the control module’s live terminal, ensuring a stable 12V–24V DC or 110V–240V AC supply depending on the unit’s specifications. Verify the input voltage matches the device’s rating–most industrial models tolerate ±10% fluctuation, but precision equipment may require tighter margins. Use stranded copper wire (18–14 AWG for low voltage, 12 AWG for high voltage) to minimize voltage drop over extended runs. Terminal markings typically include “L” (line), “N” (neutral, for AC), and “COM” (common); consult the datasheet to confirm, as miswiring can trigger immediate failure or fire risks.
Attach the load–motors, solvers, or relays–to the output terminals, ensuring compatibility with the module’s current rating (common ranges: 5A–30A resistive, 2A–10A inductive). For inductive loads, incorporate a flyback diode or varistor across the output to suppress voltage spikes exceeding 1.5× the supply voltage. Below is a reference for component selection based on load type:
| Load Type | Max Current | Protection Required | Wire Gauge |
|---|---|---|---|
| Resistive (Heater) | 15A | None | 14 AWG |
| Inductive (Motor) | 8A | Flyback diode (1N4007) | 12 AWG |
| Solenoid | 5A | Varistor (MOV 275V) | 16 AWG |
Set the deactivation interval using the onboard potentiometer or digital interface. Mechanical dials adjust from 0.1s to 180s, while digital models extend to 999 minutes with
Install transient voltage suppression at both input and output terminals if the system operates near high-energy equipment (e.g., VFDs, welders). A 10µF–100µF capacitor across the power input smooths fluctuations, while a gas discharge tube (GDT) rated for 1.2× the peak voltage protects against surges. Ground the metallic enclosure to a dedicated earth point with ≤1Ω resistance; failure to do so risks electrostatic damage during prolonged inactive periods. Test the configuration under full load for 24 hours to identify thermal drift or erratic disconnection cycles.
Document the configuration details–supply voltage, load type, interval settings, and protection components–for future diagnostics. Label all terminals with heat-shrink tubing or adhesive tags to prevent misidentification during maintenance. Store spare modules with factory-set intervals backed up in non-volatile memory; some models reset to default (typically 10s) after power loss, requiring manual reconfiguration. For remote monitoring, integrate a 4–20mA signal loop to track remaining inactive duration, but isolate the loop with a 1kΩ resistor to prevent interference with timing circuits.
Core Elements Needed for a Time-Based Control Assembly

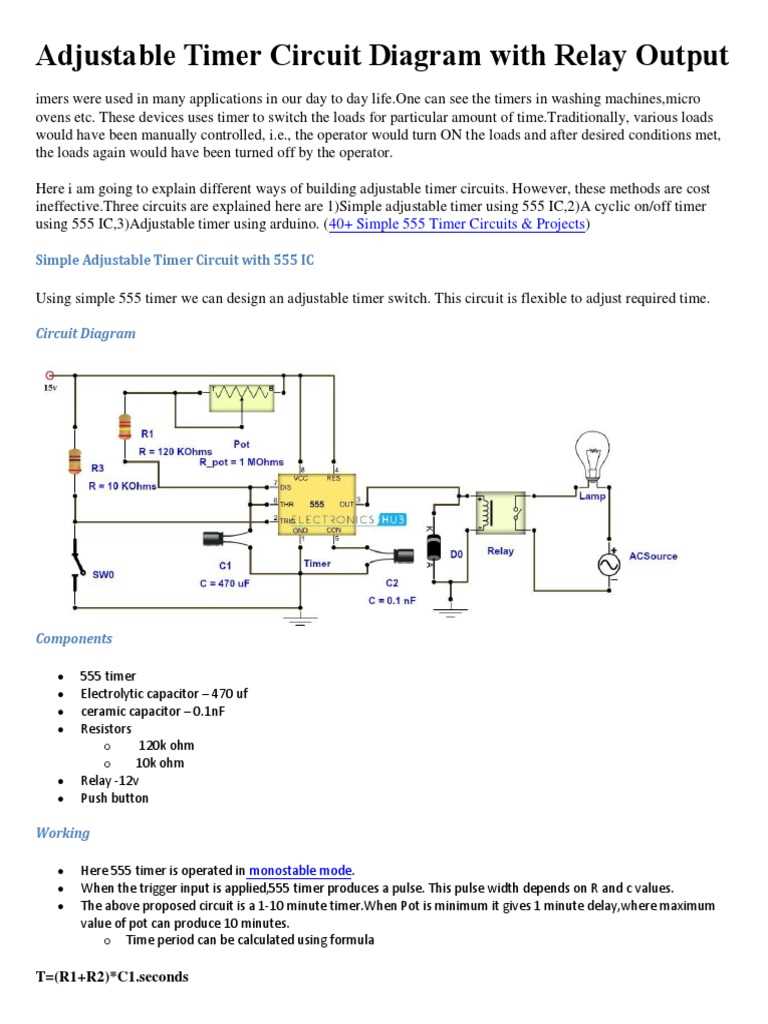

Start with a reliable monostable multivibrator, such as the NE555 or its CMOS variant TLC555. These chips provide precise temporary hold periods ranging from microseconds to hours, depending on external resistor-capacitor pairings. Pair the IC with a low-leakage capacitor–tantalum or polypropylene types with a tolerance of ±5% or better prevent drift during prolonged intervals. A 1MΩ potentiometer in series with a 47kΩ fixed resistor allows fine-tuning of the deactivation span without recalibrating the entire sequence.
For power handling, integrate a power MOSFET (e.g., IRF540N) or a solid-state relay (SSR) rated for your load’s current demand. A 1N4007 flyback diode across inductive loads like relays or solenoids prevents voltage spikes from damaging the switching device. If the setup demands isolation, opt for an optocoupler (PC817) between the logic stage and load driver to safeguard low-voltage control signals from interference.
Include a momentary pushbutton (normally open) for manual initiation, wired in parallel with a 1kΩ pull-down resistor to ensure noise immunity. For visual feedback, a low-current LED with a 1kΩ series resistor confirms the active state–place it across the load output or the IC’s output pin. When calculating component values, use the formula T = 1.1 × R × C for bipolar timers or T = R × C × ln(3) for CMOS variants, where T is the hold duration in seconds.
Step-by-Step Assembly Guide for a Relay-Controlled Post-Activation Switch
Select a relay with a 12V coil and contacts rated for at least 10A at 250VAC to ensure compatibility with most low-power appliances. Connect the power supply’s positive terminal directly to the relay’s coil input, then attach the negative terminal to a momentary push button’s common contact. Wire the button’s normally open contact back to the coil’s remaining terminal, forming a self-latching loop. Include a timing capacitor (e.g., 1000µF) in parallel with the coil to introduce the desired hold period; larger capacitors extend the interval.
Configuring the Load Path
Attach the load’s live wire to the relay’s common contact, then route the normally closed contact to the neutral line. For inductive loads like motors, place a flyback diode (1N4007) across the coil terminals, cathode to positive, to suppress voltage spikes. Verify polarity before energizing–reverse connections risk damaging the capacitor or relay. Test the setup with a low-voltage source first to confirm the switch disengages precisely when the capacitor discharges.
Fine-tune duration by adjusting capacitance; a 470µF capacitor yields ~5 seconds, while 2200µF stretches it to ~25 seconds with a 12V supply. Use a potentiometer (10kΩ) in series with the capacitor for variable intervals. Ensure all connections are soldered or secured with crimp terminals–loose contacts cause erratic behavior. For safety, enclose exposed components in a non-conductive housing, labeling terminals for future maintenance.
Integrate a fuse (2A for 12V systems) immediately after the power input to prevent overloads. For remote activation, substitute the push button with a transistor or optocoupler, triggered via logic-level signals. Record exact component values and layout in a schematic for replication; minor deviations alter performance significantly.
Key Errors to Bypass in Automated Shutdown Relay Installation
Misidentifying the power source polarity ranks as the most frequent blunder. A 12V DC relay wired backward won’t function and may trigger fuse burnout within seconds. Always verify labels: the positive terminal typically uses red insulation, while negative often appears black or white. Test leads with a multimeter before finalizing connections–transient voltage spikes can occur if polarity is reversed even momentarily.
Overlooking load current capacity guarantees premature failure. Relay contacts rated for 10A will degrade rapidly under 15A continuous draw. Consult manufacturer datasheets; derate by 20% for inductive loads like motors or solenoids. Use a clamp meter post-installation to confirm actual current draw–initial startup surges often exceed steady-state values.
Incorrect voltage selection destabilizes operation. A relay specified for 24VAC will either fail to energize on 12VDC or overheat catastrophically. Triple-check coil voltage against the supply–transformer outputs often differ from nominal ratings by ±10%. For mixed systems, implement a separate power bus to isolate coil voltage from load voltage.
Ignoring transient suppression invites noise interference. Relays controlling inductive loads without flyback diodes or RC snubbers produce voltage spikes exceeding 1,000V. Place suppression components within 10mm of relay terminals–longer leads reduce effectiveness. Monitor voltage transients with an oscilloscope during testing; ringing exceeding 30% of supply voltage indicates inadequate suppression.
Critical Connection Pitfalls
- Loose terminal screws create resistive heating. Torque terminals to 0.5Nm–excessive force cracks plastic housings, while insufficient torque causes intermittent faults. Re-tighten after 24 hours; initial settling loosens connections.
- Avoid daisy-chaining relays. Each relay reduces available voltage by ≈0.3V. Parallel connections split current unpredictably–dedicated wiring runs prevent voltage drop below operational thresholds.
- Forgetting safety disconnects during maintenance risks accidental activation. Install a lockable rotary switch upstream–momentary push-button bypasses risk human error. Clearly label disconnect points; use color-coded handles to differentiate emergency stops from operational controls.
Environmental factors degrade performance. Relays subjected to temperatures above 60°C lose 15% efficiency–mount in ventilated enclosures, away from heat-generating components. Humidity corrodes contacts; apply dielectric grease for outdoor installations. Vibration loosens internal springs–use shock-absorbing mounts if operating near machinery with >3mm displacement.
Skipping functional testing before full deployment invites cascading failures. Activate relays in sequence using a test switch–verify contact closure with a continuity tester before connecting loads. Observe timing cycles for a minimum of 12 hours; unstable intervals often indicate faulty capacitors or damaged coils. Log test results–baseline data simplifies fault diagnosis during operation.
Documentation Oversights
- Label every wire and terminal immediately post-install. Use heat-shrink tubing for permanent markings–adhesive labels peel under thermal cycling. Record wire gauge, color codes, and voltage levels in system schematics; verify against as-built conditions.
- Update documentation after modifications. A 2mm wire reroute can shift current paths enough to violate clearance requirements–annotate changes in maintenance logs with timestamps. Include before/after photographs for reference.
- Missed interdependencies between relay states create conflicts. Cross-reference control logic against PLC programs–unintentional overlaps cause simultaneous activation of competing actuators. Use simulation software to validate interlocking sequences before commissioning.
