Begin by installing the tikz-cd and circuitikz packages via your LaTeX distribution’s package manager. For TeX Live, run tlmgr install circuitikz in the terminal. MikTeX users can find these packages in the Package Manager GUI. Both tools integrate seamlessly with LaTeX’s native drawing capabilities, eliminating reliance on external editors.
Define your schematic’s base coordinates early. Use draw (0,0) to[R] (2,0) to place a resistor horizontally, scaling with unit vectors. For diagonal components, adjust angles: (0,0) to[C,l=$C_1$,*-*] (3,2) draws a capacitor with label $C_1$ at a 45° slope. Predefined shapes like transistors, op-amps, and logic gates reduce manual adjustments–reference circuitikz documentation for node labels and orientations.
Customize line weights and styles for clarity. Thicker traces (ctikzset{bipoles/thickness=2}) emphasize power rails, while dashed lines (dash pattern=on 2pt off 2pt) denote hidden connections. Use draw[color=red] to highlight critical paths, ensuring debugging visibility. For multi-page schematics, split diagrams into begin{tikzpicture}[scale=0.8] environments and compile with standalone class for cropped outputs.
Annotate components directly during placement. draw (0,0) to[Tnpn,n=npn1] (2,0) node[right]{2N2222} labels a transistor without post-processing. For pin numbers, append l_=E, l^=B to specify emitter/base. Save time with global settings: ctikzset{resistors/zigs=5} standardizes resistor zigzag counts across all instances.
Generate clean legends with legend environments. Place
ode[draw,fill=white] at (x,y) {Vtextsubscript{CC}};graphicx package to embed diagrams in technical reports without DPI degradation.

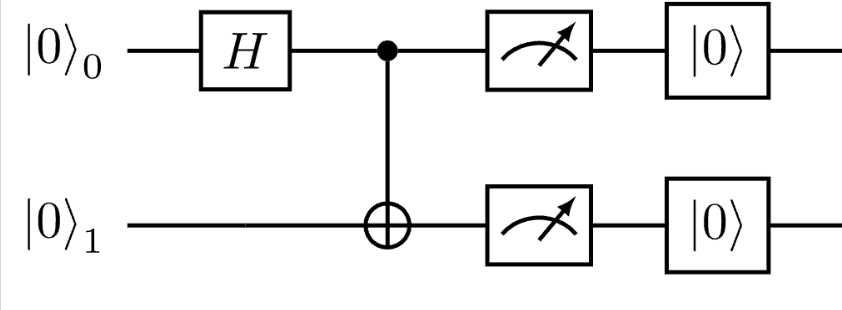

Creating Technical Schematics with LaTeX Tools
Start by loading the circuitikz package in your LaTeX document preamble–it’s the most flexible option for electrical and logical layouts. Unlike pstricks, it works seamlessly with pdflatex, eliminating compatibility headaches. Add ckage[american, european, siunitx]{circuitikz} to access region-specific symbols and integrated unit formatting.

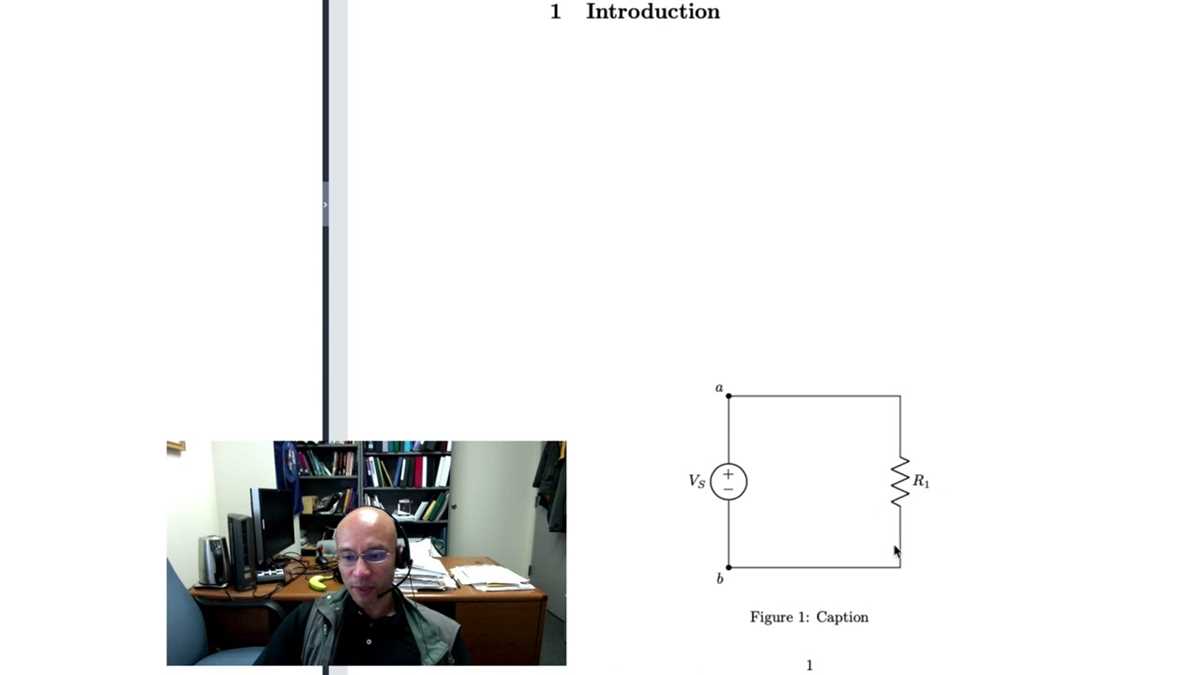

Use draw commands to define schematic pathways. For resistors, employ (0,0) to[R, l=$R_1$] (2,0), where to[R] inserts the symbol, l= labels it, and coordinates set placement. Avoid manual line breaks; let circuitikz handle spacing with bipoles/length=1cm in the preamble for consistent scaling.
Ground nodes require (1,0) node[ground]{}, where node[ground] automatically aligns the symbol. For power rails, replace ground with vcc or vee. Labels can be rotated using above, rotate=45 directly in the node options, ensuring clean readability without manual tweaking.
siunitx integration allows precise unit formatting within schematics. Add ctikzset{bipoles/resistor/label/scale=0.8} to shrink labels proportionally, and use l=SI{10}{kiloohm} for automatic unit conversion and spacing. For capacitors, to[C, l=SI{100}{ achieves the same effect.
anofarad}]
Advanced Symbol Customization
Modify default symbols by redefining styles. Use ctikzset{resistors/scale=0.7, capacitors/scale=0.8} to adjust component sizes globally. For custom shapes, create new styles with tikzset{myinductor/.style={inductors/coils=4}}, then apply via to[L, myinductor]. This avoids manual scaling of each instance.
Multi-gate logic requires explicit node definition. For an AND gate: (0,0) node[and port, number inputs=3]{}, where number inputs adjusts pin count. Position labels with node[above]{$Y$} after the semicolon. Bundle related gates using scopes (begin{scope}[shift={(2,1)}]) to maintain relative positioning.
Export schematics as standalone PDFs for reuse. Compile with documentclass[border=3pt]{standalone} to eliminate margins, then embed using includegraphics{schematic.pdf} in larger documents. For version control, store source files in a dedicated directory–changes propagate automatically when recompiled.
Selecting an Optimal Typesetting Toolkit for Electrical Schematics
For precise technical illustrations, the circuitikz package remains unmatched. Built atop TikZ, it offers direct integration with drawing primitives while providing pre-configured components like resistors, capacitors, and transistors. Avoid manually constructing nodes–circuitikz simplifies placement with coordinate-based syntax or relative positioning via ++ operators.
Key advantages include:
- Native support for polarities, ground symbols, and bipolar junction elements
- Customizable line weights and terminal lengths through package options
- Compatibility with both American and European style symbols via
americanoreuropeanpresets
Alternatives like pst-circ cater to users requiring PostScript compatibility, though it demands additional compilation steps via latex→dvips→ps2pdf. For lightweight needs, TikZ alone suffices but lacks dedicated schematic macros, requiring individual node definitions for each symbol.
When scaling complexity, circuitikz handles multi-page projects efficiently. Use ctikzset to apply global settings, then override locally with command options. Example:
- Define global resistor width:
ctikzset{resistors/width=0.7} - Override for specific instances:
draw (0,0) to[R, american, width=1.2] (2,0)
For teams collaborating across editors, circuitikz exports cleanly to PDF while preserving vector quality. Avoid raster-based tools–resolution degradation occurs during zooming or print production. Validate symbol accuracy against ANSI/IEEE standards before final typesetting to prevent misinterpretation.
Critical pitfalls to sidestep:
- Mixing incompatible packages–
circuitikzandpst-circconflict when loaded together - Neglecting package documentation’s examples–demonstrations for rotary switches or logic gates accelerate implementation
- Ignoring layering–use
pgfdeclarelayerto organize components systematically
Sketching Fundamental Electronic Components
Use the draw command with precise coordinate pairs to position resistors, capacitors, and inductors. For resistors, apply the american resistor style from the circuitikz package: draw (0,0) to[R=$R_1$] (2,0);. Ensure uniform scaling (0.8 default) by setting ctikzset{bipoles/length=0.8cm} globally to maintain consistency across symbols. Avoid angular distortions by limiting rotations to 90° increments (e.g., to[R, rotate=90]).
Capacitors require distinct polarities for electrolytic types. Define them with to[C, l_=C] for standard varieties and to[eC, l_=C] for polarized versions. For inductors, use to[L=$L_1$], but modify stroke weight for clarity: ctikzset{inductors/thickness=0.5}. Below are default dimensions and recommended adjustments:
| Symbol | Default Length (cm) | Stroke Weight | Recommended Scaling |
|---|---|---|---|
| Resistor | 0.8 | 0.4 | 0.7–1.0 |
| Capacitor | 0.7 | 0.4 | 0.6–0.9 (polarized: +0.1) |
| Inductor | 1.0 | 0.3 | 0.9–1.2 |
Anchor labels directly above symbols using l_= for left-side annotations or l= for right-side placement. For inline notations, prepend a space: l_=text{tiny{10,k$Omega$}}. To prevent label collisions in dense schematics, offset them with to[R, n=3, l_=$R_1$], where n represents the node distance factor. For multi-line labels, employ shortstack: l_=shortstack{$C_1$\ tiny{10,$mu$F}}}.
Customize symbol styles via tikzset. Resistors can adopt a rectangular form with ctikzset{resistors/zigs=0}, while inductors gain a tighter coil spacing with ctikzset{inductors/coils=4}. For high-voltage capacitors, append , voltage/american label distance=1pt to include polarity markings. Preserve readability by capping symbol thickness at 0.6 for A4 schematics and 0.5 for letter-sized layouts.
Building Advanced Electrical Layouts with Mixed Configurations
Start by isolating each branch of a parallel grouping on your schematic. Label nodes clearly–use alphanumeric tags like VA, VB–to track voltage drops before combining paths. Calculate total resistance for parallel branches with the formula 1/Rtotal = 1/R1 + 1/R2 + ... + 1/Rn; this simplifies nested groupings. Avoid relying on visual spacing alone–explicit nodal notation prevents errors when paths cross or loop back.
Layering Series Paths for Precision
Anchor a ground reference at a single point–multiple grounds in a single layout cause simulation mismatches. For series chains, sum resistances directly: Rtotal = R1 + R2. Add a current arrow next to each resistor in series; this clarifies assumed direction during troubleshooting. If switching between AC and DC sources, mark polarity at both ends of every series link to avoid ambiguity.
Segment complex paths into sub-blocks, each enclosed in dashed rectangles. Name blocks like “Amplifier Stage 1” or “Regulator Loop” using text{} inside tikz nodes. Connect sub-blocks with labeled ports; use short dashed lines for hidden feedback loops. Tools like circuitikz support american or european resistor symbols–pick one standard and apply it uniformly.
Insert bypass capacitors (10–100 nF) at every IC power pin, drawn vertically next to the pin. Label values in engineering notation: 100n, 22p. For multi-layer boards, stack capacitors directly atop vias without intermediate traces. Use thick lines (0.8pt) for power rails, thin (0.3pt) for signal paths, and dotted for ground planes.
Validate every branch with Kirchhoff’s laws before finalizing: sum voltages around loops and currents at nodes. Export netlists in SPICE format by tagging each element with .model statements. If adding potentiometers, specify taper (linear or log) and wiper position relative to endpoints.
