Start with a basic battery-and-bulb setup to introduce core concepts. A single AA battery (1.5V) connected to a small bulb (2.2V) with insulated copper wires (22-gauge) demonstrates a complete loop in under five minutes. Use alligator clips for quick, secure connections–this prevents loose wires from disrupting the experiment. Label each component (power source, conductive path, load) on a whiteboard to reinforce terminology immediately.
Draw the schematic parallel to the physical build, not afterward. Use standard symbols: a long line (positive) and short line (negative) for the battery, a circle with an X for the bulb, and straight lines for wires. Avoid diagonal placements–keep all lines horizontal or vertical for clarity. Pre-cut cardstock templates (battery: 10mm × 30mm, bulb: Ø15mm) let students trace symbols directly onto paper, ensuring consistent proportions.
Test each build with a multimeter set to DC voltage (2V range). Have learners measure the circuit before and after adding a switch (use a paperclip bridging two thumbtacks). Record results: an open switch reads 0.0V; closed, ~1.4V (accounting for internal resistance). This data dispels the misconception that current “disappears”–it’s merely interrupted.
Challenge students to modify the circuit using household items: a pencil graphite path (sharpen both ends), aluminum foil (double-layered for durability), or a lemon battery (zinc nail + copper penny). Compare voltage outputs–foil circuits yield ~1.3V; lemon, ~0.6V. Debrief why: electrolyte presence, conductor cross-section, and contact quality all affect performance.
Store components in compartmentalized boxes (10cm × 15cm, 6 sections). Sort by function: power sources (batteries), conductors (wires/foil), loads (bulbs/buzzers), controllers (switches/pushbuttons). Label each section in both words and symbols. This system cuts setup time by 40% and reduces lost parts.
How to Teach Simple Electrical Schematics to Primary Students
Start with batteries, bulbs, and wires–label each component clearly. Use thick black lines for wires and break symbols into basic shapes: a circle with a cross for bulbs, a long rectangle for cells. Keep symbols uniform: 1 cm diameter circles, 3 cm rectangles. Avoid curved lines; straight connections prevent confusion. Have students trace paths with their fingers before drawing to reinforce closed-loops.
Limit schematics to three parts per session: one power source, one output (like a buzzer or LED), and one switch. Use coloured pencils–red for positive lines, black for negative–to train students to identify polarity without relying on labels. Provide stencils for first attempts; traceable templates reduce errors and build confidence. Test every sketch by asking: “Does this path let electricity flow?”
Gather everyday objects (torch, doorbell) and challenge students to sketch the internal wiring from observation. Compare real switches–rockers, toggles, buttons–to their symbols. Introduce a single example of a short circuit: a wire directly across a battery, then discuss why the battery heats up–linking abstract drawings to tangible outcomes strengthens retention.
Key Symbols in Primary School Electrical Schematics
Use a straight line for wires–always horizontal or vertical, never diagonal–to show connections clearly. A cell (single power source) has a long line for the positive end and a shorter, thicker line for the negative. Batteries stack these symbols: two or more cells side by side, separated by a gap.
Common Components and Their Markings

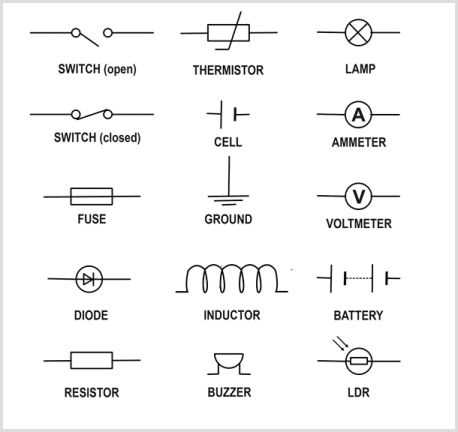

Lamps appear as a circle crossed by an X or loop. Switches are a break in the line: an open gap for “off,” a straight line for “on.” Resistors look like a zigzag or rectangle; motors have a large M inside a circle. Buzzers and bells use a half-circle with a dot inside.
Label each symbol directly on the schematic–letters like L for lamp, S for switch, B for battery–so children can match the drawing to real parts without guessing. Keep symbols consistent: if two lamps share identical power sources, draw their loops the same size. Cross wires with a small dot at the intersection; missing dots mean no connection.
How to Sketch a Basic Electrical Loop Step-by-Step

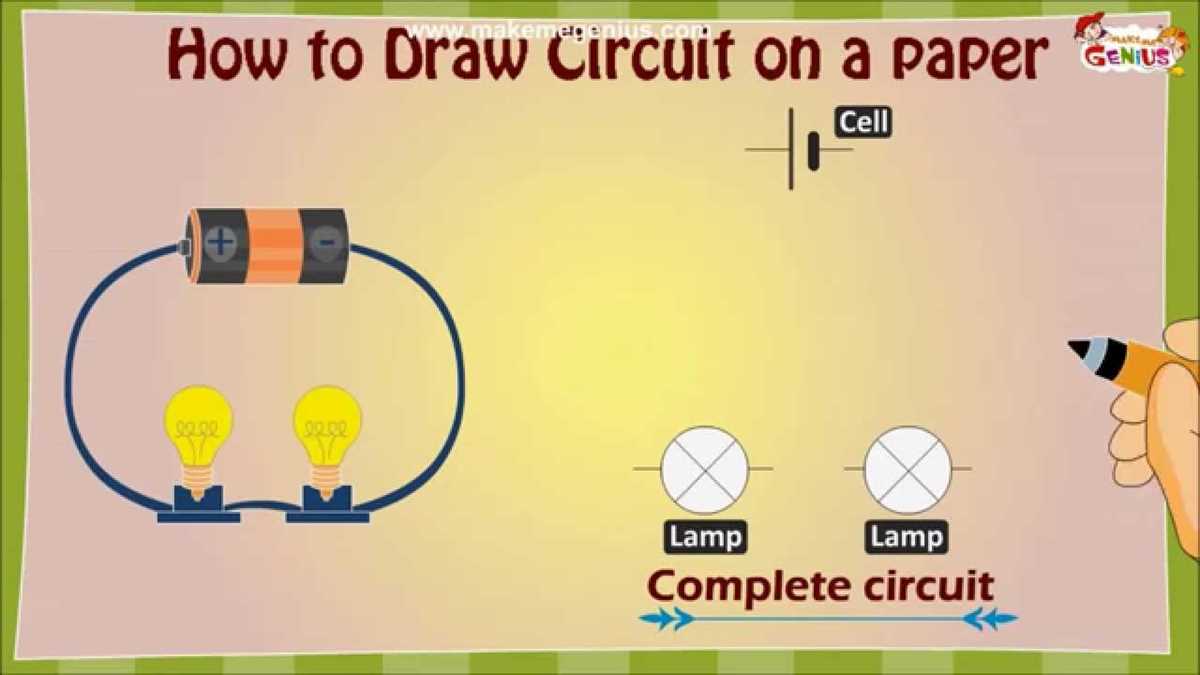

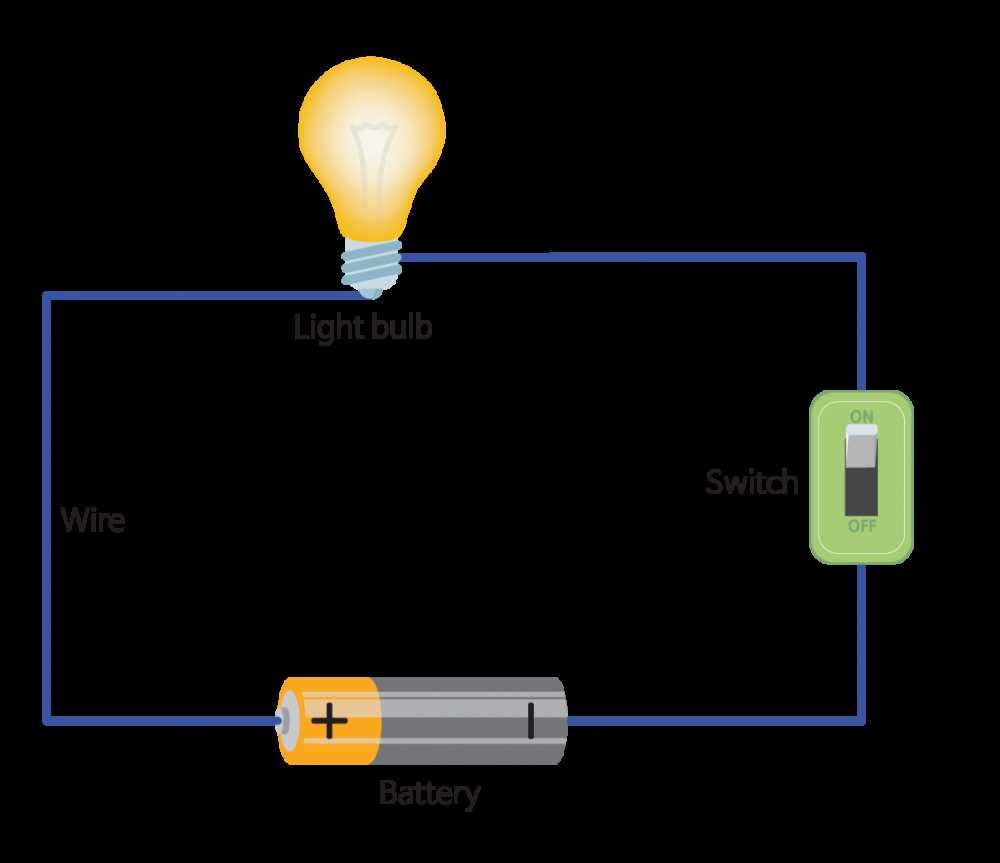

Gather the components: a battery, one bulb, and a switch. Arrange them in a straight line on paper or a whiteboard to visualize the flow path before drawing.
Draw a straight horizontal line near the top of your page. This will serve as the main power line carrying current from the battery’s positive terminal.
Place a small rectangle at the left end of the line to represent the battery. Label the shorter side as “+” and the longer side as “–” to show polarity.
Add a zigzag symbol 2 cm to the right of the battery to depict the bulb. Ensure the zigzag touches the power line–gaps disrupt the flow.
Insert a simple break in the line 4 cm to the right of the bulb, then draw two small circles at the gap’s ends to act as switch terminals. Connect one circle to the power line; the other should dangle slightly below until closed.
| Symbol | Component | Spacing (cm) |
|---|---|---|
| Rectangle | Battery | 0 |
| Zigzag | Bulb | 2 |
| Gap + circles | Switch | 4 |
Complete the loop by extending a second straight line from the switch’s lower terminal back to the battery’s negative side; currents follow closed paths.
Trace the entire route with a colored pencil to confirm continuity. Check that every component shares the same unbroken path–parallel branches require separate loops.
Label each symbol with its function: “Cell,” “Lamp,” and “On/Off.” Short descriptors prevent confusion later during physical assembly.
Frequent Errors in Simple Electrical Setups and Fixes
Connecting wires improperly ranks as the most common error. Loose connections cause intermittent failures or no current flow. Strip insulation precisely–about 1 cm–to expose bare wire, twist strands tightly, and secure under terminal screws. Test each joint by gently tugging; if it slips, redo it. Avoid bending wires sharply; this weakens the strands and increases resistance.
- Ensure the power source matches the component ratings–9V batteries for motors, 1.5V cells for LEDs.
- Check polarities: LEDs and transistors fail instantly if reversed.
- Use multimeter continuity mode to verify paths before applying power.
Overcrowding components on a breadboard creates bridging errors. Place switches, resistors, and bulbs with at least one empty row between them. Label wires with tape to track paths during troubleshooting. Misaligned rows short adjacent pins; double-check alignment before inserting parts. Heavy components, like motors, may dislodge neighbouring connectors–mount them off-board if needed.
Skipping resistance calculations leads to burnt components. An LED without a resistor draws excessive current. Calculate using Ohm’s Law: (V_source – V_LED) / desired current (mA). For a 3V source and 20mA LED, the resistor should be (3 – 2) / 0.02 = 50Ω. Round up to the nearest standard value (e.g., 56Ω) to ensure safety. Always test resistors with a multimeter–their bands are notoriously misread.
- Never assume batteries are fully charged–measure voltage before use.
- Start with a single loop; adding branches complicates debugging.
- Disconnect power before adjusting anything to prevent short circuits.
- Use alligator clips for temporary connections, not bare wire ends.
- Store spare parts in labelled containers to avoid mix-ups.
How to Check Your Electrical Setup with a Power Source and Conductors
Attach one end of a conductor to the positive terminal of a 1.5V AA battery and the other end to the input of your schematic. Connect a second conductor from the output of the setup to the battery’s negative terminal. Watch for these signs to confirm it works: a light-emitting component glows, a motor spins, or a buzzer sounds. If nothing happens, reverse the conductor connections–some components only work in one direction. For setups with multiple paths, use a multimeter set to 2V DC: place probes on the conductor ends; a reading close to 1.5V means current flows.
- Inspect conductors for breaks or fraying–replace damaged ones.
- Check battery voltage with a multimeter if the setup fails; a weak battery won’t power components.
- Test switches by toggling them on/off–conductors should complete the path when closed.
- Add a resistor (e.g., 220Ω) before sensitive components like LEDs to prevent burnout.
- For series connections, ensure all parts align end-to-end–one break stops the entire flow.
- For parallel paths, confirm each branch connects independently to the power source.
