Start by selecting an ATmega328P-based development board for prototyping–its 16 MHz clock, 32 KB flash memory, and 14 digital I/O pins cover 90% of beginner projects. Use Fritzing or KiCad for layout visualization, as both support breadboard views and PCB design without manual tracing. Connect power rails directly to the 5V and GND pins; avoid relying on the USB port for sustained loads beyond 500 mA.
For signal routing, keep high-frequency traces under 50 mm when working with sensors like ultrasonic HC-SR04 or SPI devices. Use 0.1 µF decoupling capacitors between VCC and GND for each IC, placed within 2 mm of the component–this prevents noise-induced resets in PWM-driven actuators. Label every node with silk-screen annotations on PCBs; handwritten notes on perfboard fail at scale.
Test each segment with a logic analyzer or serial monitor at 9600 baud before combining modules. For I2C buses, add 4.7 kΩ pull-up resistors on SDA/SCL lines–omitting them causes intermittent failures in devices like BMP180. Power LEDs through 220 Ω resistors; direct connection burns out indicators in under 10 seconds.
Use PWM pins 3, 5, 6, 9, 10, or 11 for analog output needs–other pins lack timer hardware for clean frequency modulation. For parallel tasks, implement non-blocking code using millis() instead of delay(); blocking loops stall interrupts and crash during serial communication.
Secure all connections with soldered joints or screw terminals rated for 6A–breadboard springs loosen under vibration, causing silent errors in motor drivers like L298N. Document every wire’s gauge and function; 22 AWG handles 7A, but thinner wires overheat in continuous-load scenarios like solenoid valves.
Building a Practical Schematic for Microcontroller Projects
Begin by selecting a power supply that matches your microcontroller’s voltage requirements–5V for most AVR-based boards, 3.3V for ESP32 or ARM variants. Use a regulated source like an LM7805 for 5V or AMS1117 for 3.3V to prevent voltage spikes. Ensure the ground (GND) connections form a single star topology to minimize noise, especially when integrating sensors or high-current components. For stability, add a 10µF electrolytic capacitor between the power input and ground, and a 0.1µF ceramic capacitor near each IC’s power pins.
When wiring pushbuttons or switches, connect one terminal to the microcontroller’s input pin and the other to either VCC or GND, depending on whether you prefer pull-up or pull-down configuration. Enable the internal pull-up resistor in code to simplify wiring–set the pin mode to INPUT_PULLUP instead of INPUT. For analog signals, route the sensor output directly to ADC pins (A0–A5 on Uno), ensuring no other components share the same trace to avoid cross-talk. Keep digital communication lines (I2C, SPI) under 20cm; beyond that, add 33Ω series resistors to prevent signal degradation.
Key Component Placement Guidelines
| Component | Placement | Critical Notes |
|---|---|---|
| Voltage regulator | Close to power input | Avoid thermal overheating; add heatsink if >50mA |
| Crystal oscillator | Within 2cm of MCU | Use 22pF load capacitors; keep traces short |
| Decoupling capacitors | Adjacent to IC power pins | 0.1µF for logic, 1µF for power rails |
| FETs/MOSFETs | Away from analog inputs | Use flyback diode for inductive loads |

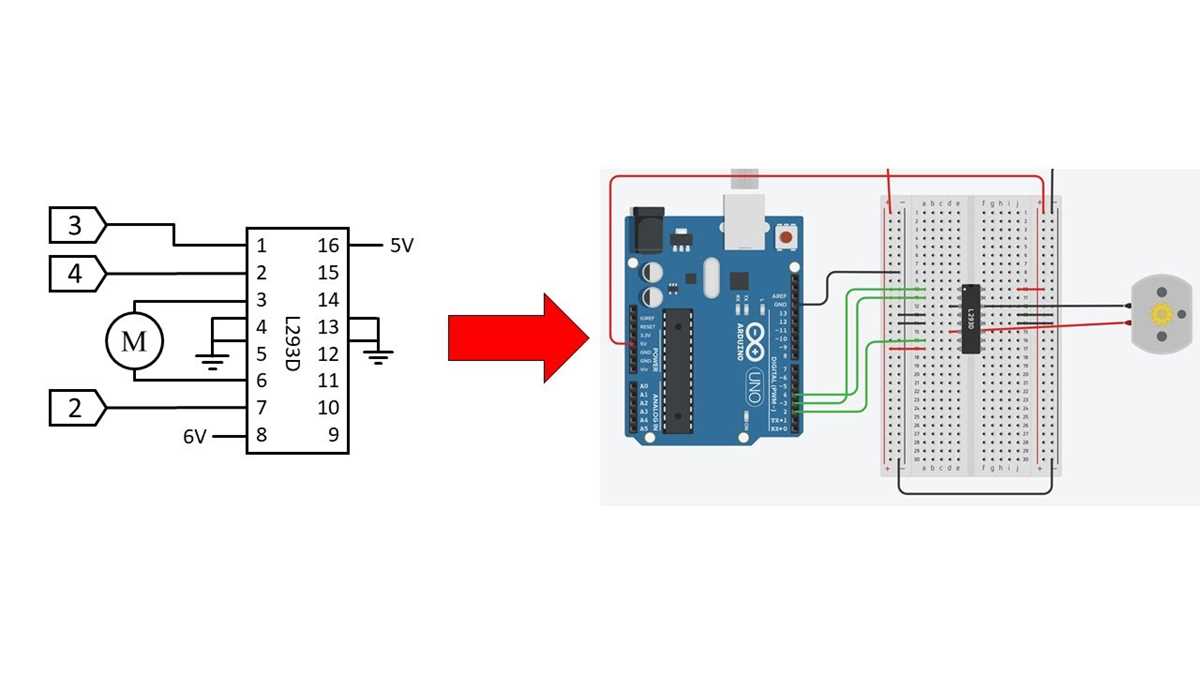

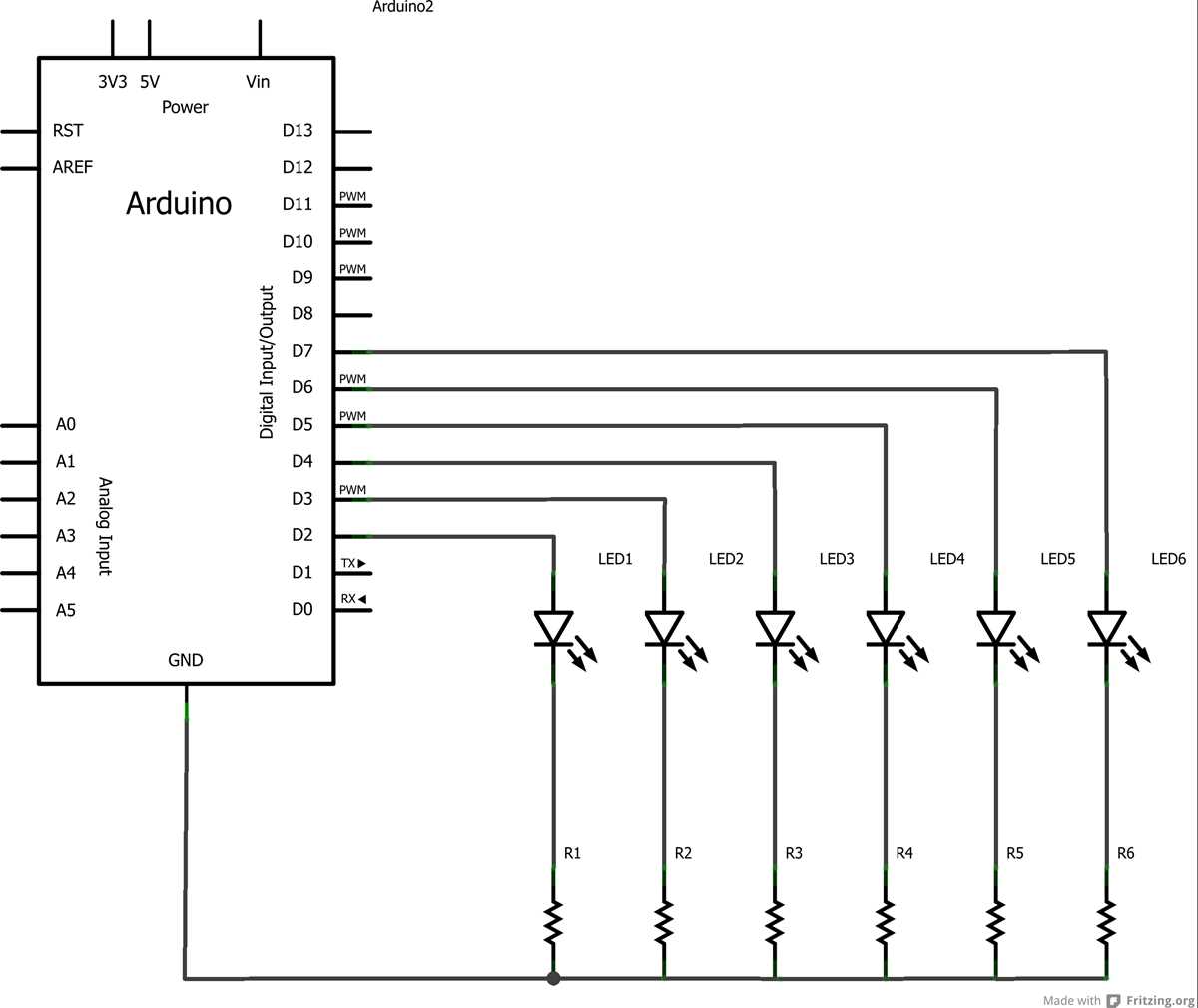

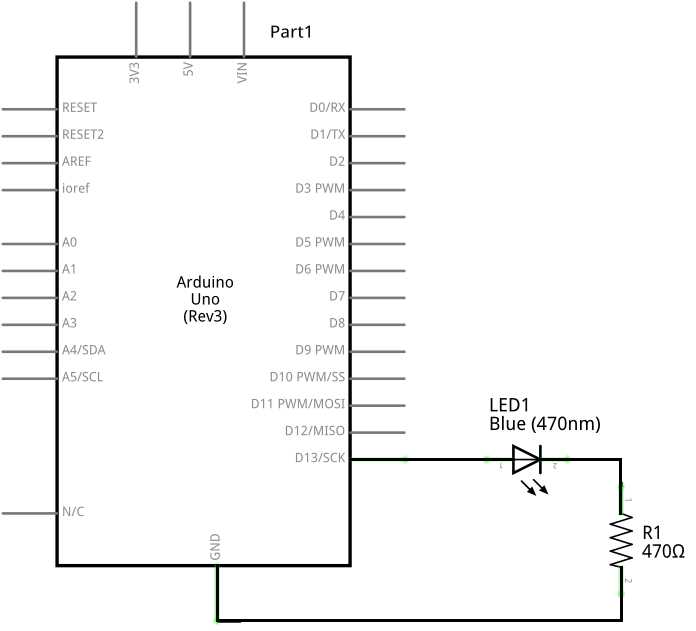

For LED arrangements, calculate the resistor value using R = (V_source – V_LED) / I_LED–typically 220Ω for 5V and 10mA current. When prototyping motor drivers (L298N, TB6612FNG), dedicate separate power rails for logic and motor power to isolate electrical noise. Label every trace and component with clear identifiers (e.g., “PWM3,” “GND2”) to troubleshoot efficiently. If designing a PCB, group related components (e.g., power regulation, sensors, actuators) into modular zones to simplify debugging.
Choosing Parts for a Starter Microcontroller Setup
Begin with a development board like the Uno R3–its ATmega328P delivers 16 MHz clock speed, 32 KB flash memory (with 2 KB occupied by bootloader), and 14 digital I/O pins (6 PWM-capable). Pair it with a 5 V power supply or a 9 V battery through the barrel jack, ensuring 250 mA current for stable operation. For input, opt for momentary pushbuttons (12×12 mm tactile switches) with built-in 10 kΩ pull-down resistors to prevent floating signals. Sensors should align with 3.3 V or 5 V logic levels; a DHT11 measures humidity/temperature within 2–5% RH accuracy, while an HC-SR04 ultrasonic rangefinder detects distances from 2 cm to 4 m with 3 mm precision.
Passive Elements and Output Choices
- Resistors: 330 Ω for LED current limiting (≈10 mA per segment), 220 Ω for 7-segment displays. Use 4.7 kΩ for I2C pull-ups on SDA/SCL lines.
- Capacitors: 100 nF ceramic bypass caps between VCC/GND near the board’s ATmega328P to suppress noise. For motor drivers (L298N), add 470 µF electrolytic caps to handle voltage spikes.

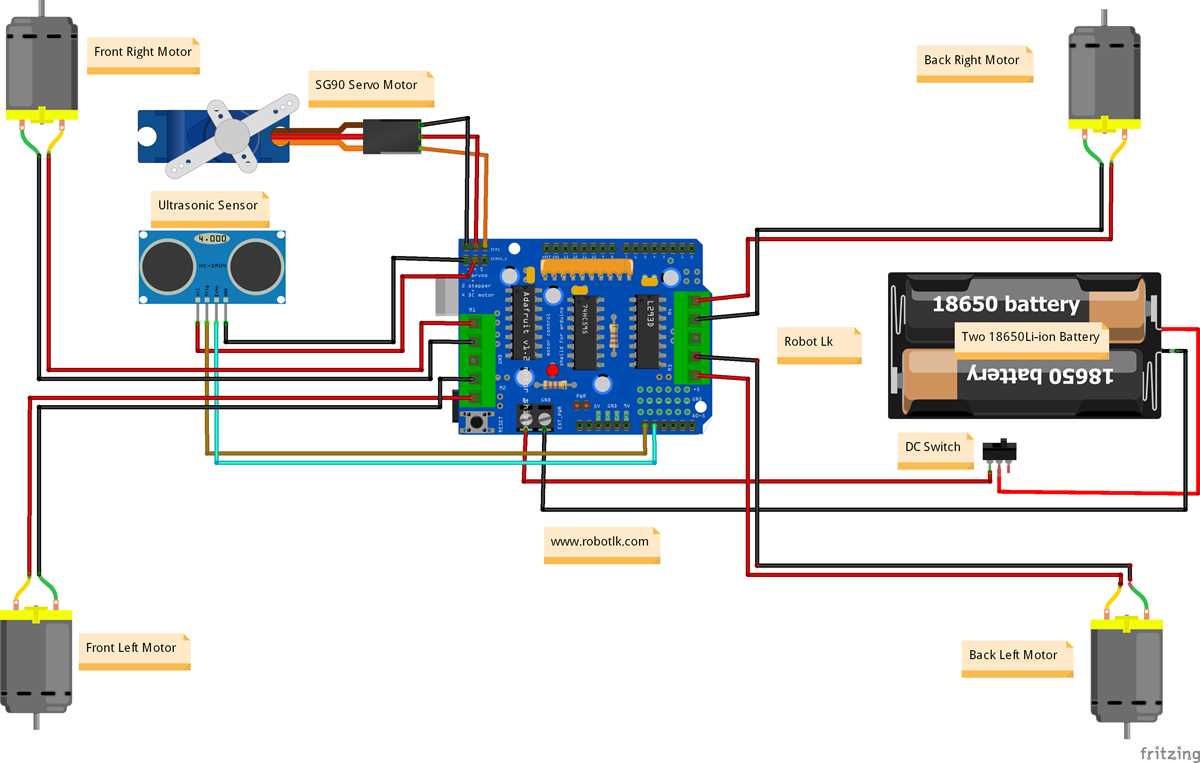

- Actuators: SG90 servos operate on 4.8–6 V with 1.2 kg·cm torque; drive them via PWM pins at 50 Hz. For DC motors, match stall current to the driver’s specs–2 A max per channel on the L298N.
- Displays:
TM1637 4-digit modules draw 80 mA max; SSD1306 OLEDs (128×64) support SPI/I2C with 0.1 W typical consumption. Choose I2C for simplicity, reserving SPI for higher refresh rates (>100 Hz).
Verify component tolerances before assembly: 1% resistors minimize voltage divider errors, while 5% capacitors suffice for decoupling. For projects exceeding 1 A, replace linear regulators (LM7805) with switching DC-DC converters (LM2596) to reduce thermal losses up to 90%.
Step-by-Step Breadboard Wiring for Microcontroller Builds
Choose a breadboard with at least 800 contact points for complex prototypes; smaller 400-point versions suffice for basic setups. Align power rails vertically–red for positive voltage, blue or black for ground–ensuring continuity across the entire board. Verify rail connectivity by probing adjacent holes with a multimeter before connecting any components.
Start by inserting the microcontroller into the center of the breadboard, straddling the center gap to leave pin rows accessible. For ATmega328P-based boards, connect the 5V pin to the positive rail and GND to the negative rail immediately. Use 22-gauge solid-core wire for all connections; stranded wire frays under repeated insertions and causes intermittent faults.
Power Distribution Techniques
Limit current on any single rail to 500mA to prevent voltage drops. For high-power components like motors or LEDs consuming over 100mA, distribute power via dedicated wires from the regulator output. Solder a 10µF electrolytic capacitor across power rails near the microcontroller to filter noise; ceramic 0.1µF caps at each IC further stabilize transient spikes.
Label each wire with heat-shrink tubing or colored tape–red for power, black for ground, and varying colors for signals. Maintain consistent color-coding across projects to reduce debugging time. When routing wires, cross paths at right angles to minimize electromagnetic interference, especially near high-frequency clocks above 1MHz.
Signal Integrity Checks
- Trim wire ends to 5mm exposure; longer leads increase capacitance.
- Press wire ends fully into breadboard holes until flush; partial insertions cause loose connections.
- Route analog sensor lines away from digital I/O to avoid crosstalk; maintain 2cm separation.
- Use shielded cable for I²C or SPI buses exceeding 10cm in length.
Test each connection with a logic probe before uploading code. For multiplexed LEDs, verify sink current per pin does not exceed 20mA; use 220Ω resistors for 5mm LEDs driven at 5V. When prototyping RF modules, place a 22pF decoupling capacitor adjacent to the antenna pin to suppress harmonics.
Pin Setup Strategies for Microcontroller Boards in Electronic Designs
Assign digital inputs/outputs based on their load requirements–GPIOs sink 20mA per pin but 200mA total per port. Exceeding this threshold will damage the controller. For high-current loads (motors, relays), use an external transistor or MOSFET with a flyback diode to protect the board.
Analog inputs (ADC) operate at 10-bit resolution by default, reading 0–5V. Scale sensor outputs accordingly; a 3.3V sensor on a 5V ADC produces only 670 valid steps instead of 1024. To improve accuracy, add a 0.1μF decoupling capacitor near the pin to filter noise, especially when sampling fast-changing signals.
Pull-Up/Down Resistors and Pin Modes
Activate internal pull-up resistors for simple switches–enable them in code with pinMode(pin, INPUT_PULLUP). This eliminates external 10kΩ resistors, reducing component count. For pull-down configurations, use an external resistor (4.7kΩ typical) to ground, as internal pull-downs are unavailable on most boards.
Floating pins cause erratic behavior. Either configure them as outputs (even if unused) or tie them to ground through a resistor. Avoid leaving high-impedance inputs disconnected–static electricity can trigger false reads or latch-up conditions.
Analog Output Control via PWM
PWM pins simulate analog output using 8-bit resolution (0–255). For hardware requiring smoother control (servos, DC motors), use faster PWM frequencies (up to 62.5kHz on select pins) by modifying timer registers. Default 490Hz/980Hz PWM suffices for basic dimming or speed control but introduces audible whine in inductive loads.
Isolate analog and digital ground planes near the microcontroller to prevent cross-talk. Use a star-ground topology for mixed-signal designs–connect all grounds at a single point to minimize voltage offsets. For sensors with ratioded outputs (e.g., thermistors), reference their ground to the ADC’s ground pin to avoid ground loops.
For multiplexed signals (e.g., LED matrices), dedicate one pin per row/column to avoid ghosting. If pin scarcity demands sharing, use a shift register (74HC595) or I²C expander (PCF8574). Each approach adds propagation delay–account for this in timing-critical loops.
When prototyping, label every wire with its function and voltage level (e.g., “D2/SWITCH,” “A0/THERMISTOR”). This prevents shorts during debugging and simplifies modifications. For permanent builds, replace jumper wires with soldered connections or ribbon cables to improve reliability–vibration can loosen breadboard contacts over time.
