Begin with block schematics for high-level system architecture. These divide functional units–power supply, signal processing, output drivers–into distinct modules connected by single lines. Use this format when designing complex assemblies like embedded controllers or power distribution networks, where isolating subsystems clarifies intent before detailed implementation.
Wiring layouts serve assembly and repair. Label every terminal, color-code conductors, and annotate wire gauges. Include connector pinouts referenced to datasheets. These blueprints accelerate debugging; technicians trace faults without reverse-engineering. Prioritize this approach for machinery control panels, automotive harnesses, or rack-mounted instrumentation where physical access is constrained.

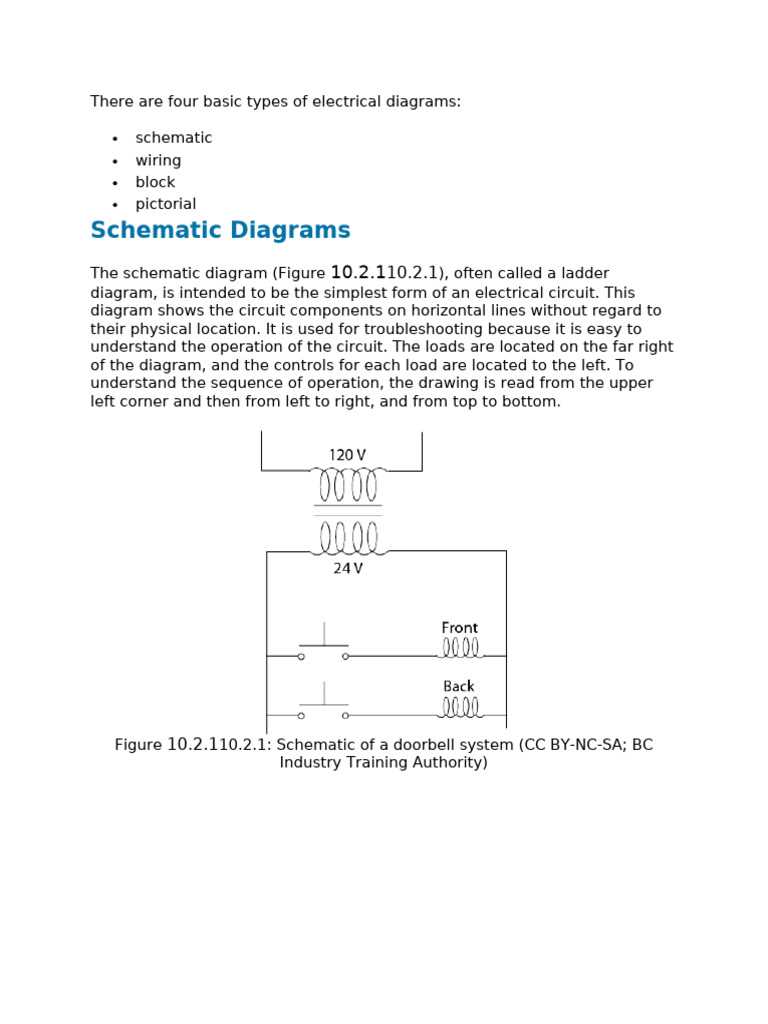

Ladder logic representations map control sequences directly to relay-based architectures. Each rung translates a logical operation–AND, OR, NOT–into relay coils and contacts. Apply this strictly for programmable logic controllers (PLCs) in industrial automation, where step-by-step execution ensures predictable process timing. Document coil states separately to distinguish latching from momentary actions.
Schematic sheets for integrated circuits (ICs) follow rigid conventions: pin numbers, voltage domains, decoupling capacitors adjacent to power pins. Draw analog sections separately from digital to avoid noise coupling. For microcontroller circuits, isolate reset circuitry, crystal oscillators, and programming headers on dedicated sub-sheets. Always cross-reference IC datasheets for minimum bypass capacitor values and rise-time requirements.

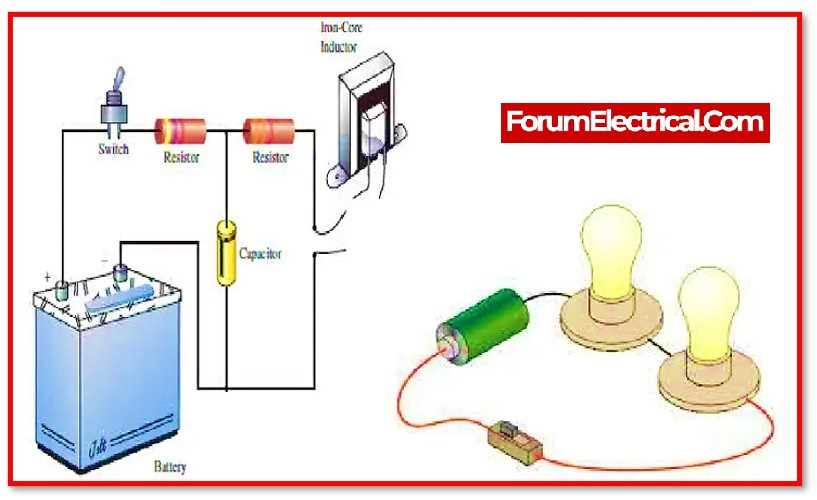

Pictorial layouts combine graphical symbols with physical positioning. Ideal for single-board devices or modular prototypes, they allow rapid verification of component spacing and heat dissipation paths. Annotate clearance specifications for high-voltage traces; label drill-hole coordinates for fabrication compatibility. Export these as Gerber files after final checks.
Embedded firmware frequently interacts with hardware via register-level maps. Instead of abstract symbols, detail specific register addresses, bit fields, and default states. Pair these with timing diagrams for critical signals like clock signals, SPI transactions, or interrupt requests. Such clarity prevents configuration errors during firmware bring-up.
Visual Representations for Electronic Schematics
Start schematics with block-level layouts for complex designs like power supplies or microcontroller systems. Use rectangles for functional units (e.g., voltage regulators, memory blocks) and label each with exact component ranges (e.g., “5V to 3.3V LDO”). Connect blocks with single lines, annotating signal types (analog, digital, power) and voltage levels directly on the lines. This approach reduces debug time by isolating errors to specific modules before detailed tracing.
For analog RF designs, employ ladder-style schematics with ground symbols aligned vertically at the bottom. Position passive components–resistors, capacitors, inductors–sequentially along signal paths, spacing them evenly to reflect physical PCB routing. Label each part with tolerance values (±1%, ±5%) and temperature coefficients (X7R, C0G) to avoid performance drift. High-frequency traces require curved lines to indicate controlled impedance paths.
Switching power circuits demand annotated current loops. Draw high-current paths with thicker lines (e.g., 2mm vs. 0.5mm for signals), marking expected RMS and peak currents (e.g., “10A PK, 5A RMS”). Indicate switch-node waveforms (e.g., “3.3V PWM, 400kHz”) alongside gate drivers, and separate input/output capacitors from bulk storage to visualize ripple paths. Use color highlights–red for hot nodes, blue for cold–to distinguish potential hazards.
Embedded firmware projects need hierarchical sheets. Place core processors and memories on the first sheet, grouping peripheral interfaces (SPI, I2C) on separate sheets referenced by port labels (e.g., “UART_RX → Sheet 3″). Avoid net aliases; instead, use explicit off-page connectors with matching port names and page numbers. For multi-voltage systems, silhouette power domains in dashed outlines and label voltage ranges (e.g., “1.8V VDDIO”) at each domain entry.
Opt for SPICE-compatible netlists when simulating behavior. Export schematic nets to a .cir file, listing nodes numerically (e.g., “N001”) and mapping each to real pins (e.g., “N001 → U1:5”). Define transient analysis settings (start/stop times, maximum timestep) in comment blocks directly above component definitions. Validate simulations against lab measurements; deviations over 5% indicate parasitic effects that require schematic adjustments or layout constraints.
How to Read Schematic Diagrams for Repair and Troubleshooting
Begin by identifying ground symbols–typically a downward-pointing triangle or three horizontal lines–since they establish a common reference point for all voltage measurements. Without recognizing ground, voltage readings across components become meaningless.
Trace power flow arrows or thick lines, as they reveal the main current path. Follow these from the power source (often a battery icon or labeled terminal) through switches, fuses, and protective devices before reaching loads like resistors, coils, or semiconductors. Missing a single connection disrupts the entire analysis.
Label each symbol with its real-world counterpart. A zigzag line is a resistor, while a set of parallel lines denotes a capacitor. Keep a reference sheet handy if unfamiliar with lesser-known symbols–misidentification leads to wasted time testing wrong parts.
Decoding Notations and Values
Interpret numerical annotations next. “R5 220Ω” indicates a 220-ohm resistor, while “C3 10μF” specifies a 10-microfarad capacitor. Voltage ratings (e.g., “50V”) dictate maximum tolerances; exceeding these risks component failure. Compare these values against multimeter readings to spot deviations.
Watch for dotted or dashed lines grouping related elements. These signify shields, multiple-winding transformers, or subassemblies like integrated circuits. Ignoring these groupings causes confusion when tracking signal paths across interconnected stages.
Verifying Connections and Hidden Details
Check for junction points–dots where lines intersect–confirming electrical contact. No dot implies wires crossing without connection, a frequent source of misinterpretation. Test continuity at these nodes to confirm physical connectivity before assuming faults in components.
Look for inverted triangles or arrows marking test points, often labeled TP1, TP2. These locations simplify probing during troubleshooting. If absent, identify nodes by component pins (e.g., “IC1 pin 7”) and use an oscilloscope to compare expected waveforms against actual signals.
Note polarity-sensitive elements like diodes (arrow indicates current direction) and electrolytic capacitors (marked “+”). Reversing these during repair guarantees immediate failure. Cross-reference with service manuals if polarity isn’t clearly labeled on the schematic.
Isolate feedback loops–dashed lines looping back into earlier stages–to avoid chasing phantom issues. Oscilloscope readings here help distinguish between normal control signals and actual faults, especially in amplifiers or switching power supplies.
How Wiring Schematics and Block Layouts Serve Distinct Engineering Roles
Begin with precision: wiring schematics detail every conductor path, terminal, and component connection in a device, while block layouts generalize functionality into modular segments. A wiring schematic for a power supply might show each resistor, capacitor, and IC pin, whereas its block counterpart abstracts the same system into “input regulation,” “voltage conversion,” and “output filtering” sections. Choose the former for troubleshooting or fabrication; opt for the latter during initial system architecture.
Block layouts prioritize clarity over granularity. Use them to communicate high-level interactions between subsystems–like signal processing chains or microcontroller peripherals–without drowning stakeholders in minutiae. A well-designed block representation should let engineers grasp the entire flow in under 30 seconds, making it indispensable for design reviews or client presentations. Wiring schematics, however, demand hours of scrutiny to trace specific faults or verify compliance with safety standards like IPC-2221.
When to Prioritize Each Representation
Deploy wiring schematics when: 1) validating PCB layouts (e.g., verifying clearance rules for high-voltage traces), 2) diagnosing hardware failures (e.g., isolating a short between two IC pins), or 3) documenting compliance with industry-specific wiring codes (e.g., UL 508A for industrial control panels). These drawings leave no ambiguity–every wire, splice, and color code is explicit. For example, a motor control schematic might specify AWG 12 wire for power lines and AWG 22 for signal lines, with exact termination points.
Block layouts excel in early-stage design or interdisciplinary collaboration. A firmware engineer needs to understand how a sensor module interfaces with a microcontroller but doesn’t require knowledge of every decoupling capacitor’s placement. Similarly, a system architect might use blocks to model thermal management zones across a multi-board assembly, ignoring individual trace impedances. Standardized block symbols (e.g., rectangles for modules, arrows for data flow) ensure rapid interpretation across teams–far more efficiently than deciphering a 10-page wiring schematic.
Avoid mixing purposes: using a wiring schematic for conceptual reviews wastes time, while relying on blocks for PCB fabrication risks critical errors. Modern ECAD tools like KiCad or Altium bridge this gap by auto-generating both from a single design file, but manual oversight is still required. For instance, a block labeled “power distribution” might omit transient suppression circuitry flagged in the wiring view–a detail that could lead to EMI compliance failures if overlooked.
Legacy systems often compound these differences. Schematics from the 1980s (e.g., for industrial machinery) might use hand-drawn symbols with inconsistent labeling, requiring additional verification against block equivalents for modern updates. Conversely, digital designs (e.g., FPGA-based systems) rely heavily on blocks for RTL code generation but still depend on wiring-level diagrams for pin assignments and clock domain crossings. The key is to match the representation to the phase: abstract for ideation, precise for execution.
Final validation: test prototypes against wiring schematics to confirm physical connections, then use blocks to simulate subsystem performance. A mismatched approach–such as detailing transistor-level schematics when only amplifier gain and noise floor matter–creates unnecessary work. Conversely, ignoring trace resistances in a high-current application (e.g., automotive battery management) could result in overheating, despite a functionally correct block layout. Always cross-reference with domain-specific standards (e.g., ISO 26262 for automotive, DO-178C for aerospace) to ensure compliance at both abstraction levels.
