Start by selecting a 10KΩ NTC resistor with a B-value between 3400K and 4100K–this range balances sensitivity and stability for most applications. Connect the sensor in series with a fixed 10KΩ reference resistor to form a voltage divider, ensuring the output signal tracks resistance changes linearly across a 0°C to 100°C span. For microcontroller interfacing, use a 3.3V or 5V supply depending on ADC input specs; ATmega328P tolerates 5V, while ESP32 prefers 3.3V.
Position the sensing element away from heat-generating components like voltage regulators or MOSFETs, maintaining at least 15mm clearance to avoid thermal coupling. If mounting on a PCB, increase copper pour around the sensor pads to improve heat dissipation but keep traces thin (≈0.25mm) to minimize thermal mass. For liquid temperature measurements, encase the NTC in a stainless steel probe with thermal epoxy rated for the target environment–epoxies like MG Chemicals 8329 withstand up to 180°C.
Implement Steinhart-Hart equation coefficients specific to your NTC model; generic coefficients introduce errors up to ±5% across the temperature range. For precise calibration, immerse the sensor in controlled baths (ice-water slurry at 0°C, boiling water at 100°C) and log ADC readings to fine-tune the equation. Avoid using lookup tables unless sampling is sparse; interpolation errors compound at mid-range temperatures.
Add a 0.1µF bypass capacitor directly across the NTC’s supply pins to filter high-frequency noise, especially in environments with switching regulators. For high-speed sampling (>1kHz), buffer the divider output with an op-amp (e.g., LM358) configured as a unity-gain follower to prevent ADC loading. When power constraints apply, switch the sensor off between readings using a P-channel MOSFET; soft-start delay of 50ms prevents resistance spikes.
Test failure modes by submerging the assembly in liquid nitrogen (-196°C) or exposing it to 120°C dry heat. Most NTCs fracture below -50°C, while prolonged exposure above 150°C degrades epoxy bonds. For industrial setups, add a 5.1V Zener diode across the sensor to clamp voltage spikes from inductive loads–common when pairing with solenoids or relays.

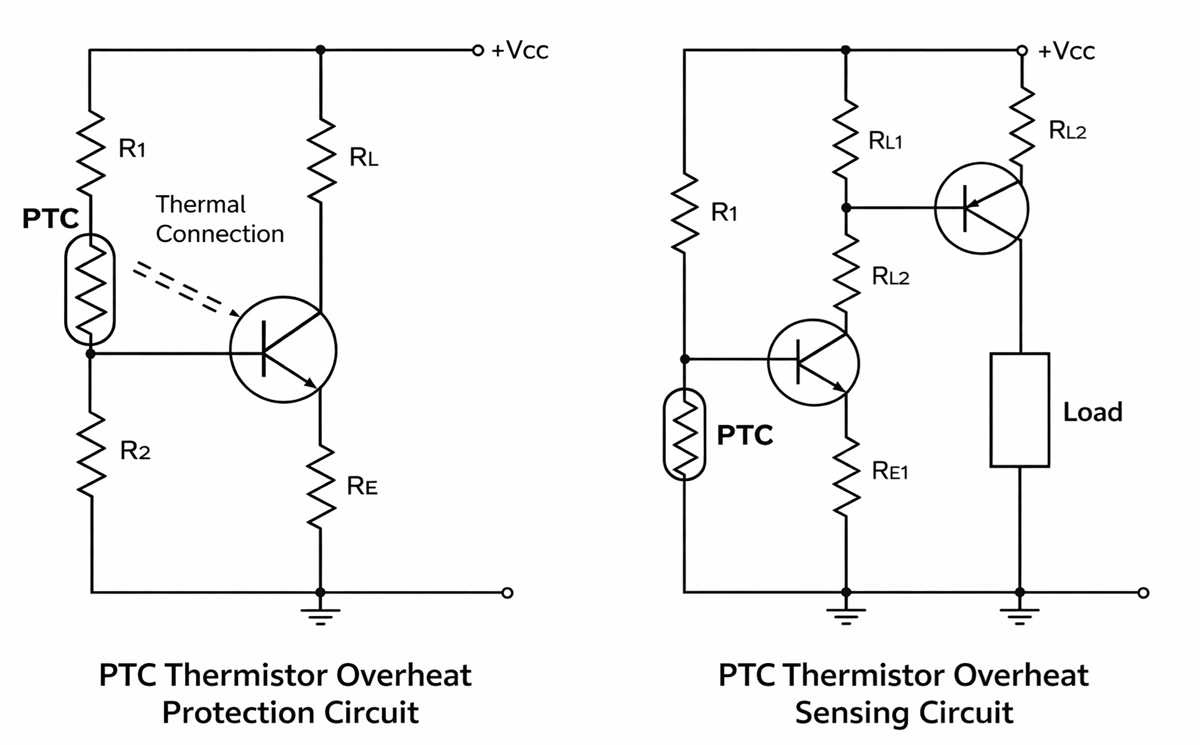

Building a Temperature-Sensing Layout
Use a 10 kΩ NTC probe as the primary sensor in a voltage divider with a fixed 10 kΩ resistor. Place the probe between +5 V and the resistor, grounding the resistor’s opposite leg. Insert a 0.1 µF ceramic capacitor across the sensor output to suppress noise spikes above 1 kHz. The divider’s midpoint will swing from 4.3 V at –40 °C to 0.3 V at +150 °C, delivering a near-linear 25 mV/°C slope across the –20 °C to +120 °C range.
| Temperature (°C) | Output (V) | ADC Reading (10-bit) |
|---|---|---|
| -40 | 4.30 | 882 |
| -20 | 3.85 | 788 |
| 0 | 2.95 | 604 |
| 25 | 1.98 | 405 |
| 50 | 1.20 | 245 |
| 80 | 0.62 | 127 |
| 100 | 0.40 | 82 |
| 120 | 0.32 | 65 |
| 150 | 0.30 | 61 |
Choosing the Optimal Temperature Sensor for Your Application
Start by matching the sensor’s resistance-temperature (R-T) curve to your operating range. NTC (negative temperature coefficient) elements with a 10kΩ resistance at 25°C are ideal for ambient monitoring up to 100°C, while 100kΩ variants suit cryogenic applications down to -50°C with tighter accuracy. PTC (positive temperature coefficient) polymers, shifting from 50Ω to 1kΩ at 80°C, work best for overcurrent protection. Check datasheets for β-values: a β3950 sensor delivers ±0.5% tolerance at 25°C, critical for medical incubators, whereas β3435 offers ±1% over -40°C to 85°C, sufficient for automotive coolant systems.
Key Selection Criteria
- Operating span: Verify the sensor’s linear range. A bead-type NTC covers -80°C to 260°C, while disk-style caps at 150°C. Exceeding these limits degrades stability.
- Response time: Epoxy-coated beads react in 5–10 seconds to 63% of temp change; glass-encapsulated units take 1–3 seconds but cost 3x more. Surface-mount chips on alumina react in
- Self-heating error: Apply ≤50μA current for 10kΩ NTCs to keep error below 0.1°C. Higher currents skew readings–use 100μA max for 1kΩ PTCs.
- Physical constraints: Probe diameters from 0.2mm (invasive medical) to 12mm (industrial) dictate lead length. Silicone-insulated leads endure -55°C to 200°C; Teflon extends to 300°C but adds 40% cost.
Pair the sensor with a precision resistor for linearization if absolute accuracy matters. A 13.3kΩ fixed resistor in series with a 10kΩ NTC flattens the curve between 0°C and 50°C, reducing non-linearity from ±5°C to ±0.2°C. For wide-range applications, use a lookup table–store 256 pre-calculated values or employ a microcontroller with ADC to compensate temperature drift. RTDs (resistance temperature detectors) like PT1000 offer ±0.1°C accuracy but require 3–4 wires for lead compensation; reserve these for lab-grade instruments where cost exceeds $20 per unit. Always validate sensor drift: silicium-based NTCs drift
Step-by-Step Guide to Sketching a Basic Temperature Sensor Schematic
Choose a clear, uncluttered workspace with sufficient lighting. Place a ruler, pencil, eraser, and a sheet of graph paper or plain white paper side by side. Use a fine-tip pen for final lines to ensure precision, but begin with light pencil strokes to allow corrections. Avoid complex software unless necessary; hand-drawn layouts often help visualize connections better for simple setups.
Start by marking two parallel lines at the top and bottom of the page–these represent the power rails. The upper line is the positive supply (typically 5V or 3.3V), while the lower line serves as ground. Label them immediately to prevent confusion. Standard practice uses “+V” for positive and “GND” for ground. Keep the spacing uniform; 2 cm between rails works well for most small-scale sketches.
Select a standard resistor symbol (a zigzag line) and place it near the left edge. Connect one end to the positive rail. The other end will link to the temperature-dependent component. For most NTC (negative temperature coefficient) sensors, values between 4.7 kΩ and 10 kΩ at room temperature are common. Use a label like “R1” next to the symbol, followed by its value in ohms or kilo-ohms.
Draw the temperature-sensitive element as a small rectangle–this distinguishes it from resistors or capacitors. Place it directly after the fixed resistor in the path. Connect the free end of the resistor to one terminal of the rectangle. The opposite terminal should lead to the ground rail, completing the series path. Label this part “T1” or an equivalent identifier to avoid ambiguity in later steps.
Adding Measurement Points and Optional Components
Decide whether to include an output node for voltage readings. If so, place a small dot where the fixed resistor and temperature element meet–this marks the signal output. Extend a short line outward from this dot to indicate where to probe or connect an analog input. For microcontroller interfacing, this point typically feeds into an ADC pin. Ensure no accidental crossings with other lines to prevent short-circuit misinterpretations.
Consider adding a capacitor (parallel lines) across the temperature element if stabilizing the reading is critical. A 0.1 µF ceramic type works for most applications. Connect one terminal to the junction between the fixed resistor and temperature component, and the other to ground. This smooths fluctuations, especially in noisy environments. Skip this if response speed is prioritized over stability.
Double-check all connections before finalizing. Erase stray pencil marks, leaving only clean, defined lines. Thicken the paths with pen if desired, but maintain consistency in line width. Review each segment: power to resistor, resistor to temperature probe, probe to ground. Confirm labels match the intended values–swapping 10 kΩ for 1 kΩ can drastically alter behavior.
Scan or photograph the sketch if digital backup is needed. Save in high resolution (300 DPI or higher) to preserve legibility. For real-world testing, transfer the layout to a breadboard using jumper wires–map each drawn connection to a physical pin or socket. Test with a multimeter: measure voltage at the output node while varying temperature to validate the sensor’s response curve.
Common Mistakes When Integrating a Temperature Sensor in Potential Distribution Configurations
Selecting an incorrect resistance value for the paired fixed resistor drastically skews readings. A 10kΩ resistor works poorly with a negative temperature coefficient element rated at 50kΩ at 25°C–voltage swings become too small for accurate ADC sampling. Match the fixed component within 20% of the sensor’s nominal value to maintain linearity across the expected temperature span.
Ignoring self-heating effects introduces constant error. A current exceeding 1mA flowing through a bead-type probe rated for
Reversing voltage divider polarity leads to inverted output–positive coefficient sensors produce negative voltage shifts instead. Verify sensor type beforehand; oscillations below 0°C might indicate a swapped connection if a NTC element shows PTC behavior when wired backward.
Layout-Induced Measurement Distortions
Long trace routing between sensor and MCU picks up EMI, especially from 50/60Hz mains nearby. Keep signal paths shorter than 5cm, separate analog from digital ground, and use a shielded twisted pair if traces must extend beyond 10cm. Even a nearby motor can distort readings by >5°C if traces run parallel for >3cm.
Floating input configuration causes unpredictable ADC readings. Always connect a 100kΩ pull-up or pull-down resistor between sensor midpoint and ground/reference–failure to do so leaves the node sensitive to capacitive coupling, making ambient humidity or finger proximity swing readings by >20 digit steps.
Uncompensated lead resistance corrupts remote sensing. A 22AWG copper wire adds 0.5Ω per meter–enough to shift a 10kΩ measurement by 0.5% at 25°C. Use Kelvin connection or place the divider closer to the sensing element if lead length exceeds 20cm. Alternatively, calibrate against the expected wire resistance at the operating temperature.
Neglecting supply voltage stability introduces offset drift. A 5V rail varying by ±2% changes divider output by 10mV–translating to ~0.5°C error for a typical 2mV/°C sensitivity. Power the setup from a dedicated LDO with
Overlooking thermal mass mismatch between sensor and target leads to delayed response. A glass-encapsulated bead sensor glued to aluminum reacts 2-3× slower than bonded-chip variants–response time increases from 2s to 6s. Choose package materials matching the measured medium’s thermal conductivity (e.g., epoxy-coated chips for plastic surfaces).
