Start with a microcontroller-based approach–an AVR ATmega328 or STM32 reduces complexity while ensuring precise timing cycles. Use three 5V relays or optocouplers (PC817) for isolating output stages, preventing voltage spikes from damaging logic gates. For LED loads, select high-brightness 10mm units (forward current: 20mA) with series resistors calculated via R = (Vsupply – VLED) / ILED. A 12V supply with a 7805 regulator stabilizes voltage for both microcontroller and external loads.
Map state transitions using a finite state machine (FSM) in code. Define at least four states: RED (30s), RED+YELLOW (5s), GREEN (25s), YELLOW (5s). Hardcode delays or use timer interrupts (TIMER1 on ATmega) for non-blocking operation. Store state logic in a lookup table to simplify debugging–this avoids nested if-else structures that introduce latency.
Incorporate emergency override functionality via a pushbutton input tied to an interrupt pin (e.g., INT0 on ATmega). Configure this to trigger a high-priority all-RED state (duration: 40s) when pressed, resetting normal operation only after release. Add a piezo buzzer (active-low, 5V) on a separate GPIO to signal override activation audibly.
Validate power distribution with a multimeter at each node: check for 0.7V drop across transistors (2N2222 or TIP120) and consistent 12V at relay coils. For noise immunity, sprinkle 0.1µF ceramic capacitors across power rails near the microcontroller and 1000µF electrolytic at the supply input. Avoid common ground loops by star-connecting all return paths to a single point on the PCB.
Document the wiring layout as a netlist, labeling each connection with component designators (e.g., U1-Pin12 -> LED3-A). Use color-coded wires: red (power), black (ground), yellow (signals). For modularity, group components by function–microcontroller cluster, driver stage, output array–and test each block independently before integration. Flash test patterns (e.g., cyclic RED-GREEN blink) to verify timing before full deployment.

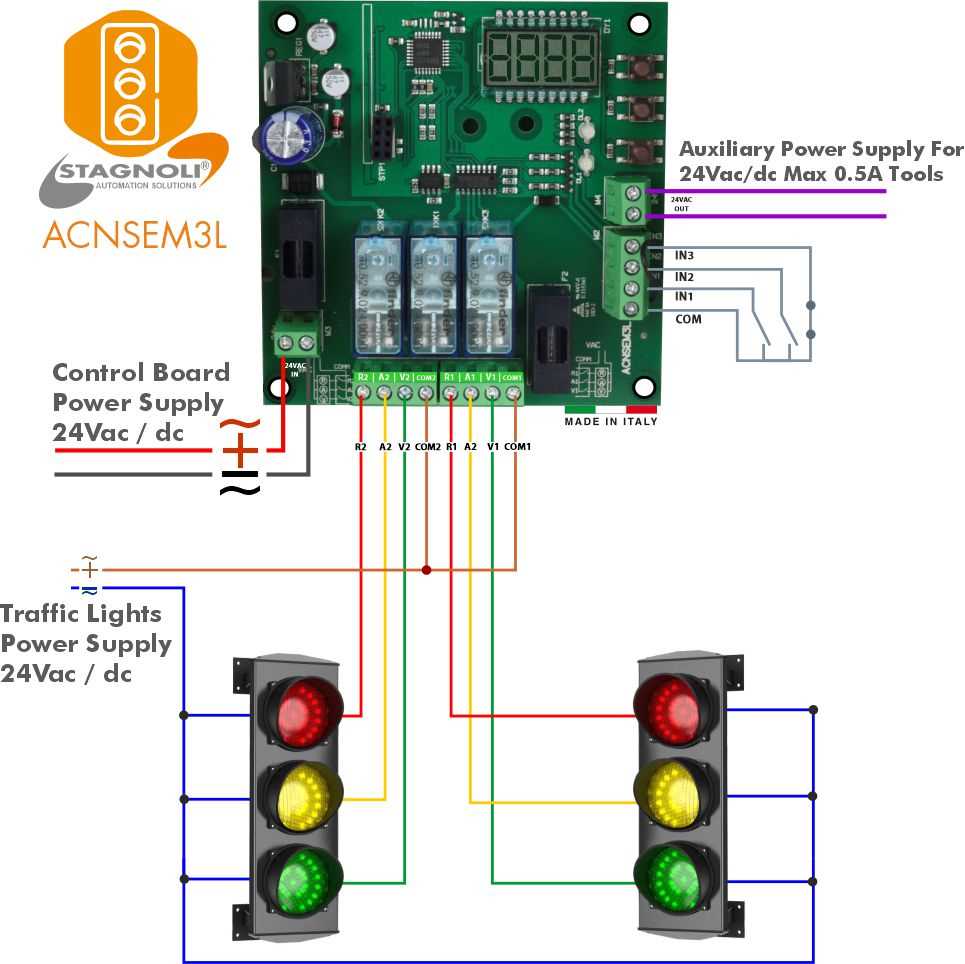

Schematic Design for Automated Signal Management

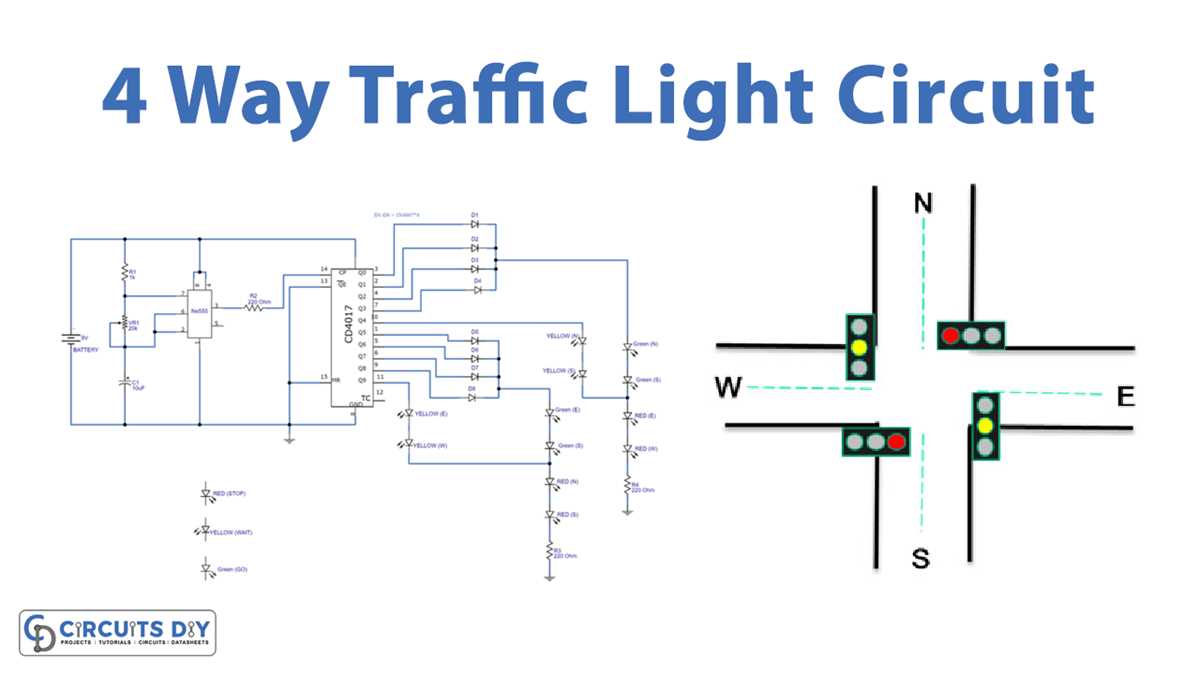

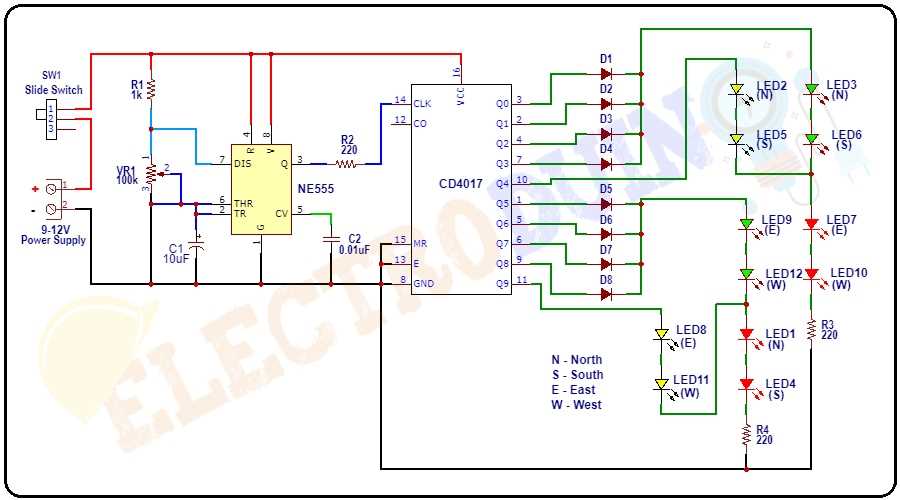

Begin with a sequential logic core using a 555 timer IC configured in astable mode to generate precise timing pulses–adjust the resistor-capacitor network (e.g., 10kΩ resistor + 10µF capacitor) to achieve a 1-second interval. Feed this output into a decade counter (CD4017), which will cycle through ten states; wire only four of these to solid-state relays controlling the red, amber, and green indicators. Allocate states as follows: states 0–3 (green), 4–5 (amber), 6–9 (red), ensuring the counter resets via the carry-out pin to maintain cycle integrity. Opt for MOSFET drivers (IRF540) to handle inductive loads, pairing each with a flyback diode (1N4007) to suppress voltage spikes.
Integrate a manual override switch using a SPDT relay connected to the 555’s reset pin–this suspends the timing cycle and forces a specific signal state for emergency vehicles or maintenance. Power the entire assembly with a regulated 12V supply, incorporating a 7805 voltage regulator to stabilize logic-level voltages at 5V. Label each wire junction clearly to avoid misconnections, and include 0.1µF decoupling capacitors across IC power pins to minimize noise interference.
Selecting Parts for a Simple Signal Regulation Setup
Begin with a microcontroller like the ATmega328P (used in Arduino Uno) or STM32F103. These offer built-in timers, GPIO pins, and low power consumption–critical for managing timing sequences without external delays. The ATmega328P handles 20 mA per pin, sufficient for driving LEDs directly, while STM32 supports 25 mA and faster clock speeds (72 MHz vs. 16 MHz), reducing flicker in high-visibility applications. Prioritize models with at least 32 KB flash memory to store multiple timing patterns, including emergency modes.
Use 5mm high-brightness LEDs rated at 20–30 mA (e.g., Cree XLamp or OSRAM Golden Dragon). Red should be 620–625 nm for maximum visibility in daylight (luminous intensity ≥10,000 mcd), amber at 590–595 nm (≥8,000 mcd), and green at 520–525 nm (≥6,000 mcd). Add a 1 kΩ resistor per LED to limit current–calculate values using Ohm’s Law (Vsupply – VLED) / ILED. For durability, opt for LEDs with a 60° viewing angle and epoxy lenses to resist UV degradation in outdoor setups.
Additional Critical Elements
- Transistors (NPN): 2N2222 or BC547 for switching higher loads if using relays or solenoid bells. HFE ≥100 ensures reliable switching at 5V logic levels.
- Voltage Regulator: LM7805 for 5V systems or LM317 for adjustable outputs. Include a 0.1 µF ceramic capacitor on the input/output to filter noise from automotive-grade 12V supplies.
- Optocouplers: PC817 to isolate sensor inputs (e.g., pedestrian buttons) from the microcontroller, preventing voltage spikes.
- Resistors for Sensors: 10 kΩ pull-down resistors for digital inputs and trim potentiometers (e.g., 10 kΩ Bourns 3386) to fine-tune timing thresholds.
- Enclosure: Polycarbonate IP65-rated housing with silicone gaskets to block dust/moisture. Ventilation holes should face downward to avoid water ingress.
For power, use a 12V sealed lead-acid battery (7–12 Ah) or a 24V-to-5V buck converter for vehicle-mounted systems. Include a flyback diode (1N4007) across inductive loads (e.g., relays) to protect against voltage spikes. Test all components with a multimeter before soldering–check forward voltage drops on LEDs and continuity on resistors to avoid cold joints.
Step-by-Step Assembly of 555 Timer IC for Precise Timing Regulation
Begin by securing the 555 timer in a breadboard, ensuring pin 1 (GND) aligns with the negative rail. Use a 9V power supply or equivalent, connecting the positive terminal to pin 8 (VCC) and the negative to pin 1. Verify power delivery with a multimeter–voltage should read 4.5V to 15V between pins 8 and 1. If readings deviate, recheck connections before proceeding.
Attach a 10kΩ resistor between pin 7 (Discharge) and pin 8 (VCC). Connect pin 6 (Threshold) directly to pin 7. For pin 2 (Trigger), link it to pin 6 via a 0.1µF capacitor. These components form the timing network; values directly influence signal duration–shorter intervals require lower resistance (e.g., 1kΩ) or smaller capacitance (e.g., 0.01µF).
Calibrating Output Duration
Wire a 470Ω resistor from pin 3 (Output) to an LED’s anode, grounding the cathode. The LED’s blink rate verifies timing accuracy. Use the formula T = 1.1 × R × C, where R is the resistor (in ohms) and C is the capacitor (in farads). For example, a 10kΩ resistor and 100µF capacitor yield ~1.1 seconds per cycle. Adjust values per the table below to match target intervals:
| Target Interval (s) | Resistor (kΩ) | Capacitor (µF) |
|---|---|---|
| 0.5 | 4.7 | 100 |
| 1.0 | 10 | 100 |
| 2.0 | 18 | 100 |
| 5.0 | 47 | 100 |
Finalizing and Testing
Add a 1kΩ resistor from pin 4 (Reset) to VCC to prevent unintended resets. Connect pin 5 (Control Voltage) to GND via a 0.01µF capacitor to stabilize output against noise. Power the setup and measure output frequency with an oscilloscope–expected waveforms should show clean square pulses with negligible overshoot. If flickering occurs, verify solder joints or replace the 555 IC, as faulty units often cause erratic behavior.
For extended intervals, combine multiple stages: feed the output (pin 3) of one 555 into the trigger (pin 2) of a second. This cascading method achieves delays up to several minutes without sacrificing precision. Isolate each stage with a 1µF decoupling capacitor across VCC and GND to minimize interference. Document exact component values during testing; even minor deviations (e.g., ±5% resistor tolerance) alter timing unpredictably.
Connecting Signal LEDs with Current-Limiting Resistors
For standard 5 mm LEDs (20 mA forward current, 2–3.3 V drop), pair each color with a resistor calculated via R = (Vsupply – Vled) / Iled. A 9 V supply demands 330 Ω for red (2 V drop), 220 Ω for yellow (2.2 V drop), and 150 Ω for green (3.3 V drop). Choose 1/4 W resistors to handle power dissipation safely–exceeding 50% of rated wattage risks overheating.
Wire LEDs in series with resistors on the anode side for consistent brightness; reverse polarity extinguishes the signal entirely. Verify connections with a multimeter: continuity between the resistor’s free end and cathode confirms correct pairing. For long-term reliability, use ceramic resistors–carbon-film variants degrade under heat cycles, causing flicker or premature failure.
For parallel setups (e.g., dual-red alerts), ensure each LED-resistor branch matches current draw. Mismatches create unequal brightness: a 330 Ω and 270 Ω pair on the same rail will dim the first incorrectly. Test each branch individually before integrating into the assembly; a single miscalculation cascades into phantom states.
Solder joints should tin first with rosin flux to prevent oxidation; cold joints increase resistance unpredictably. Trim excess leads to to avoid shorting adjacent terminals, especially in densely packed boards. Label resistor values directly on the board with UV-resistant ink–color codes fade under prolonged LED heat.
Implementing Gate-Based Logic for Phased Signal Sequencing
Begin by assigning each color state to a distinct binary output from a 2-bit counter (e.g., 00 for red, 01 for amber, 10 for green). Route these outputs through a pair of AND gates to introduce timed delays between transitions–one gate triggers the amber phase, another initiates the return to red. Connect the counter’s least significant bit to the first AND gate’s input, while the other input ties to a monostable multivibrator set for a 3-second hold.
For seamless progression:
- Link the counter’s second bit to a second AND gate, pairing it with a 5-second monostable.
- Add a NOT gate to invert the amber state’s signal, ensuring green activation only when amber completes.
- Merge outputs via an OR gate to prevent signal conflicts during overlap.
This structure enforces strict sequencing without manual intervention.
To prevent illegal states (e.g., simultaneous red and green), insert a priority encoder between the counter and gates. The encoder maps the 2-bit output to a 3-bit vector, where:
- Bit 0 (red) dominates if both amber and green signals are high.
- Bit 1 (amber) overrides green but submits to red.
- Bit 2 (green) activates only when no higher-priority bits are set.
This hardwires fail-safe transitions.
For extended hold durations, cascade two monostables with distinct RC networks–one for 3-second amber flash, another for 5-second green extension. Wire the first monostable’s output to the second’s trigger pin, ensuring sequential timing. Bypass the second monostable during red-to-amber shifts via a bypass transistor, activated by the counter’s transition to state 01.
Minimize gate propagation delays by:
- Using Schottky TTL (e.g., 74LS08) for AND operations–sub-10ns response.
- Placing capacitors (100nF) across each gate’s VCC-GND to suppress noise-induced glitches.
- Grouping related gates on the same IC to reduce trace inductance.
Test transitions with a 1MHz clock; skew exceeding 50ns indicates layout errors.
Integrate a watchdog mechanism by feeding the output of all three OR gates into a 3-input NOR gate. If multiple phases activate simultaneously, the NOR gate’s low output halts the counter via a master reset. Tie the NOR output to an alarm LED for diagnostics–solid illumination confirms a fault in sequencing logic.
For adaptive timing, replace fixed monostables with a 555 timer in astable mode, calibrated via potentiometers for on-site adjustments. Use the following resistor-capacitor values for baseline durations:
- Red: R1=47kΩ, C=100µF (25s ±2s).
- Amber: R2=10kΩ, C=47µF (3s ±0.5s).
- Green: R3=22kΩ, C=100µF (15s ±1s).
Validate timings with an oscilloscope; drift beyond 10% necessitates precision capacitors (e.g., tantalum).
