Build this configuration using a single 2N3904 NPN transistor, a 10kΩ resistor at the input, a 1kΩ pull-up resistor connecting the output to the supply voltage, and a 5V power source. The transistor’s base connects to the input resistor, the collector to the output node, and the emitter to ground. This arrangement flips a high input to low and vice versa with propagation delays under 50 ns.
For CMOS implementations, pair a CD4049 inverter IC directly: apply the input to pin 3 and read the inverted signal from pin 2. The IC tolerates supply voltages from 3V to 15V, ensuring compatibility with most logic families without additional biasing. Ensure decoupling with a 0.1 µF capacitor across the power rails to suppress noise spikes.
Adapt the circuit for differing voltage levels by recalculating resistor values: use Ohm’s Law (V = IR) to maintain proper saturation and cutoff points. For example, reducing the pull-up resistor to 470 Ω when switching to a 3.3V supply keeps output levels within TTL thresholds. Verify behavior with a logic analyzer or oscilloscope to confirm signal integrity before integration into larger systems.
Optimize power consumption by selecting high-value resistors where possible: a 47kΩ input resistor combined with a 4.7kΩ pull-up reduces quiescent current while preserving switching speed. In battery-powered designs, consider a TinyLogic NC7WZ04 for ultra-low static currents (1 µA) and minimal footprint.
Inverter Schematic: Core Design and Practical Tips
To build a reliable inverter stage, use a single BJT in common-emitter configuration with a pull-up resistor at the output. Opt for a 2N3904 transistor with a 10 kΩ base resistor and a 1 kΩ collector resistor–this pairing ensures sharp logic transitions while minimizing power draw. Keep input signals below 0.7 V for LOW and above 2.5 V for HIGH to guarantee clean switching in 5 V systems.
When drafting the layout, position the inverter near its driving stage to reduce noise pickup; trace lengths exceeding 5 cm require termination. For CMOS alternatives, a 74HC04 hex inverter provides rail-to-rail outputs and tolerates 2–6 V supply swings, though its 10 ns propagation delay may require compensation in fast loops.
Component Selection Pitfalls
Skimping on resistor precision leads to inconsistent thresholds–always match ±1% tolerance or tighter, especially in cascaded stages where errors compound. Avoid generic 2N2222 transistors; their higher leakage current distorts TTL levels. For high-frequency applications, pair the inverter with a 100 nF decoupling capacitor placed within 2 mm of the supply pins to suppress glitches.
Test each fabricated inverter with a 1 kHz square wave and verify output symmetry using an oscilloscope–ideal waveforms should mirror inputs with less than 5% overshoot. If skew exceeds 10 ns, revisit ground paths and decoupling strategies before integration.

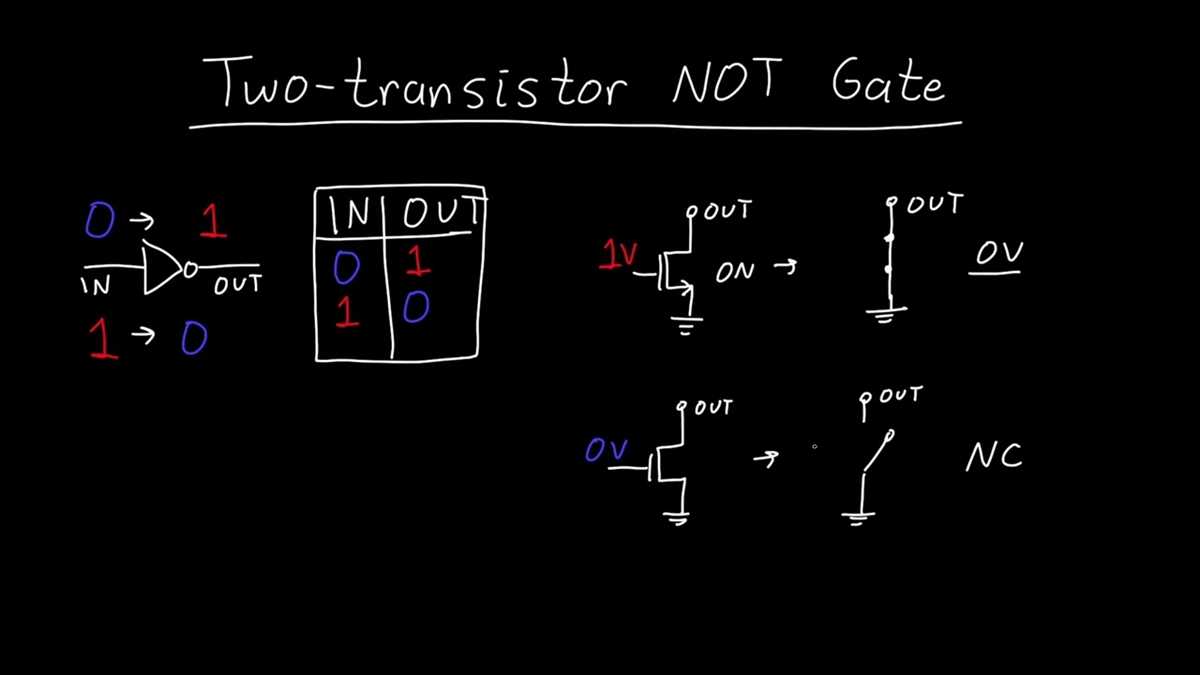

How to Create a Basic Inverter Symbol in 5 Steps
Begin by selecting a reputable schematic editor like KiCad or LTspice–avoid generic drawing tools lacking component libraries. Open a new project and locate the logic symbol toolkit, typically found under “Digital Components” or “Logic Gates.” These editors include pre-validated inverter templates, ensuring IEC or ANSI standard compliance without manual errors.
Position a triangle with a single input line on the left and an output line extending from the right apex–this is the core inverter shape. Verify the default orientation matches your system’s signal flow (left-to-right is conventional). If adapting an existing schematic, delete redundant connection dots or overlapping lines to prevent false readings during simulation.
Refining the Layout
Add a small circle (“bubble”) at the output to denote inversion, placing it precisely at the triangle’s apex without touching the main body. Use a 1mm radius for the circle in 1:1 scale designs to ensure clarity when printed or exported. Label inputs/outputs immediately with consistent naming (e.g., “A” for inputs, “Q” for outputs) using 10pt font for readability across schematic densities. Export as SVG or PDF to retain vector sharpness for fabrication.
Key Components for Building a Binary Inverter Element
Select a transistor with high switching speed and low saturation voltage. Bipolar junction transistors (BJTs) like the 2N3904 or field-effect transistors (FETs) such as the 2N7000 work reliably–choose based on input voltage and load current requirements. For a 5V logic, a BJT typically needs a base resistor between 1kΩ–10kΩ, while a FET may require a direct connection or a small pull-down resistor.
- A DC power supply matching the logic level (3.3V, 5V, or 12V)
- Precise resistor values (1kΩ, 4.7kΩ, 10kΩ) to prevent transistor damage
- Optional pull-up/down resistors for stable output when no input is applied
- Load (LED, relay, or subsequent logic stage) with current rating under 200mA for BJTs
For minimal propagation delay, pair the transistor with a fast recovery diode if driving inductive loads. Schottky diodes like the 1N5817 suit this purpose–place them in reverse across the load to absorb voltage spikes. Without this, sudden current changes can destroy the transistor or corrupt signal integrity.
Testing configuration: Apply input voltage (e.g., 0V or 5V) and measure output with a multimeter. Output should flip–high (near supply voltage) when input is low, and low (≈0V) when input is high. Deviations indicate incorrect resistor values, transistor failure, or improper connections. Use a breadboard for rapid iteration before final assembly.
Common Mistakes When Wiring a Transistor-Based Logic Inverter
Choose the correct resistor values for the base and collector. A base resistor below 1kΩ often saturates the BJT too aggressively, causing excessive current draw and potential overheating. Conversely, values above 10kΩ may prevent full saturation, leaving the output voltage ambiguous. Test with a multimeter–ideal base current should be 1/10th to 1/20th of the collector current. For a typical 5V supply, 4.7kΩ for the base and 1kΩ for the collector works reliably without straying into marginal operation.
Reverse the collector and emitter connections only once–then confirm the pinout. Most TO-92 BJTs (e.g., 2N3904) have an emitter on the left when the flat side faces you, but variants like MMBT3904 swap the emitter and collector positions. Swapping these pins turns the device into a poor forward-biased diode, clamping the output near 0.6V regardless of input state. Always verify the datasheet and label leads before soldering.
Incorrect Grounding and Power Supply Issues
- Floating ground connections create erratic behavior. Ensure the emitter ties directly to ground, not a shared trace prone to noise. A 0.1µF ceramic capacitor between VCC and ground suppresses transients that could falsely toggle the output.
- Supply voltages outside the BJT’s range (typically 0.6V–5V for common models) distort logic levels. A 3.3V signal may not fully drive a 5V inverter, leaving the output in a linear region. Use level shifters if input signals differ from the power rail.
- Cheap breadboards introduce intermittent shorts. Verify continuity with a probe–parasitic resistance above 1Ω indicates a faulty connection that skews performance.
Neglecting load considerations skews results. An LED or low-impedance load directly connected to the output sinks current, potentially starving the transistor of collector voltage. Use a 1kΩ pull-up resistor for open-collector designs. For heavier loads, add a second transistor in a Darlington configuration or switch to a MOSFET with a lower RDS(on).
Thermal and Layout Pitfalls
- High-speed switching induces voltage spikes. A flyback diode (1N4007) across inductive loads prevents back EMF from damaging the BJT’s base-emitter junction.
- Tight component spacing causes thermal coupling. Separate heat-generating parts (e.g., voltage regulators) from the inverter to prevent false triggering as temperatures rise.
- Long input/output traces act as antennas. Keep traces under 5cm and use twisted pairs for high-frequency signals to minimize crosstalk.
Testing an Inverter Element with a Multimeter
Power the logic component by connecting its VCC pin to a 5V DC supply and ground the GND pin. Set the multimeter to DC voltage mode with a 20V range. Probe the input terminal while applying a logic high (5V) signal–output should read near 0V. Reverse the input to logic low (0V)–output must switch to approximately 5V. Deviations exceeding ±0.5V from these values indicate malfunction.
Switch the multimeter to continuity mode to verify internal transistor integrity. Touch the probes across the input and output terminals: no beep confirms absence of a direct short. Repeat this check between VCC and output, then GND and output. A short between any pair points to a blown MOSFET or damaged trace requiring replacement.
Measure quiescent current draw by inserting the multimeter in series with the power supply. A healthy inverter draws 1–5 µA in standby. Values above 50 µA suggest leakage from degraded oxide layers or parasitic paths. Compare readings against the manufacturer’s datasheet–significant discrepancies necessitate further isolation of the fault.
| Input Voltage | Expected Output | Acceptable Tolerance | Failure Indication |
|---|---|---|---|
| 0.0V | 4.5V–5.2V | ±0.5V | <4.0V or >5.7V |
| 5.0V | 0.0V–0.5V | ±0.3V | >0.8V |
For transient response analysis, use a pulsed input signal (e.g., 1 kHz square wave). Configure the multimeter to frequency mode and probe the output: observed frequency must match the input within 5%. Any skewing or dropouts reveal slow switching speed, often linked to excessive load capacitance or weakened drive strength.
Isolate the component from attached loads by removing downstream connections. Retest voltage levels–if readings normalize, the issue lies in the load circuitry. Persistent incorrect values at this stage confirm the inverter itself has failed. Common culprits include corroded solder joints, overheated packaging, or improper ESD handling during installation.
Document each measurement directly on the schematic legend: note probe points, observed values, and deviations. Cross-reference with prior test logs to identify patterns of degradation. Replace the inverter only after exhaustive diagnostics–swapping prematurely risks overlooking systemic issues like noisy power rails or incompatible logic families.
