Start by selecting a 12V DC power supply–this voltage balances safety and efficiency for most home projects. If you need brighter output, use a 24V source for LED arrays, but add a current-limiting resistor (typically 220-470 ohms for standard configurations) to prevent burnout. For incandescent bulbs, a triac-based dimmer (like MOC3021) works best with AC mains.
Place a PN2222 transistor when switching loads under 500mA. For heavier currents, a MOSFET IRFZ44N handles up to 49A with minimal heat–mount it on a TO-220 heatsink if the load exceeds 10W. Connect the gate to a 10kΩ pull-down resistor to avoid floating voltages.

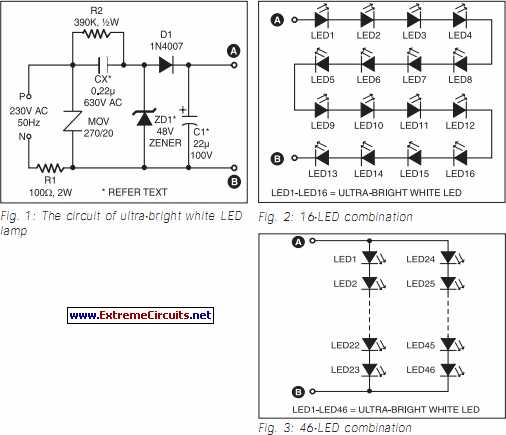

Use 1N4007 diodes to protect against back EMF from inductive loads. For AC circuits, insert a varistor (14D471) across the mains input to clamp voltage spikes. If the setup flickers, add a 100μF smoothing capacitor after the bridge rectifier–this stabilizes DC output for LEDs or relays.

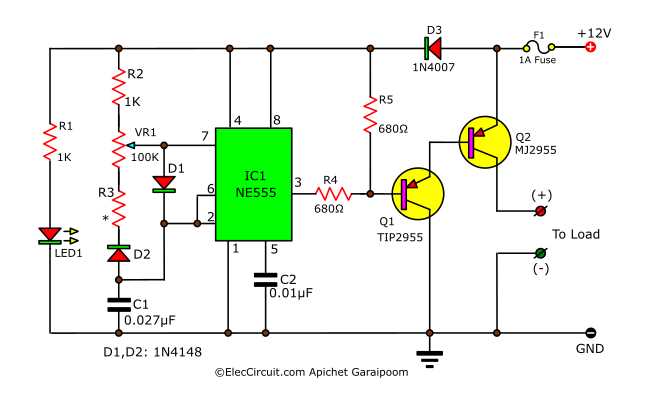

For precision, a 555 timer (in astable mode) generates PWM signals at 1kHz, adjustable via a 10kΩ potentiometer. Pair it with a TIP120 Darlington transistor for dimming high-power LEDs. Test all connections with a multimeter: measure 0V at open switches, Vcc at transistor bases, and ~4.5V across a 220Ω resistor before final assembly.
Print the layout on perfboard using 0.8mm traces for currents below 1A; for higher loads, use 2oz copper PCB. Label each component (e.g., “Q1: IRFZ44N”, “R3: 220Ω”) to avoid mistakes. If soldering directly to wires, strip 5mm of insulation and twist strands–cold joints fail under vibration.

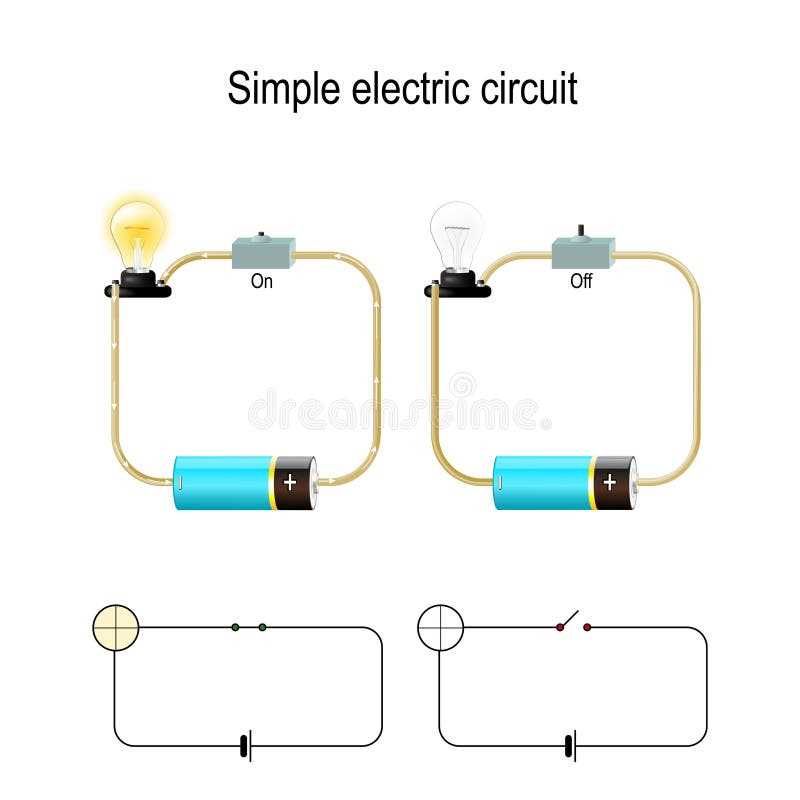

Building a Simple Electrical Schematic for Lighting Devices
Start by sourcing a 12V DC power supply or a standard 230V AC mains adapter, depending on your voltage requirements. For low-voltage setups, a bridge rectifier (e.g., KBPC2510) paired with a smoothing capacitor (470µF, 25V) ensures stable current delivery to the filament or LED module. High-voltage configurations demand a fuse (500mA-2A) in series to prevent overloads–position it immediately after the power inlet.
Select a switching element based on load type: MOSFETs (IRFZ44N) handle high currents efficiently but require gate drivers, while relays (OMRON G5LE) simplify control for resistive loads like incandescent bulbs. For dimming, a triac (BT136) with phase-angle control (via MOC3021 optocoupler) works best with AC-fed halogen sources. Include a snubber network (100Ω resistor + 100nF capacitor) across the triac to suppress voltage spikes.
Wire the light source directly to the switching component, ensuring polarity for LEDs or diodes. For filament-based designs, add a thermal fuse (15A, 250°C) near the socket to interrupt power during overheating. Use 18 AWG solid core wire for high-current paths and 22 AWG stranded wire for signal traces. Ground all metallic components–failure risks stray capacitance and hum in audio-adjacent installations.
Component Placement and Safety Checks
Mount the rectifier, capacitor, and switching elements on a perforated board (0.1″ pitch) or PCB with copper pours for heat dissipation. Keep high-voltage traces ≥4mm apart to meet IEC 60950 clearance standards. For AC mains connections, use crimp terminals (Insulated, 0.75mm²) secured with heat-shrink tubing. Test continuity with a multimeter (Ω-range) before applying power–resistance between live and neutral should exceed 1MΩ.
Enclose the assembly in a non-conductive housing (polycarbonate or UL94 V-0 rated ABS) with ventilation slots. Affix caution labels (ISO 7010 W012) for exposed terminals and include a NEMA 5-15R inlet for North American standards or IEC 60320 C14 for international use. Store unused components in ESD-safe bags–MOSFETs and ICs degrade under static discharge.
Key Components Required for a Basic Lighting Setup
Select a power source rated for the illumination device’s voltage needs–typically 3V, 6V, 12V DC, or 110-240V AC. Verify the polarity for DC sources to prevent reverse connection damage, especially with LEDs. Household fixtures often require AC, while portable or low-voltage setups need DC adapters or batteries with consistent output. A mismatched voltage will either fail to energize the filament or burn it prematurely.
Filament selection depends on brightness and lifespan requirements. Incandescent bulbs use tungsten wires glowing at 2500–3000°C. Halogen variants run hotter (3000°C+) for crisper light but demand heat-resistant enclosures. LEDs need no filament but rely on semiconductor chips; their forward voltage drops (1.8V–3.3V per diode) dictate series or parallel arrangements. Always cross-check bulb wattage with fixture tolerances–exceeding limits risks melting sockets or insulation.
| Component | Typical Ratings | Critical Considerations |
|---|---|---|
| Switch | 1A–10A (resistive), 250V AC/125V DC | Avoid undersizing for high-wattage loads; arc suppression for inductive loads |
| Wiring | 18AWG–12AWG (copper) | Heat resistance (XLPE insulation for >105°C environments) |
| Socket | E12–E27 (screw), B22 (bayonet), GU10 (pin) | Material (ceramic for halogens, plastic for LEDs) |
Use a switch rated for at least 120% of the expected load. Momentary push buttons suit momentary activation, while toggle or rocker types sustain current. Position the switch close to the power entry point to minimize wire runs and voltage drop. For AC mains, choose a component with a 6kV+ surge rating to handle transient spikes from inductive motor loads.
Thermal management dictates reliability. Halogen emitters generate 85% heat; ventilated housings prevent localized overheating. LEDs produce minimal heat but degrade at >85°C–opt for aluminum heat sinks or forced air cooling in high-power arrays. Copper wiring resists oxidation better than aluminum but weighs 40% more; derate ampacity by 20% if bundled tightly to avoid resistive losses.
Secure connections with crimp terminals, twist-on wire nuts, or terminal blocks. Tin-lead solder (60/40) suits low-stress joints, while silver-bearing solder withstands vibration. Apply strain relief to cables exiting enclosures–prevents conductor fatigue at termination points. Test continuity after assembly; intermittent connections cause flickering and reduce filament life.
Step-by-Step Connection Instructions for a Basic Lighting Setup
Gather three core components before starting: a socket for the bulb, a 2-core cable (minimum 18 AWG), and a plug compatible with your outlet standards (e.g., Type A for US, Type G for UK). Ensure the power source is disconnected during the entire process.
Strip 1 cm of insulation from each end of the cable using wire strippers. For the plug end, twist the exposed copper strands of the live (typically brown or black) and neutral (blue or white) wires separately to prevent fraying. Secure them under the corresponding screw terminals in the plug–match polarity labels if present.
Attach the opposite end of the cable to the socket. Most sockets have terminal screws marked for live and neutral. Insert the stripped live wire into the brass or darker-colored screw, tighten firmly, then repeat for the neutral wire under the silver or lighter-colored screw. Avoid overtightening–just enough to prevent loosening.
If including a switch, cut the live wire at a convenient point (10–15 cm from the socket recommended) and strip both new ends. Connect one end to the switch’s input terminal, the other to its output terminal. Use a small screwdriver to secure the connections, ensuring no exposed strands touch each other or the socket’s outer shell.
Test the assembly by plugging it in and toggling the switch. If the bulb fails to illuminate, disconnect power immediately and recheck connections with a multimeter. Probe the socket terminals: 220–240V (or 110–120V for US systems) confirms proper wiring. A reading of 0V suggests a break in the live path.
For permanent installations, use a strain relief clamp where the cable enters the plug and socket. This prevents tension on the connections if the cable is tugged. For visible wiring, opt for braided or fabric-covered cables to improve aesthetics–secure them with clips every 30 cm along walls or furniture.
Final safety check: Inspect all joints for exposed copper. Cover any bare sections with electrical tape. Replace damaged bulbs immediately–avoid exceeding the socket’s wattage rating. For dimmable setups, ensure compatibility between the bulb, switch, and wiring gauge to prevent overheating.
Key Errors When Sketching Lighting Schematics
Failing to label power sources with exact voltage ratings causes miswired setups. Always mark batteries, AC inputs, or transformers with their precise output–5V, 12V, or 230V–otherwise, components may burn out or underperform. Overlooking polarity on LEDs and diodes invites reverse voltage damage; draw arrows or use +/– symbols to indicate direction.

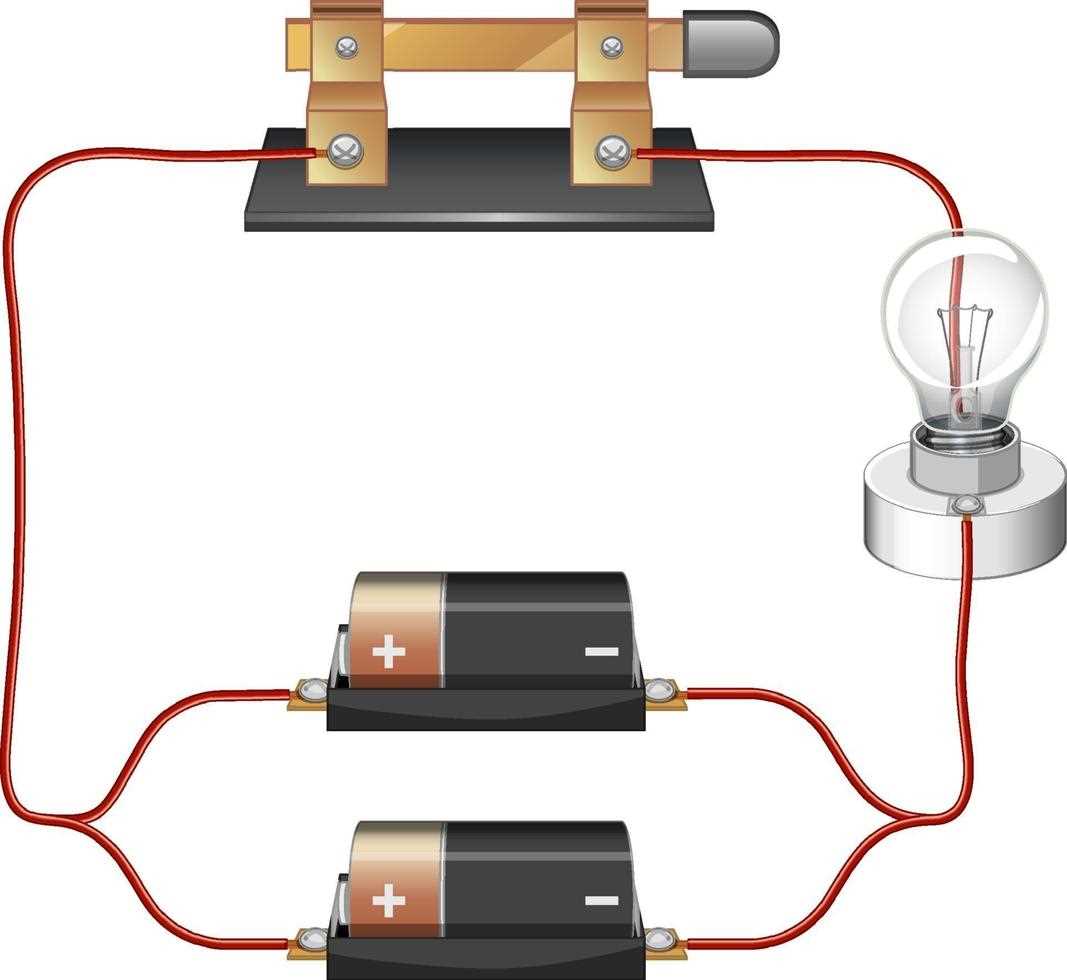

- Mixing up series and parallel wiring leads to uneven brightness or cascading failures if one element fails in series.
- Skipping fuse or resistor calculations risks overheating; use Ohm’s Law (V=IR) to size them correctly.
- Forgetting ground connections creates floating voltages; ensure all grounding paths terminate at a common node.
- Using unclear symbols confuses builders; stick to standardized IEC or ANSI icons (e.g., zigzag for resistors, straight line for switches).
- Ignoring wire gauge strains connections–thicker wires for high currents, thinner for signal paths.
How to Select the Right Switch for Your Lighting Setup
Start by matching the switch’s current rating to your fixture’s wattage. A 10-amp switch handles up to 1200 watts at 120V; beyond that, choose 15 or 20-amp models. Check the bulb’s label–halogen and incandescent draw more power than LEDs, so overestimate by 20% to prevent overheating.
For basic applications, a single-pole switch suffices–on/off control from one location. Need flexibility? Install a three-way switch for dual control (hallway or large room entry points) or a four-way for three-plus locations. Avoid dimmer compatibility issues by verifying the switch supports your bulb type–most triac dimmers work with LEDs rated “dimmable,” while ELV dimmers suit electronic low-voltage transformers.
Mechanical toggle switches last 50,000+ cycles but lack modern features. Rocker switches offer sleeker aesthetics and quiet operation, ideal for bedrooms. For smart home integration, pick Wi-Fi or Zigbee-enabled models like Lutron Caséta or TP-Link Kasa–ensure they pair with your hub (Google Home, Alexa, or HomeKit). Battery-powered wireless switches eliminate wiring but require frequent replacements.
Outdoor installations demand weatherproof designs–look for NEMA 3R or IP65 ratings to resist moisture and dust. Metal-clad switches with sealed housings outlast plastic variants in humid areas. For industrial or garage lighting, heavy-duty switches with metal toggles withstand accidental impacts better than standard residential models.
Backlit switches improve visibility in dark spaces but can interfere with low-level ambient lighting. Choose models with minimal glow if used near bedrooms. For stairwell applications, motion-activated switches reduce energy waste–adjust sensitivity settings to avoid false triggers from pets or airflow.

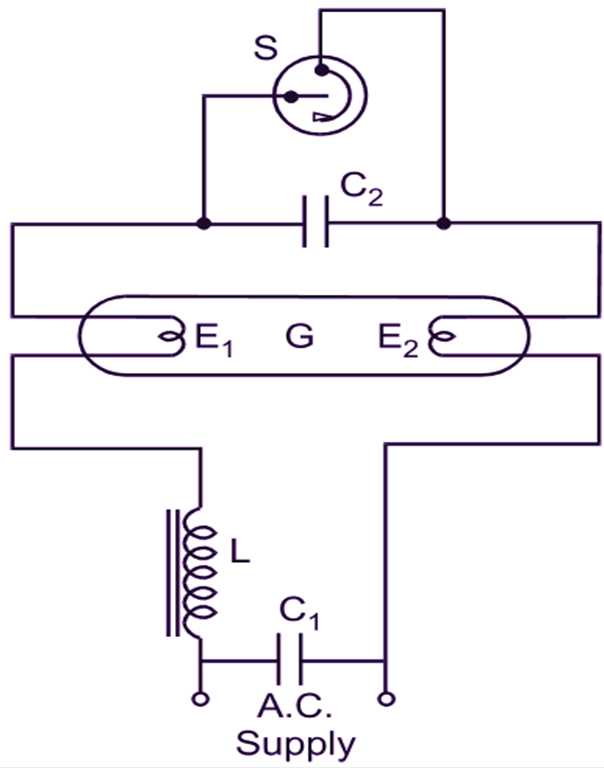

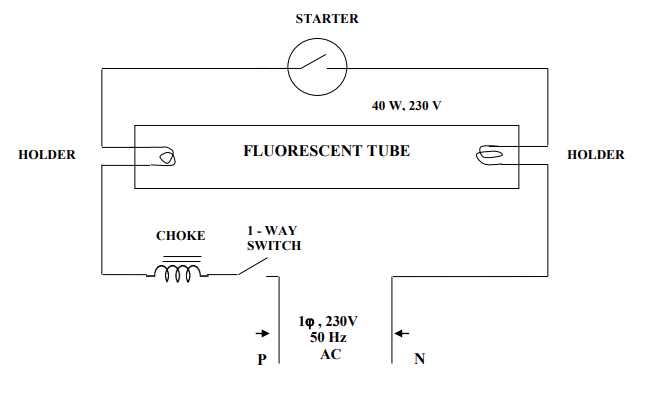

Fluorescent or CFL fixtures require dedicated switches with ballast-compatible circuitry–standard toggles may cause flickering. Line-voltage track lighting often needs specialized switches with higher current ratings (20-30 amps) due to multiple fixture loads. When retrofitting older installations, replace worn-out switches promptly–loose connections create fire hazards.
Consider the mounting type: panel-mounted switches fit electrical boxes snugly, while surface-mounted options work in conduit systems. For temporary setups (holiday displays), plug-in toggle switches bypass hardwiring but limit current to 10 amps. Always de-energize the line before handling–use a non-contact voltage tester to confirm safety.
Cost varies widely: basic toggles run $2–$5, while smart switches range $30–$80. Prioritize UL or ETL certification–counterfeit switches lack proper insulation. For frequent-use areas (kitchens, workshops), invest in commercial-grade switches (Leviton or Eaton) rated for 100,000+ cycles. Test switch functionality before finalizing wall plates–miswired devices cause intermittent failures.
