Start with a single-junction silicon-based setup when designing an electrical layout for renewable energy harvesters. Use a bypass diode across each panel–Schottky diodes (1N5822) handle reverse voltage spikes better than standard silicon variants. For a 12V system, connect modules in series to reach 18-22V open-circuit voltage, ensuring compatibility with PWM charge controllers rated for 20A or higher. MPPT trackers like the Victron SmartSolar 100/30 boost efficiency by 15-30% in partial shade.
Key components: Include a blocking diode (SB560) between the array and battery to prevent nighttime discharge, but skip it if using modern controllers with built-in protection. Wire gauge selection depends on current: 8 AWG for 10A, 4 AWG for 50A over 10 feet. Lithium iron phosphate batteries tolerate 5,000 cycles at 80% depth of discharge, outperforming lead-acid by 3-5x in lifespan. Isolate the ground frame separately to avoid corrosion in humid climates.
For microinverters (Enphase IQ8+), attach one per panel–this isolates failures and optimizes shading tolerance. String inverters (SMA Sunny Tripower) work better for unshaded arrays, reducing cost by 40%. Add a DC disconnect (UL 98B) between the array and controller, sized at 125% of max short-circuit current. Monitor real-time performance with a shunt-based meter (MidNite Solar MNB-1) calibrated to ±0.5% accuracy. Test open-circuit voltage annually–drop below 80% of factory specs indicates degradation.
Critical notes: Avoid cheap PWM controllers–they waste 20-40% of potential energy in tracking mismatch. Mount panels at latitude ±15° for year-round efficiency. In snow-prone areas, use frameless modules (SunPower Maxeon) to shed accumulation 3x faster. For off-grid systems, oversize the array by 25-30% to account for inefficiencies in conversion and storage. Clean surfaces every 3 months–dust reduces output by 0.5% per gram per m².
Schematic Layout for Photovoltaic Energy Harvesting Systems

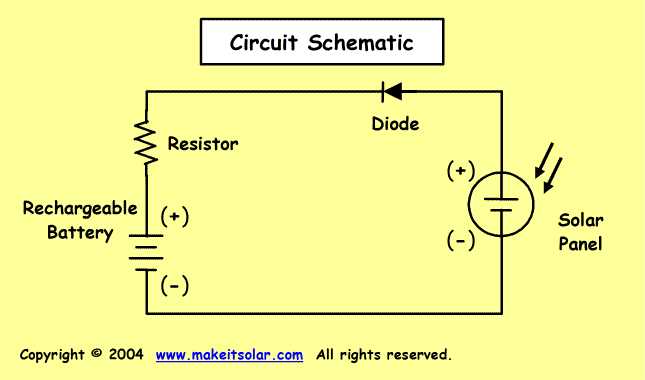

Connect the PV module directly to a blocking diode rated for at least 120% of the panel’s short-circuit current. Schottky diodes with a forward voltage drop below 0.3 V at 1 A minimize power dissipation; use the 1N5822 or MBR1045 for panels under 20 W, switching to the STPS20L150CT for arrays up to 200 W. Bypass diodes across each sub-string prevent shadow-induced hot-spots–install one MUR860 diode per 18–24 series cells in crystalline silicon setups.
Match the charge controller input voltage to the panel’s open-circuit voltage. For a 12 V nominal array, select a controller that accepts 23–25 V VOC; for 24 V systems, tolerate 45–50 V VOC. MPPT controllers like the Epever Tracer AN series yield 95–98% tracking efficiency under 1 kW/m² irradiance and 25 °C, but PWM models such as the Victron BlueSolar 10 A are sufficient for fixed loads below 50 W where cost outweighs marginal gains.
Component Placement and Protection Guidelines
| Element | Position & Spacing | Protection Requirements |
|---|---|---|
| Blocking diode | Within 20 cm of panel junction box | Heat-sink for currents >5 A; ≥IP67 enclosure |
| Bypass diodes | Directly soldered across sub-string terminals | Thermal adhesive pad; max ambient 85 °C |
| Charge controller | Centralized, ≤2 m from battery | ≥IP65; surge protector ≥6 kV |
| Battery disconnect | ≥30 cm from controller; exposed terminals capped | Fuse ≥1.5 × max battery Ah; ANL or Class T |
Wire gauge selection follows the 3% voltage-drop rule. Use 14 AWG stranded copper for
Grounding demands a dedicated rod driven 2.5 m into moist soil; resistivity under 50 Ω-m allows a 12 mm galvanized rod. Bond all metallic frames and enclosures with 6 AWG bare copper; route grounding conductors separately from current-carrying wires to prevent inductive coupling. Surge arrestors (MOVs rated ≥1.5 × VOC) clamp transient voltages within 20 ns; mount them ≤30 cm from the panel terminals and ≤10 cm from the charge controller input.
Testing Protocol Before Commissioning
Verify open-circuit voltage per panel segment with a multimeter set to DC 100 V; readings must match ±5% of datasheet VOC at STC. Measure short-circuit current; discrepancies >±8% indicate shadowing, dirty cells, or defective bypass diodes. Use an IV curve tracer (e.g., Seaward PV210) under controlled light to confirm fill factor >0.7 for crystalline modules or >0.6 for thin-film. If ambient exceeds 30 °C, recalculate VOC using −0.4%/°C temperature coefficient from datasheet.
Key Parts for a Basic Photovoltaic Panel Assembly
Select a polycrystalline silicon panel with a minimum 15% efficiency rating–brands like Renogy or HQST offer 10W to 100W modules. Avoid amorphous thin-film options; their lower output per square meter makes them impractical for standalone loads. Pair the panel with a PWM charge controller rated for at least 20% above the panel’s short-circuit current–e.g., a 10A controller for a 18V/5A module ensures no thermal overload.
- A deep-cycle lead-acid or LiFePO4 battery (12V, 20Ah minimum) with built-in BMS for overcharge protection.
- Low-loss copper wiring: 4mm² for ≤5m runs, 6mm² for longer distances to prevent voltage drop below 3%.
- Blocking diodes (Schottky type, 1N5822) for reverse current protection during darkness.
- MC4 connectors crimped with hydraulic crimpers–not solder–to ensure IP67-rated seals.
- Fuse or circuit breaker sized at 1.25× the panel’s Is/c–30A for a 5A module.
- DC-DC buck converter (XL6009-based) to regulate output to USB 5V or 12V for loads.
Mount the panel at a tilt angle equal to your latitude ±15° (e.g., 35° for 40° latitude) facing true south in the Northern Hemisphere. Use aluminum Z-brackets secured with stainless-steel lag bolts into wooden rails or roof rafters; avoid adhesives–they degrade under UV within 18 months. Test open-circuit voltage (Voc) under noon sun–expect 21–23V for a 12V nominal module–and confirm it matches the datasheet within ±5%.
Step-by-Step Connection of Photovoltaic Modules to Storage Units
Choose a charge controller matching the panel’s voltage and battery bank capacity–MPPT types yield 15-30% more energy than PWM for 12V or 24V systems. Verify the module’s open-circuit voltage (Voc) stays below the controller’s max input limit, especially in cold climates where Voc rises 0.3-0.5% per °C drop below 25°C.
Connect the module’s positive lead to the controller’s solar input terminal, then link the negative lead to the adjacent terminal. Use 4mm² copper wire for distances under 5m; increase to 6mm² for longer runs to minimize voltage drop, which should not exceed 3% over the entire length.
Attach the battery’s positive terminal to the controller’s battery input, followed by the negative terminal. Ensure polarity matches–reversing polarity permanently damages MPPT controllers. For lithium-ion storage, set charging parameters to 3.5-3.7V per cell; lead-acid requires 14.4-14.8V absorption and 13.2-13.6V float stages.
Install a 30A fuse or circuit breaker within 15cm of the battery’s positive terminal to prevent short-circuit currents, which can exceed 100A in standard 100W panels. Add a blocking diode if the controller lacks one, though modern charge regulators integrate this protection.
Ground the system by connecting the module’s frame, controller casing, and battery negative (for non-isolated setups) to a common earth rod driven 1.5m into moist soil. Use 6AWG bare copper wire for grounding connections–soil resistivity below 50Ω·m requires only a single rod; higher values need two spaced 2m apart.
Test open-circuit voltage at the panel terminals in full sun–Voc should match the datasheet ±5%. Measure voltage at the controller’s battery input with the storage disconnected; expect Voc minus 0.5-1V drop depending on wire gauge and distance. Monitor charging current with a multimeter–expected values range from 5-8A for 100W modules under ideal conditions.
Seal all outdoor connections with adhesive-lined heat shrink or silicone-filled terminal blocks to prevent corrosion. UV-resistant conduit protects exposed wiring from degradation, which can reduce lifespan by 40% in unprotected installations over 5 years. Label each wire with voltage, direction, and function for future maintenance.
Configure low-voltage disconnect settings on the controller to prevent storage discharge below 20% state of charge for lithium or 50% for lead-acid. Set reconnect thresholds 0.4-0.6V above disconnect levels to avoid rapid cycling when loads draw power. Verify all settings with a multimeter before leaving the system unattended–misconfigured thresholds can halve battery lifespan within 6 months.
Selecting an Optimal Charge Regulator for Steady Output
Prioritize MPPT controllers for panels exceeding 100W; efficiency gains reach 30% compared to PWM in low-light conditions. Match input voltage ranges–avoid pairing a 12V battery with a 24V regulator to prevent overheating. Brands like Victron and EPEVER provide models with temperature compensation, reducing overcharge risks by adjusting thresholds based on ambient readings.
- 15A–20A regulators suit 200W–300W arrays, while 30A+ handles 400W+ systems.
- Check protection features: reverse polarity, short-circuit, and overvoltage safeguards are non-negotiable.
- For lithium batteries, confirm compatibility–some PWM units lack the algorithms needed for proper float stages.
- Consider display options: Bluetooth-enabled units simplify remote monitoring.
Powering Devices: Integrating an LED or Direct-Current Appliance
Begin by selecting a load with a voltage rating within 80% of the photovoltaic panel’s optimal output–typically 0.5V to 0.7V per silicon-based unit under full illumination. For a single LED, choose a forward voltage drop of 1.8V–3.3V; connect it directly via a current-limiting resistor calculated using V=IR, where V equals the panel’s voltage minus the LED’s forward drop, I equals the desired current (10–20mA for indicator LEDs), and R is the resistance needed. Example: a 5V output minus a 2V LED drop, divided by 0.015A, yields 200Ω–round up to the nearest standard value (220Ω). Polarity matters: the panel’s positive terminal must align with the LED’s anode, the resistor bridging the cathode and ground.
For DC appliances rated above 3W–such as small fans or water pumps–insert a Schottky diode (e.g., 1N5817) between the panel’s output and the load to prevent reverse current at lower irradiance. A 1000μF electrolytic capacitor across the appliance’s power pins stabilizes transient voltage drops during partial shading. Ensure the panel’s wattage exceeds the appliance’s demand by at least 20%: a 12V/5W panel suffices for a 4W 12V fan but will fail under 6W loads. Use a multimeter in DC voltage mode to verify the panel’s output matches the appliance’s input specification before permanent connections.
Bypass linear regulators if efficiency is critical–switching buck converters (e.g., LM2596) reduce power loss to 3–5% versus 40% for linear types. Configure the converter’s output to the appliance’s exact voltage: a 5V adapter for USB devices or 12V for automotive accessories. Solder joints must withstand thermal cycling; use 60/40 rosin-core solder and heat-shrink tubing to insulate connections. For intermittent loads, add a 1F supercapacitor to sustain operation during brief cloud cover–charge time at 100mA is ≈100 seconds from 0V to 5V.
Test under varied irradiance: a 10% reduction in sunlight should not drop appliance performance below 80%. If flickering or stalling occurs, recheck the panel’s voltage under load with a clamp meter–ideal values remain within ±5% of no-load conditions. Replace undersized wires (use 18AWG for
