Begin with a H-bridge configuration if bidirectional control is necessary. Use four transistors–N-channel MOSFETs for efficiency–paired with flyback diodes to clamp inductive voltage spikes. A common fail-safe method integrates a half-bridge with a single supply, though it restricts rotation to one direction. Pair the low-side transistor with a gate driver like the IR2104 to isolate the control signal from the high-voltage side, preventing shoot-through during switching.
For basic speed regulation, introduce a PWM signal from a microcontroller at 10–20 kHz. The average voltage applied determines torque, but smooth operation demands a filter capacitor of at least 100 µF across the power rails. Avoid electrolytic types if vibrations exceed 5G–ceramic or polymer capacitors offer higher resilience. Incorporate a current-sense resistor (0.1 Ω, 1 W) in series with ground to monitor load; overcurrent events should trigger a shutdown via a comparator like the LM393.
Isolate the logic and power sections using an optocoupler (PC817) when the supply exceeds 24 V. Noise-sensitive applications benefit from a star grounding scheme: connect all grounds at a single point near the power source to prevent ground loops. For battery-powered designs, include a Schottky diode (e.g., 1N5817) to block reverse current during charging or regenerative braking, protecting both the drive and power source.
Implement thermal protection by mounting a NTC thermistor (10 kΩ) near the transistors. Couple it with a hysteresis comparator to cut power at 85 °C and restore at 70 °C. For high-power applications (>50 W), use a dedicated gate driver (DRV8871) with built-in under-voltage lockout and dead-time control, eliminating the need for manual resistor-capacitor tuning. Always verify transistor saturation voltage; values above 0.5 V under load indicate inadequate gate voltage or excessive switching losses.

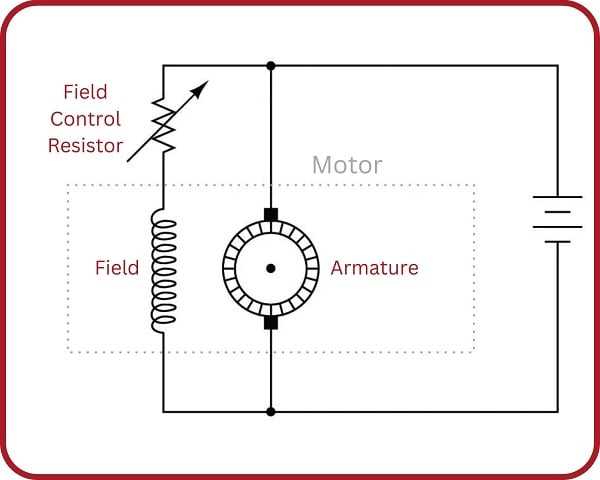

Wiring Schematic for Direct Current Rotation Device

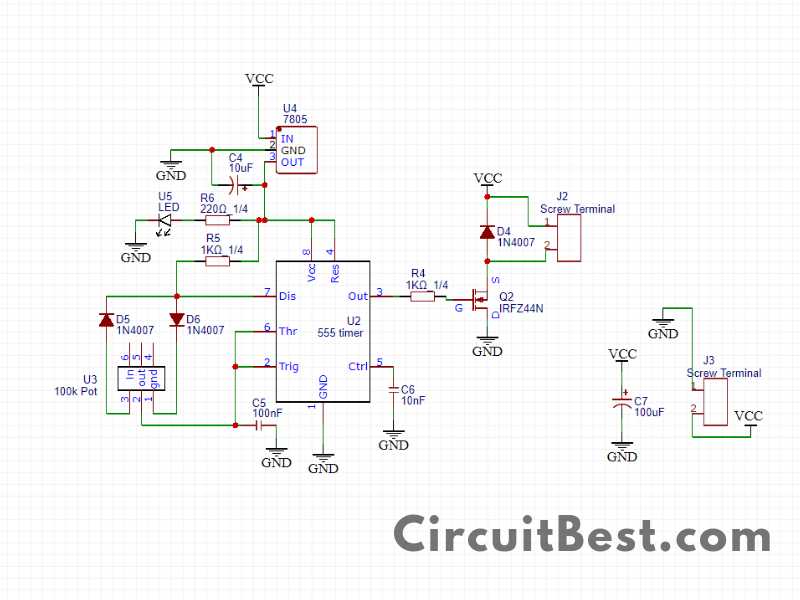

Begin with a power supply rated 1.5–2 times the rotation device’s nominal voltage to prevent voltage sag under load. For a 12V unit, use a 15–18V DC adapter or battery; connect the positive terminal directly to the device’s input via a 10A-rated switch to enable manual control. Insert a flyback diode (1N4007) across the terminals in reverse bias–cathode to positive–to suppress inductive spikes that can damage switches or transistors. If speed regulation is needed, integrate an N-channel MOSFET (IRF540N) or an H-bridge IC (L298N) between the power source and the device, with PWM input tied to a microcontroller or 555 timer circuit for variable control.
- Use 18-gauge copper wire for currents up to 10A; opt for 14-gauge if exceeding 15A to avoid overheating.
- Place a 0.1μF ceramic capacitor between power and ground near the rotation device’s terminals to filter high-frequency noise.
- Avoid daisy-chaining multiple devices to a single power source–dedicate a separate path for each to prevent voltage drops.
- For bidirectional operation, use four MOSFETs or an H-bridge; ensure dead-time in switching to prevent shoot-through currents.
- Test continuity with a multimeter before powering up–shorts between windings will cause immediate failure.
Selecting Optimal Parts for a Simple Rotary Drive Setup
Begin with a power source rated slightly above the nominal voltage of your actuator. A 9V battery works for small hobby units, but for sustained loads–like a 12V continuous-duty drive–use a regulated bench supply or a sealed lead-acid cell. Match current ratings precisely: a 1A stall current requires at least a 1.5A source to prevent voltage sag under transient spikes.
Pick switching elements capable of handling peak inrush current. For brush-type rotors under 50W, a TIP120 Darlington transistor suffices; above 100W, opt for an IRF540N MOSFET or a dedicated H-bridge module like the L298N. Ensure the chosen device has a drain-source voltage margin 20% higher than the supply’s maximum to avoid avalanche breakdown.
Protect the drive with a flyback diode placed cathode-to-positive across the electromagnetic coils. Use a 1N4007 for low-speed setups; for high-speed PWM, a Schottky diode (e.g., 1N5822) reduces reverse recovery losses. Skip this step only if using a pre-assembled controller with embedded transient suppression.
Matching Control Elements to Load Demands
- Resistive speed adjust: A 10kΩ linear potentiometer yields fine-grained torque modulation for low-current units. For high-current applications, pair it with a current-sense amplifier to prevent thermal runaway.
- On/off toggling: A simple SPST slide switch suffices for manual control. For automated sequences, integrate a MOSFET or relay driver board triggered by 3.3V logic signals from microcontrollers.
- Reversing polarity: Dual-pole double-throw (DPDT) switches flip rotation direction cleanly; avoid single-pole versions as they risk shorting the power rail during transition.
Fuse selection must reflect worst-case stall conditions. A 2A fast-blow fuse protects a 1A actuator; slow-blow types tolerate startup surges but fail to react to prolonged overloads. Mount fuses in holders rated 125% of nominal current to prevent arcing across melted contacts.
Thermal Management Considerations
Dissipate heat via heatsinks for semiconductors driving high-duty loads. Anodized aluminum blocks (e.g., TO-220 format) keep junction temperatures below 100°C; apply thermal compound between the device and heatsink for consistent conduction. Add forced-air cooling only if ambient exceeds 40°C or continuous power surpasses 50W.
- Measure ambient temp before installing heatsinks.
- Attach temperature sensors to critical nodes if operating near thermal limits.
- Use pressure-sensitive adhesive pads only for temporary setups–screw mounts endure vibrations better.
Wire gauges must correspond to current demand. Use 22 AWG for 0.1–1A currents, 18 AWG for 1–3A, and 16 AWG for 3–5A. Stranded copper cores prevent work-hardening fractures under rotation; avoid solid conductors for movable connections.
Step-by-Step Assembly of a Direct Current Drive with a Control Button and Energy Source
Begin by selecting a power supply matching your drive’s voltage rating–common values include 3V, 6V, 12V, or 24V. Verify the source’s current capacity exceeds the drive’s stall current by at least 20% to prevent overheating or voltage drop during startup. Use a multimeter to confirm the output before connecting any components, ensuring polarity aligns with the drive’s terminals.
Attach a single-pole single-throw (SPST) switch to the positive lead of the power supply. This component acts as the primary on/off control. For low-power drives (under 1A), a miniature toggle or slide switch suffices; for higher currents, opt for a rocker or push-button switch rated for at least 25% above the drive’s maximum draw. Secure connections with solder or crimp connectors to eliminate loose contacts, which can cause arcing or intermittent operation.
Wire the drive’s positive terminal to the switch’s output, then connect the negative terminal directly to the power supply’s ground. Avoid daisy-chaining grounds through multiple devices–this can introduce noise or ground loops. If using a variable-speed setup, insert a potentiometer (e.g., 10kΩ) between the switch and drive, but ensure its wattage rating exceeds the power dissipated (calculate as I² × R, where I is max current).
| Component | Minimum Rating (Low-Power Drive) | Typical Wire Gauge (AWG) |
|---|---|---|
| Switch | 1A at 30V DC | 18–22 |
| Power Supply | 1.2× drive stall current | N/A (use provided leads) |
| Potentiometer* | 0.5W (for 1A max) | 20–24 |
*Optional for speed control.
After assembly, test the setup with the switch in the off position. Gradually increase power while monitoring the drive’s temperature and rotational speed. If vibrations exceed expected levels, double-check mounting hardware and shaft alignment–misalignment accelerates bearing wear. For reversible operation, replace the SPST switch with a double-pole double-throw (DPDT) unit, wiring the drive’s terminals to the switch’s throws in an “H-bridge” configuration. Use diodes (e.g., 1N4007) across each terminal to suppress voltage spikes during direction changes.
Implementing Variable Speed Adjustment with a Resistive Dial in DC Drives
Select a 10 kΩ linear taper potentiometer to pair with a PWM-capable driver (e.g., L298N, DRV8871) rated for the drive’s current–typically twice its continuous draw. Wire the resistive dial middle pin to the driver’s PWM input, outer terminals to 5 V and ground, ensuring the resistance decreases clockwise for intuitive clockwise speed increase. Calibrate by measuring voltage across the middle pin; expect ~0–5 V swing between idle and maximum drive effort, matching most driver input thresholds.
Optimizing Voltage Divider Behavior
Minimize output impedance variations by placing a 1 kΩ fixed resistor in series with the potentiometer’s wiper. Keep wiring between the dial and controller under 15 cm to reduce EMI from brushed drives. If voltage sag exceeds 0.5 V at maximum setting, replace the potentiometer with a 5 kΩ model or add a rail-to-rail op-amp buffer (e.g., MCP6002) configured as a voltage follower–this stabilizes control signal integrity even under 20 kHz PWM harmonics from the driver stage.
Test the setup at incremental settings: 10%, 40%, 70%, and 100% of maximum dial rotation. Monitor motor current with a shunt resistor (e.g., 0.1 Ω, 1% tolerance); sudden jumps exceeding 15% of nominal operating current indicate irregularities in brush commutation or improper driver heatsink contact–address by adding ferrite beads on input leads or downsizing load torque to stay within driver SOA limits.
