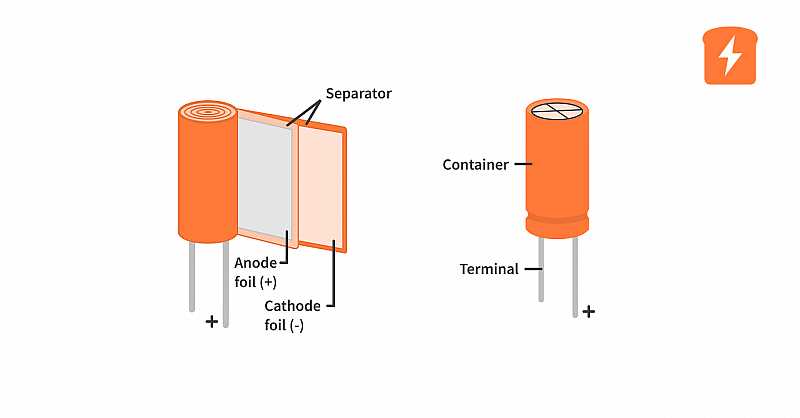

Begin with a clear representation of leads connecting storage elements to a power source–polarity markings must align with the voltage direction. For electrolytic variants, the positive terminal is typically indicated by a longer pin or a distinct mark on the housing. Non-polarized types permit flexible orientation but ensure symmetry in high-frequency layouts to avoid unintended phase shifts.
Place the storage unit between power rails and load, forming a direct path for charge/discharge cycles. Use a 0.1µF ceramic component near integrated circuits to suppress transient spikes–position it within 2mm of the IC’s supply pins for optimal noise filtering. Larger electrolytic units (100µF+) stabilize voltage during peak demands but introduce ESR constraints; pair with a smaller ceramic to compensate.
Trace routing requires precision: wider tracks reduce resistance, but parasitic inductance becomes problematic above 1MHz. For switching regulators, keep storage-device connections as short as possible–loop area directly impacts radiated emissions. Ground planes beneath high-current paths minimize inductance, but split them if analog and digital sections intersect to prevent coupling.
Testing configurations demand distinct approaches: a voltage divider with known resistors isolates leakage currents, while a resonant circuit at the target frequency reveals ESR effects. For timing applications, pair with a resistor to form an RC network–calculate τ = RC, where τ dictates charge/discharge rates. Use a dedicated tool (e.g., LCR meter) to measure capacitance, not multimeter readings, as meter inaccuracies skew results at low voltages.
Building Schematic Representations of Energy Storage Components
Begin by selecting symbols that adhere to IEEE Std 315-1975 or IEC 60617 standards to ensure clarity across technical documentation. Fixed-value components should use a pair of parallel lines for non-polarized variants and a curved line alongside a straight one for polarized types, with the curved line indicating the negative terminal. For variable units, add an arrow diagonally across the symbol to denote adjustability.
Position the element between a power source and resistive load when illustrating charge-discharge behavior. Use a direct connection to a battery on one side, leaving the opposite terminal open to a resistor or LED. This arrangement lets current flow until voltage across the plates equals the source, after which the stored energy discharges through the load.
Label each lead with precise potential differences and capacitance values using microfarads (µF) or picofarads (pF). Examples include:
| Reference Designator | Value | Voltage Rating |
|---|---|---|
| C1 | 10 µF | 25V |
| C2 | 0.1 µF | 50V |
| C3 | 22 pF | 100V |
Ensure voltage ratings exceed the maximum expected potential by at least 20% to prevent dielectric breakdown.
Common Configurations for Specific Applications
Coupling stages in amplifiers require a 0.1 µF ceramic type placed between amplifier sections to block DC while allowing AC signals. Decoupling near IC power pins employs a similar 0.1 µF unit alongside a 10 µF electrolytic; both should sit within 2 mm of the pin to filter noise effectively. Timing circuits combine an energy storage element with a resistor; a 10 kΩ resistor paired with a 100 µF unit yields approximately 1 second of charge time.
High-frequency applications demand low equivalent series resistance (ESR) and inductance (ESL). Select multilayer ceramic variants with X7R or C0G dielectrics, avoiding electrolytic types. For power-line filtering, a 1000 µF electrolytic in parallel with a 0.1 µF ceramic ensures stable voltage under transient loads. Always verify dielectric absorption–polypropylene types exhibit near-zero absorption, critical for precision analog front ends.
Schematics involving switching regulators must include snubber networks. Place a 10 nF component in series with a 10 Ω resistor across switching transistor terminals to suppress voltage spikes. Ensure the combined impedance matches the regulator’s output for optimal damping. Polarized versions in snubbers require correct orientation to avoid reverse voltage damage; a diode can provide additional protection.
Error Prevention and Verification Steps
Mistakes often occur with terminal orientation. Polarized elements must connect the negative lead to the lower potential side; reversing polarity risks catastrophic failure. Measure continuity with a multimeter to confirm correct assembly before applying power. Check for parasitic effects–leakage current should not exceed 0.01CV + 3 µA for electrolytic types at rated voltage.
Perform a step-response test by applying a square wave through a 1 kΩ resistor; observe the voltage curve on an oscilloscope. The time constant (τ) equals R × C; for a 1 µF element and 1 kΩ resistor, τ ≈ 1 ms. Deviations indicate incorrect values, leaky dielectric, or stray capacitance exceeding 1% of the intended value. Use shielded cables for high-impedance nodes to minimize interference.
Standard Graphical Representations of Energy Storage Elements in Schematics
Use two parallel lines of equal length for fixed-value units in all technical drawings–this applies universally across IEC, ANSI, and JIS standards. Polarized variants require a curved line for the negative terminal, while non-polarized types maintain straight lines; deviations from this format risk misinterpretation during assembly or repair.
Variations for Specialized Components
Electrolytic types longer lifespan designs replace the straight negative line with a plus sign adjacent to its positive terminal–critical for high-voltage filtering stages. Trimmer and variable units feature an arrow crossing the parallel lines, angled toward the moveable plate, with IEC adding a T-shaped marker on the fixed side to distinguish adjustment range limits.
Supercapacitors and ultra-low ESR hybrids adopt a double-parallel format with a bold outline or diagonal hatch–verify orientation via an adjacent arrow marking the positive lead, especially in multi-cell bank layouts where reversed polarity destroys charging efficiency within milliseconds.
Building an RC Schematic: A Practical Walkthrough
Gather these components first: one resistor rated between 1 kΩ and 10 kΩ, a 10 µF electrolytic energy storage element, a direct-current supply delivering 5–12 V, and a drafting tool with snap-to-grid (precision ≤ 0.5 mm).
- Place the power rails vertically, 30 mm apart; label the upper rail VCC and the lower ground.
- Position the resistor 10 mm below VCC, oriented horizontally, then connect its left terminal to the rail with a straight 2 mm segment.
- Align the energy storage element’s positive terminal 15 mm below the resistor’s right terminal; join them with a 4 mm vertical trace.
- Extending 10 mm downward from the storage element’s negative lead, route a trace to the ground rail.
Verify junction integrity: every node must bridge exactly two traces without overlaps. Power rails should maintain >1 mm clearance from adjacent paths to prevent accidental shorts.
Annotate each symbol with precise values–resistance (±5 %), capacitance (±20 %), and supply voltage (±0.2 V). Include polarity markers on the storage element by placing a ‘+’ near its upper terminal and a filled semicircle adjacent to the negative lead, ensuring clarity during assembly.
- Export the layout in SVG, DPI ≥ 300, preserving vector fidelity.
- Print a test sheet; measure every trace gap with calipers (target ±0.1 mm tolerance).
- If discrepancies appear, redraw erroneous segments using the original snap-to-grid references.
Choosing Component Ratings for Target Signal Ranges
Begin with the cutoff requirement: for a low-pass stage at 1 kHz, use 1 μF with a 160 Ω resistor–pairing yields a –3 dB point near the target.
Higher frequencies demand smaller reactances: 100 pF suits 10 MHz filters paired with 160 kΩ, while 10 pF handles 100 MHz stages alongside 159 Ω loads.
For decoupling digital logic, pick 0.1 μF ceramic types to suppress noise between 50 kHz and 20 MHz; add 10 μF tantalum near power pins if transient currents exceed 500 mA.
Oscillators need precise values–1 nF with 1 MΩ defines a 160 Hz Pierce stage, whereas 22 pF and 10 kΩ shift the tone to 720 kHz.
Calculate reactance directly: XC = 1/(2π × f × C). Match this to the impedance of adjacent components; mismatches above 30 % distort signal symmetry.
Temperature drift impacts stability–NP0 ceramics hold ±30 ppm/°C, while X7R types swing ±15 % across –55 °C to +125 °C. Choose accordingly for RF stages where drift tolerance is under 5 %.
Voltage rating must exceed peak signals by 50 %; 50 V parts suffice for 12 V rails, 250 V units handle 120 VAC rectifiers. Failure to meet this risks dielectric breakdown below expected lifetime thresholds.
Common Errors in Connecting Storage Elements in Parallel and Sequential Configurations
Mixing polarized and non-polarized units causes immediate failure. Electrolytic types must have their positive leads joined to higher voltage nodes, while ceramic or film varieties tolerate any orientation. Verify datasheets before soldering–reverse bias on electrolytics leads to venting or explosion within seconds.
Overlooking equivalent capacitance calculations introduces unexpected behavior. Parallel combinations sum directly (Cₜ = C₁ + C₂ + Cₙ), but sequential groupings follow 1/Cₜ = 1/C₁ + 1/C₂ + 1/Cₙ. Miscalculating by 10% or more can shift resonant frequencies in filters or delay timing in oscillators beyond acceptable margins.
Ignoring voltage ratings invites catastrophic failure. Every unit must withstand the applied potential plus ripple; stacking sequential pairs halves the effective rating (e.g., two 25V units in series handle only 25V, not 50V). Exceeding ratings by even 5V reduces lifespan exponentially–film types degrade silently, while electrolytics bulge or leak corrosive fluid.
Neglecting ESR (equivalent series resistance) skews performance. High-ESR units in parallel act as unintended voltage dividers, wasting power as heat. Low-ESR alternatives like tantalum or polymer types maintain efficiency but cost 3–5× more; balance trade-offs using ESR × C product metrics.
Parasitic inductance corrupts high-frequency applications. Long leads or poor layout turns a storage array into an unintended RF choke. Keep trace lengths under 5mm for signals above 1MHz, and route ground returns as star points to avoid ground loops–even a single misplaced via adds 5nH of inductance, shifting cutoff frequencies by 20% or more.
Failure to Account for Tolerances
Assuming nominal values guarantees unreliable outcomes. A ±20% ceramic unit paired with a ±5% polymer type creates mismatched charge/discharge rates, causing voltage imbalances in sequential stacks. Use matched pairs with ±1% tolerance or incorporate balancing resistors (100Ω–1kΩ) across each unit to equalize leakage paths.
Thermal derating is non-negotiable. Most units lose 50% of their rating at 85°C; beyond 105°C, dielectric breakdown accelerates. Mount units with thermal vias (minimum 1mm diameter) and maintain spacing of at least 2× the diameter to allow convection–crowding three units at 1mm gaps raises temperature by 15°C, cutting lifetime in half.
Grounding and Isolation Pitfalls
Floating sequential stacks drift dangerously. Without a discharge path, residual voltage builds to hazardous levels; always include a high-value bleed resistor (1MΩ) parallel to each unit. For isolated systems, confirm ground references–accidental reconnection of floating nodes to chassis ground can bypass safety limits, fusing traces or damaging downstream components.
