Begin by identifying the main conductor paths in your system. Modern overcurrent protection devices typically follow a standardized arrangement: a live input terminal feeding a thermal-magnetic mechanism before branching to load outputs. Trace these connections first–skipping this step leads to false assumptions about current flow.
Label every component with precise ratings. A 20A unit won’t function correctly if paired with 14-gauge wiring, nor will a 30mA residual current detector match a 60A supply. Cross-reference these values against local codes (e.g., NEC Table 310.16 or IEC 60364) before proceeding.

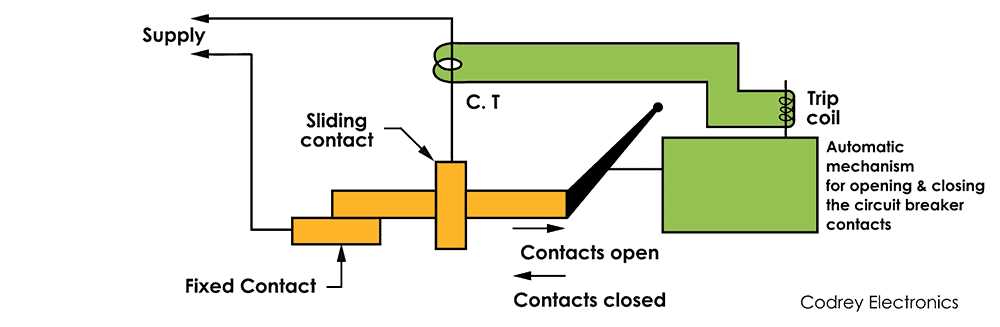

Map the internal trip mechanism early. Thermal bimetallic strips respond to sustained overloads above 1.13× rated current, while magnetic coils react within milliseconds at 3–5×. Indicate these thresholds directly on the schematic to avoid misinterpreting response curves later.
Include auxiliary contacts if present. Under-voltage releases and shunt trips operate on separate voltage levels–typically 120V or 24V AC/DC–and require dedicated wiring loops. Omitting these can lead to incomplete protection cycles, especially in motor starter combinations.
Verify compatibility with upstream disconnects. A 10kA interrupting rating won’t suffice behind a 25kA panelboard switch unless specifically derated per UL 489. Mark derating values in red on the drawing to flag potential weak points during fault events.
Use symbols consistent with ANSI/IEEE Std 315 or IEC 60617. Mixing standards causes confusion during installation and maintenance–stick to one set throughout. Add a legend even if it seems redundant; different teams may interpret a simple square or zigzag differently.
Test mock-ups before finalizing. Simulate a 1.5× overload on a clamp meter to confirm trip times match the manufacturer’s time-current curves. Discrepancies often reveal overlooked thermal connections or incorrect calibration screws.
Color-code critical pathways. Highlight short-circuit current paths in orange, overload zones in yellow, and neutral/ground bonding in green-blue. This accelerates troubleshooting when unexpected trips occur under transient loads.
Understanding Protective Switch Schematic Layouts
Begin by identifying the main busbars in the schematic–these are thick horizontal lines representing the primary power distribution paths. Label them clearly with voltage ratings (e.g., 400V, 230V) and phase designations (L1, L2, L3, N). For three-phase systems, ensure the neutral busbar is distinctly separated from the phase conductors, with a minimum 10mm gap in the drawing to comply with IEC 60364 standards. Use color-coding: red for phases, blue for neutral, and green/yellow for earth, even in monochrome diagrams where patterns or dashed lines substitute for colors.
Component Symbols and Placement
Replace generic symbols with precise manufacturer-specific icons for overload relays, contactors, and disconnect switches. For example, Schneider Electric’s TeSys D series uses a rounded rectangle for thermal overload relays, while Siemens 3TF contactors employ a trapezoidal shape. Position symbols in logical sequence: power source → isolation switch → protective device → load. Leave 3cm vertical spacing between rows for auxiliary contacts or control circuits, avoiding clutter near high-current paths where arc flash risks increase.
Annotate each protective device with its trip curve classification (e.g., “Type B: 3–5×In, Type C: 5–10×In”) and short-circuit breaking capacity (e.g., 6kA, 10kA). Include a legend in the bottom-right corner with symbols for normally open/normally closed contacts, coil terminals, and shunt trips. For residual current devices, denote sensitivity (30mA for personnel protection, 300mA for fire prevention) alongside the symbol. Cross-reference symbols with the equipment’s datasheet to ensure accuracy–mismatches can lead to nuisance tripping or failure under fault conditions.
Wiring Conventions and Safety Notes
Draw downstream wiring thinner than upstream paths–e.g., 0.5mm for 16A circuits versus 1.5mm for 100A feeders. Use orthogonal routing (right angles only) to minimize electromagnetic interference between power and control circuits. Highlight critical points with bold circles: torque values for terminals (e.g., “4.5Nm for M6 screws”), compliance markings (CE, UL), and lockout/tagout provisions. Add a “Danger: Arc Flash Risk” warning near devices rated above 400A, specifying PPE requirements per NFPA 70E Table 130.5(G).
Incorporate a fault tree inset showing common failure modes (e.g., thermal overload, earth leakage) with arrows pointing to the responsible device. For instance, a white arrow labeled “120% In” should point to the thermal relay, while “>30mA” denotes the RCD. Include a QR code linking to the manufacturer’s selectivity tables to validate coordination between upstream and downstream devices–this reduces diagnostic time during outages by up to 40% in industrial setups.
Decoding Protection Device Symbols in Technical Blueprints
Locate the rectangular outline with a diagonal line cutting through it–this represents an automatic switch in schematics. The diagonal slash distinguishes it from standard switches, indicating its role as a fail-safe that interrupts flow under abnormal conditions. Variations exist: a solid rectangle with a straight line signals a single-pole device, while stacked rectangles with lines denote multi-pole configurations.
Examine the surrounding annotations. Numbers next to the symbol (e.g., “16A” or “250V”) define its current and voltage ratings. These figures determine compatibility with connected loads. Missing or incorrect values risk overload scenarios, rendering the component ineffective. Cross-reference these details with manufacturer datasheets for precise interpretation.
- Thermal-magnetic variants show a small zigzag adjacent to the slash, symbolizing the bimetallic strip.
- Residual-current devices include a curved line intersecting the diagonal, representing ground-fault detection.
- Shunt-trip models feature an additional terminal symbol branching off the rectangle.
Identify the trip curve designation, often inscribed near the symbol (e.g., “B,” “C,” or “D”). These letters indicate response times to overcurrent events:
- Type B: Trips at 3–5× rated current (sensitive applications).
- Type C: 5–10× rated current (general use).
- Type D: 10–20× rated current (high inrush loads, e.g., motors).
Trace the symbol’s connections in the layout. Input terminals typically sit at the top, outputs at the bottom. Reversed polarity in diagrams often signifies a normally closed state, requiring manual reset after tripping. Confirm this orientation aligns with the system’s operational logic–misinterpretation here leads to incorrect installation or maintenance procedures.
For modular designs, look for tandem symbols with dashed lines bridging individual rectangles. This indicates linked poles sharing a common trip mechanism. In three-phase systems, symmetry is critical: ensure all poles are identically rated and positioned to prevent phase imbalance during faults.
Validate the symbol’s alignment with real-world components during physical inspections. A mismatch–such as a single-pole symbol mapped to a three-pole physical device–demands immediate revision of the schematic. Use a multimeter to verify switch states (open/closed) against the diagram’s intended configuration, especially after modifications or upgrades.
Step-by-Step Wiring of a Single-Pole Safety Switch
Shut off the main service panel by switching the primary disconnect to the “OFF” position. Verify absence of power using a non-contact voltage tester on the bus bars, feeder wires, and any adjacent terminals. A false positive can occur if the tester is held too close to grounded metal; maintain a 1 cm gap during verification.
Remove the panel cover by unscrewing the fastening bolts in a diagonal pattern to prevent uneven stress on the enclosure. Store the bolts in a magnetic tray or labeled container–threads are often stripped during reinstallation. Inspect the interior for corrosion, dust, or moisture; clean with a dry cloth and compressed air if necessary. Corroded bus bars must be treated with contact cleaner and fine-grit sandpaper before proceeding.
Select an appropriate slot for the new switch. Single-pole models require a 120V bus bar; confirm compatibility by checking the panel’s label for maximum amperage (typically 15–20A for residential lighting or outlet branches). Use a slot with adjacent empty spaces to avoid physical interference with existing devices. If rewiring an occupied slot, label the wires before disconnecting to prevent cross-wiring.
| Wire Type | Gauge (AWG) | Max Load (A) | Color Code |
|---|---|---|---|
| Hot (Live) | 14 | 15 | Black, Red |
| Neutral | 14 | 15 | White |
| Ground | 14 | N/A | Green, Bare Copper |
Strip the feeder wire insulation to expose 9–11 mm of conductor. Use lineman’s pliers for stranded wire or a dedicated stripper for solid core. Avoid nicking the copper; partial cuts reduce current capacity. Twist stranded wires clockwise before insertion to prevent fraying under the terminal screw.
Insert the hot (black or red) wire into the top terminal of the switch, securing it with a torque screwdriver set to 1.2 Nm for #14 AWG. Position the wire clockwise under the screw head so tightening draws it further into the clamp. Repeat for the neutral (white) wire on the adjacent bus bar, ensuring it lands on a terminal without other connections–some panels require dedicated neutral bars. Ground (bare/green) wires bond directly to the panel’s grounding bus; never daisy-chain them through a switch.
Snap the switch into place by aligning its clips with the panel’s mounting rail. Apply firm pressure until it clicks; loose fits cause overheating. Reinstall the cover, tightening screws in a star pattern to 3 Nm. Restore power at the main disconnect. Test operation by toggling the switch: a functional unit will trip under load, while a faulty one may hum or fail to reset. Use a multimeter in continuity mode to verify disconnection–readings should drop to zero ohms when tripped.
Label the new switch on the panel schedule with its amperage, voltage, and branch purpose (e.g., “Basement Outlets – 15A 120V”). Include the installation date; thermal degradation of contacts accelerates after 5–7 years, necessitating replacement even if no tripping occurs. For AFCI/GFCI-combo models, press the “TEST” button monthly to confirm proper arc/ground fault detection.
