For precision control in low-power DC applications, implement a step-down switching converter with a Schottky diode, 35 V rated MOSFET, and a 1.5 A inductor. Select components based on 40-60 kHz switching frequency to minimize ripple while avoiding excessive losses. Use a 10 µF input capacitor for transient response; smaller values risk instability under sudden load changes.
Pulse-width modulation (PWM) drives the gate via a TL494 or comparable controller, configured for 0-95% duty cycle. Ensure the feedback loop includes a 10 kΩ potentiometer and 20 kΩ resistor for adjustable output–precision trimming requires a 4.7 µF output capacitor to smooth voltage deviations. Ground reference must be star-connected; shared traces introduce noise.
Avoid common oversights: confirm thermal endurance of all parts–MOSFETs rated below 80 °C/W require heatsinks. Test under full load (1.2 A) for at least 30 minutes; sustained overheating shortens component lifespan. For variable loads, include a soft-start circuit–a 1 µF capacitor charged through a 1 MΩ resistor prevents inrush currents.
Eliminate interference: keep high-current paths short (≤ 10 mm), route control signals away from switching nodes, and enclose sensitive traces in a Faraday cage if operating near RF emitters. Verify layout with an oscilloscope–expect ≤ 120 mV peak ripple; values above 200 mV indicate improper inductance or ground bounce.
Practical DC Voltage Regulator Schematics
Select a step-down converter configuration with a power MOSFET (e.g., IRF540N) and a fast-recovery diode (UF4007) for switching at frequencies above 20 kHz to minimize inductive noise. Arrange the components in a classic buck topology: input capacitor (470 μF) directly across the supply, MOSFET connected to the load via an inductor (100 μH), and diode feeding back to the input side. Calibrate the PWM signal at 50% duty cycle initially, then adjust using a potentiometer wired to the control pin of the gate driver (e.g., TL494).
For transient protection, place a 10 nF ceramic snubber directly across the MOSFET’s drain-source terminals to clamp voltage spikes exceeding the breakdown threshold of the transistor. Use a 10 kΩ pull-down resistor on the gate to prevent floating states during shutdown. Ensure the inductor’s core is ferrite-based (e.g., toroidal) with a saturation current at least 30% higher than the maximum load demand to avoid nonlinearity at peak performance.
Integrate feedback via a voltage divider (e.g., 10 kΩ and 2.2 kΩ resistors) sampling the output to maintain regulation within ±1% ripple. Pair this with an optocoupler (PC817) to isolate the control loop from the high-power path if the supply exceeds 48 V. For accuracy, replace the fixed resistors with a multi-turn trimming potentiometer (50 kΩ) to fine-tune the output to exact specifications under varying loads.
Grounding is critical: separate analog and power planes using a star topology, connecting them at a single point near the input capacitor to prevent ground loops. Route high-current traces (minimum 2 oz copper) with at least 3 mm clearance from low-signal paths. Test the layout with an oscilloscope, probing the output under a 50% resistive load (e.g., 10 Ω) to verify absence of ringing at the switching edges or overshoot exceeding 5% of the nominal voltage.
Core Elements and Their Functional Impact in DC Voltage Regulation Systems
Select a semiconductor switch with a current rating at least 1.5 times the maximum load current to prevent thermal runaway–IGBTs excel above 1 kW due to superior switching characteristics, while MOSFETs dominate below 500 W for their lower conduction losses. Pair the switch with a freewheeling diode rated for identical voltage and current specs; Schottky diodes reduce recovery losses up to 40% compared to standard PN junctions in low-voltage applications. Gate drive circuitry requires galvanic isolation (optocouplers or pulse transformers) to avoid ground loops–ensure rise/fall times under 50 ns to minimize switch stress and EMI generation.
Energy storage elements dictate dynamic response:
| Component | Critical Parameter | Typical Range | Consequence of Miscalculation |
|---|---|---|---|
| Input capacitor | ESR (mΩ) | 5–50 | Voltage ripple >5% degrades regulation |
| Inductor | Saturation current (A) | 1.2–2× load current | Core saturation increases switch current 3–5× |
| Output capacitor | Voltage rating (V) | 120–200% of Vout | Shortened lifespan or catastrophic failure |
For continuous conduction mode, ensure L > (Vin × D × (1-D)) / (2 × ΔI × fsw), where D is duty cycle, ΔI target ripple (commonly 20–30% of Iload), and fsw switching frequency (20–200 kHz). Ferrite cores outperform iron powder above 50 kHz due to lower hysteresis losses, but verify core material for DC bias capability–PC40 handles 0.4 T at 100°C, while PC95 drops to 0.3 T.
Snubber networks (RC series) across switching devices suppress voltage spikes: R = √(L_parasitic / C_snubber) and C_snubber = (Ipeak × tfall) / Vspike, with Vspike ≤ 80% of device VDS rating–values under 1 nF risk inadequate damping, while oversized capacitors increase switching losses linearly with frequency. For gate resistors, use 10–100 Ω to balance turn-on/turn-off speeds; higher values reduce EMI but increase switch dissipation, calculated as Eloss = 0.5 × Coss × VDS2 × fsw. Thermal management mandates heatsinks with RθJA
Step-by-Step Assembly of a Buck Converter Power Stage
Select a switching MOSFET with a voltage rating at least 1.5× the input voltage and a current rating exceeding the maximum load by 20–30%. For a 12 V to 5 V conversion at 3 A, a 30 V/8 A N-channel device like the IRLZ44N ensures minimal conduction losses. Mount the transistor on a heatsink if continuous dissipation exceeds 2 W, calculated as Ploss = RDS(on) × Iout2 × duty cycle.
Place the inductor downstream of the MOSFET, choosing a value that keeps the ripple current below 20% of Iout. Use the formula L = (Vin – Vout) / (ΔIL × fsw), where fsw is 50–200 kHz. A 22 µH ferrite-core inductor provides acceptable ripple suppression for 12 V→5 V at 3 A; core saturation current must exceed Iout + ΔIL/2.
Output Capacitor and Feedback Loop
Combine a low-ESR electrolytic capacitor (e.g., 470 µF/16 V) with a 10 µF ceramic capacitor in parallel to handle both bulk and high-frequency ripple. Position both within 5 mm of the load to suppress voltage transients during load steps. ESR of the electrolytic should stay below 50 mΩ to prevent output overshoot exceeding 3% of Vout.
Wire the feedback network using a 10 kΩ resistor and a 1 kΩ trimpot in series, connecting the wiper to the error amplifier’s inverting input. Set the reference voltage to 1.23 V with a TL431 shunt regulator; adjust the trimpot until Vout measures 5.00 V ±10 mV. Add a 1 nF capacitor between the amplifier output and ground to stabilize the loop, damping oscillations at crossover frequencies above 1 kHz.
Common Pitfalls in Power Switching Setup Wiring and How to Avoid Them
Mismatched component ratings cause immediate failure. A 100V-rated MOSFET paired with 200V input will catastrophically fail. Always verify voltage, current, and power dissipation specs against the worst-case operational scenario–add 20-30% headroom for transients. Check datasheets for maximum junction temperature; exceeding 125°C typically triggers thermal shutdown, reducing effective current handling by 40%. Parallel components unevenly when current exceeds 10A; balance gate drivers to prevent unequal current sharing.
Loose connections introduce resistance, skewing efficiency. A 0.1Ω contact resistance in a 5A path wastes 2.5W–equal to 1% loss at 50W load. Use crimped terminals with thermal paste for heat dissipation; bolt torque should reach 0.5-0.7Nm for M3 hardware. Route high-current paths shortest on PCB, using 2oz copper for currents above 8A. Ground planes should width-match trace current capacity–1mm width per 1.5A for 1oz copper, 2mm per 3A.
Calculating Input/Output Voltage Ratios for Different Power Stage Arrangements
For a step-down configuration, the output voltage ratio equals the duty cycle (D) multiplied by the input voltage: Vout = D × Vin. Ensure D remains between 0 and 1 (0–100%) to prevent saturation or discontinuous conduction. Adjust switching frequency (typically 20–200 kHz) to balance efficiency and component stress–higher frequencies reduce inductor size but increase switching losses. Example: With Vin = 48V and D = 0.6, Vout = 28.8V. Verify inductor ripple current (ΔIL = (Vin – Vout) × D / (L × fsw)) stays below 20–40% of the average current to avoid core saturation.

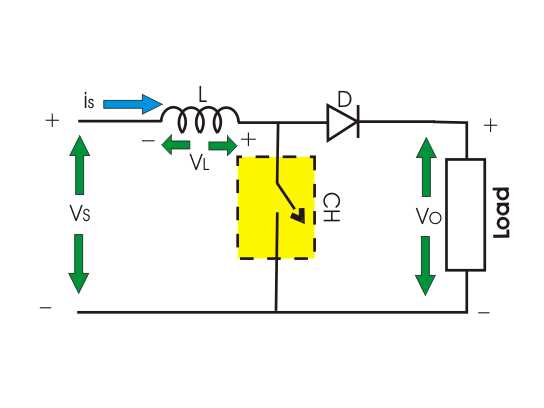

- Step-up mode: Vout = Vin / (1 – D). For D = 0.7 and Vin = 12V, Vout ≈ 40V. Monitor peak voltage stress on the switch (Vstress = Vout)–select MOSFETs/IGBTs with breakdown voltages >1.5× Vout.
- Isolated flyback: Vout = Vin × D × (Ns/Np) / (1 – D). Turns ratio (Ns/Np) determines scaling; keep leakage inductance
- Buck-boost inverting: Vout = -Vin × D / (1 – D). Polarity inversion requires careful PCB layout to avoid ground loops; use Schottky diodes to reduce reverse recovery losses.
