Locate color-coded conductor paths using factory manuals specific to model years–pre-2000 sedans use thick paper layouts, while post-2010 SUVs and trucks switch to PDF-based schematics with embedded hyperlinks for quick navigation. Pin assignments differ between powertrain control modules and body control modules; mismatch risks fuse blowouts or permanent sensor damage.
Identify ground reference points labeled Gxxx on schematics–neglect here causes intermittent voltage drops mimicking sensor or relay failures. Verify chassis-ground paths with a multimeter: less than 0.2 ohms ensures proper signal transmission. Common failure zones include door harness connectors (pin corrosion) and underhood splice joints near coolant reservoirs.
Use OEM diagnostic software (Tech 2Win for pre-2015 models, Global Diagnostic System 2 for newer builds) to decode non-printable circuit identifiers. Aftermarket scan tools often misrepresent local interconnect network (LIN) bus errors–cross-reference with original schematics via VIN decoding to validate pin voltage specs.
Avoid jury-rigging fusible links: replace damaged segments with identical gauge wire (18-22 AWG for body electronics, 12-16 AWG for powertrain). Soldering iron temperature must not exceed 700°F to prevent insulation melt; crimp connectors rated for 15 amps minimum.
Label every disconnection with painter’s tape noting origin and destination–mix-ups between trailer wiring outputs and headlight circuits can trigger unintended horn activation or anti-lock brake malfunction. For hybrid variants, isolate high-voltage orange conductors before diagnosis; residual voltage persists up to 10 minutes after key-off ignition cycles.
Replace brittle plastic protective sleeves on engine bay harnesses using split-loom tubing cut to 6mm diameter–commercial wraps degrade under UV and engine bay heat (exceeding 230°F). Secure branch circuits with zip ties spaced 6 inches apart, avoiding sharp metal edges on suspension struts.
Test continuity across splice joints using a 12V test light–flickering indicates oxidization; clean with electrical contact cleaner and protect with dielectric grease. For vehicles equipped with keyless entry modules, ensure antenna wiring terminates correctly at the RF receiver; improper routing causes false lock/unlock triggers.

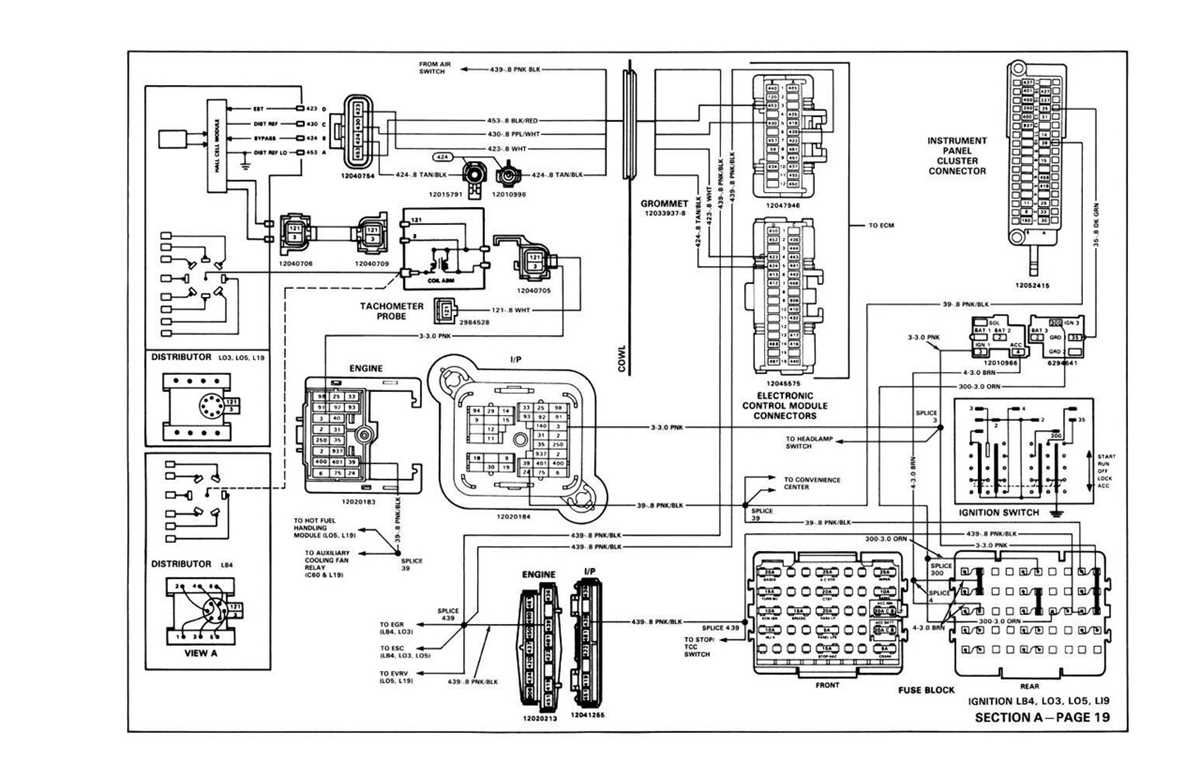

Understanding Electrical Schematics for GM Vehicles
Begin by locating the color-coding legend on the schematic sheet–each manufacturer uses a distinct palette to identify circuit paths. GM’s standard system employs solid, striped, and dotted lines with specific hues: red typically denotes power feeds, black or brown grounds, and blue or green control signals. Verify these against the vehicle’s service manual, as variations exist between model years (e.g., a 2015 Silverado uses purple for trailer brake circuits, while a 2008 Impala reserves it for instrument cluster illumination).
Trace circuits from the fuse block to their endpoints–interruptions often occur at connectors or splice points. Use a multimeter set to continuity mode to confirm connectivity; resistance above 0.5 ohms at any joint indicates corrosion or a loose terminal. For instance, a common failure point in third-generation C/K trucks is the bulkhead connector near the driver’s side kick panel, where moisture ingress degrades the pins over time.
Critical Components and Testing Procedures
Isolate sections of the schematic using the grid coordinates printed along the margins. Most GM schematics divide the page into quadrants: A1-A4 for engine controls, B1-B4 for lighting, and C1-C4 for chassis systems. Refer to the table below for voltage drop thresholds across key components:
| Component | Expected Voltage Drop (Key On) | Failure Indication |
|---|---|---|
| Ignition coil pack | Less than 0.1V | Misfire under load |
| Fuel injector | Less than 0.2V | Long crank times |
| Blower motor resistor | Less than 0.3V | Operation on high speed only |
| Starter solenoid | Less than 0.5V | Clicking noise with no crank |
For powertrain modules, check the reference voltage at the sensor harness–GM ECM pins frequently output 5V; deviations below 4.8V suggest internal processor degradation or shorted wiring. Test using a oscilloscope to capture signal waveforms during startup: a healthy MAF sensor (e.g., LS-series engines) produces a 0-5V peak-to-peak sine wave at idle, while a failing unit flattens to DC voltage.
Advanced Troubleshooting: Module Communication
When dealing with CAN bus errors, probe the DLC pinout for voltage discrepancies between pins 6 (CAN-H) and 14 (CAN-L)–idle voltage should read 2.5V with a communication signal swinging ±1.5V. A dead bus typically drops both lines to ground or floats near battery voltage. Tools like the Tech2 or Autel MaxiSys can decode freeze-frame data to reveal which module initiated the fault, but manual voltage tracing remains mandatory to locate chafed wiring harnesses behind the instrument panel or along the B-pillar.
Replace terminal connectors only with GM-approved part numbers–aftermarket pins often compress incorrectly, causing intermittent faults. For example, the TPA clips (yellow for wire size 18-22 AWG) must fully seat into the housing; mismatched locking tangs lead to corrosion ingress within 12 to 18 months. Solder splices are prohibited by GM service bulletins; use heat-shrink butt connectors with adhesive-lined seals instead.
Verify ground distribution paths–common oversight in Corvette and Camaro models built between 1997 and 2004 is the shared ground bus near the rear hatch, which accumulates moisture and elevates resistance. Clean contact surfaces with a stainless-steel rotary brush, then apply dielectric grease before tightening to 15 lb-ft torque. For lateral link trucks, the frame ground near the transfer case must handle up to 30 amps under maximum load; any discoloration on the mounting stud warrants immediate replacement.

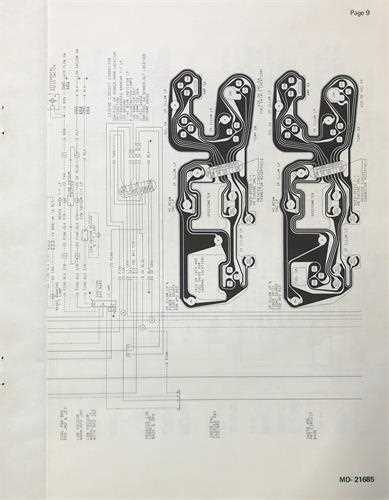

Finding the Right Electrical Schematic for Your Vehicle
Begin by identifying the exact make, year, and trim of your car using the VIN. This 17-character code contains details about the model variant, engine type, and factory-installed features–critical for pinpointing accurate schematics. Decode it via manufacturer ports or third-party VIN decoders that reveal build specifications. Without this, generic schematics may lack fuse box layouts, sensor locations, or harness connectors unique to your configuration.

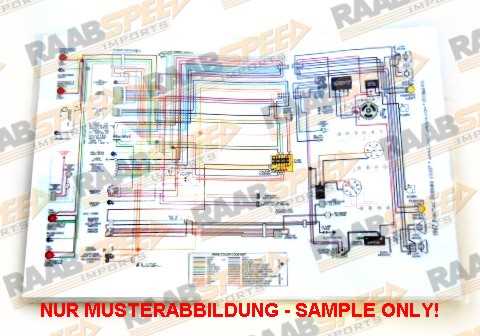

Official repair manuals, such as those from Helm Inc. or AllDataDIY, segment schematics by system: powertrain, lighting, infotainment, or ABS. Locate the section matching your repair–whether replacing a malfunctioning relay or tracing parasitic battery drain. For older models pre-2000, consult paper manuals archived at public libraries or car clubs; many include fold-out plates with color-coded circuits. Online forums like LS1Tech or CorvetteForum often host member-uploaded scans for rare trims.
Verify compatibility by cross-referencing connector numbers, wire gauge colors, and pinouts against your vehicle’s harness. A single mislabeled circuit can lead to incorrect diagnostics or component damage. Use multimeter readings to confirm continuity before relying on any schematic; real-world modifications, aftermarket upgrades, or corrosion may alter original designs.

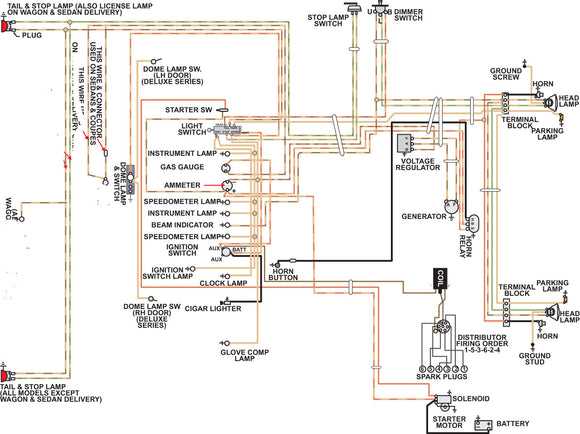

Decoding Wire Color Standards in GM Vehicle Circuit Blueprints
Locate the power distribution module first–each fuse box layout uses a consistent color pattern for primary feeds. Black with a white stripe (BK/WH) always denotes ground paths in main harnesses, while solid red (RD) marks 12V constant power sources under the hood. Verify these before inspecting branch circuits to avoid misdiagnosis.
Secondary circuits follow a predictable scheme:
- Yellow (YL) – lighting systems (headlamps, fog lights)
- Light blue (LT BLU) – turn signal and hazard flasher outputs
- Dark green (DK GRN) – ignition-switched accessory circuits
- Brown (BRN) – trailer/tow wiring or rear lighting clusters
Tracer stripes indicate fused or switched variants–RD/WH identifies fused red lines, DK GRN/YL marks ignition-fed dark green wires.
Sensor and actuator networks diverge from lighting codes. Orange (ORG) handles 5V ECM reference signals, while gray (GRY) carries vehicle speed sensor inputs. Cruise control harnesses use solid purple (PPL) for throttle actuator commands; never interchange these with comfort-system yellow (YL/WH) wires controlling seat heaters.
Data communication busses adopt unique identifiers:
- Pink (PNK) – Class 2 serial data
- Tan/white (TAN/WH) – LAN high-speed bus
- White (WHT) – ignition-fed CAN high lines
- Dark blue/white (DK BLU/WH) – CAN low-speed networks
Ground splicing points reveal network hierarchy. BK wires converging at chassis locations use two-path verification: measure 0.2V max drop between termination points and engine block while verifying <1Ω resistance across all branch grounds. Ignore manufacturer labeling colors in splice packs–only continuity checks confirm actual circuit integrity.
Body control harnesses introduce micro-logic differentiation. Solid light blue (LT BLU) governs battery-saver relays, while the same color with a red stripe (LT BLU/RD) activates retained accessory power. Door modules invert expectations: BRN/WH controls mirror heaters, whereas BRN/BLK manages lock actuators–reverse these and security systems trigger false immobilizer faults.
Equipment for Diagnosing and Validating Electrical Pathways in GM Vehicles
Begin with a 12-volt test light–not a basic circuit tester, but one with a sharp probe and a grounded alligator clip. This tool confirms voltage presence without false positives from parasitic draws or corroded connections. Avoid LED variants; incandescent bulbs reveal subtle resistance issues by dimming under load. For ground-side validation, reverse the probe connection to the battery’s positive terminal and touch the suspected ground point–illumination proves continuity.
Use a multimeter with a minimum 10-amp fuse (Fluke 87V or equivalent) for accurate amperage readings. Set it to measure current in series, not parallel, to prevent blown fuses. For resistance checks, disconnect the circuit entirely–even a weak accessory can skew results. A reading below 0.5 ohms indicates a healthy path; anything above 2 ohms signals corrosion, loose terminals, or undersized conductors. For voltage drop tests, probe across components under load (e.g., fuel pump relay contacts); values exceeding 0.2V identify high-resistance points.
- Backprobe pins: Modified paper clips or dedicated T-pins preserve connector integrity while accessing live circuits. Heat shrink tubing prevents shorts. Only backprobe non-sealed connectors; WeatherPack and Metri-Pack seals require disassembly.
- Thermal camera (FLIR E4 or cheaper alternatives): Identifies hotspots in harnesses or fuse blocks. Focus on areas where insulation has darkened–heat precedes failure. Compare symmetrical circuits (e.g., left/right parking lights); uneven temps reveal impending issues.
- Toners and probes: Pair a Fox & Hound (e.g., Extech CT80) with a remote inducing wand to trace wires through bundled harnesses. Set the transmitter to high impedance (9V) to avoid false signals from adjacent paths. For shielded cables, ground the toner’s return lead to the chassis to isolate the target conductor.
Essential Consumables and Spare Parts
Stock the following in bulk:
- Fuse assortment: Match the vehicle’s fuse ratings (typically mini or low-profile) but include one 40-amp MAXI fuse for testing high-draw circuits (starter, glow plugs). Remove and visually inspect fuses; melted elements often hint at upstream failures.
- Terminator kits: DELPHI GT 150 or ACDelco PT 555 terminal sets for repairing crimped or melted connections. Use a crimping tool with a ratcheting die (e.g., Klein Tools J2000); pliers fail to achieve gas-tight seals.
- Dielectric grease: Apply sparingly to connectors–excess causes creepage. Silicone-based compounds resist water intrusion better than petroleum jelly.
- Heat shrink tubing: Dual-wall adhesive-lined (3:1 ratio) for sealing splices. Polyolefin shrinks at 90°C; for high-temperature zones (exhaust manifold sensors), use PTFE-lined tubing.
For relay testing, avoid relying on click sounds–use a multimeter to verify coil resistance (40–120 ohms typical) and contact closure (less than 0.1 ohms). Swap with a known-good relay for instant confirmation. If a relay cycles erratically, probe the control circuit at the PCM or BCM connector; voltage discrepancies below 0.5V indicate internal driver failure.
Avoid these pitfalls:
- Never rely on visual inspections of harnesses–chafing under tape or conduit often goes unnoticed. Flex suspect sections while monitoring voltage to reveal intermittent breaks.
- Skip “wiggle tests” on live circuits; instead, use a load bank (actively draw current) while probing for intermittent resistance changes.
- Ditch the “spark test” for high-voltage systems (ignition coils, injectors). Use a non-contact high-voltage detector (Fluke 1AC-II) to avoid damaging modules.
