For reliable operation of your automatic garage door system, connect the control unit to a dedicated 15-amp circuit to prevent interference with other appliances. Use 18-gauge stranded copper wire for low-voltage connections (door sensors, wall button, and radio receiver) and 14-gauge solid wire for the motor’s power feed. Verify the voltage requirements–most residential models run on 120V AC, but commercial-grade units may require 240V. Label each wire before disconnecting the old setup to avoid miswiring during installation.
Start by mounting the power head at the manufacturer’s recommended height, typically 7 feet from the garage floor to the unit’s bottom. Ensure the traveler wires (used for safety sensors) are routed along the door tracks without sharp bends or pinch points–excessive tension can damage the insulation, leading to intermittent faults. Ground the system properly by attaching a 10-gauge bare copper wire from the opener’s grounding screw to a metal junction box or grounded outlet. Avoid daisy-chaining grounds through multiple devices; this can introduce noise and safety hazards.
Test continuity on all low-voltage circuits with a multimeter before powering the system. A reading of 200–400 ohms across the safety sensor terminals confirms proper operation; values outside this range indicate misalignment or damaged wiring. For models with battery backup, use a sealed lead-acid battery with matching voltage (typically 12V) and ensure the charging circuit is functional–most units provide a float charge of 13.6V when the opener is idle. If integrating smart home features, pair the wireless receiver with a 2.4GHz network and update the firmware to prevent compatibility issues with newer automation protocols.
Secure all wiring with UV-resistant cable ties every 18 inches to prevent sagging, which can snag on moving parts. For outdoor installations, use conduit (PVC Schedule 40) to protect wires from moisture and physical damage. If the system includes a backup light, match the bulb wattage to the opener’s specifications–exceeding 40W may overheat the socket. Keep a 3-foot clearance around the power head for ventilation, especially in unconditioned garages where temperatures fluctuate widely.
Understanding Your Garage Door Opener Connection Layout

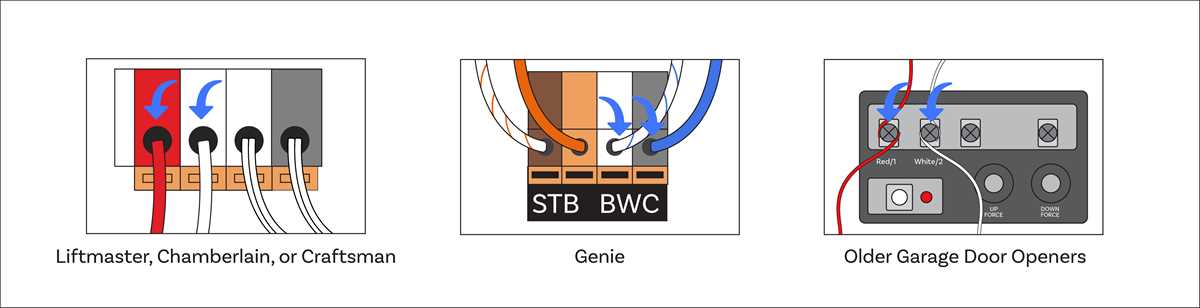

Locate the motor unit’s terminal block–typically a row of three or four colored screws (red, white, yellow/blue, black) on the back or side. Match these to the opener’s instruction manual for your specific model series (e.g., 4228, 1245, WD962KEV) to confirm terminal assignments. For safety, disconnect power at the circuit breaker before handling any exposed contacts. If integrating a backup battery, ensure the auxiliary power input aligns with the manufacturer’s voltage specs (usually 24V DC).
Common issues trace to mismatched wire gauges–22 AWG for signal circuits, 18 AWG for power feeds. Use crimp connectors with heat-shrink tubing rather than solder for secure, corrosion-resistant joints. For smart opener modules, verify compatibility with the terminal block’s voltage output; some aftermarket devices require a dedicated transformer. Replace frayed wires immediately, especially near moving parts like the trolley rail or door hinges. Keep the following checklist handy:
- Verify wall console wire pairs: solid color (power) + striped (signal).
- Test photo-eye sensors with a multimeter: ~12V across the emitter/receiver.
- Secure all fasteners with thread-locking adhesive to prevent loosening from vibrations.
- Avoid routing cables alongside high-torque components like the trolley motor.
Troubleshooting Specific Configurations
For chain-driven models (e.g., models ending in “-CD”), check the tensioner pulley alignment–misalignment causes erratic travel limits. Belt-driven units require exact torsion spring calibration; consult the torque specs (typically 25–35 ft-lbs) before adjustment. If the opener hums but doesn’t engage, inspect the capacitor behind the terminal cover–bulging or leaking cases demand immediate replacement. For MyQ-compatible setups, use a Cat5e or better cable for the Ethernet bridge; Wi-Fi extenders often fail due to interference from 2.4GHz garage door openers.
Pinpointing Connection Points on Your Garage Door Motor
Locate the control board on the back or side of the unit–common models have a rectangular or square housing with labeled ports. Examine the brass-colored screws or push-in connectors, typically marked with abbreviations like “PWR,” “GND,” “LIT,” “PB,” “LEARN,” or numeric codes (e.g., “2,” “3”). If markings are worn, use a multimeter: set it to continuity mode and probe each terminal while pressing the wall button or remote to identify live circuits.
Power terminals (“PWR” or “12V”) supply voltage to accessories; these often use red wires. Ground (“GND” or “COM”) connects to white or black striped cables. Verify polarity with a voltage tester–incorrect pairing risks damaging photo eyes or keypads. For older models, check for dual power inputs: one for the opener’s main motor, another for auxiliary devices like lights.
Sensor and Accessory Ports
Photo-eye terminals (“EYE,” “SENS,” or “4/5”) are usually paired and require matched polarity. Swap connections if beams don’t align; reversal triggers a blinking LED or error code. Wall console ports (“PB” or “DOOR”) use momentary switches–short these briefly to test operation. Always disconnect power before touching these to avoid short circuits.
Lighting terminals (“LIT,” “AUX,” or “6”) support 20–40W bulbs; newer models integrate LED drivers requiring compatible fixtures. Security+ systems fuse lighting and receiver circuits–consult the side panel legend for exact pin assignments. If replacing components, note color-coding: yellow or purple for sensors, solid black for common returns.
Backup battery ports (if present) are labeled “BATT” or “+/-“; use only manufacturer-specified cells to avoid overheating. For smart module upgrades, locate the “LEARN” button and adjacent serial port–press and hold the button for 6+ seconds to reset pairing modes. Trace wires from devices to terminals if labels are missing: keypads typically link to “PB,” while internet gateways use the “LEARN” interface.
Avoid mixing low-voltage and line-voltage circuits–terminals for opener motors (often marked “MTR”) carry higher currents and use thicker gauge wires. Reverse-engineer connections by observing wire gauges: 18–22 AWG for signals, 14–16 AWG for power. If in doubt, reference the internal schematic usually affixed inside the motor housing or on a metal plate.
For third-party integrations, prioritize terminals with screw-type clamps over push-in connectors–they handle vibrations better. Secure all connections with lock washers or zip ties to prevent loosening from door movement. If terminals corrode, clean with electrical contact cleaner and sandpaper; oxidation disrupts sensor signals and accessory function.
Document each terminal’s function before disassembly–sketch the layout or photograph it. Label wires if relocating the unit. Test all connections with a non-contact voltage detector before reactivating power to confirm no stray currents remain.
Precise Electrical Hookup Instructions for Selected Garage Door Operator Units
First, locate the motor housing terminal strip on your unit–typically positioned at the rear or side panel. Identify terminals labeled *1* (white), *2* (red), *3* (white/black), and *4* (white/red). Securely attach the neutral lead from your household circuit to terminal *1*, ensuring no bare copper is exposed beyond 6mm of insulation. For terminal *2*, connect the powered conductor, verify polarity matches the breaker’s output side, and fasten with a torque of 1.2 Nm–excessive force risks thread stripping in thermoplastic components. Use a multimeter to confirm 120VAC (or 240VAC for dual-voltage variants) between terminals *1* and *2* before proceeding. If voltage deviates by ±5%, inspect the supply circuit for voltage drop or improper gauge wire.
Next, route the safety sensor conductors: white (signal) to terminal *3* and white/black (return) to terminal *4*. Avoid twisting strands during insertion–Solid copper conductors must sit flush against terminal clamps to prevent intermittent failures. For opener models with integrated battery backup (e.g., LW1200XL), an additional two-wire harness connects to a dedicated backup power board–match the red lead to the positive pad and black to the negative pad, using solder or a crimp connector rated for 10A/30VDC. Test sensor alignment by placing an obstruction between photo eyes; the control board’s LED should flash once per second if properly configured.
Finalize connections by pairing the wall console’s push-button actuator. If the console uses a four-wire harness, connect: red to the *learn* button circuit, white to terminal *5*, blue to *auxiliary* (if present), and yellow to the *ground* bus bar. For wireless consoles, insert the provided 23A battery, then press the motor unit’s *smart* button within 30 seconds to initiate sync–failure to pair within this window requires a factory reset via a 10-second press-hold on the motor’s *learn* button. Verify all connections by cycling the door: a smooth descent without hesitation indicates correct torque specs and sensor alignment. If erratic motion occurs, recheck wire gauge–minimum 18AWG for runs under 30 meters, 16AWG for longer paths.
