For precise troubleshooting of electrical faults in your mid-size all-terrain vehicle, start by isolating the main power distribution block beneath the seat. Trace the 12-gauge red wire from the battery terminal to the fuse box–this is your primary input line. Look for corrosion at the connection points; clean with a wire brush and apply dielectric grease before reassembly. The ignition switch feeds into a yellow wire with a 30-amp fuse–verify voltage here to eliminate starter relay failures.
Ground connections demand particular attention. The chassis ground point near the rear swingarm uses a bare copper lug; ensure it’s free of paint or rust. A poor ground can mimic ECU malfunctions, leading to intermittent power loss. Check resistance between this point and the negative battery terminal–readings above 0.2 ohms indicate a problematic junction.
Use a multimeter set to continuity mode to follow the signal wires. The throttle position sensor pairs with a violet (signal) and black (ground) harness–these wires route through the left-side fairing. If throttle response is sluggish, backprobe here to confirm 0.5–4.5V output at wide-open throttle. The engine temperature sensor shares a similar color code but carries a distinct 0–5V range; cross-checking prevents misdiagnosis.
Audio system integrations often disrupt factory circuits. Third-party winches draw heavy current; connect directly to the battery via a 40-amp relay. Avoid splicing into accessory wires intended for lighting–forced 10-amp loads on 16-gauge wires cause overheating. Label each tap with heat-shrink tubing and document every modification to simplify future repairs.
LED auxiliary lights require a separate fuse–locate the unused 10-amp slot in the main fuse panel. If flickering occurs, add a capacitor (4700µF, 25V) across the power leads to stabilize the voltage drop during engine cranking. Always disconnect the battery’s negative terminal before working on high-current components to prevent accidental shorts.

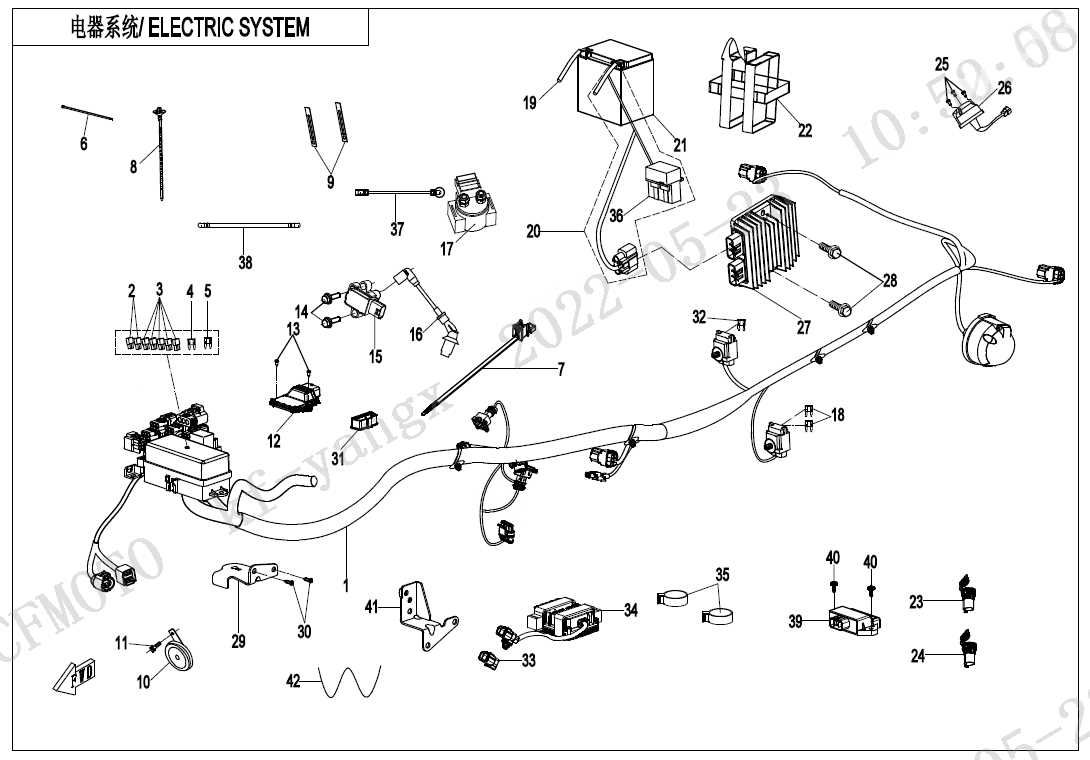

Electrical Schematic for the 598cc Utility ATV: Hands-On Reference
Start troubleshooting by inspecting the main fuse block under the left side panel–three 30A fuses safeguard ignition, lighting and accessory circuits. Use a multimeter set to 200 Ω continuity mode; probe each fuse terminal while the ignition is off. Any reading above 0.5 Ω indicates a compromised element that must be replaced with an identical amperage unit.
Locate the ECU connector (14-pin, black, adjacent to the battery tray) and verify signal integrity with these pin-specific values at 20 °C ambient:
| Pin | Expected Voltage (Key ON) | Component |
|---|---|---|
| 3 | 4.8–5.2 V | Throttle Position Sensor +5V |
| 5 | 0.2–0.8 V (idle) | TPS Signal |
| 7 | 12.0–14.6 V | Battery Feed |
| 12 | Ground | Chassis Reference |
Disconnect the stator plug (3-pin white connector behind the left front shock) and measure AC output between pins 1–3 and 2–3. Crank the engine; healthy readings should oscillate between 18–24 V AC at 1500 RPM. Readings below 16 V AC suggest a faulty stator coil requiring replacement; verify stator resistance (0.2–0.5 Ω) across the same pins before condemning.
Trace the headlight circuit from the 10A lighting fuse to the two-position switch, then to the dual-filament bulb (H4, 55W/60W). Inspect the switch terminals for 12 V when toggled; if voltage drops below 11 V at the bulb socket, check the brown/white wire for chafing along the upper subframe rails. Secure any exposed copper with adhesive-lined heat-shrink tubing and waterproof dielectric grease at connections.
Test the starter relay (mounted above the left rear shock) by jumpering pins 85–86 with a 12 AWG wire; the relay should audibly click and the starter engage. If not, verify battery voltage (>12.4 V) at pin 30 and ground continuity at pin 85 before replacing the relay. Always perform a parasitic draw test (≤50 mA across battery terminals with ignition off) after relay servicing to prevent accidental discharge.
Download the latest factory schematic revision (April 2023) directly from the manufacturer’s dealer portal using chassis serial lookup–avoid third-party diagrams that often mislabel the fuel pump relay (pin 9 on the main harness connector) and CDI ignition timing reference (pin 1 on the ECU side). Print the schematic on waterproof paper and store it in a sealed zip-lock beneath the seat for instant field reference.
Identifying Critical Electrical Parts in Your Utility ATV
Begin by removing the left side panel–secured with four 8mm bolts–to expose the main fuse block and ignition relay. The fuse block sits directly behind the battery tray, labeled with amp ratings (10A, 15A, 20A) corresponding to circuits for lighting, fuel pump, and ECU. Trace the thick orange wire from the battery’s positive terminal: it leads to a 40A main fuse before splitting into two branches–one powers the starter solenoid, the other feeds the ignition switch through a red wire with a 50A fuse.
Locate the stator under the right cover–three yellow wires exit the engine casing, converging into a three-pin connector. These carry AC voltage for charging; verify continuity with a multimeter (expect 0.1–0.3 ohms between phases). Behind the instrument cluster, the grey 12-pin connector houses the speed sensor (white/green wire), neutral switch (blue/white), and reverse indicator (black/yellow). Probe these with ignition ON: neutral and reverse should show 12V when engaged.
Follow the harness along the frame’s backbone to find the CDI unit–a black rectangular box with a 6-pin connector. Key wires include:
- Pink: ignition pulse
- Green: ground
- Black/white: kill switch
- Blue/red: tachometer signal
Measure voltage at the pink wire with ignition ON; cranking should produce 0.2–0.5V spikes.
For lighting circuits, identify the handlebar switch assembly’s 8-pin connector (right side). Headlight (yellow), tail light (white), and brake light (green/red) wires originate here. Test the yellow wire with a test light–brightness should drop slightly when the engine starts due to stator regulation. If corroded, strip the bullet connectors and resolder with 60/40 rosin-core solder; avoid crimps for high-current paths.
How to Interpret Your ATV Electrical Blueprint: A Practical Approach
Locate the main fuse block immediately. It’s typically positioned near the battery’s positive terminal, often under a plastic cover. Check the circuit protection values–most primary feeds run through a 30A blade fuse on this model. If tracing power flow, start here; it’s the root of all downstream branches.
Identify colored conductors by referencing the legend printed along the schematic margin. Solid hues denote main feeds, while striped lines indicate secondary circuits sharing a common return path. For instance, red with a white stripe delivers accessory voltage, whereas plain red carries ignition-switched power. Cross-reference each stripe pattern against the legend to avoid misinterpretation.
Trace ground paths next. They converge at a single bolt welded to the chassis frame. Each component’s earth cable returns here, so follow the negative symbol (⏚) on the diagram–it leads to the chassis node. Verify continuity with a multimeter; resistance above 0.5 ohms suggests corrosion or loose connection.
- Label switches manually on the schematic–ignition, headlight, starter relay–marking each contact number adjacent to its symbol. This prevents confusion when matching switch positions to the corresponding circuit lines.
- Isolate relays by their coil and contact ratings: 12V DC coils typically draw 0.1A, while contacts handle 20-30A loads. The starter relay often has heavier contacts than others; highlight it with a highlighter.
- Note component pinouts: sensors (TPS, speedometer) and injectors show pin numbers on the schematic–count from left to right, top to bottom, as viewed from the connector face.
Use a highlighter to segment the schematic by function: lighting (headlamp, brake lights), ignition (coil packs, spark plugs), fuel delivery (pump, injectors), and accessories (winch, GPS). Each segment shares a common color code; lighting circuits, for example, use yellow wires for headlamps and blue for tail lights. Segmenting clarifies subsystems and simplifies troubleshooting.
Test circuits systematically. Disconnect the battery negative terminal first. Probe one leg of each fuse slot–voltage present indicates a live feed, absence points to an open upstream conductor. Check sensor plugs; TPS should read 0.5-4.5V across its range. Measure resistance across coil packs: 0.5–1.5 ohms primary, 10–15k ohms secondary.
- Reference the connector chart for wire gauge: 18AWG handles signal currents, 14–12AWG carries motor loads, 10AWG or thicker handles starter and heavy accessories.
- Scan for splices–junction points marked with dots on the schematic merge multiple conductors. Use a tone generator to follow bundled wires from splice to end device.
- Update your schematic with handwritten notes: add voltage readings, resistance values, and connector conditions to create a personalized troubleshooting reference.
Common Electrical Issues and Solutions with ATV Circuit Schematics
Trace the ignition system’s pink wire from the battery to the starter relay if the engine fails to crank–corrosion at the 6mm terminal block (near the fuse box) disrupts current flow. Clean contacts with a wire brush, apply dielectric grease, and verify 12.6V at the relay coil socket before reassembly. For intermittent power loss during acceleration, inspect the stator’s three-phase output: each yellow wire pair should read 18-22V AC at 3,000 RPM; deviations below 17V indicate a faulty stator requiring replacement.
Troubleshooting Sensor and Lighting Failures
When the instrument cluster dims or flickers, focus on the brown ground wire bundle under the seat–loose connections here cause voltage drops. Secure spade connectors with crimp sleeves and confirm a solid ground path to the frame. For non-functional headlights, check the 20A fuse linked to the white/yellow wire; if intact, probe the lighting control module (black box under the dashboard) for 5V DC at the signal input pin. Replace the module if readings drop below 4.2V.
