Start by identifying the labeled terminals on your rotary airflow device’s motor housing. Most units have L (live), N (neutral), and three velocity selector connections–1 (low), 2 (medium), and 3 (high). Verify these markings with a multimeter on continuity mode to confirm each terminal corresponds to its intended flow rate. Mislabeling can lead to overheating or erratic operation.
Connect the main power source first. Secure the L wire (typically black or red) to the live terminal and the N wire (usually white) to the neutral terminal. Use wire nuts or crimp connectors, ensuring no exposed copper remains–exposed strands increase fire risk. If your setup includes a light kit, isolate its circuit now by attaching the dedicated wires to a separate switch or dimmer.
Attach the three-tier selector wires to their corresponding speed terminals. For reverse-cycle units, consult the manufacturer’s schematic–some models require additional wiring for oscillation control. If using a wall-mounted switch, match its output to the correct motor terminals; incorrect pairing will either disable settings or cause excessive current draw. Test each setting with the device mounted but before final installation to avoid rework.
Grounding is non-negotiable. A bare copper or green wire must connect to the regulator’s metal frame and extend to the electrical box’s ground screw. Omitting this step risks electrical shock, especially in humid environments. For dual-switch setups (one for flow rate, one for illumination), use a 14-gauge wire for the main circuit and 16-gauge for auxiliary functions to handle current demands.
Final assembly requires precise torque on terminal screws–over-tightening can strip threads, while loose connections cause arcing. After securing all wires, cap unused junctions with electrical tape. Power the circuit and activate each tier one by one, monitoring for unusual noise or vibration. If humming occurs on the lowest setting, the capacitor may need replacement. Always cut power at the breaker before any adjustments.
Mastering Rotary Airflow Device Connection Schemes for Three-Tier Adjustment
Start by identifying the switch or remote receiver terminals before attaching any conductors. Modern oscillating units typically label connections as L (line/hot), N (neutral), and 1/2/3 or Low/Med/High for the rotational tiers. Verify these markings against the manufacturer’s schematic – mismatches are the primary cause of non-functional installations.
For wall-mounted controls, connect the incoming power line to the designated L terminal first. Then route the neutral conductor directly to the motor housing’s N point, bypassing any tier selectors. The output conductors for rotational adjustment must link sequentially: low tier to the first switch contact, medium to the second, and high to the third, ensuring the black (or red) wire from the motor pairs correctly.
Remote-controlled models integrate a receiver between the power source and the motor. After securing the L and N leads to the receiver’s input, attach the motor’s corresponding wires to the receiver output terminals marked Fan and 1/2/3. Never splice the capped light kit wires into this circuit unless the schematic explicitly permits combined routing.
| Connector | Wire Color Standard | Alternative Color Code |
|---|---|---|
| Line (Hot) | Black | Brown, Red (EU) |
| Neutral | White | Blue, Light Gray |
| Tier 1 (Low) | Gray | Green/Yellow Stripes |
| Tier 2 (Medium) | Yellow | Pink |
| Tier 3 (High) | Red | Orange |
Dual-capacitor motors require strict adherence to capacitance ratings. Check the motor’s label for values between 4–6 μF for starting and 2–4 μF for running. Swapping these components or mixing ratings creates inefficient operation or overheating. Secure connections with solderless connectors rated for 15A minimum to prevent arcing under load.
When retrofitting older units with light modules, separate the lighting and oscillation circuits entirely. Run a dedicated pair of 14 AWG conductors from the power source to the light assembly, avoiding interference with the three-tier selector system. Cap all unused conductors with flame-retardant heat-shrink tubing to prevent accidental shorts.
Troubleshooting Sequential Adjustment Failures
If the assembly only operates at single-tier, check for continuity across each selector switch contact with a multimeter. A reading above 1Ω indicates a faulty switch. For remote receivers, verify the signal frequency matches the motor’s internal controller – mismatches cause unresponsive tier changes. Reprogramming steps vary: hold the Off button for 10 seconds, then cycle power, or refer to the manual’s specific reset protocol.
Ground conductors must terminate at the metal junction box and motor housing simultaneously. Use green-insulated or bare copper wire, never relying solely on mounting bracket contact. After securing all connections, apply power and cycle through each rotational setting at least twice to confirm consistent operation before finalizing fixture reassembly.
Breaking Down the Parts of a Three-Tier Rotary Air Circulator Installation
Locate the motor module first–it’s the core housing all rotational mechanics. Verify the label on the side; it should list voltage (typically 120V) and capacitor specifications (often 4-6 µF). A mismatched capacitor disrupts torque, leading to erratic spinning or failure to start. Check for corrosion on the terminals; even minor oxidation requires cleaning with fine-grit sandpaper or a wire brush to ensure solid conductivity.
Examine the switch housing attached to the suspending rod or wall plate. Inside, you’ll find three colored wires plus a neutral (usually white) and ground (green or bare copper). The colors correspond to low, medium, and high settings, though labeling varies by manufacturer–T5 (black), T4 (blue), T3 (red) are common. Confirm the switch’s amp rating matches the motor’s; a 2A switch handling a 5A rotor risks overheating.
Key Functional Elements in the Circuit
The capacitor–either oval or cylindrical–regulates phase shift between the start and run windings. Remove the housing cover and note its position; most setups place it between the switch and motor. If replacing, choose one within ±0.5 µF of the original; deviations alter blade rotation speed unpredictably. Mark the wires before disconnecting to avoid reversing the direction.

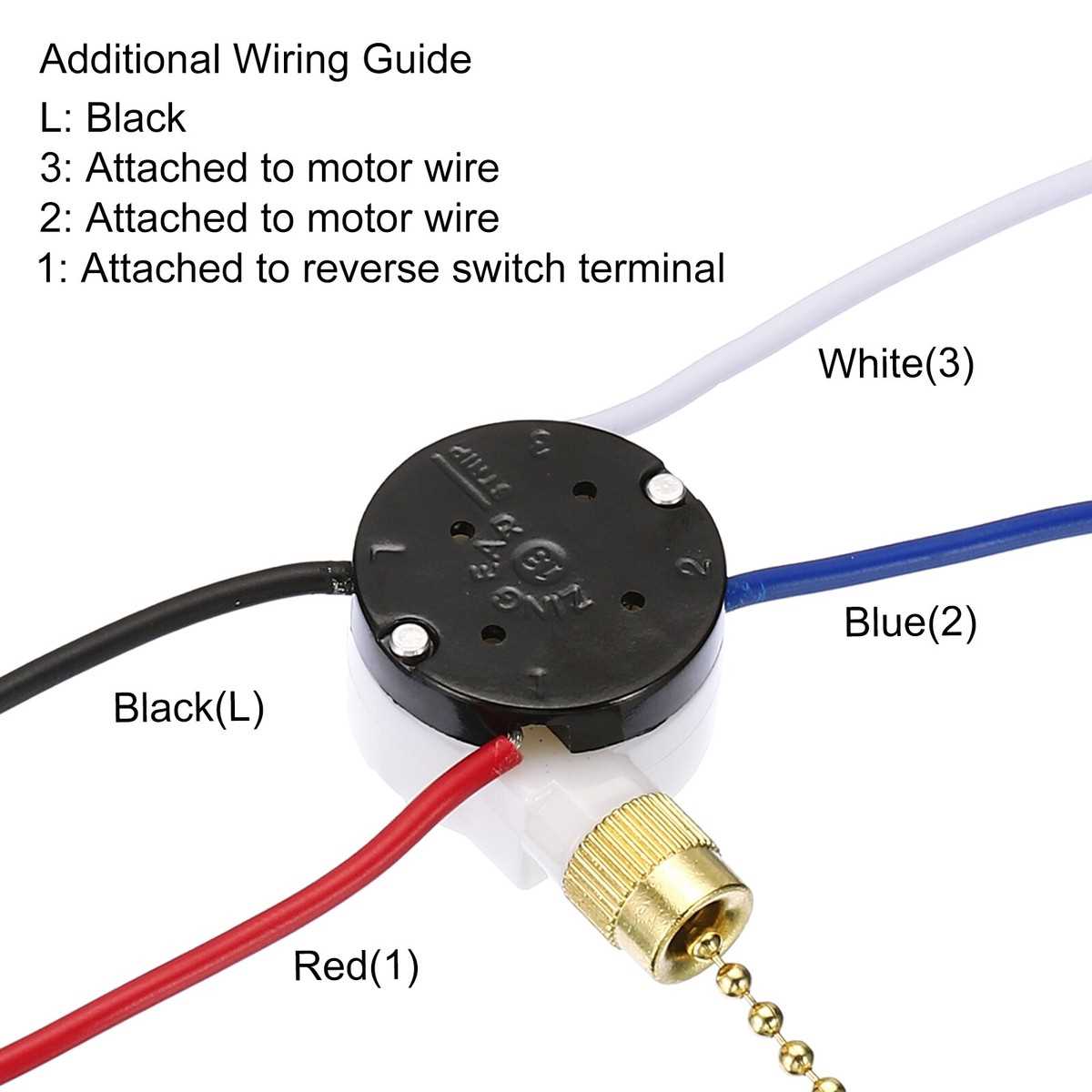

Trace the pull-chain mechanism or remote receiver unit. For pull versions, the chain operates a multi-contact rotary switch with discrete positions for off, low, medium, and high. Remote systems add a small PCB beneath the canopy, often recognizable by a bundled antenna wire. Test continuity with a multimeter across each setting terminal–OL on low indicates a broken contact needing lubrication or replacement.
Inspect the mounting bracket and downrod for stress fractures, especially where screws attach. A loose bracket causes wobble, misaligning the rotor axis and increasing drag on bearings. Apply thread-locking compound to screws during reassembly, tightening to 15-20 lb-ft to prevent loosening from vibration. Ensure the rod length matches ceiling height; standard 6-inch versions suit 8-9 ft ceilings, while 12-inch rods work for vaulted spaces.
The resistor bank or speed control module adjusts voltage to the motor windings. In older models, this is a series of chokes; newer versions use solid-state triacs. Follow the schematic printed inside the canopy–if absent, note wire paths before disassembly. Swap in identical components only; substituting 200Ω resistors for 150Ω on medium setting will skew performance, often burning out the windings within weeks.
Grounding remains non-negotiable. A missing or broken green ground wire exposes users to faults during moisture exposure, especially in humid climates. Verify continuity from the mounting screw to the metal housing base; a resistance above 0.5Ω signals corroded connections needing immediate correction. Use a dedicated ground clip for drywall installations where possible.
Final checks include spinning the blades by hand to feel bearing resistance. Smooth rotation with minimal drag confirms healthy bearings; grinding or stiff spots require lubrication–use light machine oil, never WD-40. Rotate in both directions; one-way rotation suggests a faulty start capacitor. Seal the housing after adjustments with silicone-based sealant to prevent dust ingress.
How to Install a Rotary Air Circulator with Three Control Modes
Ensure the power supply is off at the circuit breaker before handling any electrical components. Use a non-contact voltage tester to confirm the absence of current at the wall switch and junction box.
Locate the motor assembly’s labeled leads: typically one for the common (often black), one for the low setting (usually blue), medium (red or brown), and high (gray or white in some models). Refer to the product manual to match lead colors with specific control modes, as configurations vary by manufacturer.
- Attach the common wire (black) directly to the black or hot wire from the house circuit.
- Connect each control wire (low, medium, high) to separate switch terminals if using a multi-way wall control. For pull-chain models, join all three control leads together and connect them to the hot wire; the chain mechanism will regulate the voltage internally.
Secure all connections with twist-on wire nuts, wrapping them clockwise for a tight seal. Apply electrical tape over each nut to prevent loosening due to vibration. Route wires neatly inside the mounting bracket to avoid pinching or abrasion.
If the assembly includes a light kit, attach the fixture’s supply wire (often white) to the neutral wire (white or gray) in the junction box. Connect the ground wire (green or bare copper) from both the motor housing and light kit to the grounding screw or terminal in the box.
Mount the motor assembly to the ceiling bracket, aligning screws or slots for a secure fit. Restore power at the circuit breaker and test each control mode–pull-chain positions or wall switch settings–verifying smooth operation without humming, stalling, or erratic behavior. If issues arise, recheck connections for loose or mismatched wires.
For advanced setups, integrate a capacitor (usually 1.5–5 µF) between the common and control leads to fine-tune voltage distribution. Consult the manufacturer’s technical documents for exact values, as incorrect capacitance can damage internal coils or degrade performance.
