Begin by confirming power isolation at the circuit breaker before handling any connections. Use a non-contact voltage tester to verify the absence of current at the junction box–assuming standard residential setups with a 120V hot wire (typically black or red), neutral (white), and ground (bare copper or green). For combined rotary controls managing airflow and illumination, note that the power feed often splits into two distinct paths: one for the motor circuit and another for the luminous element.
For dual-function rotary selectors, the common configuration involves a three-wire feed (hot, neutral, ground) with an additional receiver module mounted inside the fixture’s housing. The module acts as a relay, interpreting signals from the wall-mounted selector. Identify the receiver’s input terminals–usually labeled L (line/hot), N (neutral), and Ground–and match them to the corresponding wires in the junction box. If the fixture includes independent speed and brightness settings, the receiver may require a fourth wire (often blue or orange) for dedicated illumination control, separate from motor regulation.
In older installations with separate pull-chains, the wiring follows a straightforward series loop: the incoming hot wire connects to one side of both the motor and the luminous assembly, while the neutral wire bridges the other sides. For modern electronic selectors,特に those using direct digital communication (e.g., RF or Wi-Fi-enabled remotes), the receiver’s wiring diagram must align with the manufacturer’s specifications–misalignment risks malfunctions or voiding warranties. Always cross-reference the fixture’s manual for terminal designations, as some models use proprietary connectors.
Grounding is non-negotiable. Attach the ground wire to the metal junction box (if present) and the fixture’s grounding screw. If the box is non-metallic, run a ground wire directly to the fixture’s grounding point. For dimmable luminous elements, ensure compatibility with the receiver–some electronic modules require dedicated dimming neutral wires to function correctly without flickering or overheating.
When routing wires, avoid tight bends (radius less than 3x the wire diameter) to prevent insulation damage. Use wire nuts rated for the gauge (typically 14-12 AWG for residential systems) and secure connections with electrical tape. For installations above 20 feet, consider clamp connectors under the terminal screws to prevent loosening from vibrations. If troubleshooting, check for voltage drops across connections–ideal readings should match the supply voltage within a 2-3% tolerance.
How to Connect Your Overhead Rotator Illuminator Control Setup
Start by identifying the three main conductors in your wall control box: the live (hot) wire, the neutral, and the grounding cable. The live wire, typically black or red, must connect to the common terminal on both the speed regulator and the brightness toggle. Use a voltage tester to confirm the hot conductor is de-energized before handling. Label each wire with masking tape to avoid confusion during reattachment–incorrect connections risk short circuits or damage to the motor housing and bulb assembly.
Step-by-Step Conductor Pairing

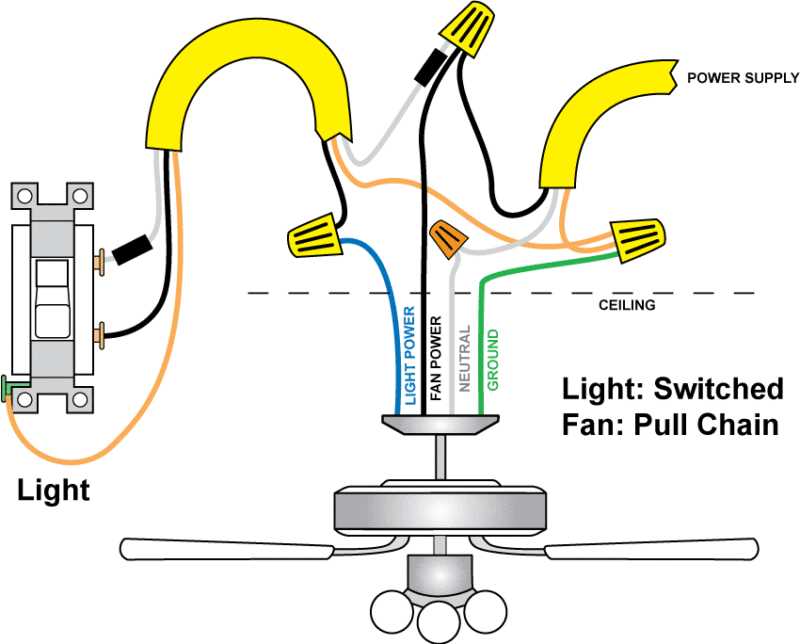

For a standard dual-function model, link the incoming live conductor to the black wire from the speed control (usually marked “L”). The blue or striped wire from the brightness mechanism connects to the remaining live terminal on the wall unit. If your model includes a pull-chain mechanism, the white (neutral) wire bypasses the wall control entirely–cap it with a wire nut and tuck it safely into the electrical box. The green or bare grounding wire must attach to the metal box or a designated grounding screw.
Verify polarity before securing wire nuts: twisted pairs should be wrapped clockwise and tightened until the insulation slightly bulges–loose connections cause flickering or intermittent operation. For smart controls (Wi-Fi-enabled or dimmable), consult the manufacturer’s schematic; additional low-voltage red or yellow wires often require a bridge to the main conductor. Test the setup by restoring power and toggling both controls–if the motor hums but doesn’t spin, recheck neutral connections.
If the brightness dimmer fails, swap the blue conductor with the black on the control’s output side–some models reverse these terminals. For retrofit installations, match the new control’s amperage rating to the fixture’s load (typically 15-20A for residential units). Keep all splices above the canopy cover to comply with NEC 314.16 and prevent overheating in concealed spaces.
Identifying Conductors in Your Ventilation Fixture and Illumination Control
Start by locating the power source cable–typically a black conductor labeled “hot” or “live.” This wire carries current from the circuit breaker to the fixture. In most residential setups, it pairs with a white neutral wire, which completes the circuit by returning current to the panel. Verify these colors against local electrical codes, as deviations exist (e.g., some regions use brown for hot and blue for neutral).
Check for a third conductor–usually green, bare copper, or striped–serving as the safety ground. This wire connects to the metal frame of the fixture or control to prevent electrical shock. If absent, inspect the junction box for a grounding screw or clip. Never omit this connection, even in older installations where grounding wasn’t standard.
Examine the illumination unit’s harness for labeled wires. Common markings include:
- L or Live: Primary power input.
- N or Neutral: Return path.
- DL (for “dimmer load”): Often red or purple, dedicated to brightness adjustment.
- Ground: Green or bare, as described above.
Match these labels to the corresponding wires from the wall control, using a multimeter to confirm continuity if markings are unclear.
Distinguishing Between Control and Fixture Wires
Isolate the control’s output wires. Pull-chain models often use two wires (e.g., blue for full intensity, yellow for dimmer), while wall-mounted units may have a separate red wire for illumination control. Toggle the control to its highest setting and test for voltage between suspected hot wires and neutral–active wires will read ~120V (or ~230V for international setups).
Trace the fixture’s internal connections. Rotary components often use a capacitor wire (typically gray or brown) to regulate speed. If the fixture includes a light kit, a dedicated conductor (often pink or orange) supplies power to the bulbs. Label these wires with masking tape during disassembly to avoid confusion during reassembly.
For dual-function controls (rotary + illumination), identify the “common” wire–usually black–shared by both functions. The remaining wires split into momentary (for pull-chain toggling) and latching (for sustained states) types. Test each wire’s resistance with the control in different positions: values should vary predictably (e.g., 0Ω for connected, infinite for disconnected).
Record wire colors and their functions in a sketch or table. Include:
- Origin point (e.g., “wall box,” “fixture base”).
- Voltage readings under each control setting.
- Physical connections (e.g., “blue wire → pull-chain terminal #2”).
Refer to this diagram when testing or replacing components to avoid miswiring.
If wires lack color-coding, use a non-contact voltage tester to identify live conductors before handling. For obscured or color-faded wires, strip a small section of insulation to reveal the copper–bare metal indicates a neutral or ground, while tinned or silvery wires often serve as live feeds. Double-check all connections with a continuity test before re-energizing the circuit.

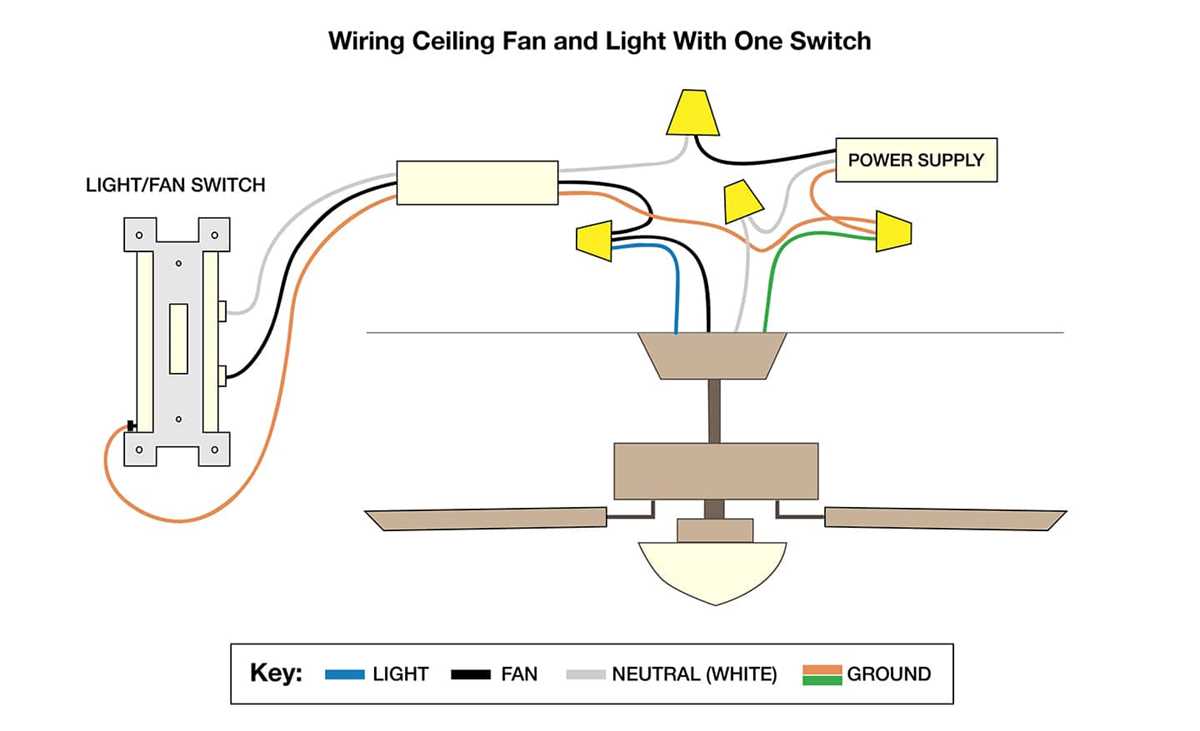

How to Connect a Dual-Function Controller in One Motion
Turn off the circuit breaker supplying power to the fixture before touching any wires. Verify absence of voltage with a non-contact tester; even a faint residual charge can cause severe injury or arc faults.
Identify the incoming hot conductor, typically marked by a black sheath or red stripes–this carries the supply from the breaker. Locate the neutral bundle, usually white or grey, grouped together near the junction box. Confirm the equipment grounding wire, bare copper or green, which must terminate securely to the metal chassis of the wall plate.
- Hot terminal: connect the incoming live wire to the brass screw adjacent to the toggle.
- Neutral terminal: splice the white bundle directly to the corresponding pigtail from the fixture harness.
- Grounding connection: loop the bare copper around the green grounding screw at the back of the wall enclosure.
Strip exactly 3/8 inch of insulation from each conductor using wire strippers. Avoid excessive stripping–loose strands increase resistance and potential overheating. Twist strands clockwise with pliers to consolidate before inserting into terminal screws; ensure no frayed ends protrude beyond the connection.
Route the remaining conductors to the fixture harness through the mounting brace. Match the brass screw on the toggle to the corresponding brass lead from the fixture–this controls the primary function. Pair the blue lead from the harness to the second screw on the same toggle; configuring both functions under one actuator requires no separate remotes or dimmers.
Secure all terminal connections by tightening screws until snug–over-torquing cracks plastic housings. Fold wires neatly into the junction cavity, ensuring no insulation touches bare metal edges. Snap the wall plate into position, then restore power at the breaker. Test operation by toggling–both functions should respond immediately without flickering or humming.
If either function fails, re-check terminal tightness and wire routing. Misaligned connections create intermittent faults or complete failure. Ensure the ground wire terminates correctly; improper grounding causes erratic behavior or safety hazards. Once verified, leave the wall plate undisturbed–repeated adjustments risk stripping screw threads or damaging delicate connections.
