Begin by isolating the charging coil output–the component delivering pulsed energy to the storage capacitor. Measure its AC voltage under load (typically 50–300V, depending on RPM) using an oscilloscope or true-RMS multimeter. If readings fall below specs, check coil resistance (expected: 0.5–3Ω) and verify flywheel magnet alignment. Misaligned magnets reduce flux, degrading output by 40% or more. Replace cracked or corroded coils immediately–even minor insulation breakdown causes voltage leaks.
Next, scrutinize the rectification stage. A single 1N4007 diode suffices for most 50–150cc engines, but high-performance systems (e.g., 400cc+) require a fast-recovery diode like UF4007 to prevent reverse recovery losses. Confirm capacitance values: 1–2.2μF at 400V minimum for reliable triggering. Below 0.47μF, the pulse shortens, causing misfires at high RPM. Solder connections tightly–cold joints introduce 100+ns signal delays, disrupting timing.
For the switching element, a thyristor (SCR) like 2N6509 handles 80A/800V transients, but gate current must exceed 20mA for full saturation. Trigger coils should output 1.5–3VAC; weaker signals cause partial conduction, overheating the SCR. Use a 1kΩ pull-down resistor on the gate to prevent false triggers from EMI. In dual-spark setups, stagger timing pulses by 0.5–1ms to avoid simultaneous discharges draining the capacitor.
Voltage monitoring reveals critical flaws: a healthy circuit peaks at 300–450V under load. Ifvoltage drops below 250V at max RPM, check capacitor ESR (should be 0.2ms indicates worn ignition components or excessive mechanical play.
Practical Guide to Ignition Module Layouts
Begin by identifying the primary components on your wiring blueprint: the charging coil (typically 50–400V AC), trigger coil (5–20V AC pulse), capacitor (0.1–2.2 µF, 600V+ rating), and switching element–usually an SCR (silicon-controlled rectifier) or transistor. Mark polarity on each part; reversed wiring will fry the circuit. For 125cc engines, a 1 µF capacitor balances spark energy and coil longevity. Use a multimeter to verify charging coil resistance: 50–300 Ω indicates intact windings, while readings above 500 Ω signal corrosion or breaks.
Troubleshooting checklist:
- Measure trigger signal with an oscilloscope–expect a clean 1–5V spike at 10°–15° BTDC.
- Test capacitor ESR (equivalent series resistance) with a dedicated meter; values >5 Ω require replacement.
- Inspect grounding paths–crimp connectors with 18–22 AWG wire, solder joints for high-vibration setups.
- For variable timing systems, confirm voltage at the RPM sensor (Hall effect or VR): 0–5V square wave at 500–10,000 RPM.
- Adjust dwell angle via resistor substitution: 47k Ω for 10°–12° dwell, 68k Ω for 15°–18° (typical for 250cc+).
Component Substitution Rules
Avoid aftermarket coils rated below 15kV; OEM Yamaha/Kawasaki units (e.g., part #3CM-85560-00) deliver 25–30kV reliably. When replacing the switching element, match SCR gate trigger current: 0.2–1.5mA for small engines, 2–5mA for 600cc+. For CD-ROM salvage units, recalculate capacitor value using C = (I × t)/V, where I is spark current (~2A), t is dwell time (~1ms), and V is charging voltage (300V typical).
- De-solder faulty components with a 30W iron; excess heat damages PCB traces.
- Bypass EMI filters if engine stalls at high RPM–remove 0.1 µF ceramic caps from input lines.
- Seal the entire assembly with conformal coating (parylene for moisture resistance).
Key Components of an Ignition Control Layout and Their Roles
Begin by selecting a high-performance pulse generator (inductive or Hall-effect) with a signal output of at least 2V peak-to-peak under idle conditions. Lower voltages risk misfiring during cold starts or high-RPM operation due to insufficient trigger amplitude. For racing applications, opt for a reluctor wheel with 36–60 teeth to improve timing resolution and reduce jitter.
The ignition coil must match the engine’s energy requirements–typically 50–100mJ per spark for most production engines, but high-compression or forced-induction setups demand 150–300mJ. Verify primary inductance (3–10mH) and secondary resistance (5–20kΩ) to prevent premature coil failure. Air-core coils offer better rise times but require precise dwell control to avoid saturation.
- Capacitor charge/discharge circuit: Use a polypropylene or polyester film capacitor rated for 630V minimum, with a value between 1–4.7µF. Smaller values (1µF) suit high-RPM engines, while larger (3.3–4.7µF) better serve low-end torque but increase stress on switching components.
- Switching element: A high-voltage SCR (thyristor) with a blocking voltage of ≥800V (e.g., MCR22-8) ensures reliable triggering without avalanche breakdown. For multi-spark systems, consider IGBTs with faster recovery times (~1µs).
- Flyback diode: A fast-recovery diode (e.g., BYV29-500) across the coil primary prevents voltage spikes >1kV from damaging the SCR. Place it as close as possible to the coil terminals to minimize inductive overshoot.
Integrate a dwell control circuit using a monostable multivibrator (e.g., NE555 or discrete transistors) to regulate coil saturation time. Target dwell angles of 25–40° at idle, adjusting upward by 5–10° per 1,000 RPM to compensate for decreasing saturation current. Over-dwell (>50°) risks coil overheating; under-dwell (
For ignition timing mapping, a variable reluctor or optical encoder paired with a microcontroller (e.g., ATtiny13) enables 0.5° precision. Program advance curves with linear interpolation between key points:
- Static timing: 5–10° BTDC
- Idle advance: 10–15° @ 800–1,200 RPM
- Peak advance: 30–38° @ 3,000–5,000 RPM
- Retard for knock: 2–5° per 1,000 HP (before knock sensor activation)
Use a MAP or TPS input for load-based compensation.
Grounding and Noise Suppression
Route all grounds to a single star point near the engine block, avoiding chassis ground paths >100mm. Use twisted-pair wiring (20AWG minimum) for pulse signals to reject RFI. Install a 0.1µF ceramic capacitor across the SCR gate-cathode and coil primary-secondary terminals to suppress EMI. For high-energy systems, add a ferrite choke (e.g., TDK ZCAT2035-0730A) in series with the power feed to the coil.
Failure Point Mitigation
Test under load at 20% above nominal voltage (e.g., 14.4V for 12V systems). Replace capacitors showing >10% capacitance drift or ESR >3Ω. For SCRs, ensure junction temperature remains

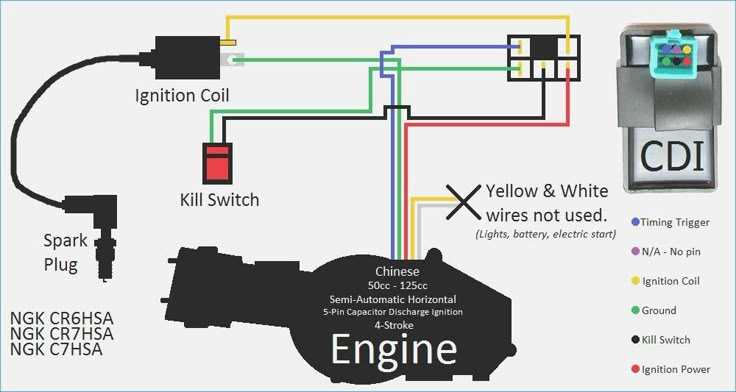

Step-by-Step Wiring for a Basic Ignition Control Setup
Begin by identifying the stator output wires–typically a pair delivering 50–200V AC at 50–400Hz, depending on engine RPM. Use a multimeter to confirm voltage and frequency under load (e.g., cranking versus idle). Solder a 1N4007 diode to the stator’s positive lead, ensuring the cathode (marked stripe) faces toward the capacitor. This blocks reverse current, preventing damage to the charging circuit.
Connect the energy storage component next: a 1–4.7µF metallized polypropylene capacitor rated for 400V DC minimum. Wire its positive terminal to the diode’s output; ground the negative terminal to the engine block via a dedicated 14-gauge wire (or thicker). Verify capacitance with a meter–deviations over 10% from the specified value will cause misfires at low RPM.
Trigger Circuit Assembly
| Component | Specification | Wiring Note |
|---|---|---|
| Pulse coil | 100–1000Ω, 1–5V AC | Connect one lead to ground; the other to the SCR gate via 47Ω resistor |
| SCR (Thyristor) | 2N6509 or equivalent (600V/40A) | Anode to capacitor +; cathode to ignition coil +; gate to pulse coil/resistor |
| Ignition coil | Primary: 0.5–1.5Ω, 3–6mH; Secondary: 5–10kΩ | Primary + to SCR cathode; primary – to ground |
Strip the pulse coil leads no more than 5mm–excess length increases noise susceptibility. Route wires away from the stator output harness to avoid inductive cross-talk, securing them with nylon ties every 10cm. Test trigger voltage: it should spike to 3–8V when cranking the engine. If readings are below 2V, replace the pulse coil or check stator magnet alignment.
Final Checks and Adjustments
Before first startup, measure resistance from the ignition coil primary to ground–it should match the coil’s stated spec (±0.1Ω). A lower reading indicates a shorted winding; higher resistance suggests corrosion at the terminal. Apply dielectric grease to all connections, then wrap them in heat-shrink tubing. Crank the engine: the spark plug should fire consistently at 1–2mm gap. If erratic, swap the capacitor–cheap electrolytics often leak under load.
Common Trigger Coil Configurations and Their Outputs
For most small-engine ignition systems, a single inductive pickup coil with an AC output of 40–250 mV (peak-to-peak) at 500–5,000 rpm delivers reliable timing without additional circuitry. Position the coil 0.3–0.8 mm from the flywheel magnet edge–closer spacing increases voltage but risks saturation; wider gaps reduce signal strength. Use enamel-coated wire sized 0.1–0.2 mm in 150–400 turns around a ferrite core; exceeding 400 turns causes excessive inductance, delaying spark timing by 2–5 crankshaft degrees. Verify polarity: connect the positive trigger lead to the ignition module’s input only after confirming the flywheel magnet’s north pole faces the coil at the desired trigger point.
Variable Reluctor and Hall-Effect Alternatives
Variable-reluctor setups produce 1.5–3.5 V (peak) at 1,000 rpm when paired with a 200-tooth ring gear and require a Schmitt-trigger circuit to square the sinusoidal output–omitting this stage introduces timing errors exceeding ±7°. Hall-effect sensors generate a clean 0–5 V digital pulse but demand regulated 4.5–5.5 V supply; wire gauge must not exceed 0.5 mm² to prevent voltage drop over runs longer than 1.2 m. For twin-cylinder engines, stagger coil placement by 90° crankshaft degrees–offsetting each coil’s signal ensures sequential firing without overlap at high rpm.
