For a stable 16-channel video recorder, use a quad-core ARM Cortex-A7 processor clocked at 1.2 GHz with 2GB DDR3 RAM and 8GB eMMC storage as the baseline hardware. Pair this with an Allwinner H3 or Rockchip RK3229 SoC for efficient H.264/H.265 encoding, reducing data volume by 40% compared to older MPEG-4 compression. Ensure the mainboard includes a dedicated video input processor (VIP)–such as TI’s TVP5158–for handling analog signals before digitization, supporting PAL/NTSC with automatic gain control.
Connect each of the 16 video inputs to a 4-channel multiplexer (e.g., MAX4614) to consolidate signals before feeding them into the VIP. Use twisted-pair cable with impedance-matched termination (75Ω) for analog inputs to prevent signal degradation over distances exceeding 50 meters. For power, integrate a 5V/3A DC-DC converter with overvoltage protection and a switching regulator (e.g., LM2596) to handle input fluctuations up to 30V without performance loss.
Implement a real-time clock (RTC) module with battery backup (CR2032) to maintain timestamp accuracy during power outages. For storage, include two SATA III interfaces supporting drives up to 8TB each, alongside a microSD slot for firmware updates. Isolate the digital and analog grounds using 0Ω resistors or ferrite beads to minimize noise in recorded footage.
For network connectivity, embed a dual-band Wi-Fi module (2.4GHz/5GHz) with an external antenna (5dBi gain) to ensure stable remote access. Include a Gigabit Ethernet port with PoE+ support (IEEE 802.3at) for direct power delivery over Cat5e cables up to 100 meters. Add a USB 3.0 port for localized backups or additional storage expansion, prioritizing flash drives with UASP protocol for faster data transfer rates.
To enhance reliability, incorporate a watchdog timer (WDT) (e.g., STM32 microcontroller) that triggers a system reset if the main processor freezes. Use thermal pads and a passive heatsink on the SoC to maintain temperatures below 60°C under continuous load. Label all components with silkscreen markings on the PCB for easier troubleshooting and component replacement.
Building a Surveillance Recorder Circuit: Wiring Essentials
Start with a power distribution board rated for 12V/5A per channel–each video input must have a dedicated fuse (1A) to prevent surges from damaging BNC connectors or storage interfaces. Use a 4-layer PCB layout: ground plane on the second layer, power traces on the third, and signal lines on the outer layers–this minimizes interference between analog feeds (PAL/NTSC) and digital encoding blocks. For ADC input, select a 10-bit chip like the ADV7180 with 140 MHz sampling rate to maintain clarity in low-light conditions without requiring excessive compression.
Route high-speed LVDS lanes (4-pair for 1080p30) from the SoC to the storage controller with matched impedance (100Ω differential) and keep trace lengths under 12 cm to avoid skew. Ground vias should be placed every 2 cm along critical paths, and decoupling capacitors (0.1µF) must sit within 1 mm of each IC power pin. Opt for a dual-core ARM Cortex-A7 processor with H.265 encoding hardware acceleration; thermal throttling at 75°C can be mitigated with a 5×5 mm copper pad beneath the SoC, connected to an external heatsink via thermal adhesive. For storage expansion, include a SATA III port with a power negotiation circuit (TPS25940) to handle 3.5″ HDD spin-up currents (up to 2A).
Key Components and Signal Flow in a Video Recorder Circuit Layout
Begin by identifying the video input stage as the first critical node in the circuitry. Each camera feed connects to a dedicated analog-to-digital converter (ADC) chip, typically a TVP5150 or similar, which samples the composite video signal at 10-bit resolution. Configure the ADC clock to 27 MHz to prevent aliasing and maintain synchronization with the back-end processing unit. Ensure the input impedance matches 75 ohms to prevent signal degradation.
The processed digital stream moves to the system-on-chip (SoC) where the main encoding occurs. A high-performance encoder like Hi3518 or Ambarella S2L processes the raw video into H.264 or H.265 format, balancing bitrate and quality. Allocate at least 2 MB of DDR3 memory per channel for smooth operation, with a clock speed of 667 MHz to handle simultaneous recording and playback without frame drops. Prioritize a power regulation circuit with separate LDO chips for the SoC core (1.2V) and I/O (3.3V) to minimize noise interference.
Signal flow to storage involves a SATA III interface linking the SoC to a hard drive or SSD. Use a JMicron JMB390 bridge chip if employing multiple drives to enable RAID configurations. Format storage with ext4 or NTFS to support large file sizes, and set aside a 10% buffer zone for wear leveling. For network transmission, integrate a Realtek RTL8211 Gigabit Ethernet PHY chip to ensure stable data transfer at 1000 Mbps, avoiding packet loss during live streaming.
Power distribution demands precise planning to avoid voltage fluctuations. Route 12V input through a buck converter like MP2359, stepping down to 5V for USB ports and IR LEDs. Use a Texas Instruments TPS54331 for the 3.3V rail, ensuring a stable supply to the SoC and memory chips. Implement transient voltage suppression diodes at each power entry point to protect against surges, particularly critical in industrial environments where power quality varies.
Video output stages require an HDMI transmitter such as the IT66121 to drive displays or monitors. Configure the resolution to 1080p60 for optimal clarity, and ensure the EDID communication between the recorder and display is error-free. For analog outputs, retain an ADV7123 DAC chip if legacy connections are necessary, though limit its use to avoid signal conversion losses. Always test the HDMI output with a high-quality cable to prevent handshake issues.
Control interfaces must include a robust RS-232 transceiver like MAX3232 for firmware updates or remote configuration. For user interaction, integrate a capacitive touch controller such as FT6206 if using a front-panel display. Alternatively, route I2C lines to a microcontroller for button inputs, ensuring pull-up resistors of 4.7k ohms are in place to prevent floating signals. Avoid daisy-chaining multiple I2C devices to minimize communication errors.
Thermal management is often overlooked but critical. Place a temperature sensor like LM75 near the SoC and encoder chips, configuring interrupt thresholds at 70°C to trigger active cooling. Use a low-noise 5V fan controlled via PWM, with a fail-safe to engage full speed if the sensor fails. Ground all metallic enclosures properly to prevent static buildup, and apply thermal pads to the underside of the SoC to improve heat dissipation efficiency.

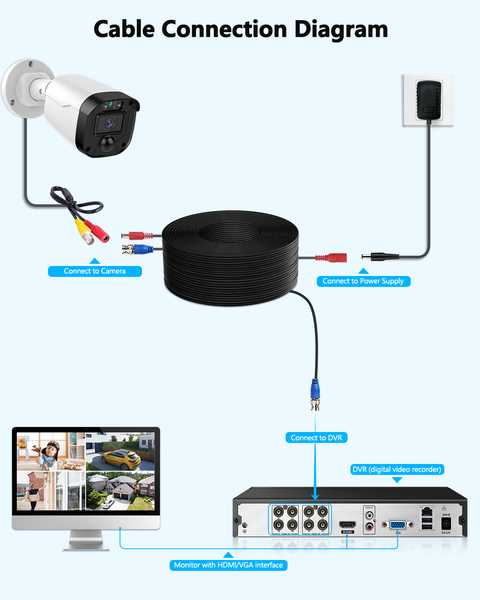

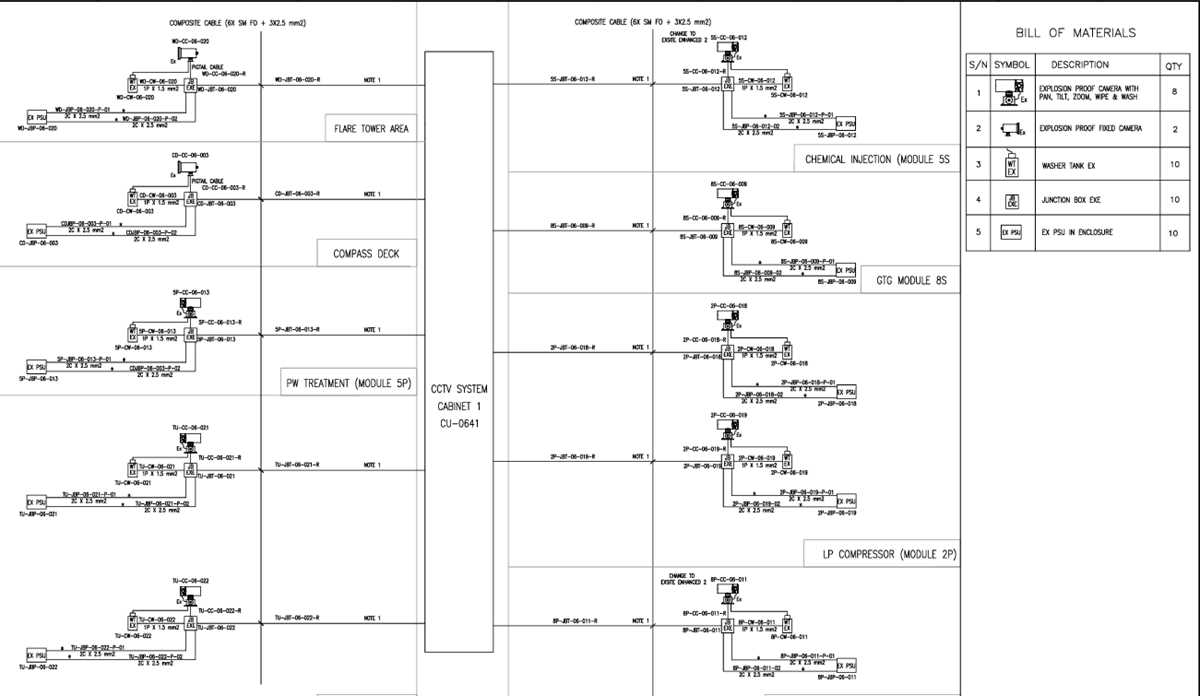

Connecting Cameras to a Digital Recorder: Wiring and Input Configuration

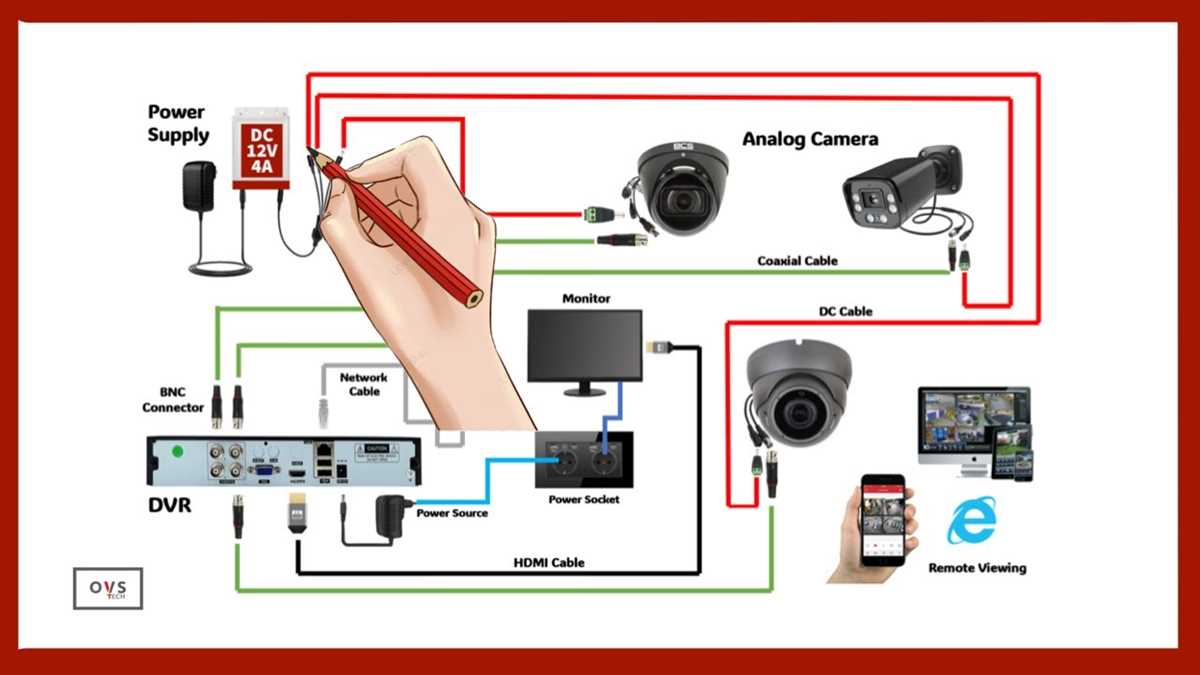

Begin by identifying the video signal type each surveillance unit outputs. Analog models typically use BNC connectors with coaxial cable (RG59 or RG6), transmitting composite video at 75 ohms impedance. IP units require Cat5e/Cat6 Ethernet cables with RJ45 plugs, supporting Power over Ethernet (PoE) if the recorder’s switching hub provides 48V DC. Verify cable runs do not exceed 100 meters for analog or 90 meters for digital connections to prevent signal degradation.
For analog wiring, crimp BNC connectors onto coaxial cable ends using a stripping tool to expose 1.5cm of inner conductor and shield. Twist the shield strands, slide the crimping ring over the cable, then insert the conductor into the BNC pin. Secure with a hex crimper, ensuring no shield strands contact the inner conductor. Test continuity with a multimeter before connecting to recorder inputs labeled “CH1,” “CH2,” etc.

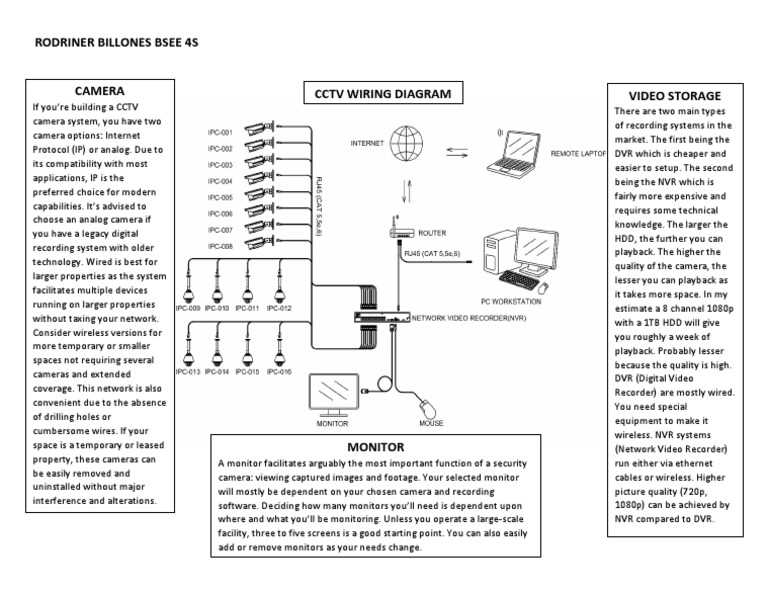

IP units demand proper network configuration before physical connection. Assign each camera a static IP within the recorder’s subnet (e.g., 192.168.1.x/24). Use a PoE injector or recorder-integrated switch to supply power; check camera specs for power requirements (e.g., 802.3af at 15.4W or 802.3at at 30W). Connect Ethernet cables directly to the recorder’s PoE ports or a separate network switch, then verify link lights on both devices.
Configure recorder input settings before powering cameras. For analog, set resolution (NTSC/PAL), frame rate (25-30fps), and video standard (CVBS). For IP, enable ONVIF protocol if cameras are third-party, adjust bitrate (2-8Mbps for 1080p), and set encoding (H.264/H.265). Avoid compression artifacts by matching camera resolution to recorder channel capabilities (e.g., 4K camera to 4K-capable channel).
| Connection Type | Max Cable Length | Connector | Signal/Power |
|---|---|---|---|
| Analog Composited | 100 meters | BNC (RG59/RG6) | 1V p-p/75Ω |
| IP PoE (Cat5e) | 90 meters | RJ45 | 10/100/1000BASE-T + 48V DC |
| IP Passive (Cat6) | 70 meters (with extender) | RJ45 | 10/100/1000BASE-T |
Terminate unused inputs immediately. Analog channels left open can introduce noise, while IP ports may cause network loops. For analog, connect a 75-ohm terminator to unused BNC inputs. For IP, disable unused ports in the recorder’s network settings or physically disconnect cables. Label all connections at both ends with channel numbers to simplify troubleshooting.
Test each connection systematically. Analog units should display a clear image without rolling lines or color distortion; adjust brightness/contrast in the recorder’s menu if needed. IP units should show stable video without packet loss; use the recorder’s network diagnostics (ping, traceroute) to verify latency under 100ms. Document MAC/IP addresses, cable types, and run lengths for future reference.
