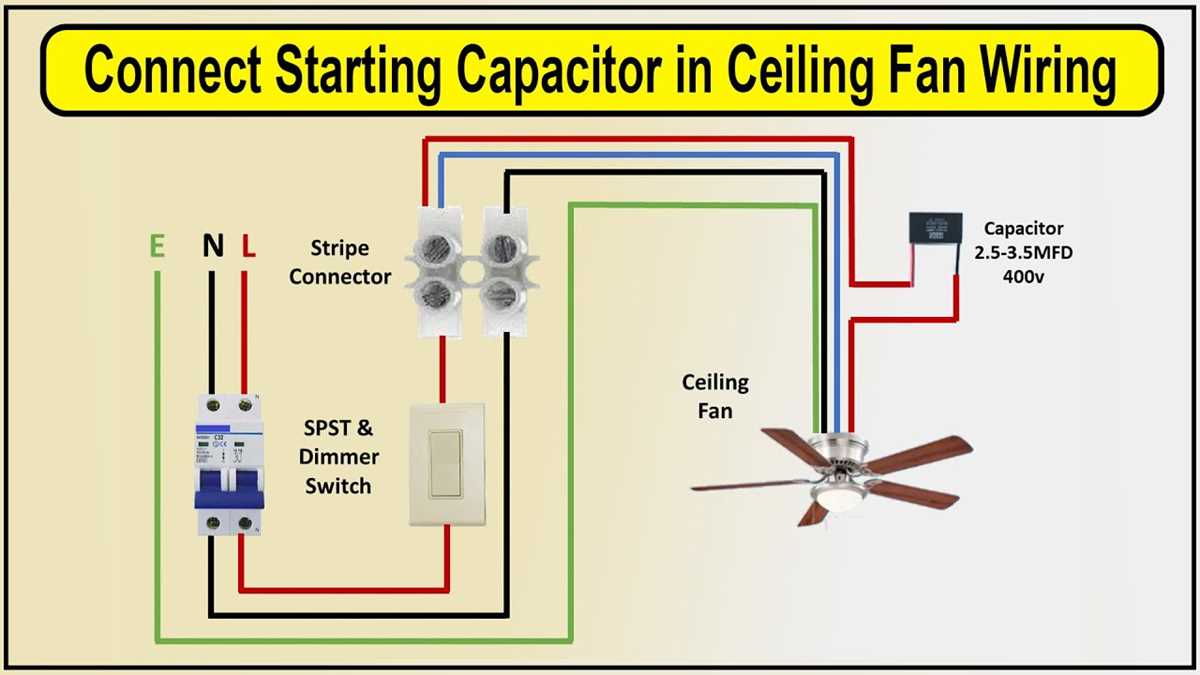

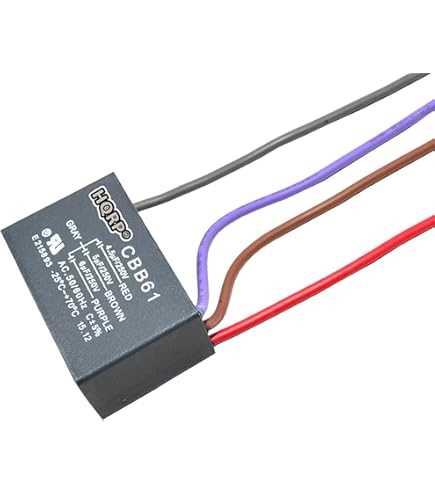

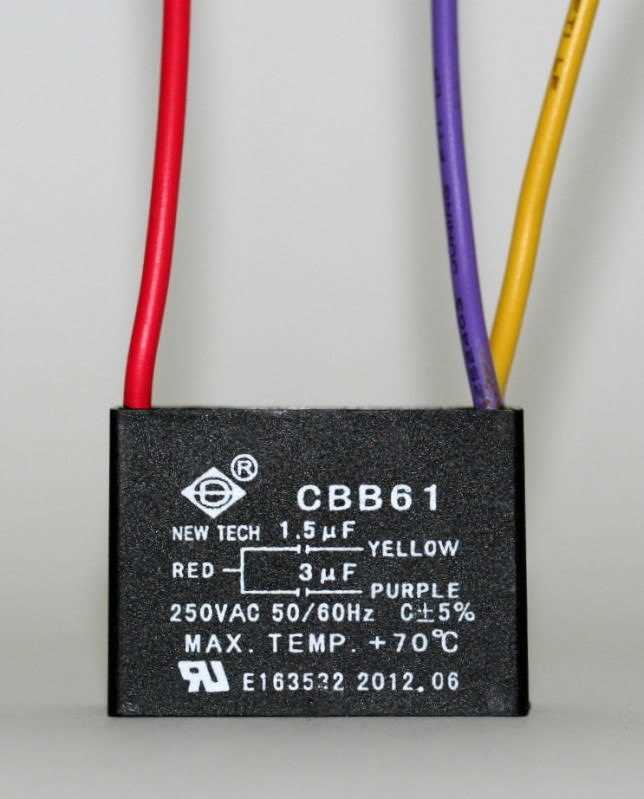

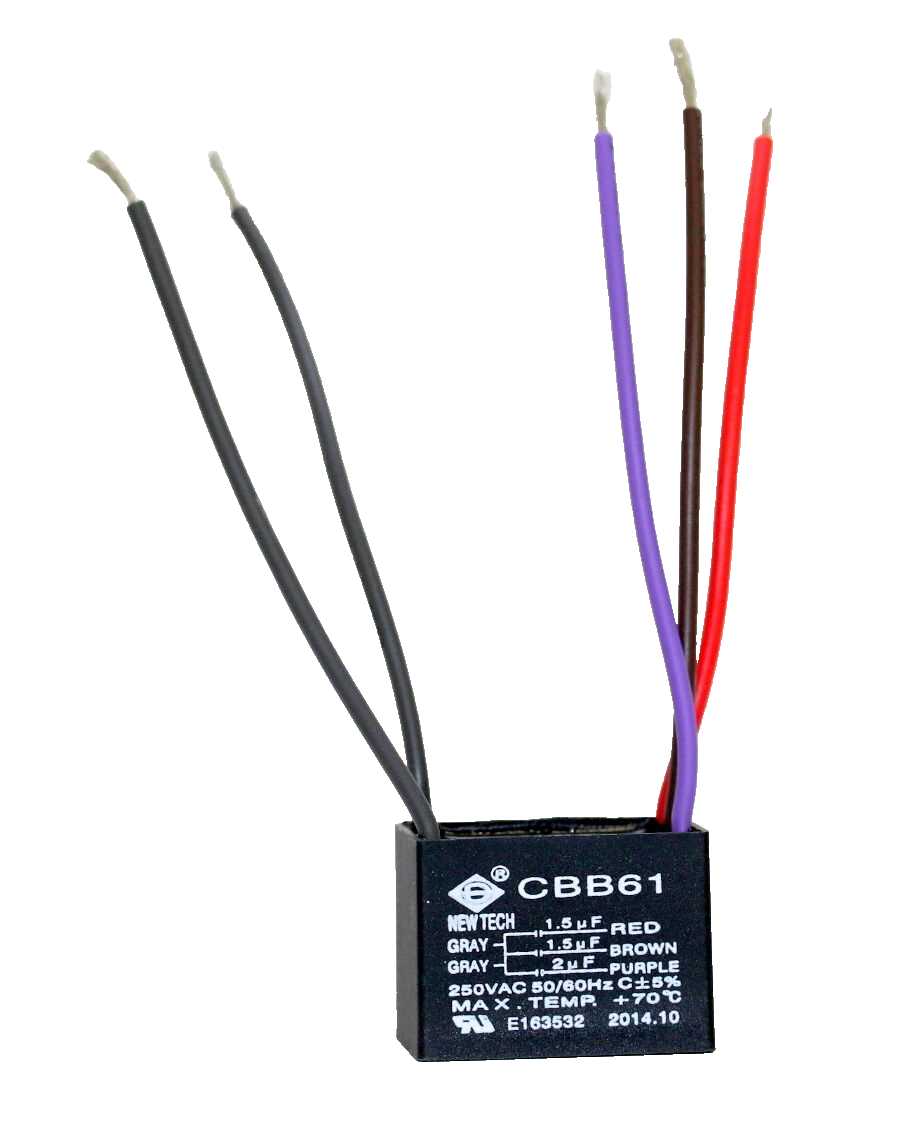

Use a 0.25 to 6 microfarad rated part with 250–450 volt AC tolerance when linking the auxiliary winding in single-phase induction units. The standard configuration requires one terminal to bridge the start and run windings, while the other attaches to the motor’s common lead. Verify the label: CBB61-type replacements specify maximum continuous voltage and microfarad value–ignoring these values risks overheating or premature failure.
Disconnect power at the breaker and discharge stored energy with a 10 kΩ resistor across the leads before handling. Mark each wire: typically a red/yellow pair denotes the auxiliary winding, black the common, and blue the main winding. Miswiring here creates a phase shift of nearly 180 degrees, stalling startup torque and potentially tripping overload protectors. Use a multimeter in capacitance mode to confirm values match before installation.
Secure leads with crimp connectors or solder, then insulate with heat-shrink tubing–exposed joints invite corrosion or short circuits under vibration. Reattach the cover and power cycle: normal operation should include 3–5 seconds of startup hum followed by smooth rotation. If humming persists or rotation reverses, swap the auxiliary winding leads at the component terminals for immediate correction.
For variable-speed units, parallel a smaller 0.1–1 microfarad part to smooth phase delays, ensuring consistent airflow at lower RPM settings. Replace any swollen or leaking components immediately–visual deformation indicates dielectric failure, which can arc internally and damage windings within 24–48 hours of operation.
Step-by-Step Motor Start Component Installation
Locate the main winding terminals first. Identify the two thicker wires exiting the motor housing–these connect to the primary coil. Mark them with heat-resistant tape to avoid confusion with auxiliary contacts. Misalignment here causes immediate overheating or failure to start.
Attach the auxiliary component between the secondary winding and one primary terminal. Use a 450V-rated part for 220-240V systems, ensuring the microfarad value matches the manufacturer’s label (typically 1.5–6 μF for single-phase motors). Secure connections with crimp ferrules to prevent vibration-induced disconnections.
Verify polarity isn’t critical for non-electrolytic variants, but orientation impacts longevity. Position the component vertically if mounting space allows, as horizontal placement increases heat concentration near the base. Leave 10mm clearance around the casing for airflow during operation.
Test continuity before finalizing. Disconnect power, then use a multimeter on the 2MΩ scale across the auxiliary coil and the selected primary terminal. A reading below 1MΩ signals a faulty component; replace immediately to prevent rotor lock during startup.
For permanent split-phase designs, connect a thermal overload protector in series with the main winding. Choose a protector calibrated 10°C above the motor’s rated ambient temperature–most models specify 60–85°C trip points. Bypass protectors only in evaporative cooler applications where ambient exceeds 45°C.
Insulate all connections with double-layer adhesive-lined heat-shrink tubing rated for 125°C. Apply even heat with a hot-air tool, ensuring complete sealing to prevent moisture ingress in high-humidity environments. Avoid electrical tape–it degrades within months under load.
After reinstalling the motor cover, run a 5-minute idle test. Monitor the casing temperature with an infrared thermometer; steady-state should not exceed 70°C. If readings spike, immediately cut power and recheck the auxiliary component’s capacitance–tolerance drift of ±5% is acceptable, but values outside this range require replacement.
How to Identify Terminals on Run-Start Motor Components for Proper Hookup
Locate the marking labeled “C” or “Common” on the cylindrical housing–this is the first lead to connect. Opposite it, you’ll find either “R” (Run) or “S” (Start), though some older variants use numeric identifiers like “1” and “2”. If no labels exist, examine the internal structure: the shorter lead typically corresponds to the Start terminal, while the longer lead aligns with the Run terminal, though this method isn’t foolproof–always cross-verify with a multimeter set to capacitance mode before proceeding.
For precision, measure the leads using a multimeter in the 20μF–500μF range. The Start terminal will register ~10–20% higher capacitance than the Run terminal due to its thinner dielectric layer, designed for brief surges. If readings are identical, check for a third hidden lead–some models embed a bleeder resistor between Run and Start, which can skew results. Disconnect one lead to isolate the true values. Below is a reference table for common motor components based on physical traits:
| Visual/Physical Marker | Likely Terminal | Capacitance Range (μF) |
|---|---|---|
| Shorter lead, thinner insulation | Start | 80–150 |
| Longer lead, thicker insulation | Run | 2–30 |
| Marked “C” or blank | Common | N/A |
| Third lead with resistor trace | Bleeder circuit | N/A |
Inspect the component’s casing for embossed symbols–a squiggly line indicates the Start terminal, while parallel lines mark the Run terminal. If symbols are absent, rely on lead diameter: Start wires are often 0.5–0.7mm, whereas Run wires measure 0.8–1.2mm. Avoid guessing based on color alone; manufacturers inconsistently use red, blue, or black insulation. For dual-voltage motors (e.g., 110V/220V), the Start lead may split into two, requiring a separate jumper to the higher-voltage tap–refer to the motor’s schematic for exact pinouts.
After identification, test under load. Temporarily connect the leads to their respective motor windings (Common → Neutral, Start → Auxiliary, Run → Main) and power the device. If rotation is sluggish or fails to start, swap the Start and Run connections–incorrect polarity risks overheating the dielectric within 5–10 seconds. For permanent installation, crimp ring terminals to the leads and secure with M4 screws (Start) and M5 screws (Run) to prevent vibration-induced disconnections. Never solder directly to the component; excessive heat degrades the epoxy seal.
Step-by-Step Connection Guide for Single-Phase Motor Circuits Using Polypropylene Components
Identify the motor’s labeled terminals first–typically marked *U*, *V*, and *W* for main and auxiliary windings. If labels are absent, use a multimeter in continuity mode to distinguish the main coil (lower resistance) from the secondary coil (higher resistance). This distinction is critical: reversing these connections will prevent rotation or cause excessive humming.
Secure the non-polarized storage element–rated between 1.5µF and 10µF, matching the motor’s specifications–between the auxiliary winding terminal (*V*) and one lead of the main winding (*U*). Confirm the voltage rating exceeds the supply’s peak, typically 450V AC for 230V mains. Twist bare wires tightly before soldering or crimping with insulated connectors to prevent oxidation.
Verification Before Power Application
Before energizing, disconnect the supply and measure resistance across all junctions. Expected values: main winding (~20-50Ω), auxiliary winding (~100-300Ω), and infinite resistance between live conductors and the motor’s metal frame. Replace any component showing deviation–these anomalies signal shorted coils or faulty dielectric separation.
Attach the supply leads–neutral to *W* and live to the unconnected end of the main winding (*U*). Route all conductors through grommeted openings in the housing to avoid abrasion. Power up briefly (under 3 seconds) while observing rotation direction. Incorrect spin indicates swapped auxiliary leads; reverse the connection to *V* and retest. Permanent wiring should include a thermal cutoff switch in series with the circuit to prevent overheating.
Seal all connections with heat-shrink tubing rated for 125°C minimum. Label conductors at both ends for future servicing–use heat-resistant tags or embossed sleeves. Final torque specifications for terminal screws: 0.5-0.8 Nm; overtightening risks thread stripping or fracturing phenolic terminal blocks. Record actual capacitance measured with a bridge meter as baseline for predictive maintenance.
Common Mistakes in Permanent Split-Capacitor Motor Hookups and Fixes
Always confirm the red and blue leads correspond to the auxiliary winding before connecting. Swapping these with the main winding terminals reduces torque by up to 40% and causes uneven start-up. Use a multimeter set to ohms: auxiliary winding typically shows 5–20% higher resistance than the main winding. If readings are equal, check for mislabeled wires or internal shorts.
Improper phase shift placement strains the motor. The correct orientation is to attach the dielectric component between the auxiliary winding and start terminal, not in parallel with the main coil. Failure here leads to erratic acceleration, audible humming, or premature burn-out. A quick verification: reverse connections if the motor struggles to reach full RPM within 3 seconds.
- Loose spade terminals cause intermittent failures. Crimp connectors with a proper tool; hand-tightened clips often vibrate free after 50–100 operating hours. Electrical tape or heat shrink may hide poor contact–verify continuity instead.
- Incorrect voltage selection damages the device. A 250V-rated unit on 110V circuits runs poorly; 450V on 230V overheats insulation. Check the manufacturer’s label–tolerance is ±10%.
- Over-tightening screws warps terminal blocks. Torque should remain below 2 Nm to prevent fracturing brittle plastic housings found in many economy-grade assemblies.
Identifying Hidden Short Circuits
Insulation breakdown between plates often goes unnoticed until full breakdown. Test with a megohmmeter at 500V DC: readings below 50 MΩ indicate imminent failure. If tests pass but motor still runs hot, look for partial discharges between windings and chassis–replace the unit if core temperature exceeds 65°C under normal load.
Wrong capacitance values alter performance curves. A 2.5 µF component on a 4 µF motor drops airflow by 28% yet increases current draw by 15%. Use the nameplate value–do not substitute “close enough” parts. If missing, calculate required microfarads from motor label data: typically 0.5–1 µF per 10 W input power.
- For persistent start failures, disconnect power and manually spin the rotor. Resistance beyond 0.2 Nm indicates bearing wear or internal contamination; replace bearings or the entire assembly.
- Check shunted leads–two wires feeding one terminal create parasitic losses. Remove any second wire, even if manufacturer documentation suggests otherwise.
- Polarity reversal on AC circuits is harmless but often indicates miswired switches or speed selectors. Trace each conductor back to the selector switch and verify proper ganged operation.
Thermal overload protection embedded in some motors trips if start-up duration exceeds 2 seconds. This suggests low auxiliary current–confirm the dielectric component’s capacitance matches the label. If correct, suspect a faulty centrifugal switch or binding shaft. Lubricate bearings sparingly with SAE 20 oil; excess attracts dust, increasing drag.
