For reliable network connections, use the T568B standard unless existing infrastructure mandates T568A. T568B dominates most installations due to its backward compatibility with older wiring schemes, including USOC and 10BASE-T. Switching between standards on the same link causes termination errors, so maintain consistency across all endpoints.
T568B assigns colors in this sequence: white/orange, orange, white/green, blue, white/blue, green, white/brown, brown. The pairing follows a strict split: pins 1–2 and 3–6 form transmit/receive pairs, while 4–5 and 7–8 serve as bidirectional pairs. This division prevents signal interference on high-speed links exceeding 100 MHz. Misaligned pairs, even by a single position, drop throughput below 10 Mbps or trigger duplex mismatches.
T568A swaps orange and green pairs: white/green replaces white/orange, and green replaces orange. While functionally identical, T568A complicates diagnostics if mixed with T568B in a single installation. Use a cable tester to verify correct pair alignment–continuity alone does not guarantee performance. For PoE applications, ensure power conductors (pins 4–5, 7–8) handle the current; 24 AWG solid copper cores support up to 30W per port.
Punch down both ends identically. Straight-through cables require matching standards; crossover cables reverse pairs 1–2/3–6 for direct device connections. Avoid untwisting more than 13 mm of any conductor–excessive untwisting introduces crosstalk, degrading gigabit speeds. Shielded cables follow the same pin assignments but require grounding at one end to prevent induced noise loops.
T568A vs. T568B: Which Standard to Choose for Network Cables
Use T568B as the default standard for all new installations unless existing infrastructure enforces T568A. T568B dominates commercial and residential deployments globally, ensuring compatibility with switches, patch panels, and devices from major manufacturers like Cisco, HP, and Netgear. Deviating from this risks mismatched pairs, crosstalk, or failed connections.
Pin assignments differ only in the orange and green pairs–swapped between the two. T568B assigns:
| Pin | Pair | Color Code (T568B) |
|---|---|---|
| 1 | 3 | White/Orange |
| 2 | 3 | Orange |
| 3 | 2 | White/Green |
| 4 | 1 | Blue |
| 5 | 1 | White/Blue |
| 6 | 2 | Green |
| 7 | 4 | White/Brown |
| 8 | 4 | Brown |
T568A reverses pins 1–2 with 3–6 (orange and green pairs). Both support gigabit Ethernet and PoE, but mixing them creates a crossover link unintentionally.
For patch cables, maintain consistency–crimp both ends identically (T568B-to-T568B or A-to-A). Only use T568A at one end and T568B at the other for crossover cables, typically needed to connect two PCs directly or obsolete switches without auto-MDI/MDIX. Modern hardware eliminates this need; most gigabit ports auto-negotiate.
Test every termination with a cable certifier or at minimum a wiremap tester. TDR tools verify length and impedance (100 ±15 ohms), while advanced testers measure NEXT (near-end crosstalk), FEXT (far-end crosstalk), and return loss. A single miswired pair degrades throughput below Fast Ethernet speeds, regardless of the nominal 1000BASE-T rating.
Document all terminations in the building’s IT records. Label both ends of horizontal runs and patch cords with the standard used (e.g., “B2” for T568B, jack 2). Use colored boots or labels to distinguish–blue for data (T568B), green for VoIP (if using split pairs), yellow for camera feeds. Avoid proprietary color schemes unless mandated by the client.
When retrofitting legacy cabling, identify the existing standard first. If T568A is present, continue with A to prevent rewiring costs. For new drops in a mixed environment, default to T568B, clearly marking deviations. Remember: consistency trumps personal preference–even minor inconsistencies compound in large networks, causing intermittent faults invisible to basic testers.
How to Choose Between T568A and T568B Termination Schemes
Opt for T568B unless existing infrastructure mandates T568A. T568B dominates modern installations due to backward compatibility with older equipment and alignment with common practices in residential and commercial setups. Only deviate if documentation or pre-existing cabling requires T568A.
Check local building codes or project specifications before committing. Some regions enforce T568A for consistency in government or educational networks. Ignoring these regulations risks signal degradation or compliance violations during inspections.

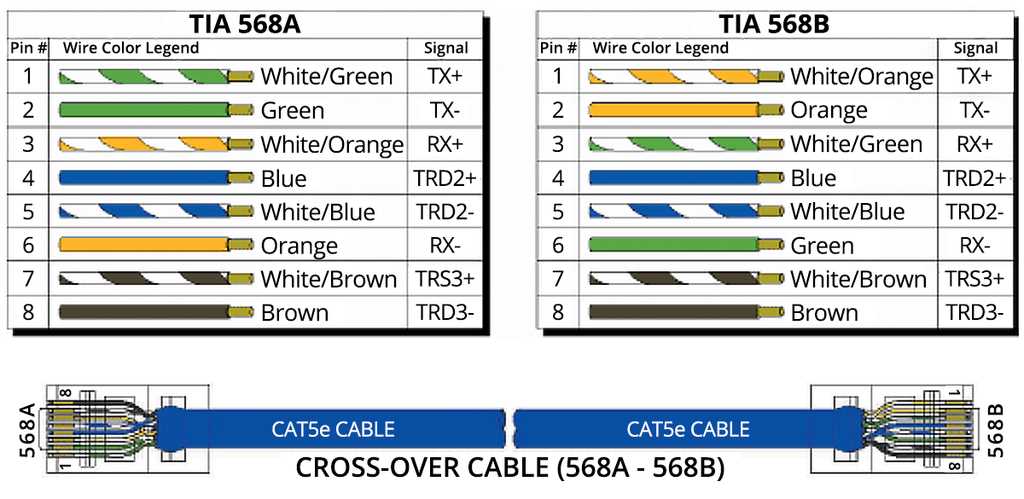

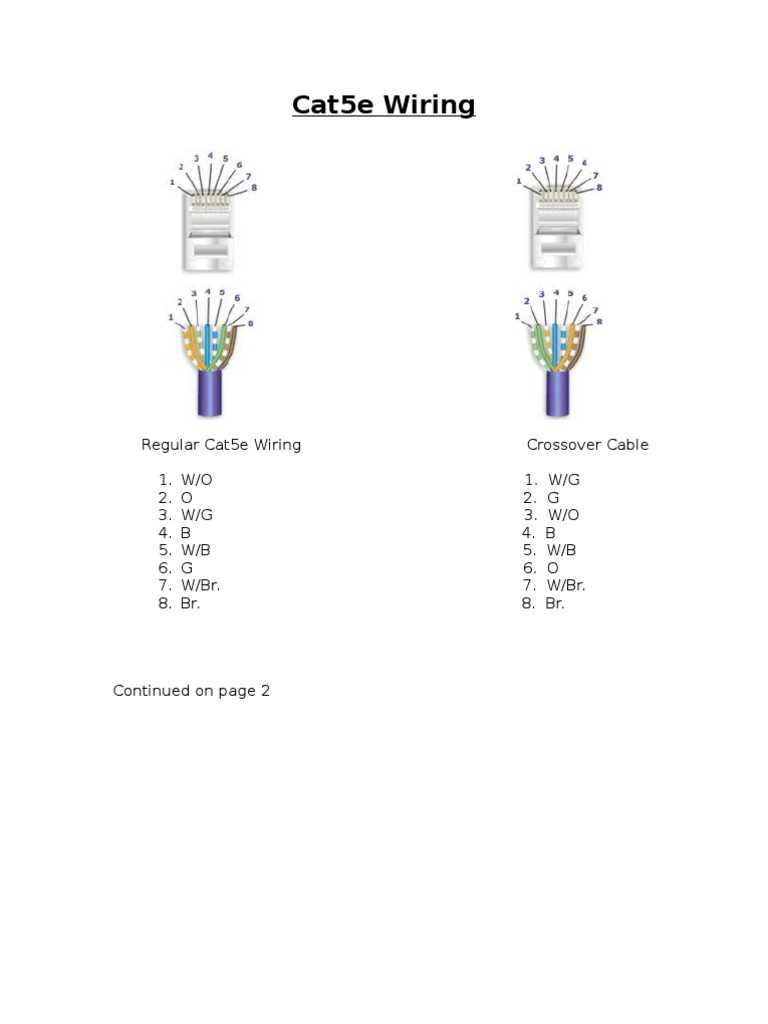

T568B arranges conductors in white-orange, orange, white-green, blue, white-blue, green, white-brown, brown sequence. T568A swaps the orange and green pairs: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown. Verify pair positions rather than color alone to avoid miswiring.
Use T568B for PoE deployments. Its pin assignments minimize power loss across the blue and brown pairs, which are less critical for data transmission. T568A splits power unevenly, potentially reducing efficiency in high-power applications like PoE++ devices.
Terminate patch panels and wall jacks uniformly. Mixed standards within a single installation cause impedance mismatches, crosstalk, or failed connections. Label both ends of every cable with the chosen scheme to prevent future confusion.
For crossover connections between identical devices (switch-to-switch, PC-to-PC), create a hybrid cable with T568A on one end and T568B on the other. This maintains proper pin polarity without requiring dedicated crossover hardware. Avoid this method for PoE, as it disrupts power delivery.
Test all links with a certifier rather than a basic toner. Cheap testers may confirm continuity but miss split pairs or impedance issues introduced by inconsistent termination. ANSI/TIA-568 mandates testing for attenuation, NEXT, and return loss–ensure results meet Category 5e thresholds.
Terminating Network Cables with T568A: A Precise Approach
Strip the outer jacket 2.5 cm from the end without nicking internal pairs. Unwind twisted conductors only enough to straighten them–excess untwisting degrades signal integrity. Align wires left to right in the sequence: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown. Trim conductors to 1.3 cm, ensuring all ends sit flush.
Verification Before Crimping
Insert wires into the RJ45 connector, checking each pin slot through the front. The white-green pair must engage pin 1; verify green occupies pin 2. Push firmly until conductors bottom out–the jacket should extend 0.5 cm into the connector. Use a magnifier to confirm no stray copper strands bridge adjacent pins. Misalignment here corrupts gigabit transmission.
Crimp the connector with steady pressure, squeezing the tool once firmly. A proper termination emits an audible click as pins pierce insulation. Tug-test each conductor with 1 kg force–retention failure requires retermination. Avoid flexing the wire near the connector; stress fractures develop within 20 cycles.
Testing and Documentation
Validate continuity using a tester’s T568A mode. Pins 1-2 and 3-6 must maintain
Secure cables with Velcro ties at 50 cm intervals. Avoid zip ties; compression exceeds 5N after 3 months, inducing impedance shifts. For outdoor runs, use gel-filled boots over connectors–moisture ingress increases attenuation 0.1 dB/m. Document termination dates; T568A installations degrade after 15 years, requiring replacement before error rates exceed 1×10⁻⁷.
Step-by-Step Guide to Terminate Network Cables Using T568B
Strip 1.5–2 inches of the outer jacket with a precision cable stripper, ensuring you avoid nicking the internal twisted pairs. Unravel the pairs while maintaining their natural twist–no more than 0.5 inches per pair–to minimize signal interference. Arrange the conductors in T568B order (white-orange, orange, white-green, blue, white-blue, green, white-brown, brown) by holding them between your thumb and forefinger, then trim the ends evenly with flush cutters to ensure no stray strands protrude. Insert the prepared wires into an RJ45 connector, verifying each conductor reaches the connector’s front edge; improper seating causes connection failures.
Use an impact crimper to apply 12–15 lbs of force evenly across all pins, avoiding excessive pressure that can crack the connector. Test the connection with a cable certifier for pair continuity, miswiring, and split pairs–common issues include swapped blue/green pairs or reversed polarity. For permanent installations, secure the cable with strain relief boots or a patch panel to prevent jacket slippage. Note: T568B offers superior crosstalk resistance in most office environments compared to T568A, particularly with gigabit Ethernet.
Essential Gear for Structured Network Cable Installation
Start with a punch-down tool featuring a 110-blade–models like the Klein Tools VDV001-001 ensure clean, precise terminations without damaging conductors. Avoid generic options; misaligned blades cause inconsistent connections and intermittent faults. Include a spare blade in your kit; wear occurs after 500–800 insertions.
Use crimping pliers with interchangeable dies for 8P8C connectors (Ideal Industries 30-795 recommended). Cheaper variants often compress unevenly, risking loose pairs. Verify compatibility with solid-core cables–stranded variants require a separate die. Store dies in a labeled pouch to prevent loss; misplaced dies delay projects.
Precise Measurement and Cutting Tools
- Keystone jack termination tool (Platinum Tools 100052C): Ratcheted mechanism ensures full insertion of conductors into IDC slots. Manual pressure risks incomplete seating, leading to crosstalk.
- Cable stripper with adjustable depth (Jonard CST-500): Removes outer jacket in a single pass without nicking internal pairs. Set blade depth to 1.5mm for UTP; deeper cuts damage shielding.
- Snips with micro-serrations (Knipex 78 61 125): Cleanly trim excess conductors flush to jacks. Dull blades fray copper, increasing impedance.
- Tone generator and probe (Fluke Networks Pro3000): Trace cables behind walls; audible feedback reduces guesswork. Pair with a non-contact voltage detector to avoid energized lines.
Verification and Support Equipment
Invest in a certification tester with frequency sweeps up to 100MHz (Fluke DSX-5000). Budget testers (basic cable continuity tester (Tripp Lite N201-000) confirms pinouts but excludes performance metrics. Include:
- Shielded termination grommets for STP installations; tin-plated variants resist corrosion better than bare copper.
- Cable ties (HellermannTyton 113-05128): UV-resistant nylon prevents brittle failure in outdoor runs. Avoid over-tightening; 8 lbs tensile strength is optimal.
- Labeling supplies: Use thermal-transfer printers (Brother PT-D600) for fade-resistant labels. Handwritten tags smudge and degrade over time.
- Pull string (1/8″ diameter): Enables rapid cable deployment in conduits. Attach to cable ends with a sticky-back pulling sock to prevent snags.
- Fish tape (Klein Tools 560-FT12): Glide-style head reduces friction in EMT. Fiberglass variants snap under load; steel versions last longer.
A portable insulation displacement connector (IDC) block (Siemon CT-C6A-4) speeds patch panel terminations. Separate solid and stranded cable tools–mixing them causes unreliable gas-tight connections. Store blades and dies in anti-static foam to prevent oxidation. Replace worn cutting edges every 1,200 terminations or at signs of burring.
For outdoor runs, add a gel-filled splice kit (3M 82-A1) to seal splices against moisture. Standard heat-shrink tubing fails in wet environments. Include a ratcheting conduit cutter (Ridgid 32975) for clean EMT cuts–hacksaws leave jagged edges that damage jackets during pulls. Calibrate torque settings on punch-down tools annually; variance above ±5% degrades IDC reliability.
