Begin by stripping 20–25 mm of outer insulation from the cable, exposing the twisted pairs without cutting into the internal conductors. Use a calibrated stripping tool–avoid utility knives–to prevent nicks that degrade signal integrity. Maintain the factory twists as close to the termination point as possible; separating pairs beyond 12.7 mm (0.5 inches) introduces crosstalk and violates TIA/EIA-568-B standards.

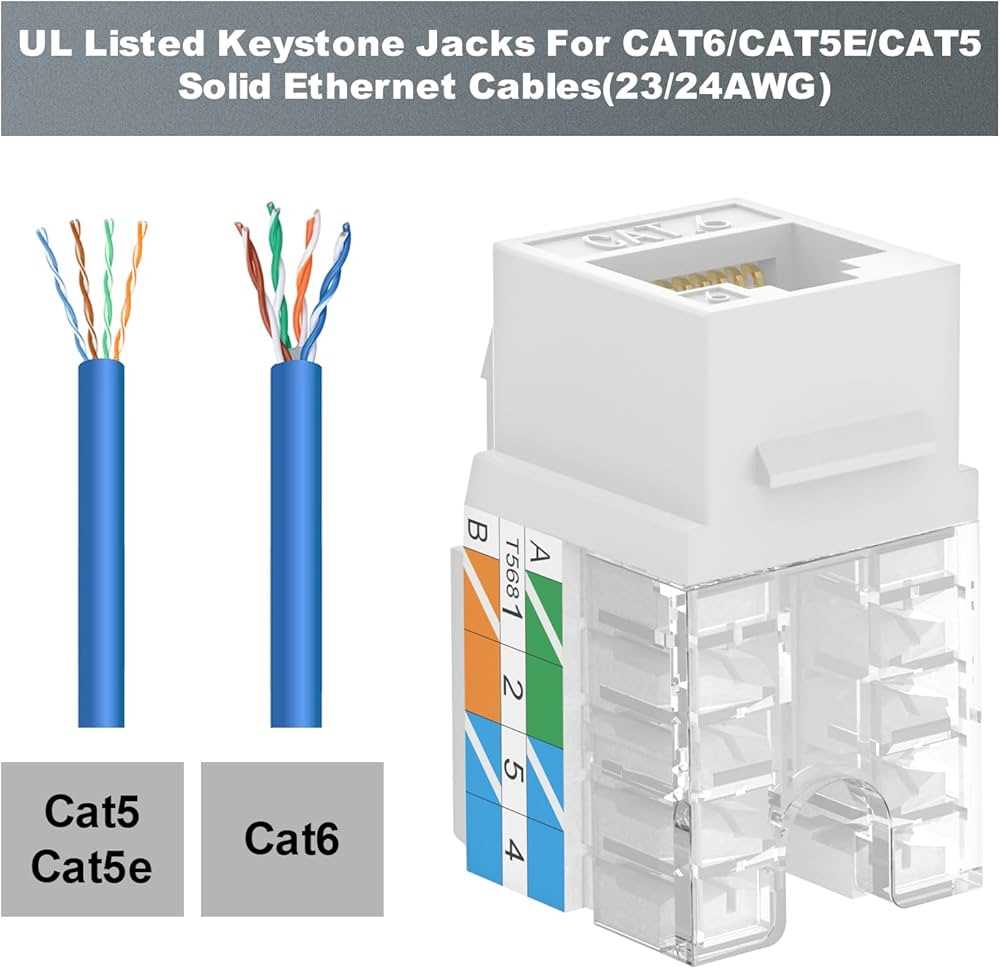

Assign conductors to the punch-down slots in either T568A or T568B configuration–never mix schemes in a single link. For T568B (most common in North America):
- Pin 1: White/Orange
- Pin 2: Orange
- Pin 3: White/Green
- Pin 4: Blue
- Pin 5: White/Blue
- Pin 6: Green
- Pin 7: White/Brown
- Pin 8: Brown
Align each wire flush with the slot edge; misalignment reduces contact pressure and increases insertion loss. Use an impact tool with 450–550 g force per stroke–lighter strikes risk incomplete termination, heavier ones can damage insulation displacement connectors (IDCs).
After punching down, trim excess wire length to ≤1 mm protrusion. Verify continuity with a cable tester set to pair scanning mode; readings below 20 dB NEXT or above 250 MHz frequency response indicate faulty termination. Re-terminate immediately if errors persist–retrofits after installation multiply labor costs threefold.
For shielded variants, ensure the foil makes continuous 360-degree contact with the connector’s metal housing. Ground the shield at one end only (patch panel side) to prevent ground loops. Unshielded installations require maintaining a minimum 50 mm separation from power cables (NEC Article 800.52) to comply with ELV safety margins.
Connecting Ethernet Ports: T568A vs. T568B Standards
Strip the outer sheath of the twisted-pair cable 1.5 inches to expose individual conductors, ensuring no damage to insulation. Arrange wires in sequence for either standard:
- T568A: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown
- T568B: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown
Use a punch-down tool with 110 blades to terminate conductors firmly into the lacing module–apply even pressure to avoid partial connections. Verify pin assignments with a cable tester before securing the faceplate; miswired pairs cause crosstalk or link failure.

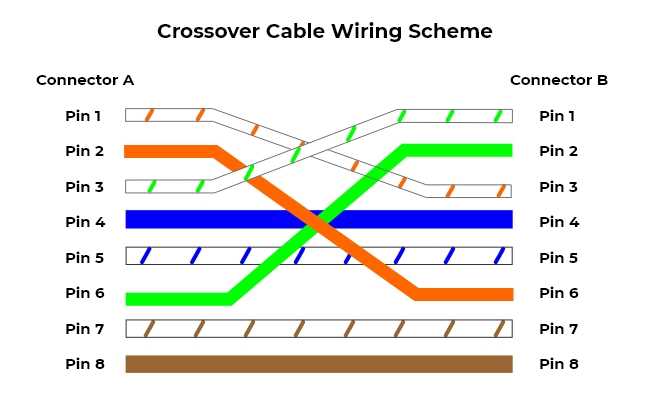

Select one standard per installation and maintain consistency. T568B dominates commercial deployments, while T568A meets residential broadband requirements. Crossovers require one T568A end and one T568B end–never pair mismatched straight-through configurations.

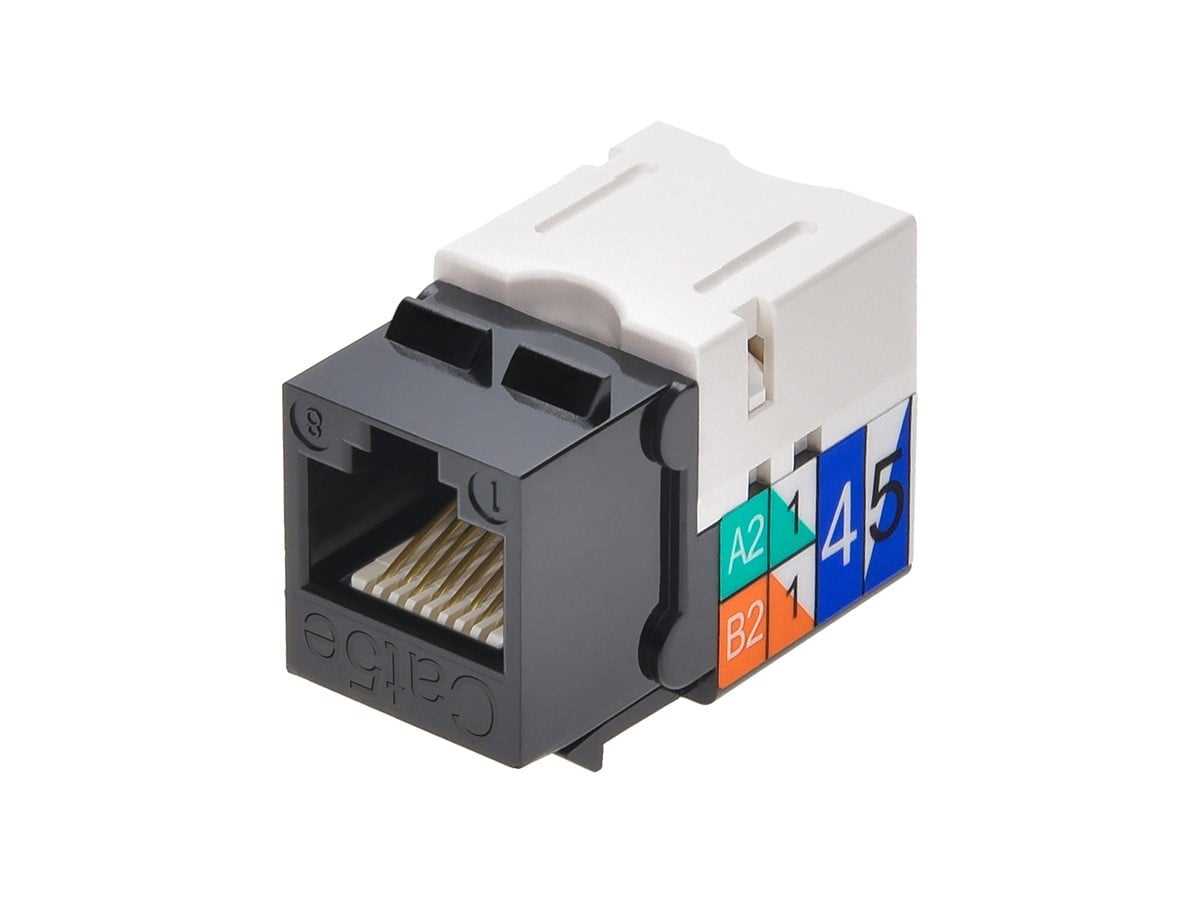

Selecting the Optimal Ethernet Connector Insert for Your Infrastructure
Begin by prioritizing shielded inserts if your installation runs through areas with electrical interference–HVAC ducts, industrial machinery, or adjacent to power lines. Shielded variants (STP) reduce crosstalk by up to 40% compared to unshielded (UTP), preserving signal integrity in environments where noise exceeds -30 dB. Verify shielding type: foil-wrapped pairs (F/UTP) suffice for mild interference, while braided shielding (S/FTP) is mandatory for high-noise zones.
Match the insert’s performance tier to your network speed requirements. Basic inserts (Cat5e-rated) support gigabit speeds but cap at 100 MHz bandwidth–adequate for VoIP or 1G LANs. For 2.5G or 5G networks, upgrade to inserts with 250 MHz bandwidth and tighter twist ratios (16-20 turns per meter). Verify compliance labels: TIA/EIA-568-C.2 ensures adherence to strict insertion loss and return loss standards.
| Connector Type | Bandwidth (MHz) | Max Speed (Gbps) | Shielding Suitability |
|---|---|---|---|
| Basic (Cat5e) | 100 | 1 | Low interference |
| Enhanced (Cat6) | 250 | 10 | Moderate interference |
| Fully Shielded (Cat6a) | 500 | 10 | High interference |
Assess termination style for ease of installation. Punch-down inserts use an IDC (insulation-displacement contact) interface, ideal for bulk installations–terminate 8 conductors in under 60 seconds with a dedicated tool. Tool-less inserts allow finger-termination but lack strain relief, risking connection failure under tension. For PoE applications, select inserts with gold-plated contacts (50+ microinches) to prevent corrosion from sustained current.
Evaluate cable compatibility before purchase. Inserts with larger conductor channels (24-26 AWG) accommodate solid copper cables used in permanent installations, while 28 AWG inserts suit stranded cables for patch cords. Mismatched gauge and cable type degrades performance by 15-25% due to impedance mismatches–confirm specs against your cable’s datasheet.
Inspect housing durability if the insert will be frequently re-terminated or exposed to physical stress. Polycarbonate housings resist cracking during repeated insertions, while nylon variants tolerate higher temperatures (up to 85°C) in server rooms. Latching mechanisms should snap securely without requiring excessive force–weak latches increase connection dropout rates under vibration.
Compare cost against lifecycle requirements. Budget inserts ($0.80-$1.50 per unit) suffice for temporary setups but degrade after 50-100 mating cycles. Premium inserts ($3-$5) include strain-relief boots and color-coded termination guides, extending lifespan to 200+ cycles. For enterprise deployments, calculate ROI based on reduced troubleshooting: a 2% failure rate in 500 inserts costs $1,200 annually in labor alone.
Essential Gear for Installing an Ethernet Connector
Start with a punch-down tool featuring a 110-type blade–this ensures precise termination without damaging conductors. Avoid generic tools; models from Klein Tools or TRENDnet include built-in cutters and adjustable tension for consistent pressure. For stranded cables, use a tool with a rotating head to reduce wire fraying.
An RJ45 crimping tool is unnecessary for this task, but keep one nearby if repurposing a pre-terminated patch cable. Verify the tool’s die matches 8P8C modular plugs, though direct port termination bypasses this step entirely. For field testing, opt for a continuity tester with a tone generator–Klein Tools VDV501-825 detects miswires and shorts instantly.
Cable Preparation Supplies
Use a bulk cable stripper calibrated for twisted-pair insulation; models like IDEAL 45-188 remove sheathing cleanly down to 1.5mm without nicking inner wires. For outdoor or industrial runs, select a cutter capable of handling IP-rated jackets–Panduit GRC72 handles UV-resistant and plenum-rated coatings.
Precision scissors, such as those with micro-serrated blades, prevent crushing bare conductors during trimming. Avoid household scissors–plastic deformation from dull edges increases insertion loss. For large installations, a cable-cutting shear with a ratcheting mechanism (e.g., Paladin 11189) ensures clean cuts on AWG 23–26 wires without stretching.
Termination Consumables
Select a panel-mount connector with PCB-backed contacts; brands like Leviton or Panduit use gold plating (50µin minimum) to resist oxidation. For high-density setups, clarify between T568A and T568B schemes–mixing them causes pair split errors detectable only with a dedicated cable analyzer.
Adhesive strain relief boots (e.g., Cable Matters 10GPro) safeguard termination points from bending stresses. For PoE applications, ensure boots have a 60°C minimum rating–cheaper alternatives melt under sustained load. If grounding is required, use a shielded variant with a drain wire connection; standard unshielded types corrode under moisture.
Have isopropyl alcohol (90%+ concentration) and lint-free wipes on hand to clean contacts before insertion. Oxidized terminals introduce intermittent faults; even slight residue increases insertion loss beyond ANSI/TIA-568 limits. Store tools in a static-dissipative case–plastic organizers generate enough ESD to degrade performance in high-bandwidth environments.
Step-by-Step Guide to Stripping and Preparing Network Cable
Use a cable stripper calibrated for 24-gauge conductors to remove the outer jacket without nicking the twisted pairs. Set the blade depth to 15 mm–exposing this length ensures enough slack for termination while preventing exposed conductors from extending beyond the connector housing.
Rotate the stripper once around the cable, applying light pressure, then slide the jacket off. Avoid twisting the pairs during removal; this preserves the original lay length and minimizes crosstalk. Inspect the exposed wires–if the insulation is damaged, discard and restart to prevent signal degradation.
Fan out the four pairs gently, keeping each pair’s twist intact up to the last 12 mm before separation. Untwisting beyond this point increases interference susceptibility, particularly in frequencies above 10 MHz. Arrange the conductors in the T568A or T568B sequence, depending on your network’s standard, but maintain consistency across all terminations in the same installation.
Hold the conductors between thumb and forefinger, aligning them flush at the tips. Use sharp scissors or specialized cutting pliers to trim the wires to a uniform 12 mm length–this ensures each conductor seats fully in its pin slot without bending or splaying. Uneven trimming causes unreliable contact and increases failure rates under mechanical stress.
Verify the trimmed ends are straight and free of debris. A magnifying lens helps detect minute burrs or uneven cuts that could impede insertion. Wipe each conductor with a lint-free cloth lightly moistened with isopropyl alcohol to remove oils or oxidation–this step improves conductivity and extends connection longevity.
Insert the prepared conductors into the connector housing immediately after cleaning to prevent dust accumulation. Press each wire into its designated slot until it audibly clicks, indicating full engagement. Tug lightly on each pair to confirm secure seating–loose wires cause intermittent faults that are difficult to diagnose.
Seal the connector with its protective cap if available, or wrap the termination in self-fusing silicone tape to shield against environmental factors. Test continuity with a network analyzer before integrating the cable into the infrastructure, focusing on impedance consistency and pair-to-pair coupling. Document the termination standard used for future reference during troubleshooting.
