For reliable 100 MHz data transmission, follow the T568A or T568B pinout configurations without deviation. Both schemes are functionally identical but must remain consistent across a single installation. Mixing schemes introduces cross-talk and signal degradation. Use solid-core copper conductors and maintain twist pairs up to the termination point–untwisting no more than 13 mm (½ inch) preserves impedance matching.

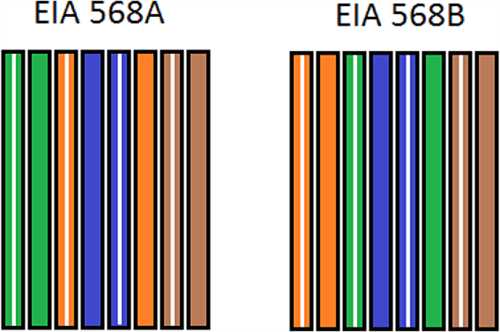

T568A wiring sequence (from left to right, pin 1 to 8):
White/Green, Green, White/Orange, Blue, White/Blue, Orange, White/Brown, Brown
T568B wiring sequence (alternative standard):
White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown
Avoid substituting conductors or colors–manufacturers’ color codes adhere to strict IEC 60304 standards. Shielded variants (FTP/STP) require additional grounding at both ends, using drain wires connected to the metal connector shell. Excessive untwisting, sharp bends (radius less than 4× cable diameter), or stapling disrupts performance. Verify connections with a cable certifier meeting Cat 5e specifications–minimum NEXT of 32.3 dB and return loss of 17.0 dB at 100 MHz.

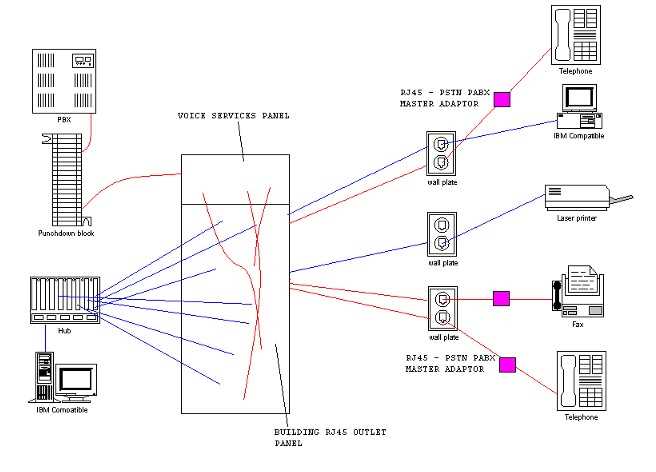

For Power over Ethernet (PoE), confirm conductor gauge (24–22 AWG) meets IEEE 802.3at/af specifications–insufficient wire thickness causes voltage drop and overheating. Use terminated cables with RJ45 plugs featuring gold-plated contacts (minimum 50 µinch plating) to prevent corrosion. Patch panels and keystone jacks must match the chosen scheme–cross-connecting T568A to T568B creates split pairs.
For horizontal runs, test signal integrity after installation with a TDR (Time Domain Reflectometer) to detect impedance mismatches or broken conductors. Latency should not exceed 558 ns for 100-meter lengths. Store unused cables in ESD-safe conditions–humidity above 60% accelerates corrosion. Replace compromised cables immediately–repairs with electrical tape increase attenuation.
Standardized Ethernet Cable Pinout Reference

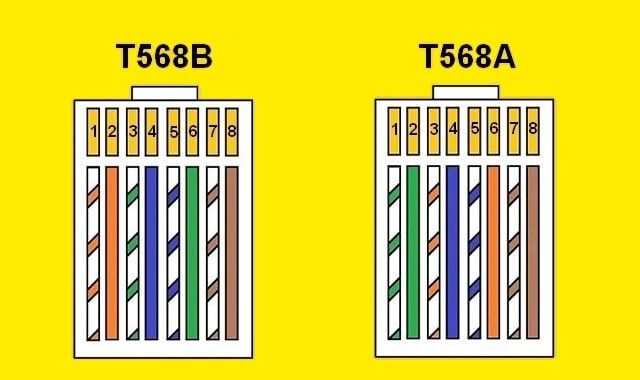

Use T568A or T568B termination consistently across all connections in a single installation. T568A places the striped green pair in slots 1-2 and the striped orange pair in slots 3-6, while T568B swaps them: striped orange occupies 1-2 and striped green occupies 3-6. Avoid mixing schemes–mismatched pinouts create split pairs, reducing bandwidth and increasing crosstalk.
| Connector Position | T568A Color Code | T568B Color Code | Signal Function |
|---|---|---|---|
| 1 | White/Green | White/Orange | TX+ (Transmit Data) |
| 2 | Green | Orange | TX- (Transmit Data) |
| 3 | White/Orange | White/Green | RX+ (Receive Data) |
| 4 | Blue | Blue | Unused (10/100BASE-T) |
| 5 | White/Blue | White/Blue | Unused (10/100BASE-T) |
| 6 | Orange | Green | RX- (Receive Data) |
| 7 | White/Brown | White/Brown | Reserved |
| 8 | Brown | Brown | Reserved |
Verify continuity using a cable tester after termination–each conductor must register sequentially from 1 to 8 without shorts or reversals. For gigabit speeds, ensure all four pairs (slots 1-2, 3-6, 4-5, 7-8) are properly terminated; 10/100 Mbps networks only require pairs 1-2 and 3-6. Keep untwisted length under 0.5 inches at the connector to prevent signal degradation.
Standard Color Codes for Ethernet Cable Categories: T568A vs. T568B
Use T568B as the default standard for all new installations–it reduces confusion, aligns with most existing networks, and simplifies troubleshooting. T568A remains valid but is less common in commercial and residential setups outside legacy systems.
Pin assignments follow strict pairings to maintain signal integrity: transmit (pins 1 and 2), receive (pins 3 and 6), and auxiliary pairs (pins 4/5 and 7/8). Swapping any pair outside these groupings causes crosstalk or complete link failure. Verify connections with a cable tester before securing terminations.

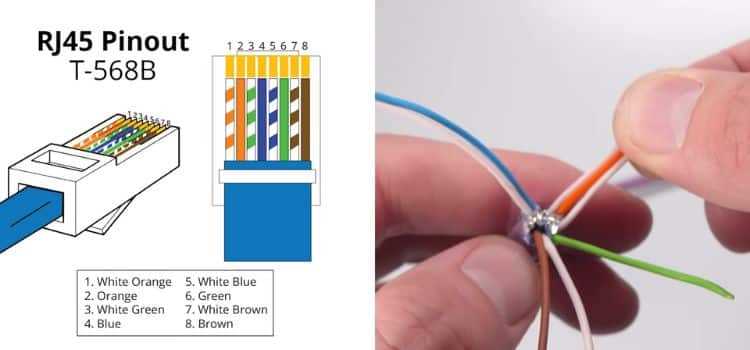

Solid conductors use these colors for T568B: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. T568A swaps orange and green pairs: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown. Mark both ends identically–mixed standards create split pairs, degrading performance.
Avoid substituting colors or improvising sequences. Manufacturers adhere to these codes to ensure compatibility across switches, routers, and patch panels. Deviations risk violating IEEE 802.3 specifications, leading to unpredictable errors, especially at gigabit speeds or Power over Ethernet deployments.
Label cables at both ends with the standard used (e.g., “T568B”) to prevent future confusion. Use permanent ink on heat-shrink tubing or colored dots on connectors. Document each run in a network map with port numbers, cable length, and termination standard for rapid fault isolation.
Strip outer jackets precisely to expose 12–13 mm of twisted pairs–excess length increases untwisting, reducing noise immunity. Maintain pair twists up to the last 10 mm before the connector; untwist only enough to arrange wires into the correct sequence. Secure with a crimp tool rated for RJ45 connectors.
Test each link with a certified tester displaying pair continuity, wiremap, and near-end crosstalk. Reject any run failing impedance or return loss thresholds–defective terminations often pass basic continuity tests but fail high-speed data transfer. Replace questionable cables rather than risk intermittent faults.
Store spare cables coiled, not bent, with connectors up to avoid creasing. Use cable ties loosely; overtightening causes microfractures in conductors. Keep cables away from power lines and fluorescent lighting–electromagnetic interference corrupts signals even in properly terminated runs.
Step-by-Step Instructions for T568A and T568B Termination

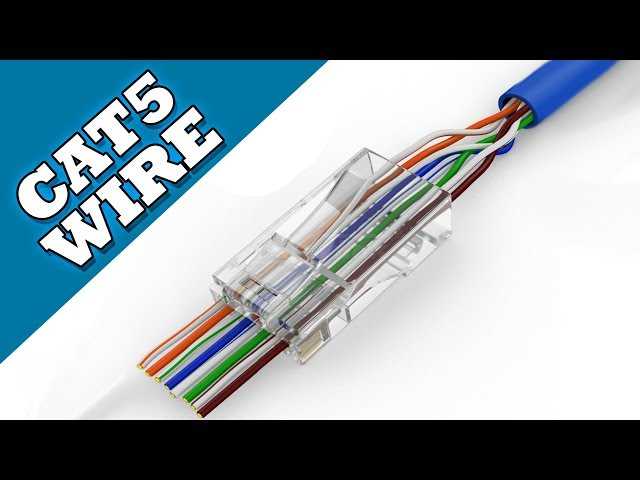

Strip the outer jacket of the twisted-pair cable 2.5 cm (1 inch) from the end using a precision cutter–avoid nicking the internal conductors. Fan the eight wires apart gently, maintaining their twist pairs to minimize signal degradation. For T568A, arrange the wires in this order from left to right: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown. For T568B, swap the green and orange pairs: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown.
Trim the exposed conductors to 1.2 cm (0.5 inch) using flush cutters, ensuring a straight edge perpendicular to the cable. This length optimizes contact with the RJ-45 plug while preventing excessive untwisting. Insert the wires into the plug, pressing firmly until each conductor seats against the plug’s internal metal contacts. Verify alignment–misplaced wires will cause connectivity failures.
Crimp the plug with an 8P8C crimping tool, applying consistent pressure until the tool’s ratchet releases. Confirm the termination by tugging each wire–weak connections indicate improper insertion. Test with a cable analyzer; crossed or split pairs will show as errors under “wire map” or “pair skew” modes. Repeat termination if errors exceed 1% signal loss.
Label both ends with the standard used (T568A/T568B) and terminate all cables in a network consistently–mixed standards cause link-layer collisions. For PoE (Power over Ethernet) applications, maintain pair integrity; compromised twists reduce power delivery efficiency by up to 30% due to increased impedance. Store unused cables coiled loosely to prevent kinking, which distorts signal transmission.
Essential Equipment for Terminating Ethernet Cable Ends
Begin with a crimping tool rated for RJ45 connectors–an all-metal model with precision dies prevents deforming contacts. Look for integrated cutters and strippers to handle 24-22 AWG solid or stranded cores without nicking insulation. Brands like Paladin or Klein Tools offer variants with replaceable blades, ensuring consistent performance after hundreds of terminations.
A dedicated cable stripper with depth settings for twisted-pair shields avoids damaging internal conductors. Adjustable guides for 5 mm outer jackets allow clean sheath removal on the first pass, critical for maintaining pair integrity. Avoid generic utility knives that introduce variability and weaken signal pathways.
Precision scissors with ultrafine serrations trim excess thread cleanly without fraying strands. These prevent multipath interference by ensuring uniform pair lengths within 1 mm tolerance. Ceramic-coated blades last longer than steel when cutting copper-clad aluminum conductors used in some low-cost alternatives.
Connector plugs with load-bar inserts eliminate misaligned pairs during termination. Choose gold-plated contacts to resist oxidation–nickel plating degrades after 50 mating cycles. Polarity indicators molded into the housing simplify compliance with TIA/EIA-568A/B standards.
Verify finished connections with a network analyzer capable of gigabit signal testing. Models displaying NEXT, FEXT, and return loss measurements identify poor crimps or split pairs before deployment. A tone generator and probe kit expedite tracing in bundled runs without disrupting existing terminations.
How to Test Continuity and Signal Integrity After Installation
Begin with a cable tester capable of verifying pinouts and detecting shorts. Connect the tester’s remote unit to one end of the line and the main unit to the other. Check each of the eight conductors individually–look for steady LEDs on the tester’s display. If any conductor fails to light or blinks erratically, re-crimp the connector and retest. Crossed pairs or reversed polarity will show incorrect pin assignments; correct these by matching the T568A or T568B standard.
Measure attenuation and crosstalk using a network analyzer or dedicated tester. Set the device to sweep frequencies up to 100 MHz. Compare readings against TIA/EIA-568 thresholds: attenuation should not exceed 24 dB, and near-end crosstalk (NEXT) must stay below -32 dB at 100 MHz. Replace any segment showing values above these limits; suspect poor-quality connectors, excessive untwisting, or cable length beyond 100 meters. Use shielded terminations if ambient interference skews results.
- Test for DC resistance: each conductor should read below 9.38 ohms per 100 meters.
- Check impedance: fluctuations outside 100±15 ohms indicate impedance mismatches.
- Verify propagation delay: differences between pairs should not exceed 50 nanoseconds.
Record all measurements in a log including date, segment location, and environmental conditions. Repeat tests after installation to account for mechanical stress or temperature shifts. If failures persist, swap test equipment to rule out device errors. Isolate issues by progressively testing shorter segments until the fault is localized. Replace damaged components rather than splicing to maintain compliance.
