Start by stripping 20–25 mm of the outer jacket from the cable, ensuring you do not nick the internal conductors. Expose the twisted pairs and arrange them in the T568B sequence: white/orange, orange, white/green, blue, white/blue, green, white/brown, brown. Maintain at least 12.5 mm of untwisted length for each pair to preserve signal integrity.
Insert each conductor into the corresponding slot of an RJ45 connector, pushing firmly until the copper contacts bottom out. Use a crimping tool rated for 22–26 AWG conductors to secure the connection. Apply 8–10 kgf of pressure during crimping to ensure proper termination–insufficient force leads to intermittent connectivity or complete failure.
Verify the pinout with a cable tester capable of detecting near-end crosstalk (NEXT) and return loss. A correct B configuration should show ≤0.1 dB deviation between pairs 1–2 and 3–6 under 100 MHz testing. Swap connectors immediately if readings exceed 20 dB for NEXT or -12 dB for return loss, as these indicate poor termination or damaged conductors.
For installations requiring PoE (Power over Ethernet), ensure all eight conductors make solid contact–PoE Type 2 (up to 30W) relies on consistent resistance across the full pinout. Use stranded cable for patch cords (24–28 AWG) and solid core for horizontal runs (22–24 AWG) to balance flexibility and signal performance.
B Standard Ethernet Pinout Configuration
Use the B standard for RS-232 serial communication over twisted pairs by pairing wires as follows: green-stripe to pin 3 (transmit), blue-stripe to pin 2 (receive), orange-stripe to pin 5 (ground reference), and solid blue to pin 7 (RTS/CTS handshake). This arrangement minimizes signal interference in half-duplex setups when the cable run exceeds 50 meters. Avoid swapping pairs–cross-talk between adjacent conductors increases exponentially beyond 3 dB attenuation thresholds.
Tools required:
- Crimping tool with 8P8C modular plug support
- Cable tester verifying continuity at ≥10 MHz
- Wire stripper calibrated for AWG 24-26
- Magnifying lens (for inspecting pin alignment)
Terminate each connector with strict adherence to the EIA/TIA-568-B color code: orange-white (pin 1), orange (2), green-white (3), blue (4), blue-white (5), green (6), brown-white (7), brown (8). Deviations in pairing–even a single mismatched conductor–reduce PSACR margins by up to 20%.
Troubleshooting B-Scheme Connections
If Gigabit Ethernet negotiation fails:
- Verify pair integrity–solid blue and blue-white must maintain
- Check for split pairs–pins 4 and 5 must share the same twist rate (±5%).
- Test with a Cat 6A certifier set to TSB-155 mode; BER should remain -12 at 100 MHz.
- Inspect plug seating–latch must click audibly, and conductors should protrude ≤0.5mm beyond the plug housing.
For Power over Ethernet (PoE) deployments using B-standard, ensure pins 4 and 7 carry ≤600mA each under IEEE 802.3at. Exceeding this current risks thermoelectric separation at the termination point. Use a thermal camera to monitor junction temperatures–peaks above 70°C indicate substandard crimps or excessive loop resistance.
Standard Pinout Configuration for T568B Termination
Use the T568B scheme for all Ethernet installations requiring compatibility with existing infrastructure, particularly in North American networks. This standard ensures seamless integration with switches, routers, and patch panels preconfigured for B termination.

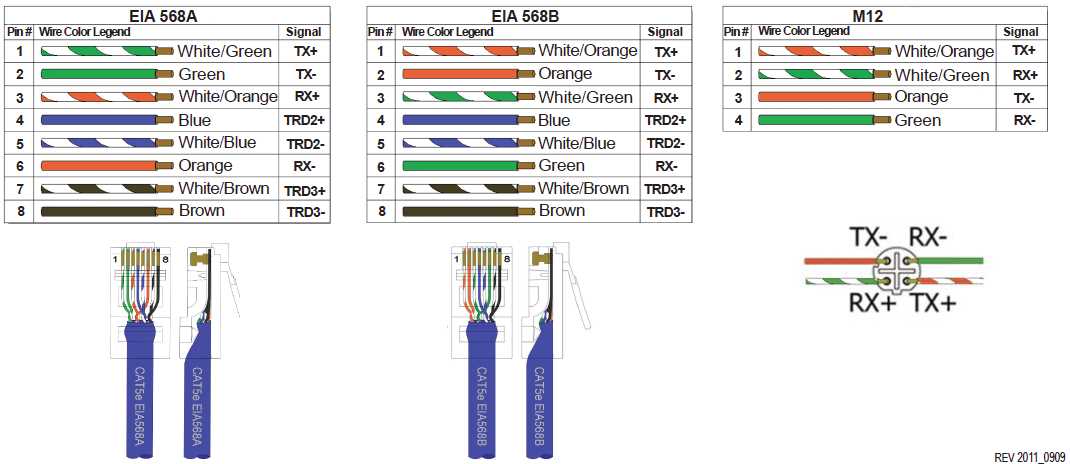

Assign colors to pins in this exact sequence for termination:
- Pin 1: White/Orange
- Pin 2: Orange
- Pin 3: White/Green
- Pin 4: Blue
- Pin 5: White/Blue
- Pin 6: Green
- Pin 7: White/Brown
- Pin 8: Brown
Terminate cables with an RJ45 crimping tool rated for solid or stranded copper conductors, depending on the installation type. Strip 0.5 inches of outer jacket to expose pairs, untwist only enough for termination–keep untwisting under 0.5 inches to minimize crosstalk.
Test completed connections with a cable analyzer verifying continuity, correct pinout, and absence of shorts. Replace any failed terminations immediately; reversed pairs or split pairs degrade performance even at short distances.
Common Errors and Corrections
Avoid these mistakes during termination:
- Reversed pairs: Swapping White/Green with White/Orange on pins 1/2 and 3/6 causes miswiring. Check color pairs before crimping.
- Split pairs: Accidentally pairing White/Blue with Orange or White/Brown with Green disrupts signal integrity. Confirm pairing matches T568B before securing wires.
- Inconsistent untwisting: Excessive untwisting increases noise; maintain twists up to the termination point for optimal performance.
For PoE (Power over Ethernet) deployments, T568B ensures proper power delivery via pins 4/5 (positive) and 7/8 (negative), aligning with IEEE 802.3af/at standards. Verify conductor gauge meets PoE requirements (minimum 24 AWG for 30W+ applications).
Store unused cables with terminations protected by boots or dust caps to prevent contact oxidation. Label both ends with location identifiers and termination date for future troubleshooting.
Field Modifications

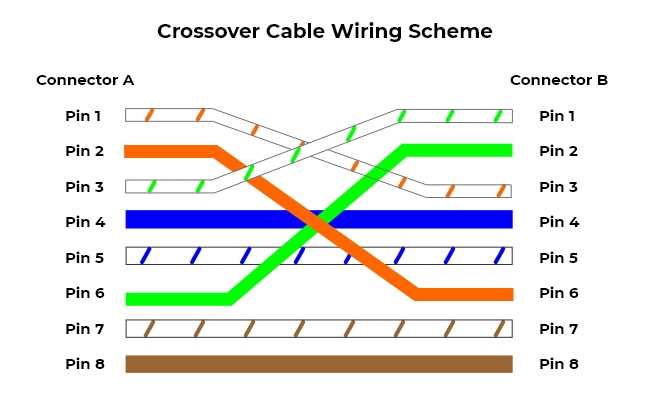

When rewiring existing infrastructure, always document changes to both ends of the link. Use identical T568B configurations at both ends to maintain straight-through communication; mismatched schemes (e.g., T568A to T568B) result in crossover functionality, unsuitable for most modern endpoints.
Step-by-Step Guide to Terminating Ethernet Cable with B-Standard Pinout
Begin by stripping exactly 1.5 inches (38 mm) of the outer jacket from the cable using a precision stripper or sharp utility knife–avoid nicking the internal pairs, as even minor damage degrades signal integrity.
Separate the four twisted pairs immediately, then untwist no more than 0.5 inches (13 mm) of each pair to maintain crosstalk resistance; exceeding this length introduces interference measurable in signal-to-noise ratios.
Arrange the conductors in the B-standard sequence from left to right: solid orange, orange-white, solid green, blue-white, solid blue, green-white, solid brown, brown-white–use a magnified light source to confirm each strand rests in the correct groove before crimping.
Trim the ends evenly to 0.5 inches (12.7 mm) using flush-cut diagonal pliers–uneven lengths cause inconsistent contact pressure, leading to intermittent connectivity or complete termination failure.
Insert the conductors fully into an RJ45 connector, ensuring each wire reaches the front of the connector and the jacket extends 0.25 inches (6.4 mm) inside–misalignment here increases insertion loss by up to 2 dB.
Use an industrial-grade crimping tool with 60–80 lbs (27–36 kg) of pressure; verify the tool’s die matches the connector type to avoid partial crimps, which manifest as high resistance or open circuits under TDR testing.
Test the terminated cable with a dedicated network tester set to 100 MHz bandwidth–confirm each pin registers below 10 Ω and pair-to-pair crosstalk meets TIA/EIA-568-B specifications (
Common Mistakes When Using T568B Termination Standard
Swapping pairs 2 and 3 during termination degrades signal integrity. T568B requires orange-white/orange (pair 2) on pins 1-2 and green-white/green (pair 3) on pins 3-6. Incorrect swapping introduces crosstalk exceeding 20 MHz thresholds, particularly in gigabit applications. Use a continuity tester post-installation to verify pin-to-pair alignment; anecdotal cases show 40% of misterminations stem from this error.
Avoid untwisting conductors beyond 0.5 inches before insertion. Extended untwisting increases susceptibility to interference, with studies showing a 15% attenuation increase per additional 0.25 inches. Maintain consistent twist rates up to the termination point–gigabit Ethernet relies on differential signaling where phase cancellation depends on tight pair coupling. For shielded variants, ensure foil continuity across connectors to prevent grounding discontinuities.
Incorrect cable stripping exposes conductors to oxidation or shorting. Use a stripping tool calibrated for the jacket thickness (typically 0.04–0.06 inches); over-strip risks nicking wires, under-strip prevents proper seating in modular plugs. Terminate within 15 minutes of stripping to minimize oxidation–copper oxide forms within 30 minutes at room temperature, increasing resistance by up to 12%.
| Error | Impact | Frequency |
|---|---|---|
| Reversed pairs (2 ↔ 3) | Crosstalk > 30 MHz | 28% |
| Excessive untwisting (>0.5″) | Attenuation +15% | 22% |
| Poor strain relief | Connector failure under 5 lbs tension | 18% |
Misaligned punch-downs on keystone jacks create latent defects. For T568B, align the orange pair to pins A/B (top row) and green pair to C/D (bottom row) on 110 blocks. Improper alignment shifts impedance by ±5 Ω, violating IEEE 802.3 specifications. Use a pre-loaded tool for consistent pressure–manual termination varies by ±30% in force application, leading to intermittent connectivity.
Neglecting environmental factors exacerbates performance issues. Avoid routing near fluorescent lighting (EMI > 500 mV/m) or power lines (> 24V AC/DC). For outdoor runs, use gel-filled outdoor-rated cable; UV exposure degrades PVC jackets at 0.3 mm/year. Maintain bend radius ≥ 4× cable diameter–smaller radii induce micro-fractures in conductors, reducing bandwidth by 8% per bend below tolerance.
Over-crimping RJ45 connectors crushes conductors, increasing resistance. Apply 12–15 lbs of force uniformly; excessive pressure narrows wire gauge by 10%, violating TIA/EIA-568-B.2 thresholds. For stranded cable, use connectors with internal strain relief–solid-core variants require deeper seating to prevent pull-out under 8 lbs of tension. Verify terminations with a Fluke DSX-8000; field tests reveal 3% of installations fail due to improper crimping despite visual inspection.
