For reliable 100 Mbps or gigabit connections, always follow the T568B pinout standard: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Swapping pins 1-2 with 3-6 will create a crossover link between two devices instead of a straight-through connection to a switch or router.
Use solid copper conductors no thinner than 24 AWG for runs under 100 meters. Stranded patch cables handle flexing better at the endpoints but introduce signal loss–reserve them for desktop connections only. Terminate each wire fully into the jack, ensuring no more than 13 mm of untwisted conductor remains, as excessive untwisting degrades signal integrity.
Test continuity and pair mapping with a cable analyzer before securing any installation. A single reversed, split, or shorted pair can reduce throughput to 10 Mbps despite otherwise correct termination. For gigabit speeds, every pair must maintain proper polarity and pass verification–there are no unused wires acting as backups in modern networks.
If power delivery is required alongside data (e.g., IP cameras or Wi-Fi access points), use only the blue and brown pairs for DC injection. Never combine power on the orange or green pairs, as these carry the critical signal paths and interference will corrupt traffic.
Solderless punch-down tools rated for 66 or 110 IDC blocks minimize wire damage. Apply 9-12 Nm of torque–excessive force flattens conductors, reducing contact reliability. Strip the outer jacket precisely to expose 40-45 mm of twisted pairs, aligning each pair’s untwisting point to the jack’s termination channels without crossing wires.
Constructing Reliable Network Cables: Color Code and Pinout Guide
Always terminate stranded cables with T568B standard for consistency across installations–the orange-white pair occupies pins 1 and 2, while green-white takes 3 and 6. This arrangement minimizes crosstalk in 100-meter runs up to 100 MHz bandwidth, critical for PoE devices drawing 30W or more. Solid conductors (24 AWG) sustain less signal loss than stranded variants over extended lengths, but require precise cutting to avoid untwisting beyond 12mm from the connector.
568A versus 568B: Swapping these schemes creates a crossover connection, historically used for direct peer links without switches. Modern auto-MDIX interfaces render this obsolete–stick with 568B to avoid compatibility issues. Verify each termination with a network tester; a single misaligned pin (e.g., blue-white in pin 4 swapped with brown-white in 7) introduces impedance mismatches detectable only at frequencies above 80 MHz.
For Gigabit transmission, all four pairs must be fully connected–pins 1-8 functional. Strictly adhere to the 0.5mm untwist limit; exceeding this degrades performance equivalent to shortening the link by 20 meters. Use keystone jacks with gold-plated contacts (minimum 50 microns); oxidation on inferior plating increases resistance to 1.2 ohms after 18 months, violating IEEE 802.3 specifications.
Power-over-Data Lines (PoDL) implementations must prioritize pair 1-2 and 3-6 for power delivery–pins 4-5 and 7-8 carry negligible current. Measure voltage drop across pairs; a 0.7V discrepancy suggests improper crimping. Avoid combining voice-grade cables (traditional silver satin) with data-grade–capacitance rises from 52 to 67 pF/m, corrupting high-frequency signals.
Patch panels demand the same color sequence as field terminations but allow for punch-down tools with 110 blades–apply 5-7 kg force consistently. Misaligned punches sever strands, creating intermittent faults undetectable by basic cable testers. Shielded variants (F/UTP) require grounding at a single point; multiple grounds form RF antennas, inducing interference in adjacent circuits.
Common errors: Reversing pin pairs (e.g., 3 with 6), splitting pairs (e.g., orange-white with green solid), or omitting pairs entirely (omitting 7-8 for Fast Ethernet). Each introduces measurable signal degradation–expect bit error rates rising from 1e-12 to 1e-7 under sustained traffic. Document every installation with a label showing date, tester model, and pass/fail results; proper labeling reduces troubleshooting time by 60%.
Choosing Between T568A and T568B Wiring Standards

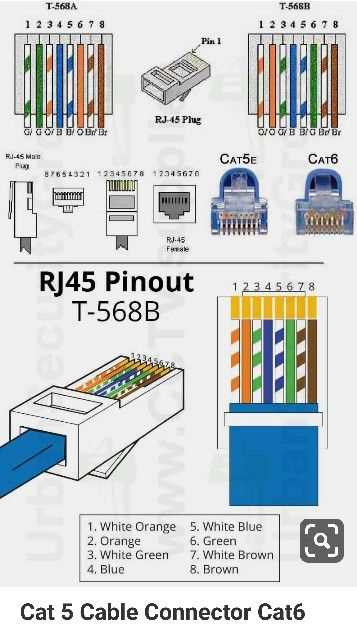

Use T568B as your default standard unless existing infrastructure mandates T568A. T568B’s pinout arrangement (orange-white, orange, green-white, blue, blue-white, green, brown-white, brown)aligns with most modern installations, reducing compatibility issues during upgrades or troubleshooting. T568A swaps the orange and green pairs, which can create confusion when mixed with T568B-terminated systems, especially in patch panels or cross-connects.
T568B dominates commercial deployments, particularly in North America, making it the safer choice for new projects. Most pre-terminated patch cables, keystone jacks, and network equipment default to T568B. Deviating from this standard without clear documentation risks mismatched connections, leading to split pairs–where signal integrity degrades, causing crosstalk or failed link tests. Save T568A for scenarios where consistency with legacy systems is critical, such as government or educational networks with documented T568A compliance.
Document your chosen standard explicitly. Label all termination points, including jacks, panels, and cable ends, with “A” or “B” to prevent misconfigurations. Tools like tone generators or cable testers detect standards mismatches by analyzing pair continuity. For example, a Fluke DSX-2000 identifies split pairs when one end follows T568A and the other T568B. Even a single miswired connection can disrupt PoE (Power over Data Lines) devices, as the blue and brown pairs carry power in 802.3af/at implementations.
When to Prioritize T568A
T568A remains relevant in residential or mixed-use environments where backward compatibility with older telephone systems is necessary. The standard’s pinout preserves pair 1 (blue) and pair 2 (orange) for analog POTS lines if the network transitions to digital later. Some European and Australian installations also favor T568A, though T568B is increasingly common. Always verify local conventions before committing–region-specific requirements may override general recommendations.
Avoid mixing standards within a single link. If a building’s structured cabling uses T568A at the patch panel but T568B at the work area, the resulting split pairs can pass basic connectivity tests yet fail under load. Gigabit and higher speeds rely on all four pairs working in harmony; T568A and T568B differ only in the swap of pairs 2 and 3, but this difference is enough to cause intermittent faults. Use a cable certifier to validate performance categories (e.g., Class D or E) when standard consistency is in doubt.
For PoE applications, adhere strictly to one standard. T568B’s pair arrangement ensures balanced current distribution across the intended wires (blue and brown for Mode A, all pairs for Mode B). Miswiring can overload individual conductors, leading to overheating or voltage drops. Check manufacturer specifications–some midspan injectors or switches assume T568B wiring. If retrofitting older systems, document the existing standard first, then align all new terminations to match.
Replace ambiguous terminology like “straight-through” or “crossover” with explicit A/B labels. While T568A and T568B can coexist in isolated segments (e.g., separate floors), endpoints must match. For example, a T568A patch cable into a T568B jack creates a crossover effect, which modern NICs auto-negotiate–but this introduces unnecessary complexity. Simplify by standardizing to T568B unless legacy constraints demand otherwise, and audit periodically to catch drifts caused by undocumented changes.
Step-by-Step Guide to Preparing Network Cable for Termination
Use a specialized cable stripper designed for twisted-pair installations. Position the tool 1.5 inches (38mm) from the cable end and rotate it once to score the outer jacket without cutting the internal conductors. Excessive pressure risks damaging the delicate wires inside.
Gently bend the scored section until the jacket splits, then slide it off in one piece. Avoid twisting or pulling aggressively–this can misalign or stretch the internal pairs. Inspect the exposed wires for nick marks or cuts, which indicate improper stripping and may require starting over.
Separate the four twisted pairs by spreading them apart close to the jacket edge. Untwist each pair just enough to straighten the conductors–no more than 0.5 inches (12mm) to maintain signal integrity. Longer untwisted lengths increase crosstalk and degrade performance.
Arrange the wires in the required pinout order (T568A or T568B) using a color-coded reference. Hold them firmly between your thumb and forefinger, ensuring no wires cross or overlap. Misalignment here will cause connection failures during testing.
Trim the wires to a uniform length of 0.5 inches (12mm) using flush-cutting pliers. Angle the cutters slightly to avoid leaving sharp edges that may prevent full insertion into the connector. Uneven lengths can lead to poor contact or short circuits.
Before inserting, verify the wires are in perfect order–no missed steps or mistakes. Slide them into the connector until each conductor touches the end of the gold contacts. The jacket should extend just past the connector’s strain relief bar for proper strain resistance.
Apply controlled pressure with a crimping tool, ensuring all contacts pierce the wire insulation. Check that the connector’s retention clip engages securely with the jacket. A loose connection will fail under tension or vibration.
Test continuity, shorts, and pair mapping with a dedicated tester. If any issues appear, re-crimp or replace the connector–do not attempt to salvage a faulty termination. Implementing these precise steps guarantees reliable, high-speed transmissions.
