Use the T568B termination standard for consistency in data transmission networks. Arrange conductors in the following order from left to right: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Secure each pair within 12.7 mm (0.5 inches) of untwisting to minimize near-end crosstalk (NEXT). Verify continuity with a cable tester before finalizing terminations–the tool should confirm correct pin-to-pair alignment without split pairs.
Select solid copper conductors with a gauging of 24 AWG for runs up to 100 meters. Avoid stranded cables in permanent installations; their higher attenuation degrades signal integrity over distance. For patch panels or keystone jacks, maintain pair twists within 6.35 mm (0.25 inches) of the termination point. Excessive untwisting introduces impedance mismatches, leading to reflection losses above 100 MHz.
Ground shielded cables at both ends if using S/FTP constructions. Connect the drain wire to the grounding terminal–never splice it. Non-shielded installations require Cat 6 or higher-rated patch cables to compensate for electromagnetic interference (EMI) if runs pass near power conduits or fluorescent lighting. Test return loss (RL) values; acceptable limits range between -12 dB (at 1 MHz) to -20 dB (at 100 MHz) for reliable Gigabit Ethernet performance.
Label each cable end with unique identifiers. Document the installation path, noting cable lengths and termination points for troubleshooting. Use a pull box or cable frog when routing through conduit to prevent sheath damage. Avoid sharp bends–maintain a minimum bend radius of four times the cable diameter to preserve bandwidth.
Standard Ethernet Cable Termination: A Step-by-Step Approach for B-Configuration
Start by stripping 1.5 inches of the outer jacket with a precision cutter to expose the twisted pairs, ensuring no nicks on the insulation of individual conductors. Arrange the color-coded strands in the B-sequence order: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Maintain the twist density as close to the termination point as possible–no more than 0.5 inches of untwisting is permissible to preserve signal integrity.
- Use a high-quality punch-down tool (110-type) with a 66-block termination blade for solid connections. Apply consistent pressure, forcing the conductor into the IDC slot until the tool’s spring-loaded mechanism clicks, indicating a proper seating.
- Verify continuity with a network tester immediately after termination. The correct mapping for B-standard ensures pin 1 → orange-white, pin 2 → orange, pin 3 → green-white, and pin 6 → green; cross-check each conductor against these assignments.
- Avoid excessive bending near the termination–maintain a minimum bend radius of 4 times the cable diameter to prevent impedance mismatches and signal degradation.
Common Pitfalls and Exact Corrections
If performance issues arise post-installation:
- Incorrect pairing: A reversed blue and brown pair (e.g., blue-white → pin 5 instead of blue-white) can drop transmission speeds by 30-40%. Use a tone generator to trace and correct miswired conductors.
- Poor punch-down: Partially seated conductors lead to intermittent connections. Re-terminate any strand that pulls out with light tension–replace the connector if blade penetration is insufficient.
- Untwisted pairs beyond tolerance: Extending untwisting beyond 0.5 inches increases crosstalk by ~15%. Re-terminate with tighter twists up to the termination point.
For PoE deployments, substitute 24AWG conductors with 23AWG to handle up to 30W without overheating; ambient temperatures above 20°C mandate this adjustment. Seal terminations with gel-filled boots in humid environments to prevent corrosion-induced resistance spikes.
Standard Termination Layout for T568B Ethernet Cables

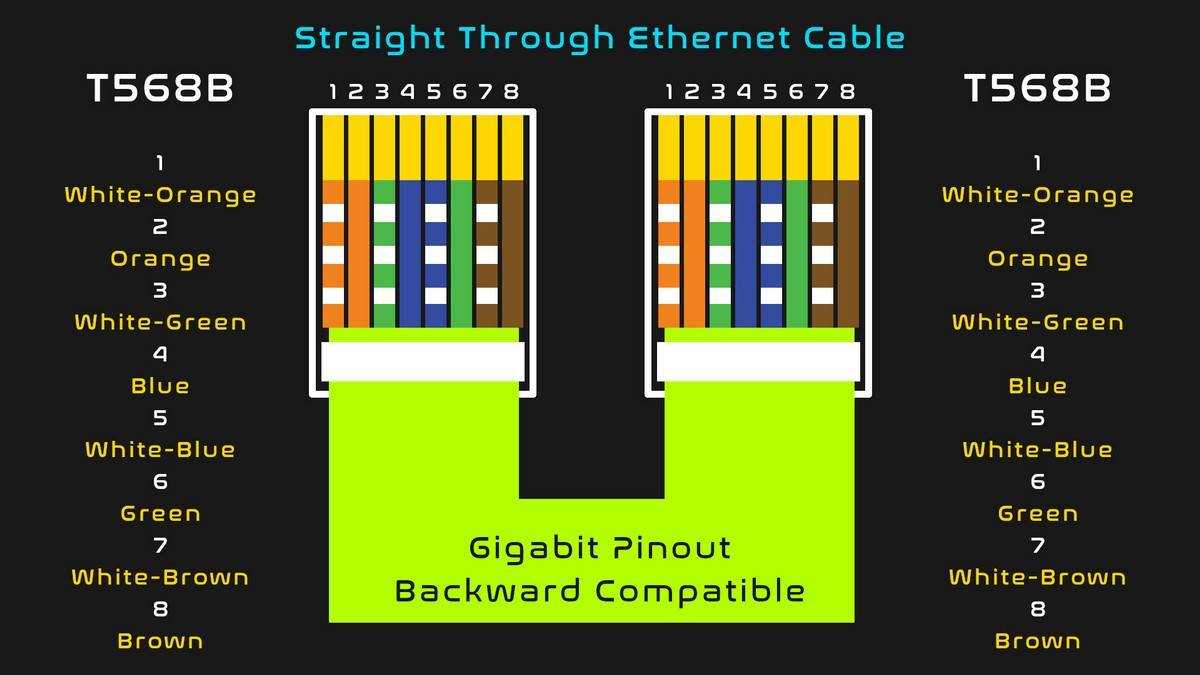

Align conductors in this precise sequence for T568B termination: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Verify color position against a printed reference before crimping to prevent crossed pairs.
Strip outer insulation 20–25 mm, exposing twisted pairs–keep untwisting to ≤12.5 mm to maintain signal integrity. Trim conductors evenly, leaving 12–14 mm protruding beyond the connector housing for reliable contact.
Connector Pin Assignment
Pins 1–2 (transmit) and 3–6 (receive) must match T568B standards to ensure compatibility with switches, routers, and network-interface cards. Pins 4–5 and 7–8 remain inactive in 100BASE-TX but are critical for 1000BASE-T.
Use solid copper conductors for permanent links; stranded wires suit patch cords. Apply consistent pressure when crimping–insufficient force causes intermittent failures under 3–5 lb. pull tests.
Testing and Validation
After termination, verify continuity with a cable tester: check for correct pin mapping and absence of shorts. Cross-talk between pairs 1–2 and 3–6 should not exceed -35 dB at 100 MHz.
Re-terminate if any conductor fails to establish contact–retest before deployment. Label both ends immediately to avoid misidentification in high-density patch panels.
Step-by-Step Color Coding for T568B Termination
Strip the jacket back 1.5 inches to expose the twisted pairs, ensuring no damage to the conductors. Untwist each pair just enough to separate the wires–no more than 0.5 inches–to maintain signal integrity. Straighten the wires between your fingers before aligning them in the T568B sequence.
Hold the connector with the latch facing downward. Arrange the wires in this order, left to right: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Press each wire firmly against the connector’s internal guide to prevent misalignment before trimming.
Trim the wires evenly, leaving exactly 0.5 inches of exposed conductor beyond the jacket. This length ensures proper contact with the connector pins without risking short circuits. Use precision cutters to avoid frayed ends or uneven cuts.
Insert the aligned wires into the connector until each conductor touches the front end. Verify that the jacket extends 0.25 inches into the connector–this locks it in place during crimping. Tug gently on the cable to confirm it’s securely seated.
Crimping and Verification
Place the connector into the crimp tool with the latch facing up. Compress the handle fully–apply steady pressure to avoid partial crimping. The tool’s die must deform both the connector and the jacket’s strain relief for a reliable connection.
Use a cable tester to validate pin continuity. Connect both ends and check for consistent LED illumination across all eight contacts; flickering or dead channels indicate misalignment or poor contact. Re-terminate if any faults appear, as even minor errors degrade performance.
For environments with interference, pair this configuration with shielded twisted pair cables. Ground the shield at one end only–typically the patch panel–to prevent grounding loops. Label both ends immediately after testing to avoid future confusion.
Tools Required for Crimping T568B RJ45 Connectors
Start with a crimping tool rated for modular plugs. Models like the Klein Tools VDV226-011 or TRENDnet TC-CT68 handle both solid and stranded conductors up to 24 AWG without damaging contacts. Verify the jaw profile matches T568B pinout; generic crimpers often misalign pins 1/2 and 3/6. Replace blades every 500 terminations–dull edges cause inconsistent insulation cuts.
For precise wire stripping, use a dedicated stripper with a 7–9 mm cutting depth. The Jonard JIC-120 features calibration screws to prevent nicking conductors, while its spring-loaded design maintains consistent tension. Avoid utility knives or scissors; even minor scrapes reduce signal integrity by increasing impedance. Test stripped wires with a continuity tester (e.g., Fluke Networks MS2-100) to confirm no strands are severed.
Additional Essential Tools
- Punch-down tool (if terminating in keystone jacks): 110-type blade (Panduit UTP185) ensures uniform pressure. Non-impact tools crush contacts, causing intermittent faults.
- Snips: Flush-cutting pliers (Xuron 170-II) prevent protruding strands that short adjacent pins. Diagonal cutters leave uneven tips.
- Connector boots: Snagless boots (C2G 06022) protect latch tabs during cable pulls. Clear variants allow visual inspection of crimp quality.
- Magnifier: 5–10x loupe verifies proper seating of conductors in plug channels. Over/under-insertion degrades performance.
Store tools in a static-safe case (Pelican 1120) to prevent moisture ingress. Silica gel packets absorb humidity, extending the lifespan of metal components. Label each tool with its purpose–mismatched blades or worn dies cause ~18% of failed terminations. For field work, compact multi-tools like the Platinum Tools EZ-RJ45 combine crimping and stripping but sacrifice durability for portability.
Common Errors in Ethernet Cable Configuration (T568B) and Prevention Techniques
Reversing the order of pairs during termination causes crosstalk rates to spike by up to 40%, particularly affecting frequencies above 50 MHz. Use a punchdown tool with built-in pair sorting or mark conductors with colored tape before inserting them into the connector. Verify each strand reaches the contact point without twisting around adjacent wires.
Applying excessive force when crimping RJ45 plugs damages internal conductors, reducing signal integrity. A properly crimped connector requires 8-12 lbs of force–measure with a spring scale during practice. Replace plugs where copper strands appear bent or severed under magnification.
Ignoring cable bend radius specifications leads to attenuated signals over time. Maintain a minimum bend radius of 4x the cable diameter for solid-core variants and 8x for stranded. Secure cables in trays with gradual curves rather than sharp 90-degree turns to prevent permanent kinking.
Connector Installation Pitfalls
| Error | Symptom | Correction |
|---|---|---|
| Incomplete conductor insertion | Intermittent drops below 100 Mbps | Strip 1.5″ of jacket, align wires to groove, push until copper contacts blade |
| Jacket not seated in crimp | Poor tensile strength, connector dislodges | Ensure 0.5″ of jacket inside plug before crimping |
| Exposed untwisted strands | NEXT >45 dB at 100 MHz | Preserve twists up to 0.5″ from termination point |
Using incompatible tools introduces errors; a ratcheting crimper ensures consistent pressure whereas generic pliers often deform contacts. Match tool jaws to RJ45 dimensions–verify with a trial crimp on a sample cable before production runs.
Neglecting impedance matching between patch cords and fixed infrastructure creates reflection points. Employ only cables with consistent 100±15 ohm impedance throughout–avoid mixing solid-core backbone cables with stranded patch cords. Validate with a TDR reading under 20 nanoseconds pulse width.
Verification Protocols
Post-termination testing with a certifier reveals faults invisible to basic cable testers. Record length, propagation delay, and PS-NEXT metrics; discard any segment where values deviate more than 5% from baseline. Replace suspect terminations even if connectivity appears functional–latent issues emerge under sustained high-load traffic.
Skipping documentation results in configuration drift during maintenance. Label each end with installation date, technician initials, and wiring standard. Store test results in a centralized database with cable length and termination photographs for rapid troubleshooting.
