For optimal signal transfer between your head unit and booster, use 16-gauge oxygen-free copper cables for speaker-level inputs. This gauge balances low resistance with flexibility, reducing signal loss by up to 12% compared to standard 18-gauge wires. Ensure the ground wire connects to a bare metal chassis point within 18 inches of the amplifier’s ground terminal–this prevents alternator whine and voltage drops under load.
RCA interconnects should be shielded and twisted-pair, rated for at least 500mV sensitivity. Cheaper cables introduce noise; a decent set costs $25–$40 but cuts interference by 30%. If your receiver lacks RCA outputs, use high-to-low level adapters (LC-21 or similar) with built-in noise filters. Avoid splicing into factory harnesses–lined with resistive coatings, they degrade signal integrity.
Fuse the positive lead within 7 inches of the battery using a 60A AGU fuse. Larger fuses risk melting insulation; smaller ones may blow under transient peaks. For monoblock units, run a separate 4-gauge power cable–distributed current prevents voltage sag. Secure all wires with split loom tubing and zip ties every 8 inches to avoid rattling against moving parts.
Test impedance with a multimeter before final connections. Speakers should read 3.5–4.5Ω; lower values strain the external unit. Match the receiver’s output voltage to the booster’s input range– most accept 1.5V–4V. Exceeding this causes clipping at high volumes, damaging tweeters.

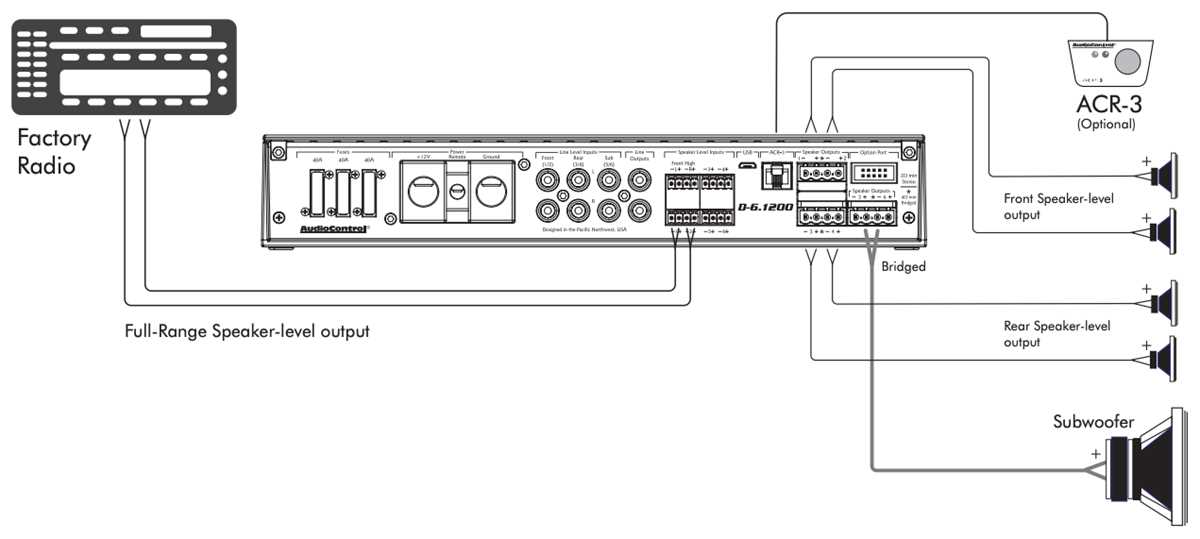

Install a line-level converter if integrating older factory systems. Models like PAC LP3-2 regulate voltage while preserving stereo separation. Never ground through the head unit’s metal case–use a dedicated 8-gauge ground wire for cleaner power delivery.
Connecting Your Audio Head Unit to an External Power Amplifier
Begin by locating the RCA preamp outputs on your vehicle’s main audio control interface–typically found on the rear panel as red and white connectors. These signal lines must be routed directly to the corresponding inputs on your booster without splicing or sharing grounds, as this introduces unwanted noise. Use shielded coaxial cables rated for at least 50 ohms impedance to maintain signal integrity over longer runs, especially in vehicles with complex electrical systems.

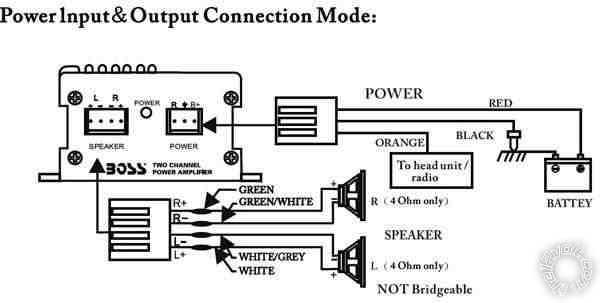

Ground both the control interface and the external power unit at a single, clean chassis point near the battery. Avoid using factory ground straps or bolt holes shared with other components–these often carry residual interference. A 10-gauge solid copper wire, crimped and soldered to a secure mounting surface, ensures minimal voltage drop and prevents ground loops. Install a 60-amp fuse within 7 inches of the battery on the positive lead feeding the power unit to protect against shorts.

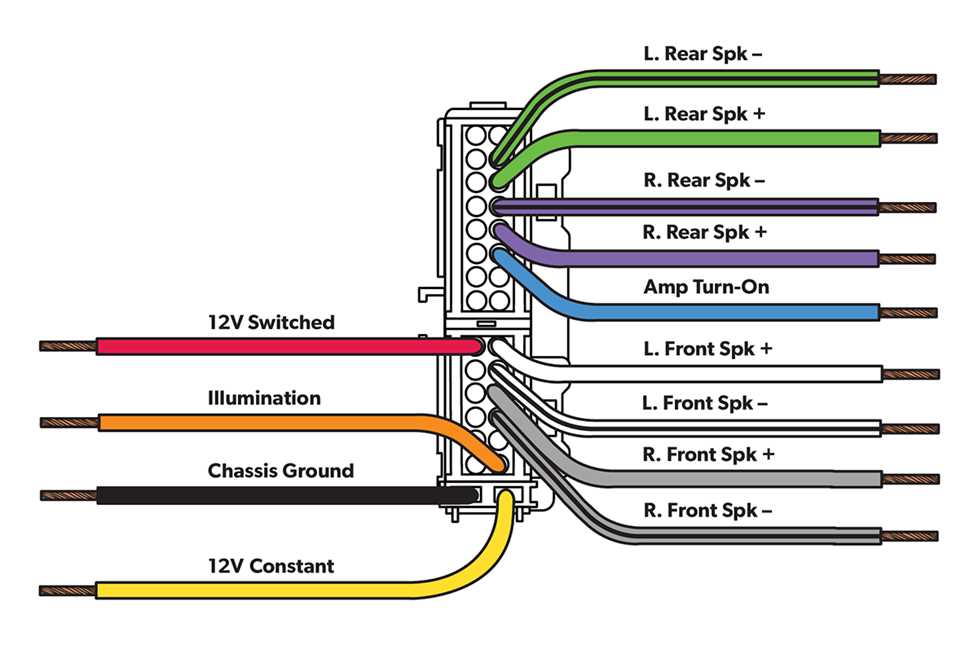

For remote turn-on activation, connect a dedicated 18-gauge wire from the control interface’s blue/white accessory lead to the power unit’s remote input. This triggers the booster only when the audio system powers on, reducing standby current drain. If your interface lacks this output, use a switchable 12V source from the fuse box, tapping into an ignition-controlled circuit to mimic factory behavior.

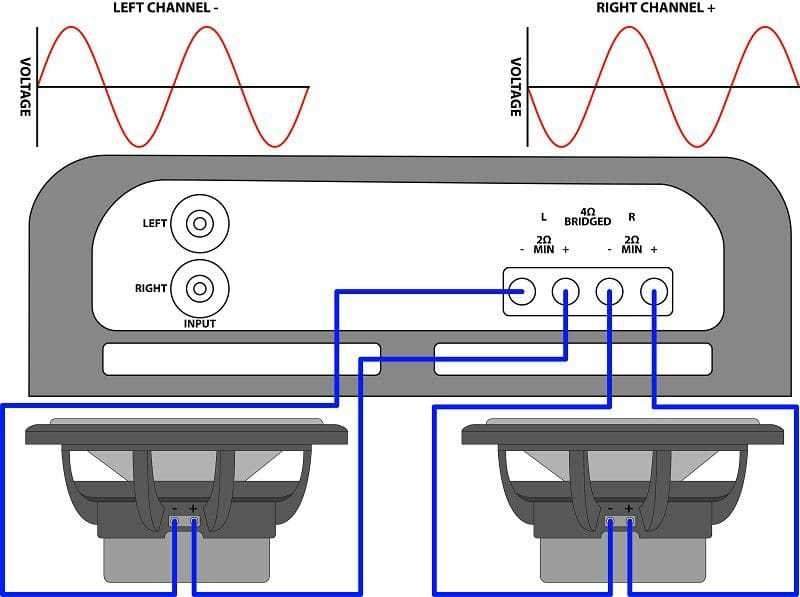

Verify speaker impedance compatibility: most power units require 4-ohm loads, while some premium models accept 2-ohm. Mismatched impedance causes overheating or clipped signals. Cross-reference your vehicle speakers’ specifications with the amplifier’s manual before finalizing connections. For systems with subwoofers, maintain separate channels to prevent phase cancellation–use a dedicated mono output from the power unit if available.
Install a noise filter between the battery and power unit if alternator whine persists. A 15A in-line choke or a capacitor-rated 47,000μF/25V placed within 12 inches of the booster’s power input suppresses high-frequency interference without affecting bass response. Secure all cables away from engine components, HVAC ducts, and moving parts using nylon loom or adhesive-backed clips to prevent abrasion or short circuits.
Test the system with a multimeter before final assembly: measure DC voltage at the power unit’s terminals with the engine running–fluctuations beyond ±0.5V indicate poor grounding or voltage drops. Play a 1kHz test tone at 75% volume; a clean sine wave on an oscilloscope confirms proper signal transfer. If distortion occurs, recheck RCA connections for corrosion, tighten all terminals, and isolate power cables from audio lines by at least 12 inches.
Choosing the Right RCA Cables for Your Vehicle Sound Setup
Start with coaxial RCA cables featuring a 75-ohm impedance rating–this matches the output impedance of most head units, minimizing signal degradation over distances up to 5 meters. For runs exceeding this length, switch to twisted-pair shielded cables with foil and braided shielding to combat electromagnetic interference from ignition systems, alternators, or aftermarket subwoofers operating above 200W RMS.
Oxygen-free copper (OFC) conductors outperform aluminum or copper-clad alternatives, reducing resistance by up to 20% in 16-gauge cables. Verify the gauge: 16 AWG suffices for mid-power setups (50W–150W per channel), while 14 AWG is mandatory for high-current amplifiers pushing 200W+ or when routing cables near engine bays. Avoid CCA (copper-coated aluminum) entirely–its higher resistivity causes noticeable treble roll-off above 15 kHz.
Shielding Types and Their Impact
- Foil-only shielding: Blocks 80–90% of RF interference but isn’t flexible enough for tight bends behind dashboard panels.
- Braided shielding (95% coverage): Excels in high-noise environments like turbocharged engines but adds stiffness; reserve for trunk runs.
- Spiral-wound shielding: Combines foil and braid for 98% coverage; ideal for systems with DSP crossovers or time alignment, where phase accuracy matters.
Gold-plated connectors prevent oxidation but offer no audible improvement over silver-plated versions unless the contact surface exceeds 0.5 microns thick. Insist on molded connectors with strain relief–cheap cables often fail at the junction where the cable enters the plug, especially under dashboard vibrations. For active crossovers or line-level signal processors, use cables with a dedicated ground wire (not just shield draining) to eliminate ground loops in dual-battery setups.
Test cable capacitance before purchase: high-quality RCA cables measure 30–50 pF/meter. Values above 70 pF/meter introduce high-frequency attenuation, particularly problematic with tweeters above 10 kHz. For digital signal transmission (TOSLINK-to-RCA adapters), use cables with a PVC/nylon jacket instead of polyethylene–PE degrades faster under UV exposure in convertibles.
Termination and System-Specific Adjustments
- For component speaker systems with passive crossovers, use RCA cables with a capacitance of 40–60 pF/meter to preserve tweeter transient response.
- Monoblock subwoofer amplifiers benefit from 12 AWG cables, even if the run is under 3 meters–power losses compound at low frequencies (40 Hz and below).
- If integrating a factory-installed head unit with aftermarket amplification, choose RCA cables with a 2V preamp output compatibility; mismatched voltage causes clipping at volumes above 75%.
- Avoid daisy-chaining RCA cables; each splice increases resistance by 0.1 ohms. Use Y-adapters with integrated resistors only when combining multiple amplifier inputs–otherwise, distortion spikes at 1 kHz become audible.
Store unused RCA cables away from power wiring to prevent permanent shielding saturation. For vehicles with keyless ignition, route cables at least 10 cm from any CAN bus wiring–stray capacitance triggers false amplifier protection modes. When in doubt, measure resistance with a multimeter: a healthy cable should read under 0.5 ohms from connector tip to connector tip.
Step-by-Step Guide to Connecting Head Unit to Amplifier
Disconnect the vehicle’s battery terminal before handling any electrical components to prevent shorts or damage. Locate the line-level outputs on the in-dash receiver–typically RCA jacks labeled “Front,” “Rear,” or “Subwoofer”–and match them to the corresponding inputs on the power booster. Use shielded twisted-pair cables (16–18 AWG for signal, 12–14 AWG for remote turn-on) to minimize interference; avoid running signal wires parallel to power cables for distances exceeding 18 inches. If the head unit lacks dedicated preamp outputs, employ a line-level converter to step down high-voltage speaker leads (4–8V) to the required 2–4V RCA signal.
| Connection | Wire Gauge (AWG) | Voltage Range | Notes |
|---|---|---|---|
| RCA Signal | 16–18 | 2–4V | Use gold-plated connectors |
| Remote Turn-On | 14–16 | 12V | Link to head unit’s antenna lead |
| Power (B+) | 4–8 | 12–14.4V | Fuse within 18″ of battery |
| Ground | 4–8 | 0V | Scrape paint to bare metal |
Secure all connections with solder and heat-shrink tubing or crimp connectors rated for automotive use; electrical tape degrades under heat and vibration. Test each channel with a multimeter set to DC voltage–RCA leads should read 2.5–3.5V when the system is powered on. If distortion occurs, verify ground integrity and ensure the signal cable shield is connected to chassis ground at one end only. Adjust gain settings on the power booster starting at minimum, then incrementally raise while playing a 1kHz test tone until clipping is observed, then reduce by 3dB for optimal performance.
