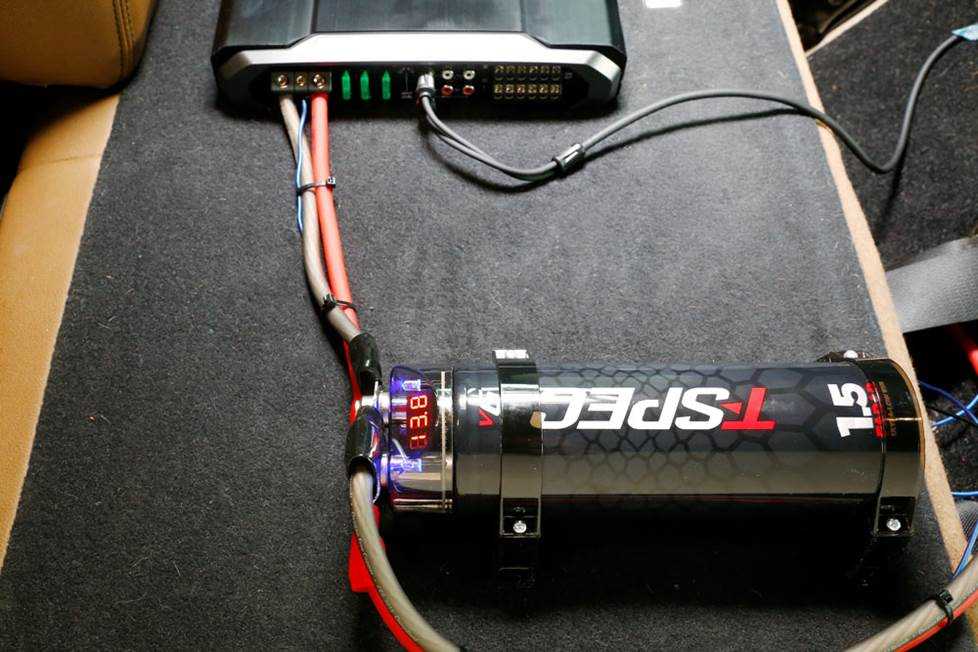

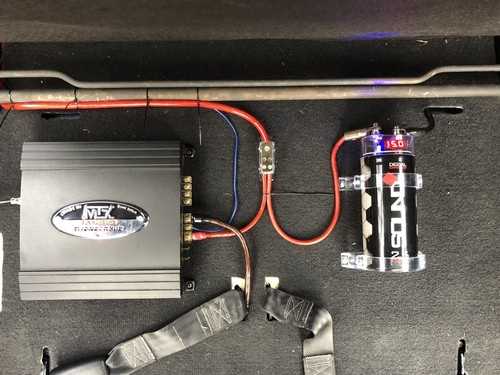

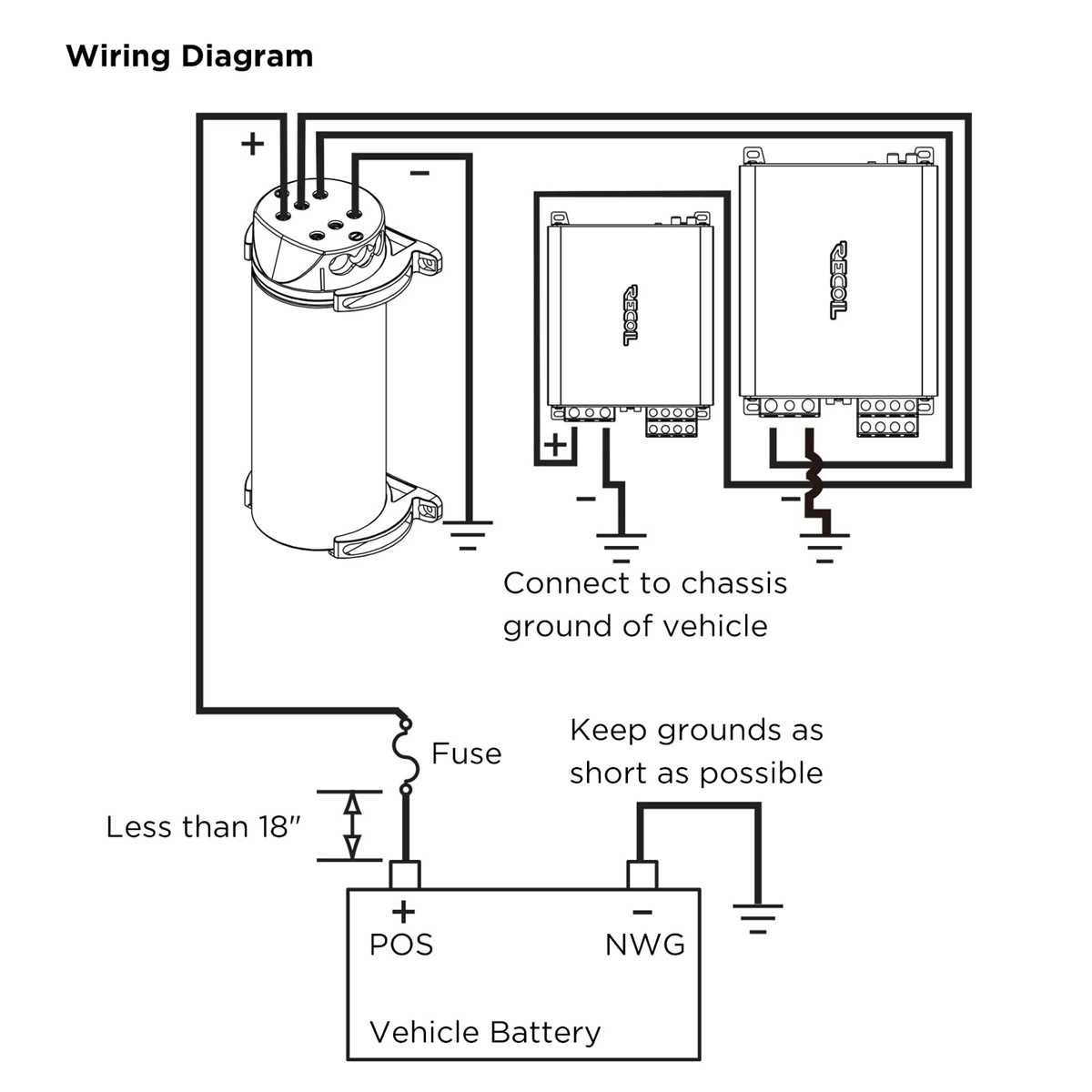

Start with a 1-farad energy storage unit rated for at least 20V–this handles most modern amplifiers without strain. Position it within 18 inches of the amplifier’s power terminal to minimize voltage drop, using 4-gauge oxygen-free copper cables for optimal current transfer. Ground the negative terminal to the chassis at the same point as the amplifier’s ground to prevent ground loops, ensuring a clean 0.2-ohm or lower connection.
Connect the positive lead directly to the amplifier’s power input, bypassing the distribution block if possible–this reduces resistance by up to 30%. Install an in-line fuse holder no farther than 7 inches from the battery, sized at 1.5 times the amplifier’s maximum current draw (e.g., 100A fuse for a 60A amp). Use heat-shrink tubing on all splices to prevent corrosion, which degrades performance by as much as 15% over six months.
Avoid connecting the storage unit to accessory circuits–this causes premature failure. Test voltage stability with a multimeter: idle should read 13.8-14.4V, dropping no more than 0.3V under full load. If sag exceeds 0.5V, upgrade cable gauge or relocate the unit closer to the power source. Polarized capacitors may explode if reversed–double-check polarity before finalizing connections.
For systems exceeding 1000W RMS, stack a second unit in parallel, matching specifications exactly. Space units at least 12 inches apart to prevent overheating. Use a digital voltage display to monitor charge–optimum performance occurs when stored energy discharges in 2-3 seconds during peak demands. Ignore “low-ESR” marketing claims unless verified by independent testing, as most consumer-grade units fail to deliver advertised response times.
Connecting a High-Performance Audio Buffer to Your Vehicle’s Sound System
Install a farad-based energy storage device with at least 1 farad per 1,000 watts of amplifier output to prevent voltage sag during bass-heavy passages. Route the positive lead directly from the battery’s positive terminal–avoid fuse boxes or distribution blocks–to minimize resistance. Use 8-gauge oxygen-free copper wire for the main power run and 10-gauge for ground connections; any thinner will introduce parasitic voltage drops that degrade transient response. Place the storage unit within 18 inches of the amplifier to shorten current paths and reduce inductance. A remote turn-on wire from the head unit’s accessory circuit ensures the buffer charges only when the system is active, preserving battery life during idle periods.
Key Installation Steps
- Disconnect the vehicle’s negative battery terminal before handling any leads to prevent short circuits.
- Mount the storage component vertically on a metal chassis surface using #10 self-tapping screws for optimal heat dissipation.
- Insert a 60-amp ANL fuse within 7 inches of the battery to protect against catastrophic cable failure.
- Attach the ground lead to a bare metal point on the vehicle’s frame–sand paint away to expose raw metal–using a ring terminal crimped with a hydraulic crimper.
- Test voltage at the amplifier’s power inputs with a digital multimeter; readings below 12.6V under load indicate insufficient capacity or poor ground integrity.
Choosing the Right Energy Storage Unit for Your Sound Setup
Select a storage device rated at 1 farad per 1,000 watts RMS of your amplifier’s power output. For instance, a 500-watt RMS amplifier requires a 0.5-farad unit. This ratio prevents voltage drops during bass-heavy audio passages, ensuring consistent performance. Avoid oversized units–excess capacity introduces unnecessary weight and higher costs without improving sound quality.
Measure your system’s peak current draw using a multimeter in ampere mode. Connect it between the battery’s positive terminal and the power cable to the amplifier. Play a bass-heavy track at full volume; the highest reading determines the required storage size. Add 20% buffer to account for fluctuations. Systems drawing 100 amps peak need a 1.2-farad device minimum.
Component quality impacts durability. Opt for low-ESR (Equivalent Series Resistance) models with gold-plated terminals and high-grade electrolytic composition. Brands like Stinger, Rockford Fosgate, and Kinetik offer tested reliability. Avoid generic units–subpar construction leads to premature failure, leakages, or even explosions under high load. Check for built-in voltage indicators (below 10V signals depletion).
Install the unit within 18 inches of the amplifier to minimize resistance losses in power cables. Use AWG 4-gauge or thicker wires for connections; thinner wires negate the storage device’s benefits. Ground both the amplifier and storage device to the same chassis point–separate grounds create voltage differentials, causing noise or damage. Secure all connections with crimp lugs and heat shrink tubing; solder alone isn’t reliable under vibration.
Test the setup with a load dump scenario: play a track with sustained low-frequency tones (e.g., 30Hz sine wave) for 30 seconds at maximum volume. Monitor voltage drop–it should not fall below 12.6V. If it does, increase storage capacity incrementally (e.g., 0.5-farad steps). Final validation involves checking for audible distortion or amplifier protection mode activation; both indicate insufficient energy support.
Installing a Power Reservoir for Audio Amplifier Enhancement
Select a high-farad energy storage unit rated for at least 1 farad per 1,000 watts of amplifier output. For a 2,000-watt system, choose a 2-farad model. Ensure the device has a built-in voltmeter or purchase a separate digital meter for precise voltage monitoring.
Disconnect the vehicle’s battery ground terminal before beginning any electrical work. Failing to do so risks short circuits or damage to sensitive components. Use a 10-gauge or thicker wire for connections, matching the gauge of your power cables to avoid voltage drops.
- Mount the reservoir within 18 inches of the amplifier to minimize resistance losses.
- Avoid placing it near moving parts or heat sources like exhaust systems.
- Secure it with automotive-grade adhesive or a mounting bracket to prevent vibration damage.
Connect the reservoir’s positive terminal to the amplifier’s positive input using an appropriately sized fuse holder. Install a 60-100 amp fuse no more than 6 inches from the battery’s positive terminal to protect the circuit. For systems exceeding 1,500 watts, consider an ANL fuse for better current handling.
Link the reservoir’s negative terminal to the amplifier’s chassis ground or a dedicated grounding point. Use the same gauge wire as the positive connection to maintain balance. Verify all connections with a multimeter–readings should match the battery voltage (±0.1V) when the system is idle. Reconnect the battery ground last, then power on the system to confirm the voltmeter displays stable voltage without fluctuations.
Common Errors in Power Storage Installation and Solutions
Incorrect polarity connection damages components instantly. Always verify terminal markings before attaching leads–red to the positive side, black or blue to ground. Reverse voltage destroys storage units in seconds, often without warning. Use a multimeter to confirm connections if labels are faded or ambiguous. A single mistake here voids warranties and risks fire hazards.
Skipping proper grounding leads to system instability. Secure the negative terminal to a clean, unpainted metal surface on the chassis, away from rotating parts or fuel lines. Paint, rust, or corrosion act as insulators, weakening the connection. Sand the contact area lightly and apply dielectric grease to prevent oxidation. Weak grounding causes voltage drops, dimming lights, and audio distortion.
Overlooking inrush current protection strains amplifiers. Install a resistor or a dedicated inrush limiter rated for at least 50W to soften the initial surge. Without this, repeated activation cycles reduce the lifespan of both the storage device and audio equipment. The table below lists recommended resistor values based on system power:
| Amplifier RMS (W) | Resistor Value (Ω) | Resistor Power (W) |
|---|---|---|
| 200-400 | 10 | 50 |
| 500-800 | 5 | 100 |
| 1000+ | 2 | 200 |
Improper mounting exposes the energy cell to vibration and heat. Use rubber grommets or vibration-damping pads to isolate the unit from the vehicle’s frame. Avoid placing it near exhaust manifolds, turbochargers, or direct sunlight–heat accelerates degradation. Secure the unit with heavy-duty straps or brackets, not just adhesive strips, which fail under stress. Loose units shift during acceleration, risking short circuits or disconnects.
Essential Gear and Supplies for Secure Electrical Component Setup
Begin with a voltage tester rated for at least 25V DC to verify circuits before handling sensitive components. A non-contact model with audible alerts is ideal for spotting live wires without direct contact, reducing accidental shorts. Keep both insulated and non-insulated screwdrivers in sizes #1, #2, and #4–magnetic tips help manage small hardware but avoid using them near electronic boards. Wire strippers with built-in cutters (18-10 AWG range) prevent nicked conductors that can lead to resistance buildup over time.
Soldering iron (40-60W) with a chisel tip is critical for permanent connections, especially in high-current paths. Pair it with 60/40 rosin-core solder and heat-shrink tubing (3:1 ratio, assorted diameters) to seal joints against corrosion. For temporary setups, use crimp connectors–closed-barrel types with heat-activated adhesive lining last longer than vinyl-coated alternatives. A hydraulic crimping tool ensures proper compression without damaging terminals.
Avoid cheap fuse holders. Opt for military-grade ANL fuse blocks with silver-plated contacts, rated for 20% above your system’s peak current draw. For wiring, use OFC (oxygen-free copper) cables–1/0 AWG for main power leads, 4 AWG for ground returns–sheathed in cross-linked polyethylene (XLPE) for heat resistance. Pre-tinned ground wire (8 AWG minimum) prevents oxidation at chassis attachment points, where stress vibrations can weaken untreated connections.
Specialized Safety Gear
Electrical gloves (Class 0, 1000V rating) protect against accidental discharges, but inspect them for pinholes with an air test before each use. A fire-resistant blanket (fiberglass or silica-based) shields nearby surfaces during soldering, especially in tight spaces. Use a ground loop isolator when integrating aftermarket components with factory harnesses–cheap models introduce noise, so select units with toroidal transformers instead of optocouplers.
Label all wiring with heat-resistant tags (polyimide rather than plastic) and note resistance values measured with a multimeter before final assembly. For final testing, a true-RMS meter set to 200mV range identifies minute voltage drops that cheap meters miss. Store spare parts in static-shielded bags–even minor ESD can degrade storage cells over time. Keep a small fire extinguisher (ABC-rated, 2.5 lb) within reach; CO₂ types are safest for electrical fires but require ventilation to avoid asphyxiation risks in confined spaces.
