Start by locating the vehicle’s reverse light circuit. Use a multimeter to confirm the 12V power source activates only when shifting into reverse. Connect the monitor’s red wire directly to this terminal–avoid tapping into fused accessory circuits, as this risks voltage drops or short circuits. For grounding, attach the black wire to a clean, unpainted metal surface near the installation site; corrosion or paint can disrupt signal clarity.
Route the video cable away from high-voltage lines (spark plug wires, alternator output) to prevent interference. A braided shielded cable reduces noise, preserving image quality. If the system includes dynamic guidelines, verify the sensor wire connections match the manufacturer’s pinout–improper pairing causes inaccurate trajectory projections.
Test the setup before finalizing installation. Engage reverse gear and check for:
• Stable power delivery (no flickering screen)
• Correct image orientation (no flipped or upside-down feed)
• Functional guidelines (if applicable)
Use dielectric grease on connectors to prevent oxidation, especially in humid climates. Secure all wires with zip ties every 6–8 inches to avoid chafing against sharp edges.
For aftermarket units, confirm compatibility with the vehicle’s infotainment system. Some models require CAN bus integration, while others rely on analog signals. If installing a dual-purpose system (e.g., rear view + 360-degree surround), prioritize a dedicated power source instead of piggybacking on existing fuses to handle the increased load.
Connecting Your Vehicle’s Rear View System: A Step-by-Step Guide
Start by locating the reverse light circuit in the fuse box–this powers the feed for your visual aid. Use a multimeter to identify the 12V+ wire (typically red or purple with a white stripe) and the ground (black or brown). Solder these directly to the corresponding terminals on the imaging device to ensure stable current flow without voltage drops.
Selecting the Right Cable Types
For signal transmission, use a shielded coaxial cable (RG-59 or RG-6) to prevent interference from other electronics. The shield should connect to the vehicle’s chassis at a single point to avoid ground loops. For power, 18-gauge copper wire suffices, but step up to 16-gauge if the run exceeds 5 meters to maintain performance.
Route cables away from high-voltage lines (e.g., ignition, alternator) and sharp edges. Secure them with adhesive clips every 30 cm, avoiding zip ties–these can pinch and degrade signal over time. Test each connection with a continuity checker before finalizing, ensuring no exposed strands risk shorting against the frame.

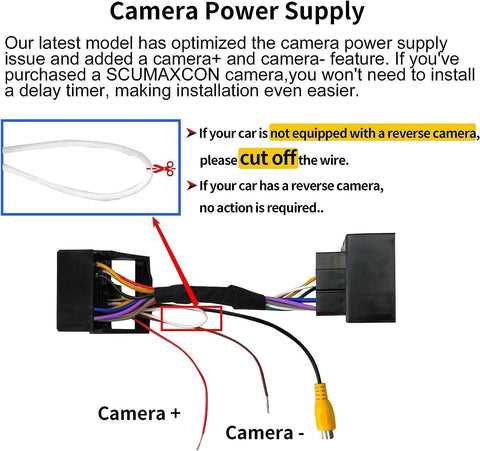

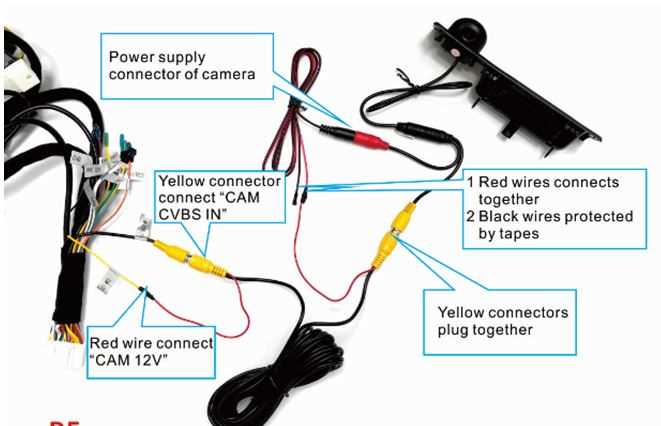

If integrating with an existing display, match the connector type (usually RCA or Fakra) to the head unit. For aftermarket screens, verify the input impedance (75 ohms is standard) to prevent ghosting or signal loss. Adjust the aspect ratio via the menu to avoid stretched or compressed images during engagement.
Locating the Proper Conductors for Your Rear-View Imaging System
Begin by examining the vehicle’s fuse box documentation or service manual. Most manufacturers label auxiliary circuits, including those for backup sensors, with clear identifiers like “REV,” “BCK,” or “RLY.” Cross-reference these with the device’s technical sheet to confirm power requirements–typically 12V DC, but some models demand stabilized voltage through an inline regulator. If documentation is absent, probe the harness with a multimeter set to DC voltage while shifting the transmission into reverse; look for a sudden voltage spike on one or two cables (usually red or yellow) against a ground reference.
Use a pinout diagram specific to your vehicle’s make and model year. For instance, a 2018 Toyota RAV4’s trailer harness may repurpose the brown/white wire for reverse signal, whereas a Ford F-150 might route it through the tail light assembly via a purple/black conductor. Wire gauges typically range from 18-22 AWG for signal lines and 14-16 AWG for power feeds. Verify continuity between suspected conductors and the shift interlock solenoid or brake light switch, as these often share the same trigger circuit. Avoid splicing into main battery feeds unless the system requires high-current draw (over 500mA), in which case a relay should be installed to prevent voltage drop.
Color codes vary across regions and brands. Here’s a reference table for common configurations:
| Function | North America | EU/Asia | Aftermarket |
|---|---|---|---|
| Power (12V) | Red, Yellow | Red/Black, Brown | White/Red stripe |
| Ground | Black, Green | Black/Yellow, Blue | Black, Bare |
| Trigger/Reverse Signal | Purple, Pink | Purple/White, Gray | Yellow/Black stripe |
| Video Output | Coaxial (RCA) | Mini-DIN (4-pin) | RCA or HDMI |
Test for signal integrity by connecting the imaging device’s trigger wire to the chosen conductor while the vehicle is in neutral. The display should remain inactive; shifting to reverse should activate it within 200-300ms. If latency exceeds this, inspect the circuit for interference–aftermarket stereos or LED retrofit kits often introduce noise. Use a ferrite choke on the signal line if flickering or delays occur. For dual-camera setups, prioritize the rear sensor’s input by tapping into the OEM reverse lamp circuit rather than shared body control modules, which may introduce unwanted logic gates.
Secure connections with soldered joints and heat-shrink tubing rated for automotive temperatures (-40°C to 125°C). Avoid crimp connectors on low-current signal paths, as oxidation can degrade performance within months. Route wires away from high-temperature sources (exhaust, transmission tunnels) and moving components (suspension, steering shafts) using nylon loom or split conduit. Ground the shielding of coaxial cables directly to chassis metal, not through painted surfaces, to prevent signal loss. Finalize by simulating reverse engagement while monitoring current draw–passive systems should draw under 150mA, while active IR units may require up to 500mA.
Troubleshooting Mismatched Conductors
If the screen activates in neutral, the trigger wire is incorrectly paired. Trace the reverse circuit back to its source–usually the transmission control module or a standalone switch–and tap the side that energizes *only* during reverse. For vehicles with CAN bus networks (e.g., BMW, Mercedes), bypass the factory harness and use a standalone reverse signal emulator, as direct splicing may trigger fault codes. Verify mirror adjustments: some luxury models route the backup sensor feed through the side-view mirror harness, requiring disassembly of the door panel to access the correct wire cluster.
Step-by-Step Guide to Powering a Vehicle Rearview Assistant
Locate the reverse light circuit in the fuse box. Use a multimeter to confirm the 12V live wire when the gear is engaged in reverse. This wire is typically red, white, or purple–verify with the vehicle’s manual to avoid damaging other systems.
- Strip 5mm of insulation from the reverse light wire.
- Cut a 20cm length of 16-gauge wire (black for ground, red for power).
- Crimp a female spade connector to one end of each wire.
- Slide heat shrink tubing over the connections before soldering.
Solder the power wire to the reverse light circuit, ensuring no exposed copper remains. Slide the heat shrink into place and apply heat evenly until sealed. Wrap the connection in electrical tape for added protection against moisture.
Run the power wire from the fuse box to the mounting location. Secure it with zip ties every 30cm, avoiding sharp edges, moving parts, or excessive heat sources. Route it alongside existing harnesses to minimize interference.
- Connect the ground wire to the vehicle’s chassis. Sand the paint off a clean, unpainted metal surface near the installation site.
- Use a ring terminal and secure it with a self-tapping screw or bolt.
- Coat the connection with dielectric grease to prevent corrosion.
Test the setup before finalizing the assembly. Shift into reverse; the device should activate instantly. If delayed, recheck solder joints, wire routing, and fuse integrity. Replace the fuse if it blows during testing.
Complete the installation by securing the housing and reconnecting the battery. Use a voltmeter to confirm stable 12V input when reversing and 0V when disengaged. Repeat steps if voltage fluctuates or the unit fails to power off.
Critical Errors in Rear View System Cable Installation
Skipping voltage drop calculations guaranteespoor image quality. Measure the total cable run–every extra meter beyond 5 reduces signal strength by 15%. Use 18-gauge shielded twisted pair for runs under 3 meters, switching to 16-gauge for distances up to 8 meters. Avoid solid-core cables; stranded copper resists vibration fatigue better. Always solder joints, then heat-shrink–electrical tape fails within months under temperature swings.
Ignoring EMI shielding turns night vision into static. Route cables at least 15 cm from power lines, ECU, or spark plug wires. Use foil-shielded cables for segments passing near alternators or ignition systems. Ground both ends of the shield–single-ended grounding creates an antenna effect. Test for interference by powering the system while monitoring outputs with an oscilloscope; peaks above 50 mV require rerouting.
Overlooking Connector Protection
Exposed connectors corrode within weeks. Apply dielectric grease to every pin before crimping. Use waterproof, UV-resistant boots for connections near bumpers or undercarriages. Avoid butt connectors–opt for oversized heat-shrink terminals with adhesive lining. After installation, submerge connectors in water for 30 seconds; any conductivity spike above 0.2 mA means inadequate sealing.
Neglecting strain relief guarantees cable failure. Anchor cables every 20 cm using nylon zip ties, not metal clamps. Leave 5 cm of slack at each termination to prevent tension from vibration. Route through existing grommets in the firewall–drilling new holes risks chafing against sheet metal edges. Test flexure by manually manipulating the cable through its full range; loosening or resistance indicates misrouting.
Assuming plug-and-play saves hours of troubleshooting. Verify each connection with a multimeter–open circuits or shorts often lurk in factory harnesses. Use a 5V power supply for testing; automotive systems may output 12V, damaging low-voltage components. Document every splice with a label showing wire color, function, and polarity–future repairs demand precise records. Never assume black means ground: trace to the source.
