Begin with the power source–battery connections must be traced directly to the fuse box. Use a 15-20 amp fuse for standard halogen units, while LEDs require a lower rating, typically 5-10 amps, due to reduced current draw. Locate the relay first; without it, high current will melt switch contacts within minutes.
For halogen setups, the wiring splits into two paths: low beam and high beam. Each path runs through separate filaments in the same bulb (H4 or H7 types). Check resistance across filament terminals–values should read 0.5-2 ohms. Anything higher indicates a broken filament, requiring bulb replacement.
Critical nodes to test: relay terminals 85 (ground), 86 (switched 12V), 87 (output to LDR), and 30 (constant 12V). If voltage drops below 11.5V at terminal 87, suspect corroded connectors or undersized wiring–upgrade to 18-16 AWG copper for stable performance.
Integrating daytime running modules? Wire a diode (1N4007) in series with the parking light feed to prevent backflow. For adaptive systems, the ECU sends PWM signals–isolate these using an oscilloscope; pulse widths below 10ms indicate sensor failure.
Avoid splicing into turn signal wires unless using a dual-function relay. Brands like Hella and Philips provide pre-assembled harnesses for OEM-level reliability. Always terminate connections with solder and heat shrink, not crimp connectors–they corrode under heat cycles.

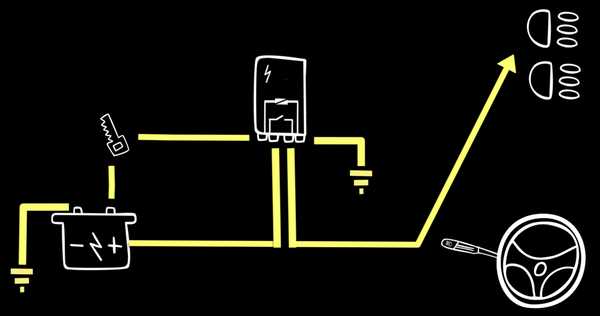

Wiring Schematic for Automotive Front Illumination Systems
Begin by locating the vehicle’s main power distribution box–commonly found under the hood or dashboard. Identify the fuse labeled for lighting (typically 10A–20A) and verify its continuity using a multimeter. If resistance exceeds 0.5 ohms, replace the fuse before proceeding. Connect the positive lead from the battery terminal to this fuse via a 12-gauge wire, ensuring proper insulation to prevent short circuits. Ground the system by attaching the negative wire to a clean, unpainted metal surface on the chassis, avoiding areas prone to corrosion like welded seams or exhaust components.
Relay Integration for High-Intensity Beams
Install a 40A SPST relay between the fuse block and the high-intensity lamps to handle current spikes. Pin 85 connects to the switch, Pin 86 to the fuse, Pin 87 to the lamps, and Pin 30 to a 30A fuse linked directly to the battery. Use dielectric grease on relay terminals to prevent oxidation, especially in humid or salt-exposed environments. For LED clusters, reduce voltage fluctuations by adding a 680μF capacitor across the relay coil, stabilizing output to ±0.2V. Avoid cheap relays with contact ratings below 40A–they fail under sustained loads, causing intermittent illumination.
When routing wires, use split loom tubing for sections exposed to engine heat or moving parts, securing them every 15 cm with nylon zip ties. For halogen setups, keep wires at least 10 cm from hot exhaust manifolds to prevent insulation degradation. Measure voltage drop across each connection–values above 0.3V indicate excessive resistance, requiring crimping or soldering. Use heat-shrink tubing with adhesive lining to seal splices, as water ingress is the leading cause of wiring failures in outdoor automotive systems.
For adaptive systems (e.g., automatic high-beam control), integrate a light sensor module (e.g., TEMT6000) between the relay and the control unit. Calibrate the sensor by adjusting its sensitivity via a 10kΩ potentiometer, aiming for activation at 50–100 lux ambient light. Add a 10K resistor in parallel with the sensor to prevent false triggers from temporary shadows. Test the system at dusk, ensuring the transition from low to high beam occurs within 2–3 seconds without flickering. Delay circuitry (e.g., 555 timer in monostable mode) can smooth transitions, but ensure the timing doesn’t exceed 5 seconds to comply with road safety regulations.
Diagnose flickering by checking the alternator’s output–voltage should stabilize between 13.8V–14.4V at idle. If readings exceed 15V, inspect the voltage regulator or replace the alternator, as overcharging damages filament-based bulbs and sensitive electronics. For retrofitting xenon units, add a ballast stabilizer (1–3 μF capacitor) to mitigate high-frequency noise that interferes with ECU signals. Label all wires with identification tags (e.g., “HID Left,” “GND Right”) to simplify future troubleshooting–color-coding alone isn’t reliable due to manufacturer variations.
Key Elements of an Automotive Front Illumination Wiring Setup
Always begin by verifying the voltage regulator’s compatibility with your vehicle’s electrical network–most modern setups operate at 12V DC, but older or heavy-duty models may require 24V. The fuse rating must match the system’s peak load; for standard halogen bulbs, a 15-20A fuse is typical, while HID or LED assemblies often demand 7.5-10A to prevent overheating. Replace any corroded connectors immediately–oxidation increases resistance, leading to voltage drops that degrade bulb lifespan. Use dielectric grease on terminals during reassembly to prevent moisture intrusion, a common failure point in wet climates.
- Relay: Never bypass this component. A high-current relay (30-40A) protects the switch from melting under load–factory switches are rarely rated above 10A. Wire the relay’s coil directly to the ignition or light switch, with the load side connected to the bulb via 14-16 AWG cable to handle inrush currents.
- Ground path: A poor ground is the #1 cause of flickering. Secure the ground wire to bare metal, free of paint or rust, using a star washer for maximum contact. For auxiliary lights, run a dedicated ground back to the battery negative terminal to eliminate voltage fluctuations.
- Bulb sockets: Halogen units must never be touched with bare fingers–oils from skin accelerate filament degradation. For LED retrofits, ensure the socket’s polarity matches the diode; reversed polarity will destroy the module instantly. Check for heat-sink compatibility if the LED draws over 5W.
- Wiring gauge: Use 12 AWG for main power runs and 18 AWG for signal wires. Solid-core wire is prone to fatigue; stranded copper with silicone insulation resists vibration and temperature swings better. Route wires away from moving parts and hot surfaces, securing them every 20cm with loom tubing or zip ties.
Step-by-Step Wiring Guide for Halogen Front Lamps
Disconnect the battery negative terminal before handling any wiring to prevent short circuits. Use 14-gauge wire for low-beam filaments and 12-gauge for high-beam connections–this matches OEM specifications for most passenger vehicles. Solder all joints and cover with heat-shrink tubing to resist moisture and vibration. Avoid crimping; soldered connections last 3-5 times longer under temperature cycles (halogens reach 250°C).
- Attach the fuse holder within 15 cm of the battery positive post–use a 15A fuse for low beams, 20A for high beams.
- Route wires away from exhaust manifolds and sharp edges. Secure every 20 cm with nylon zip ties to prevent chafing.
- Test each filament with a multimeter before finalizing connections: low beam should read 8-10 ohms, high beam 4-6 ohms.
- Apply dielectric grease to bulb sockets to inhibit corrosion and ensure consistent conductivity.
- After reassembly, verify operation: low beams draw ~4.5-5.5A, high beams ~7-8.5A–excess current indicates faulty wiring or incorrect gauge.
Locating and Wiring the Light Control Relay in Your Vehicle’s Electrical System
Check the fuse box cover–most relays are housed here, labeled with a symbol resembling a coil or switch. If not, probe the wiring harness near the front lamps; relays often sit within 30 cm of the power source to reduce voltage drop. Use a multimeter on continuity mode: touch the relay’s 85 and 86 pins–resistance should read between 50 and 120 ohms. A reading outside this range signals a faulty unit.
Connecting Terminals Without Damaging Components
Strip 10 mm of insulation from the input wire (usually red or yellow) and crimp it to terminal 30. Ground terminal 85 directly to the chassis–avoid daisy-chaining through other components to prevent voltage spikes. For terminal 87, attach the output wire (blue or white) leading to the lamp socket; secure with solder or a heat-shrink butt connector to prevent corrosion. Terminal 86 requires a 12V trigger from the switch–use a relay socket if available to simplify replacements.
Test before finalizing: turn on the ignition, activate the switch, and verify the relay clicks. If absent, check for 12V at terminal 86–dropped voltage here often indicates a corroded connection or undersized wire gauge (minimum 18 AWG for standard lamps, 14 AWG for HID). Replace any relay that fails to engage three consecutive times, as intermittent operation risks overheating.
Diagnosing and Repairing Front Illumination System Issues
Begin by checking the fuse for the lighting system using a multimeter. A blown 15A or 20A fuse (varies by model) is a frequent culprit. Locate the fuse box–usually under the dashboard or hood–and refer to the owner’s manual for the exact fuse number. Replace only with an identical amperage rating to prevent electrical fires. If the new fuse blows immediately, suspect a short in wiring or a faulty relay. Use a wiring diagram specific to the vehicle to trace the supply line from the fuse to the switch and bulbs.
Inspect the bulbs for signs of failure: darkening of the glass, broken filament, or moisture inside. Halogen bulbs H4 or H7 typically last 450-1000 hours; LED assemblies may degrade due to thermal cycling. Remove the bulb by twisting counterclockwise and check terminals for corrosion. Clean with emery cloth if oxidation is present. Replace bulbs in pairs to maintain consistent brightness. For sealed beam units, test for continuity with a multimeter–resistance should be near zero ohms.
| Component | Symptom | Test Method | Fix |
|---|---|---|---|
| Fuse | No power to lights | Multimeter on continuity setting | Replace with identical amperage |
| Relay | Clicking but no operation | Swap with known-good relay (e.g., horn) | Replace if faulty |
| Wiring | Intermittent operation | Wiggle test while monitoring voltage | Repair frayed/broken wires |
| Switch | No response when activated | Check for 12V at input/output terminals | Replace if voltage lost |
Test the lighting switch by backprobing the connector with a multimeter while toggling the control. A functional switch should show battery voltage (12-14V) at the output terminal in the ON position. No voltage indicates a failed switch or broken internal contacts. For stalk-mounted switches, check the clockspring integrity in the steering column–cracked or worn clocksprings cause intermittent operation. Replace components only after verifying the issue isn’t downstream (e.g., corroded ground or loose connector).
Ground connections often corrode or loosen over time. Locate the ground point–usually a bolt near the front frame or strut tower–and clean the metal surface with a wire brush. Remove rust and apply dielectric grease before reattaching the ground wire. For vehicles with daytime running lamps, ensure the module supplying power isn’t overheating; failed modules may require replacement. If all components test correctly but lights still malfunction, inspect the body control module (BCM) for stored trouble codes using an OBD-II scanner–some systems require recalibration after bulb replacement.
