Begin by locating the fuse box under the dashboard or in the engine compartment–most schematics label each fuse with its amperage and connected system. Trace wires from the fuse box to critical components like the alternator, starter, and ignition coil using color-coded lines: red for power, black for ground, and yellow/white for signals. If voltage drops below 12.6V at the battery terminals under load, inspect the charging system’s connections before proceeding.
Use a multimeter set to continuity mode to verify connections between the ECU, sensors, and actuators. Disconnect the negative battery terminal first to prevent short circuits–failure to do so risks damaging the onboard computer. Pay attention to splice points where wires branch, as corrosion or loose crimps here cause intermittent faults. For CAN bus networks, check the twisted pair (usually orange/purple) for breaks; signal loss here disrupts communication between modules.
Label each wire with masking tape during disassembly to avoid confusion during reassembly. For lighting circuits, test the park/brake light switch by applying 12V directly–if bulbs illuminate, the switch is faulty. When diagnosing power windows, verify the window motor’s resistance (typically 2–5 ohms); readings outside this range indicate internal wear. Always replace relays with the exact part number–generic substitutes may not handle the current draw.
For advanced diagnostics, connect an OBD-II scanner to monitor live data from oxygen sensors, throttle position, and fuel injectors. If the check engine light flashes, prioritize resolving misfires before driving–continuing operation risks catalytic converter damage. Store schematics in a weatherproof case and refer to them when rewiring aftermarket components, ensuring compatibility with the vehicle’s voltage and load capacity.
Understanding Vehicle Wiring Schematics
Begin by identifying the fuse box location–typically under the dashboard or in the engine bay. Label each fuse with its amperage rating directly on the cover using a permanent marker. Replace blown fuses only with equivalents; for example, a 10A fuse must never be substituted with a 20A version.
Trace wires methodically from the battery positive terminal. Use a multimeter to verify voltage drops across connections–ideal values should not exceed 0.2V for 12V systems. Corroded terminals (e.g., battery posts) should be cleaned with a wire brush and coated with dielectric grease before reconnection.
Color coding varies by manufacturer, but common standards include:
| Color | Typical Function |
|---|---|
| Red | Constant power (ignition-independent) |
| Yellow | Switched power (ignition-dependent) |
| Black | Ground |
| Blue | Headlights or accessories |
| Green | Sensor or control circuits |
Exceptions exist–always cross-reference with the manufacturer’s documentation.
For troubleshooting intermittent faults, shake wiring harnesses while observing the multimeter. A flickering reading indicates internal wire breakage. Replace damaged sections by splicing in new wire of equal or larger gauge (e.g., 16 AWG for 10A circuits, 12 AWG for 20A+ loads).
Relays handle high-current devices like starters or cooling fans. Test a relay by swapping it with a known-good unit (e.g., from the horn circuit). If the issue persists, measure coil resistance (typically 50–120Ω) and ensure the control signal reaches 12V when activated.
Aftermarket modifications require careful integration. For instance, installing LED lights demands a load resistor (≈6Ω, 50W) to prevent hyperflash if the system lacks lamp fault detection bypass. Connect resistors in parallel to the LED’s positive lead, not in series.
Document all changes on a printed schematic using highlighters or digital annotation tools. Note deviations like relocated grounds or added components–this prevents future diagnostic errors. Store the annotated diagram in a waterproof sleeve inside the glovebox for quick reference.
Understanding Vehicle Wire Blueprint Basics

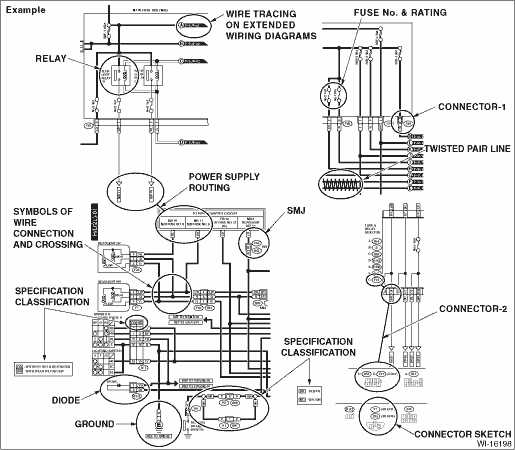

Identify the battery symbol first–usually a pair of parallel lines, one longer than the other. This marks the main power source for every connected path. Trace the thickest lines outward; these carry high current loads to components like starters, alternators, or fuse blocks. Thin lines indicate control signals or sensor feeds.
Locate fuses near the power origin. Each fuse is a rectangle with a jagged line inside or labeled with “F” followed by a number. Verify the amperage rating printed beside it; exceeding this value risks damaging downstream devices. Common ratings range from 5A for sensors to 30A for high-draw actuators.
Find relays next–smaller rectangles with internal switching symbols. They act as remote switches, controlled by low-current signals but capable of handling heavier loads. Pin numbers (usually 85, 86, 87, 30) denote coil and contact terminals. Match these to the wiring color codes printed along each line.

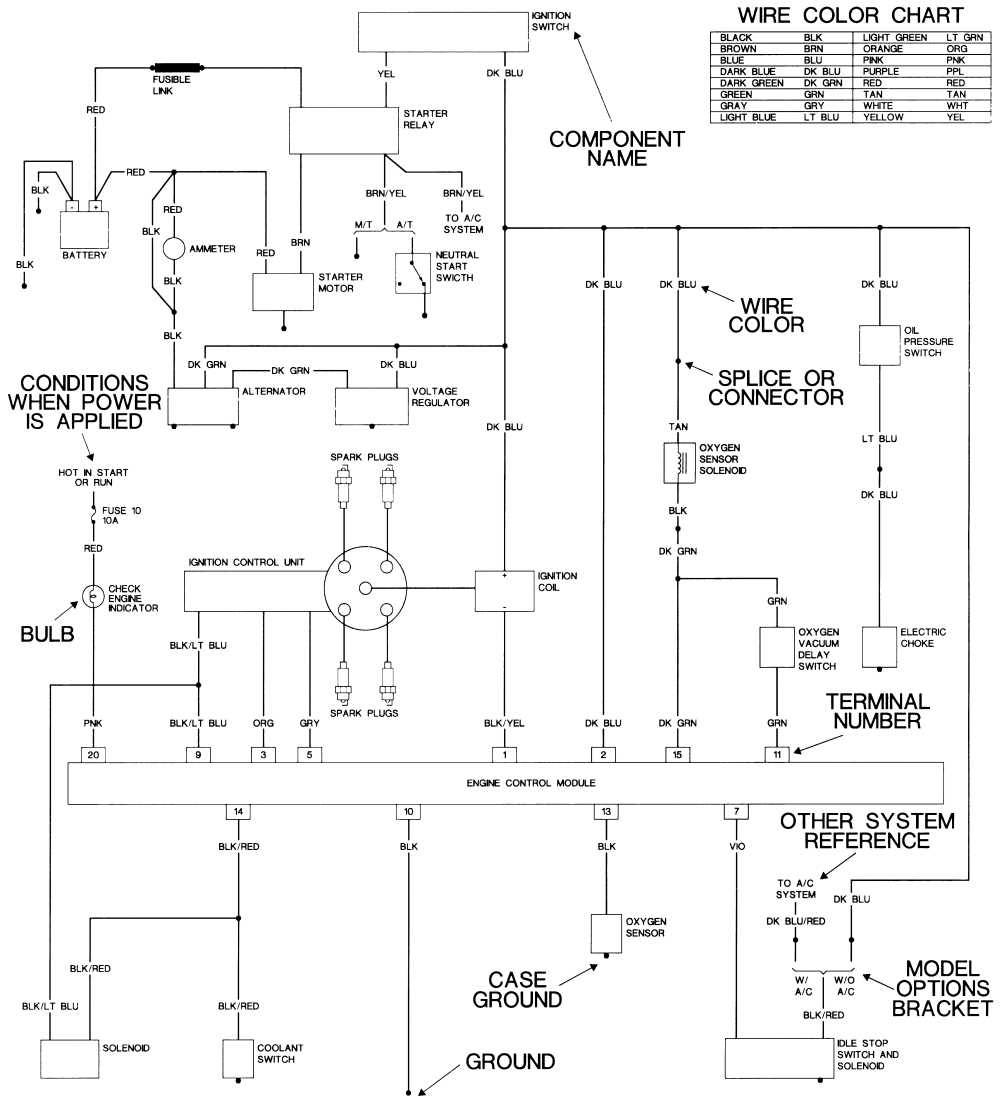

Decode color abbreviations: “B” for black, “W” for white, “R” for red, “G” for green, “Y” for yellow, “Br” for brown. Stripes follow the primary color (e.g., “W/B” means white with black stripe). Ground connections terminate at symbols resembling downward-pointing arrows or chassis labels like “GND” or “E.”
Spot connectors as circles with numbered pins or letters. These link multiple wires between harness sections. Cross-reference pinouts with separate documentation if numbers aren’t on the schematic. Missing data here causes most troubleshooting dead-ends–double-check each connection.
Examine switches: simple on/off types show a break in the wire, while multi-position units have branching paths. Each branch represents a switch setting; follow only the active path at any given moment. Ignition-controlled feeds often use “IG1,” “IG2,” or “ACC” labels to distinguish key positions.
Decode sensors as variable resistors or capacitors in series with a control module. Look for labels like “ECT” (engine coolant temp), “TPS” (throttle position), or “MAP” (manifold absolute pressure). Their output signals appear as thinner lines leading to processors, often pulsed or analog waveforms.
Test points appear as small triangles or circles with alphanumeric labels. Use these to verify voltages without probing delicate connectors. For example, “TP1” may show 0.5V at idle for a mass airflow sensor. Any deviation outside specified ranges pinpoints faults in related components or wiring segments.
Essential Elements and Notations in Automotive Wiring Schematics
Begin by identifying the battery symbol–a rectangle with parallel lines–representing the primary power source. Standard 12V systems show a longer positive terminal line, while negative is shorter or marked “GND.” Verify voltage ratings near components; mismatches indicate faults. Relays appear as switches with a coil and contacts–four pins where pins 85 and 86 control the coil, and 30/87 handle switching. Replace relays showing burn marks or corrosion; test continuity with a multimeter.
Ground Points and Wire Color Codes
Locate ground symbols (a downward line ending in three horizontal bars) first–they simplify troubleshooting. Cross-reference chassis grounds (labeled “GRD” or “E”) with manufacturer documentation; loose or oxidized connections cause intermittent failures. Wire colors follow strict codes: red (power), black (ground), yellow (headlights), green (left indicators), blue (right indicators). Deviations signal splices or aftermarket modifications–trace back to the source for accuracy.
Fuses are depicted as wavy lines within rectangles; values (e.g., “10A”) must match the diagram exactly. Swap blown fuses with identical ratings–never upgrade arbitrarily. Switches show open/closed states via angled lines; test functionality by probing terminals while toggling. Sensors (e.g., oxygen, throttle position) appear as triangles pointing to outputs–check resistance or voltage drop against spec sheets. Ignore generic symbols; always use the model-specific legend for accurate repairs.
Step-by-Step Guide for Tracing Power Sources in Automotive Wiring Schematics
Locate the primary fuse block first, typically marked on the schematic with standardized labeling like “F1” or “15A.” Trace the heavy-gauge line from the battery terminal–usually a bold red or black line–directly to this block. Verify voltage at the input side of each fuse using a multimeter set to DC 20V; readings should match the battery’s charge (12.6V–14.8V). If a fuse shows 0V, check for corroded terminals or a blown element before proceeding.
Isolate Switch-Controlled Paths
Follow the thin line extending from the fuse’s output to the first switch–ignition, relay, or manual toggle. Schematics often use dashed lines for switched feeds; cross-reference with component labels (e.g., “IGN” for ignition-switched). At the switch, probe both terminals: the input should show battery voltage, while the output remains dead until activated. For relays, test coil pins (85/86) with the switch closed; a clicking sound confirms operation, but verify voltage at pin 30 (input) and 87 (output) to rule out bad contacts.
Extend your trace to downstream devices–balasts, solenoids, or ECUs–using color codes documented in the legend. Yellow/red stripes often denote power feeds, while brown or black indicate grounds. When a device fails to operate, measure voltage drop across its terminals under load; values exceeding 0.5V suggest resistance in splices or connectors. For bundled wires, separate strands to inspect for chafing or melted insulation, common in failed alternator feed lines (typically a thick red wire, >8AWG).
