Begin by disconnecting the battery’s negative terminal to prevent short circuits while working on the 12V accessory socket. Most configurations use a red wire (constant +12V) directly from the fuse box, a black wire (ground) attached to the chassis, and sometimes a yellow or green wire (switched +12V) activated only when the ignition is on. Verify these connections with a multimeter–constant power should read ~12.6V, switched power ~0.5V with the key off, and ground should show 0 ohms continuity to the chassis.
For older models without a fuse in the circuit, install a 15A-20A inline fuse within 15cm of the power source to protect against overloads. Aftermarket adapters often fail due to poor crimping; solder joints with heat-shrink tubing last longer. If the socket doesn’t power devices, check the fuse panel for a blown mini blade fuse labeled “ACC” or “CIG”–common ratings are 10A, 15A, or 20A depending on the vehicle.
For dual-outlet setups, split the red wire with a Y-splitter harness rated for at least 15A per branch. Avoid splicing into factory harnesses unless necessary–use add-a-circuit fuse taps or Posi-Tap connectors for clean modifications. Reverse polarity (swapping +12V and ground) will instantly fry connected electronics, so double-check wire colors against the service manual. Some luxury vehicles integrate the socket’s ground into a busbar–trace with a test light if the circuit remains dead.
Understanding Vehicle Auxiliary Power Socket Connections
Begin by locating the fused power source under the dashboard–most modern vehicles route 12V supply lines from the battery through a dedicated fuse (typically 10–20A). Trace the red wire from the socket’s rear terminal to the fuse box, ensuring continuity with a multimeter before proceeding. Black wires must connect to chassis ground, but avoid relying on the socket’s housing–directly attach to a clean, unpainted metal surface nearby to prevent voltage drops.

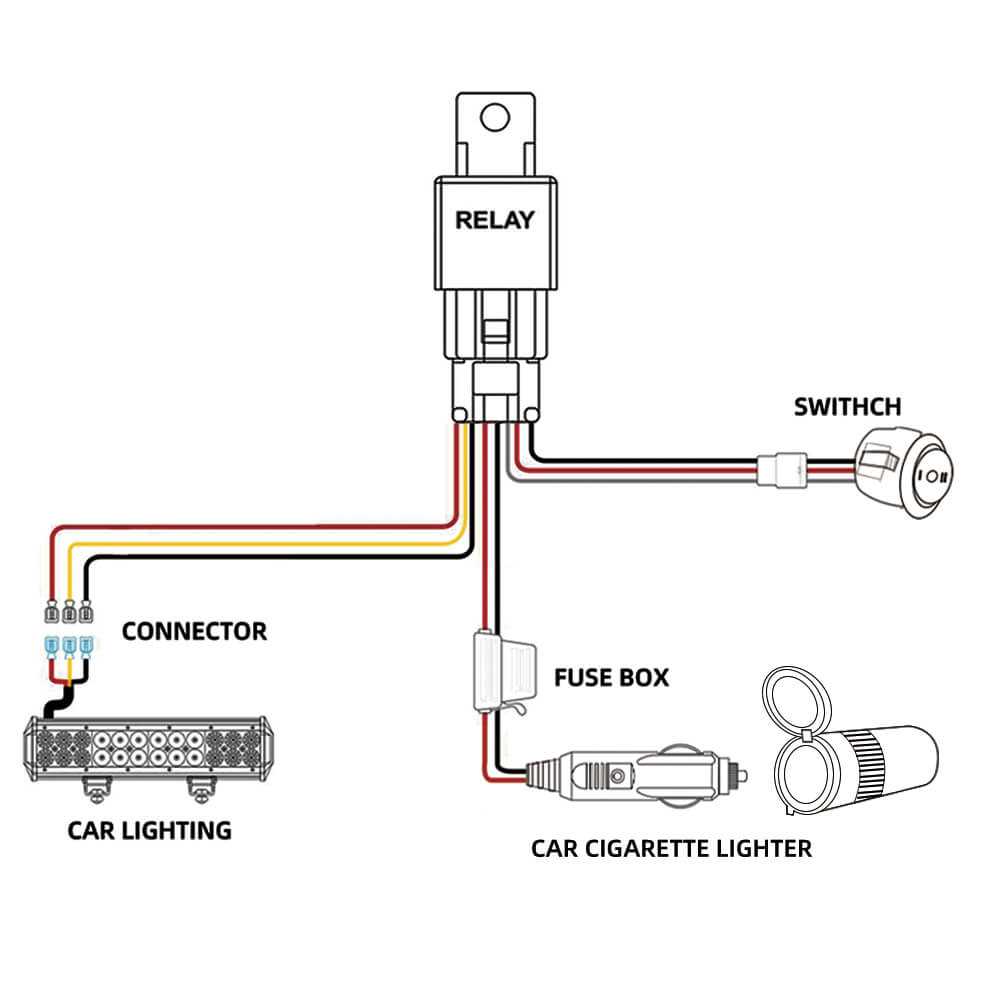

Wire gauge matters: Use 16-AWG for standard sockets, but upgrade to 14-AWG if powering devices over 10A (e.g., tire inflators). Solder all connections and insulate with heat-shrink tubing, not electrical tape–vibration and heat degrade adhesives over time. For split circuits (multiple ports), use a relay-controlled bus bar to isolate loads and protect the primary fuse.

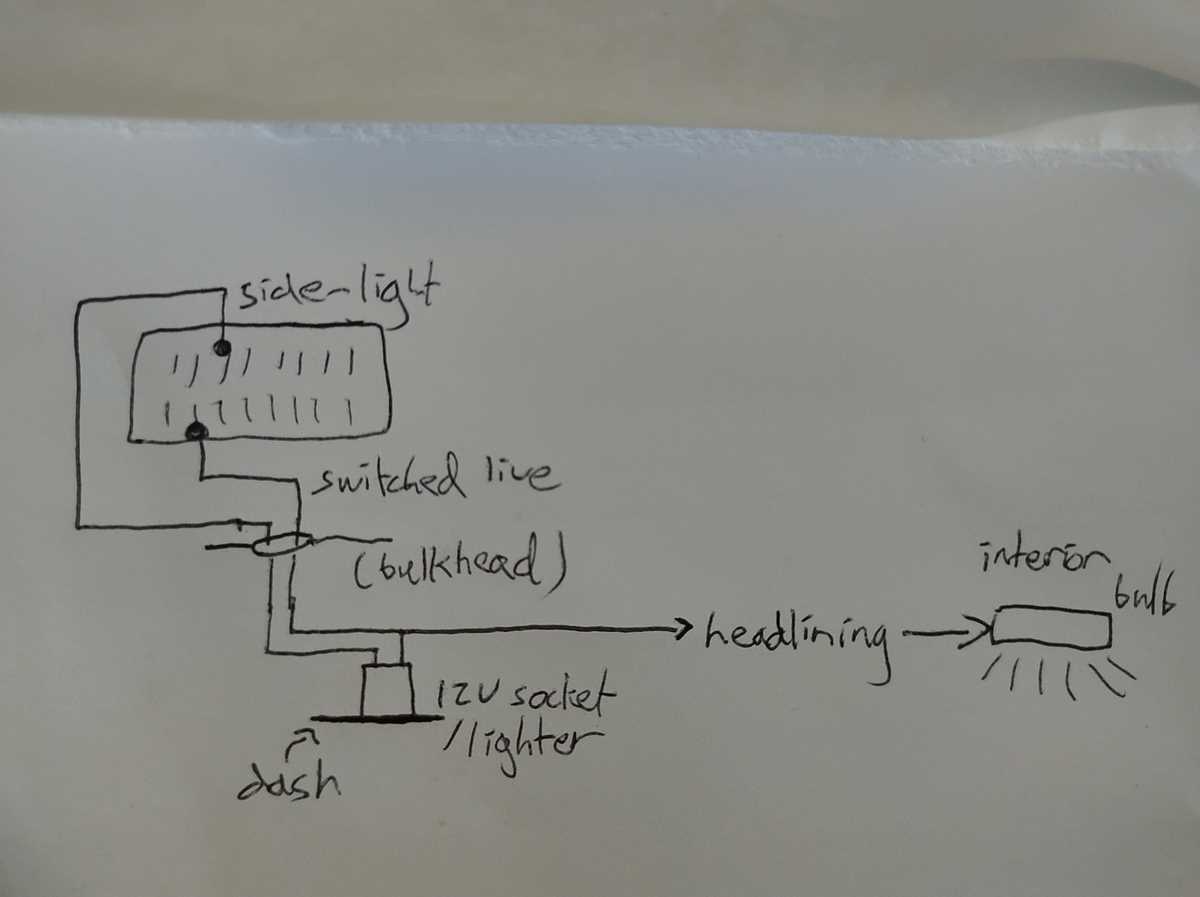

Polarity is critical–reversed connections fry circuits instantly. The socket’s center post must be positive (+), while the outer collar connects to ground (-). Test with a 12V bulb before final assembly. If retrofitting an older model, check for switched vs. constant power: switched lines (ignition-dependent) prevent battery drain but limit accessory use when the engine’s off.

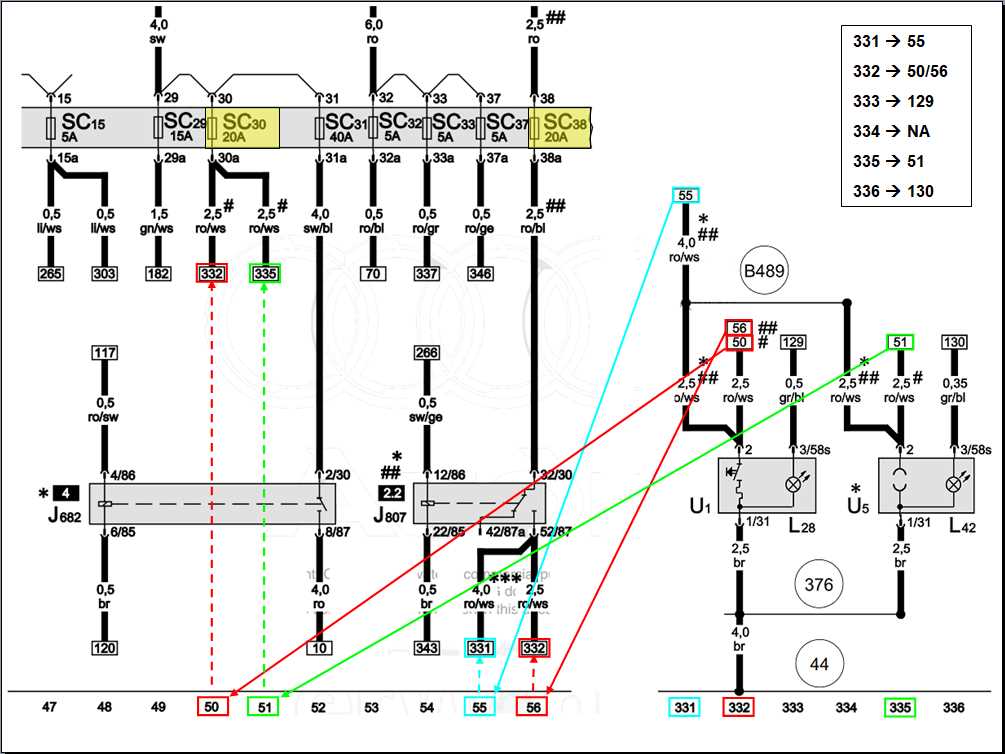

Critical note: Some vehicles integrate socket circuits with body control modules. Tampering without a wiring schematic risks disabling alarms, keyless entry, or OBD-II systems–always cross-reference fuse numbers with the manufacturer’s manual. For European models, DIN-standard sockets may require adaptor cabling to match aftermarket devices.
Essential Equipment and Supplies for Power Socket Circuit Setup
Select a 16-gauge or thicker electrical cable for the main power feed; anything thinner risks overheating under continuous 10-amp loads. For auxiliary sockets, 18-gauge wire suffices–match wire color to automotive standards (red for constant 12V, black for ground, yellow for switched inputs). Pre-terminate connectors with crimp sleeves and heat shrink tubing to prevent corrosion; solder joints are optional but add durability. A handheld multimeter with at least 200-amp DC measurement ensures accurate voltage drop testing across connections.
- Wire strippers with adjustable notches–avoid blade-style cutters that nick conductors
- Crimping tool with interchangeable dies (insulated and non-insulated terminals)
- Heat gun (not a lighter) for shrinking tubing; 1/4″ diameter tubing fits most terminals
- 60/40 rosin-core solder (if opting for soldered joints)
- Inline fuse holder (AGU or blade type) with a 15-amp fuse
- Panel-mount socket with integrated LED illumination–check for 20A contact rating
- Dielectric grease to protect terminal connections from moisture
- Zip ties (8″ durable nylon) for securing cable runs away from moving parts
For vehicles with dual-battery systems, isolate the circuit from the starter motor feed–use a relay rated for 30A continuous current if tapping into high-draw circuits. Avoid aluminum wire; copper provides superior conductivity and flex resistance. Test each connection with a load (e.g., 10W resistor) before finalizing installation to verify heat buildup and voltage stability under load.
Step-by-Step Guide to Identifying Conductors in an Automotive Power Outlet
Start by disconnecting the vehicle’s battery to prevent shorts or accidental power surges. Use a multimeter set to continuity or resistance mode to trace each conductor back to its source. The socket typically consists of three primary connections: the central pin (positive), the outer shell (ground), and a potential secondary contact for illumination or accessory circuits.

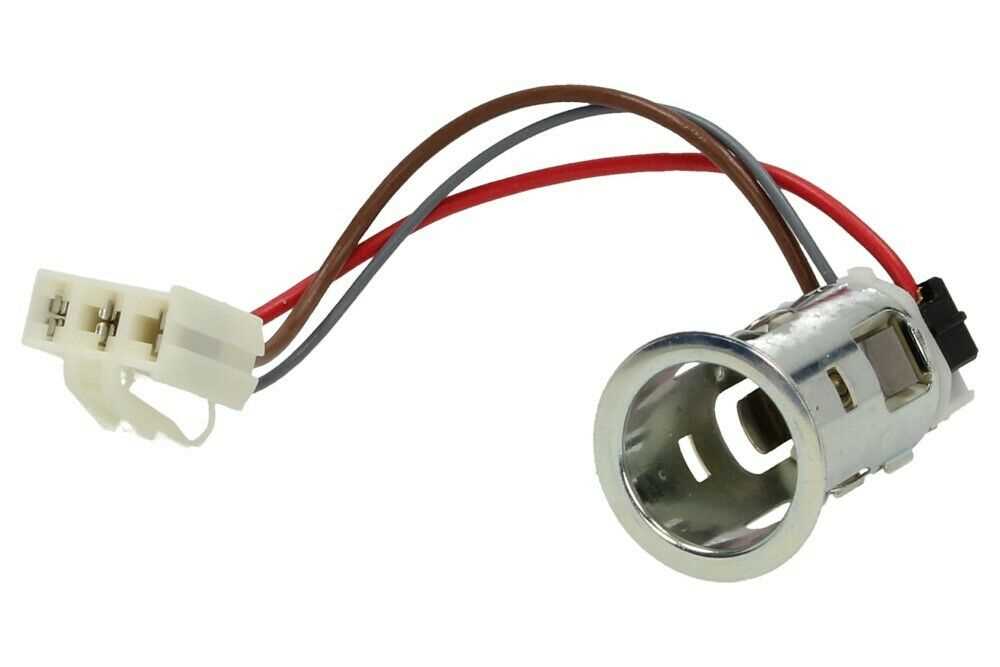

Examine the harness attached to the power outlet. Most configurations follow a standard color-coding system:
| Conductor Role | Typical Color | Voltage (Key On) |
|---|---|---|
| Positive (+) | Red, Yellow, or Orange | 12-14V |
| Ground (-) | Black or Brown | 0V |
| Illumination/Accessory | White, Gray, or Blue | Varies (0-12V) |
Probe each wire with the multimeter while the ignition is in the “accessory” or “on” position. The positive lead should register 12-14V relative to the ground. If a third wire exists, it may show dimming functionality when the headlights are activated–confirm this by toggling the lights and observing voltage changes.
Handling Non-Standard Configurations
For aftermarket or modified setups, trace wires directly to the fuse box or relay. Identify the corresponding fuse using the vehicle’s manual–most outlets share a fuse with other 12V accessories. If voltage is absent, inspect the fuse and replace it if blown. Check for inline fuses in the harness itself, particularly in custom installations.
Final Verification
Reconnect the battery and test the outlet with a known-working device, such as a phone charger. If the device powers on, the wiring is correct. If not, recheck connections for loose terminals or oxidation, which can disrupt current flow. Use dielectric grease on terminals to prevent corrosion, especially in humid or salt-prone environments.
How to Test Voltage and Polarity in a Vehicle’s Power Outlet Circuit
Set your multimeter to DC voltage (20V range) and insert the probes into the socket: red into the center pin, black onto the metal casing or side contact. A functional circuit should read 12-14.5V when the ignition is on (or engine running). Readings below 11V indicate insufficient power–check the battery, alternator, or fuse. If voltage drops under load, the wiring may have high resistance.
Key Troubleshooting Steps
- Fuse verification: Locate the fuse box (check the owner’s manual). Use a fuse tester or multimeter in continuity mode to confirm the mini-blade fuse (typically 10–20A) isn’t blown.
- Ground testing: Attach the black multimeter probe to the outer socket wall and the red probe to the vehicle’s chassis ground. Resistance should be under 0.5Ω–higher values signal corrosion or loose connections.
- Reverse polarity check: Swap the multimeter probes. A negative reading confirms correct polarity. If the reading stays positive, the wires are swapped–this will damage sensitive electronics like inverters or chargers.
For deeper diagnostics, back-probe the socket’s harness connector. With the ignition off, the key-off draw should be under 50mA. Any higher suggests a parasitic drain–disconnect accessories one by one to isolate the culprit. If voltage fluctuates while revving the engine, the alternator’s voltage regulator may be failing, requiring a bench test with a load tool.
Connecting an Auxiliary Socket to the Vehicle’s Fuse Panel
Begin by locating the fuse box under the dashboard or hood–common positions include the driver’s side footwell or near the battery. Use a multimeter to identify a live circuit with a 10A or 15A fuse that aligns with the socket’s current draw (typically 12V, 10A). Avoid high-load circuits like those for headlights or cooling systems to prevent voltage drops.
Select a fuse tap (ATC/ATO type) matching the fuse size. Insert the tap into an empty slot or remove an existing fuse, replacing it with the tap’s male connector. The tap’s second lead will serve as the power feed–ensure it’s insulated with heat-shrink tubing to prevent short circuits.
Route the tap’s wire from the fuse panel to the socket’s installation point. Use existing pathways behind trim panels or along factory harnesses to avoid pinching. Secure the wire with zip ties every 12–18 inches, but don’t overtighten–this risks cutting through the insulation over time.
Grounding the Socket Properly
Attach the socket’s ground lead to a bare metal chassis point. Scrape away paint or corrosion from the chosen spot to ensure solid conductivity. A self-tapping screw or bolt works well; tighten until the ring terminal sits flush against the metal. Avoid relying on screws holding interior panels–they may loosen under vibration.
Test the connection before final assembly. Plug in a low-wattage device (e.g., a phone charger or LED light) and verify steady voltage (12–14V) with a multimeter. If voltage fluctuates, check for loose terminals or shared circuits with intermittent loads (e.g., turn signals, wipers).
For added safety, install an inline fuse (same rating as the tapped circuit) within 7 inches of the fuse panel connection. This protects the new loop from overloads. Hide the wire behind trim or carpet to prevent it from interfering with pedals or moving parts.
Final Checks and Common Pitfalls
Reassemble the dash panels or covers carefully–misaligned clips can rattle or pinch wires. Double-check that all connectors snap securely; loose sockets or terminals cause heat buildup. If the device draws more than 10A (e.g., a portable fridge), run a separate 12-gauge wire directly to the battery with a relay to prevent fuse fatigue.
If the socket fails, inspect the fuse first. Corrosion on the ground contact or melted plastic around the terminal indicates overheating–replace the socket and reposition the ground. Never bypass the fuse; even brief shorts can ignite nearby insulation.
