Begin by locating the vehicle’s climate control module–typically found behind the dashboard near the blower motor. Trace the 12-volt power feed, usually a red or yellow wire, to confirm it connects directly to the fuse box. If voltage is absent, check the fuse (often 20-30A) and replace it before proceeding. The ground wire, typically black or brown, must secure tightly to the chassis; corrosion here disrupts system function.
Identify the three critical sensor wires: cabin temperature (thermistor), ambient air (varies by model), and evaporator temperature. The thermistor wire, often orange or white, will read between 1kΩ and 10kΩ depending on temperature. Test continuity with a multimeter–no reading indicates a broken circuit. Ambient sensor wires, usually yellow or green, connect to the control head; verify they match manufacturer specs (e.g., 2kΩ at 25°C).
Examine the compressor clutch relay: a single coil triggers the clutch when the control module sends a 12V signal. Probe the relay socket with the ignition on–expect 0V until the system activates, then a brief pulse (0.5-2 seconds) to engage the clutch. If the relay clicks but no power reaches the clutch, inspect the relay’s output pin (often terminal 87) for loose connections or burnt contacts.
For dual-zone systems, separate wiring harnesses feed the driver and passenger sides. The passenger-side blend door actuator, typically a 5-wire motor, requires precise calibration: disconnect the battery, move the actuator fully open/closed, then reconnect to reset the position. Mismatched settings will cause uneven cooling. Always cross-reference the schematic with the vehicle’s specific model year–some manufacturers reuse color codes across platforms, leading to misdiagnosis.

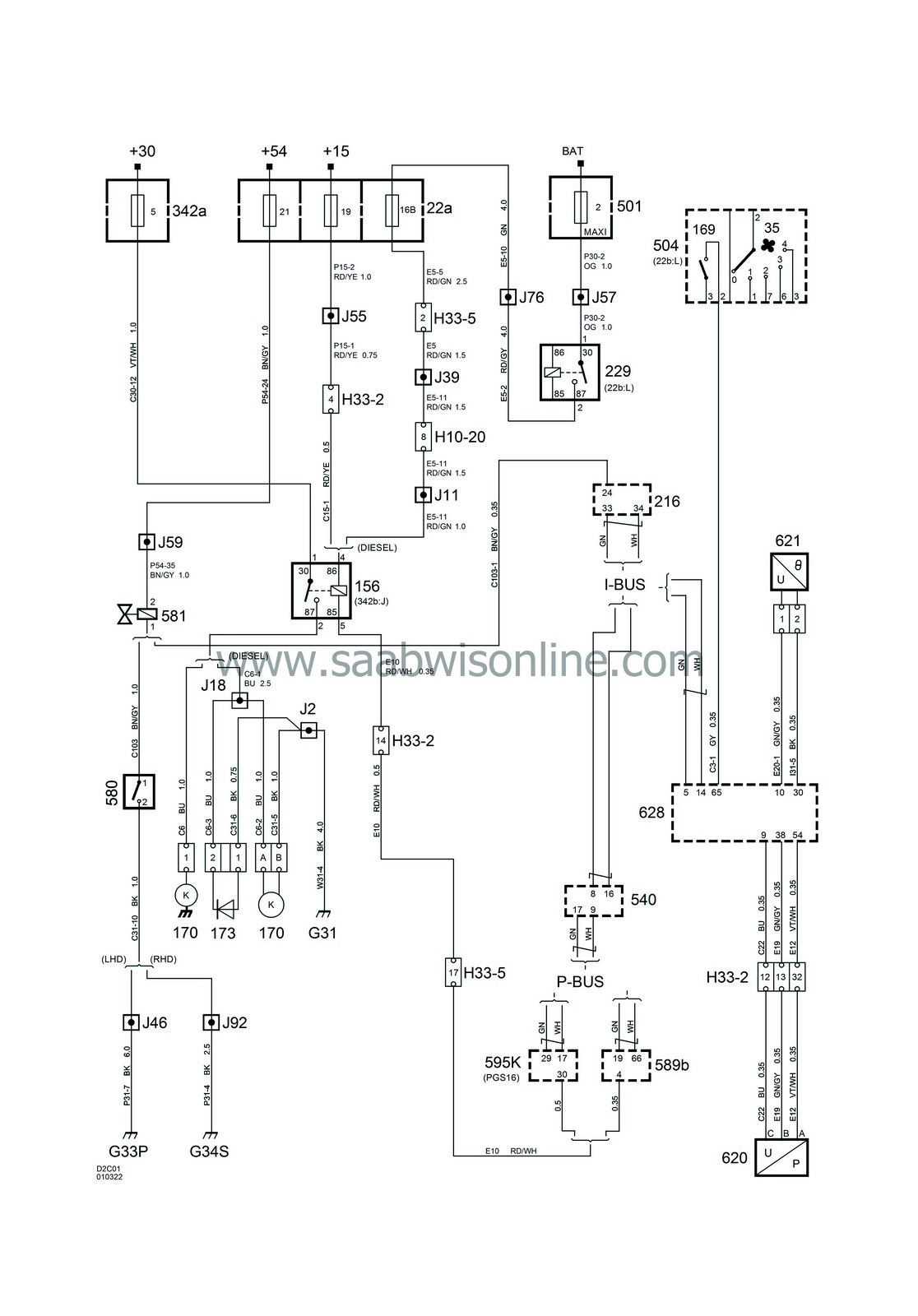

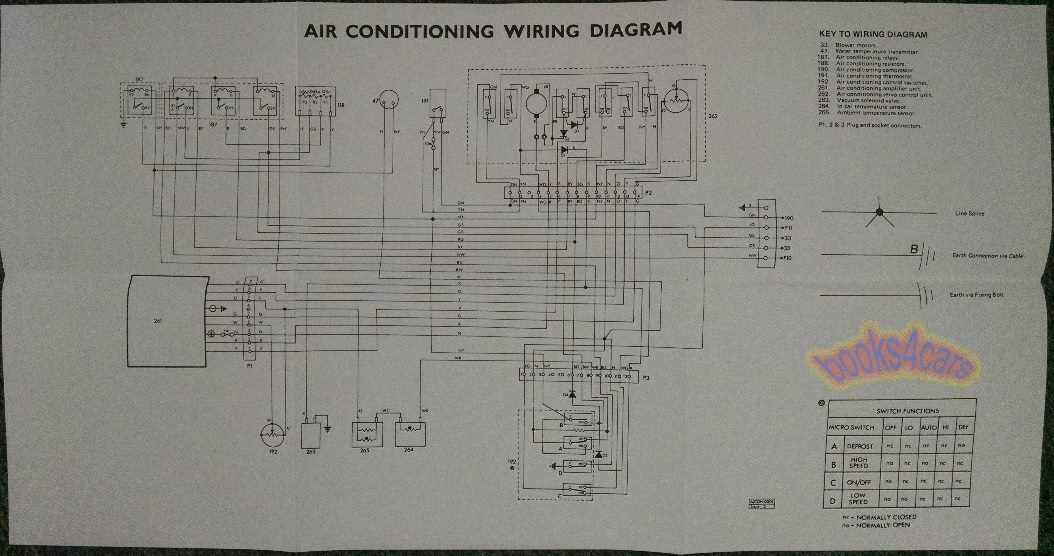

Understanding Vehicle Climate Control Electrical Schematics
Begin by identifying the compressor clutch relay–normally labeled “A/C Relay” on most OEM layouts–positioned near the fuse box or under the dashboard. Trace its 12V feed (typically red or pink) back to the ignition-switched fuse, ensuring the wire gauge matches the relay’s amperage rating (20A minimum for standard systems). Common failure points include corroded connections at the pressure switch (located on the accumulator/drier) and chafed wires near the condenser fan motor; inspect these areas first before testing voltage drops across the circuit.
Critical Circuit Components and Testing Values
| Component | Wire Color (Common) | Expected Voltage (Key ON) | Resistance Check (Ohms) |
|---|---|---|---|
| Pressure Switch (Low Side) | Dark Green/White | 11.5–12.6V | 1–3Ω (closed) |
| Evaporator Temp Sensor | Light Blue/Black | 5V reference (ECU) | 1–5kΩ (varies w/temp) |
| Compressor Clutch Coil | Black/White Ground | 0V | 3–5Ω |
Use a multimeter to verify the clutch coil’s ground path–probe the negative terminal while cycling the system; readings above 0.5V indicate a poor chassis connection. For dual-zone systems, test the blend door actuators (orange/white wires) with a scan tool actuator test; listen for smooth motor operation–grinding noises suggest internal gear wear, requiring actuator replacement.
Locating Critical Parts in Your Automobile Cooling Electrical System

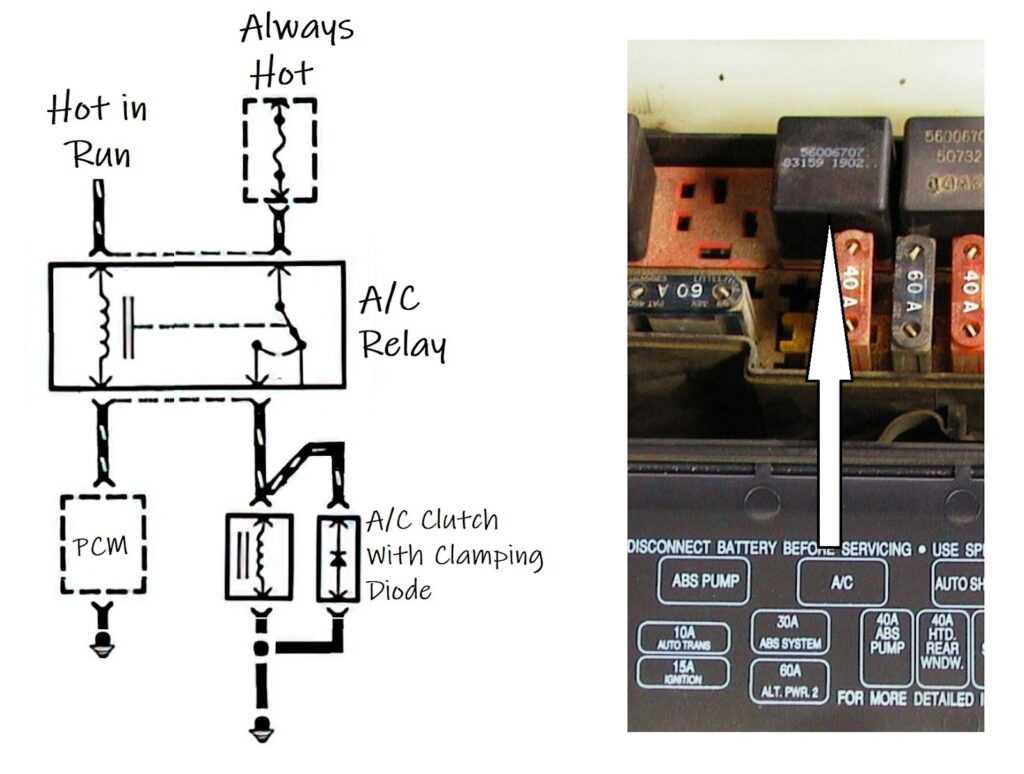

Begin by examining the compressor clutch relay beneath the dashboard or inside the fuse box. This component, often labeled “A/C clutch” or “cooling relay,” controls power delivery to the magnetic clutch. If absent, check the under-hood relay center–most vehicles position it near the battery or strut tower, secured in a plastic housing with a locking tab. Use a multimeter in continuity mode: probe terminals 85 and 86 (coil side) for a closed circuit when engaged, then verify terminals 30 and 87 (switch side) open without activation and close under 12V input.
Inspect the pressure switches next–high-pressure (typically on the condenser line) and low-pressure (located on the accumulator or orifice tube housing). The high-side switch should open around 350-400 PSI to prevent system damage, while the low-side cuts power below 25-30 PSI to protect the compressor from running dry. For precise thresholds, consult the manufacturer’s service manual; aftermarket sensors may deviate by ±15%. Test with a freon gauge set: attach to service ports, run the system, and monitor switch behavior against expected pressure ranges.
Sensor and Thermostat Connections
Trace the thermal limiter (if equipped)–a small cylindrical device embedded in the evaporator housing. Designed to fail open at -5°C to -2°C, it prevents evaporator icing. Locate the two-wire harness terminating at this sensor; backprobe with a multimeter while simulating cold conditions (use compressed air duster upside down). Voltage should drop to 0V when triggered. Corrosion at this connection often mimics sensor failure–clean terminals with electrical contact cleaner before condemning the component.
The cabin temperature sensor, commonly integrated into the climate control module or blower motor resistor pack, requires a scan tool for functional testing. Retrieve PID values for “ambient temp,” “in-car temp,” and “evap temp.” Compare readings: a delta exceeding 3°C between ambient and cabin temps suggests sensor drift. For vehicles with automatic climate control, this sensor directly influences blend door actuator behavior–erratic cooling may stem from faulty input rather than refrigerant issues.
Actuator and Safety Circuit Verification
Check the dual-pressure safety circuit wiring for chafe points near sharp edges or engine mounts. High-voltage lines (often 14-16 AWG) run from the compressor to the relay, then split to both pressure switches. Use a wiring diagram to identify color codes–typically blue (power in), dark green (ground return), and purple (switch signal). Flex wires while observing relay clicks; intermittent connections often reveal themselves through erratic cycling. Repair nicks with solder and adhesive-lined heat shrink, avoiding electrical tape which degrades under heat.
For vehicles with variable-displacement compressors, verify the control valve solenoid’s electrical path. This low-resistance coil (usually 4-8 ohms) sits on the compressor rear housing. Measure with an ohmmeter–values outside manufacturer specs (consult service info) indicate internal short or open circuit. Some systems use a PWM signal from the PCM; connect an oscilloscope to confirm a 12-15V square wave at 300-500Hz when engaged. Absence of signal suggests ECM output failure or wiring break.
- Low-refrigerant protection modules in newer models sit between the compressor clutch and low-pressure switch. These often incorporate microprocessor-driven delay relays to prevent short-cycling–test by monitoring compressor engagement timing after startup (should delay 30-45 seconds).
- Blower motor control modules in high-trim vehicles frequently include integrated cooling logic. Retrieve fault codes for “B1234” or “P0533” (evap temp sensor) before assuming motor failure–replacing the module may resolve phantom cooling issues.
- Auxiliary condenser fan circuits often share cooling system wiring–isolate by pulling the A/C fuse or relay while observing fan behavior. Persistent fan operation with A/C off indicates a short-to-power downstream of the pressure switch.
Finally, validate the fuse and relay sockets themselves. Corrosion or overheating leaves telltale discoloration around pins–replace sockets showing melted plastic or oxidized contacts. For relays, substitute with a known-good unit of identical amperage rating (typically 30-40A). Some luxury models use CAN-based climate control modules–verify CAN bus communication with a diagnostic tool before condemning electrical components, as network faults can mimic electrical failures.
Step-by-Step Guide to Mapping Vehicle Cooling System Circuits
Start by locating the climate control module under the dashboard–typically near the fuse box. Use a multimeter set to continuity mode to probe pins labeled for power, ground, and signal outputs. Reference the manufacturer’s electrical schematic to match pin numbers with component functions like the compressor clutch or blower motor relay. Incorrect pairing risks damage to sensitive modules.
Identify the 12V power feed from the battery, usually fused at 20-30 amps. Trace this line through the firewall grommet to the condenser fan and pressure switches. High-pressure cutout switches often connect inline; these open at 300-350 psi to prevent system overload. Skipping this step may lead to undetected short circuits in high-current paths.
Testing Low-Voltage Control Signals
Switch the multimeter to DC voltage and measure control signals between the ECU and cabin sensors. Expect 5V reference voltages at temperature or ambient light sensors. Deviations below 4.5V indicate wiring corrosion or poor grounding–common in older models. Clean connectors with electrical contact cleaner and recheck readings.
Follow the evaporator temperature sensor wire–typically a two-pin connector near the HVAC box. Probe the wires while cycling the ignition; sensor resistance should drop sharply as cooling activates. If readings fluctuate erratically, inspect the harness for fraying near sharp edges under the dash. Replace damaged sections with automotive-grade wire (18-20 AWG).
Verifying Actuator Feedback
Activate the compressor clutch via scan tool bi-directional controls. Listen for a distinct click from the clutch coil; no sound suggests an open circuit. Check the clutch relay outputs: pin 86 should show 12V when energized, while pin 30 feeds power to the coil. Swap relays with a known-good unit if testing confirms failure. Document each step to isolate intermittent faults later.
