Begin by verifying the electrical rating on the unit’s identification plate–typically 240V for models requiring dual-phase power. Confirm that the circuit breaker matches this specification; a 20-amp double-pole breaker is standard for most residential installations. Misalignment will result in tripped circuits or insufficient output.
Strip 5/8 inch of insulation from the conductor ends, ensuring clean cuts to prevent frayed strands. Use 12 AWG copper wire rated for at least 75°C; aluminum or undersized wires risk overheating. Secure connections with wire nuts rated for the amperage–size appropriately for three conductors when grounding is included.
Attach the bare copper ground wire to the designated terminal on the unit’s junction box. This is non-negotiable; improper grounding exposes users to shock hazards and violates electrical codes. Tighten all terminal screws to 12–15 inch-pounds of torque–over-tightening damages threads, while loose connections create resistance and heat buildup.
Label each conductor with its function (L1, L2, ground) before routing through the wall cavity. Avoid sharp bends or tight coils; maintain a minimum 3-inch radius to prevent insulation damage. Test continuity with a multimeter before energizing–240V between L1 and L2, 0V across ground and either hot wire confirms a valid setup.

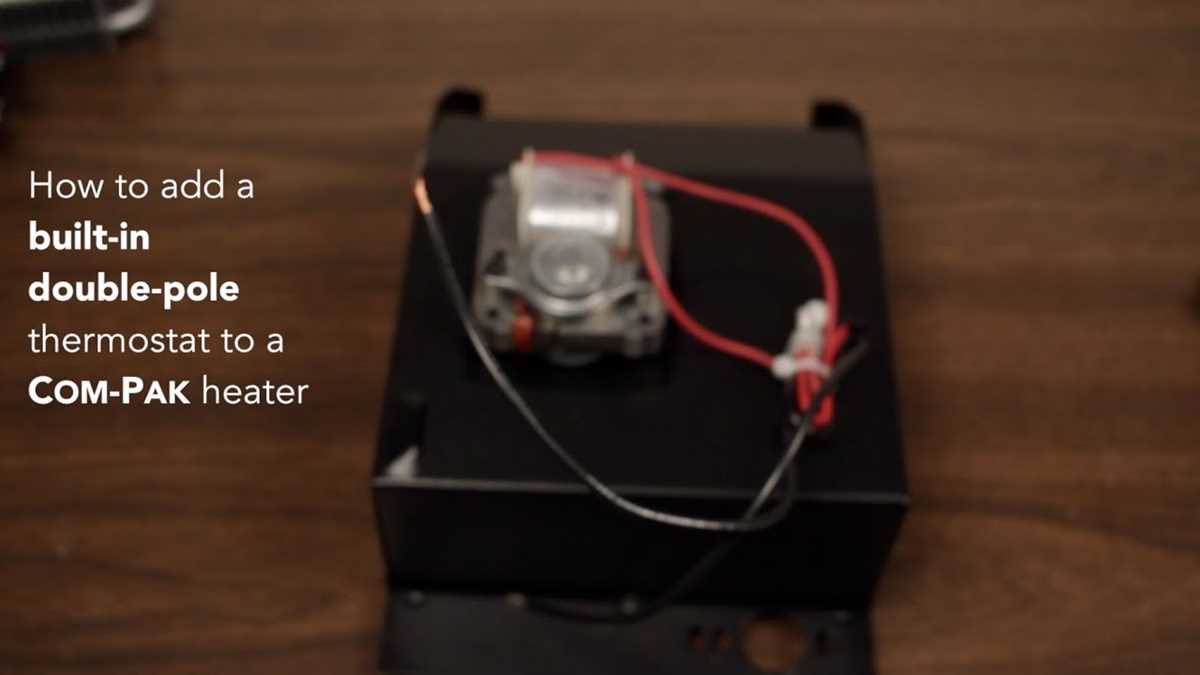

For units with built-in thermostats, connect the red control wire to the corresponding terminal on the thermostat base. Ensure polarity matches manufacturer specifications–reversed connections will render temperature controls inoperative. Recheck all fasteners after the unit’s first heating cycle; thermal expansion can loosen electrical connections.
Electrical Schematic for Baseboard Heat Source Installation
Begin by identifying the thermostat-rated conductors: a 120V model requires 14 AWG copper (minimum), while 240V mandates 12 AWG. Connect the black lead to the line terminal marked “L” and the white lead to the neutral terminal “N” for single-pole setups. For dual-voltage units, link the second black conductor to terminal “T2” and ground the green wire to the chassis screw–never omit grounding; corrosion-resistant screws are mandatory.
Label each circuit path with adhesive markers colored red (hot), blue (neutral), and yellow (ground) to prevent misrouting during maintenance. Verify compatibility with your thermal cutoff specifications: standard residential models tolerate 15-20 amp breakers; commercial units may need 30 amp time-delay fuses. If integrating a smart controller, ensure its relay contacts handle 20% above the unit’s max wattage–oversized contacts reduce arcing.
Test continuity before energizing: disconnect power, use a multimeter set to ohms, probe across L/N terminals–readings should match the thermal element’s resistance (±5%). Replace frayed insulation with 600V-rated silicone tubing; standard PVC degrades at 90°C. For outdoor mounts, seal junction boxes with dielectric grease; moisture ingress triggers false fault codes (E1 or E2 on digital panels).
Key Elements of an Electric Wall-Mounted Heating System
Begin by identifying the thermostat as the control unit governing temperature settings. Most units incorporate a bimetallic strip or electronic sensor that opens or closes the circuit in response to ambient conditions. Verify the thermostat’s voltage rating–typically 120V or 240V–before connecting it to the power source to prevent overload. If the system includes a built-in limit switch, ensure it is calibrated to cut off power at 150°F (65°C) or below to comply with UL safety standards.
Examine the heating element, usually a coiled resistance wire enclosed in a metal sheath with magnesium oxide insulation. Check for continuity using a multimeter; resistance should measure between 10Ω and 30Ω depending on wattage (e.g., 500W units read ~28Ω, 1500W ~9Ω). If resistance deviates by more than 10%, replace the element to avoid inefficient heating or fire hazards. Always de-energize the circuit before testing.
Power Supply and Safety Devices
The line voltage enters through a dedicated circuit breaker, sized per the manufacturer’s specifications–typically 20A for 2000W models. Confirm the breaker matches the unit’s voltage (120V or 240V) and wire gauge (12 AWG for 20A). A common mistake involves mixing neutral and ground wires; never combine them, as this violates NEC Article 250.70. If the system includes a GFI (Ground Fault Interrupter), test it monthly by pressing the “Test” button; it should trip the circuit instantly.
Auxiliary Components and Troubleshooting
Inspect the high-limit switch–a manual reset device triggered by overheating. Its location varies but is often near the element housing. Press the reset button firmly after cooling if tripped. For units with a fan, confirm the blower motor receives power only when the element is active; misalignment here indicates a faulty relay. Label all wires during disassembly using color-coded tags (e.g., red=hot, white=neutral, green=ground) to simplify reassembly. Replace damaged wires immediately, prioritizing stranded copper over aluminum for flexibility and corrosion resistance.
Step-by-Step Guide to Interpreting Electric Wall Unit Schematics
Locate the power source connections first–these are typically marked L1 (hot), L2/N (neutral), and G (ground). Verify the voltage rating on the schematic matches your local supply; most residential models operate at 120V or 240V, with dual-voltage units requiring jumper adjustments before installation. Use a multimeter to confirm live circuits before handling any terminal–even disconnected lines may retain residual charge.
| Symbol | Component | Function |
|---|---|---|
| Thermostat | Controls temperature cutoff at preset level | |
| ⚡ | High-limit switch | Opens circuit if internal temperature exceeds safe threshold |
| ⏚ | Ground terminal | Directs fault current away from user-accessible surfaces |
Trace element paths from left to right, noting color-coded conductors: black (primary current), red (secondary or switched), white (return path), green or bare copper (safety ground). Dual-element models split load across separate branches, each protected by a dedicated overheat sensor–match sensor placements on the schematic to physical locations inside the chassis. Test continuity across all safety devices pre-installation; a tripped high-limit switch or faulty thermostat will prevent operation despite correct input voltage.

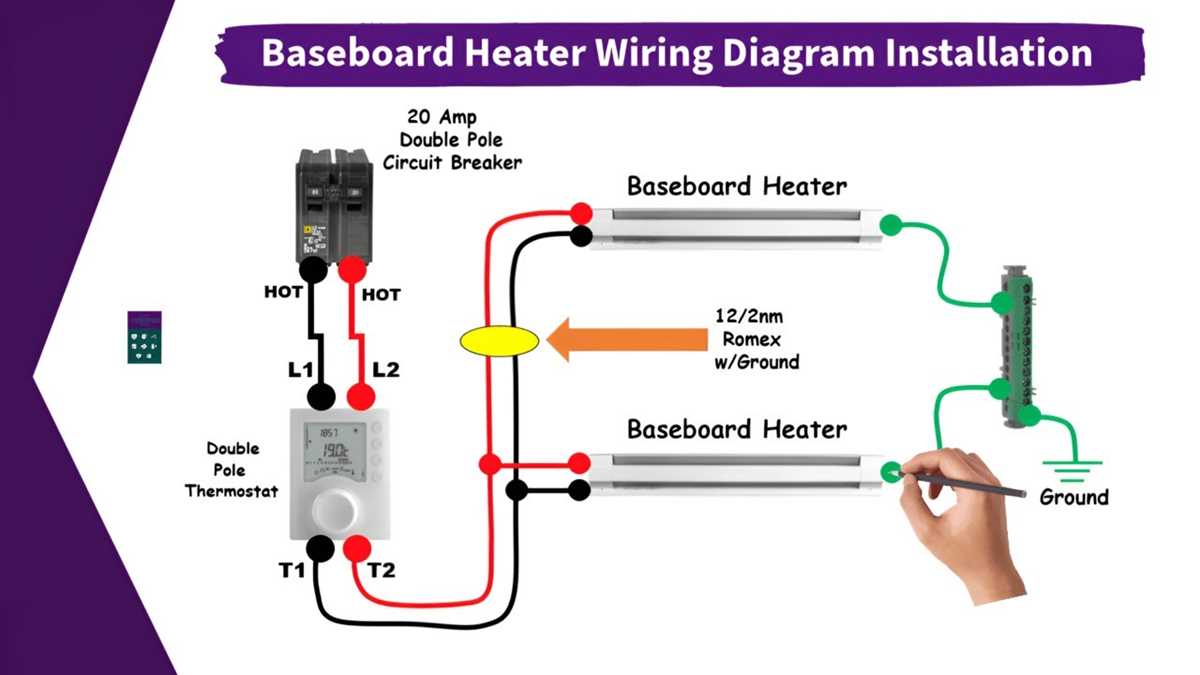

Standard Electrical Layouts for Baseboard Units Across Various Installations
For single-pole thermostat control in residential settings, connect the live feed to the thermostat’s line terminal, then run a single conductor from the load terminal to the unit’s black wire. The white wire should tie directly to the neutral bus in the service panel. Ensure the circuit breaker matches the unit’s wattage–20A for models up to 2000W, 30A for larger loads.
- Verify voltage compatibility: 120V for most compact models, 240V for high-output variants.
- Label all conductors at both ends to prevent misconnection during maintenance.
- Use 12 AWG copper wire for 20A circuits, 10 AWG for 30A.
Dual-pole thermostat configurations require two conductors between the control device and the unit. Connect one live feed to each thermostat terminal, then run separate wires to both the black and red unit terminals. The neutral remains unchanged. This setup allows full disconnection of both live legs, reducing standby power draw in multi-zone systems.

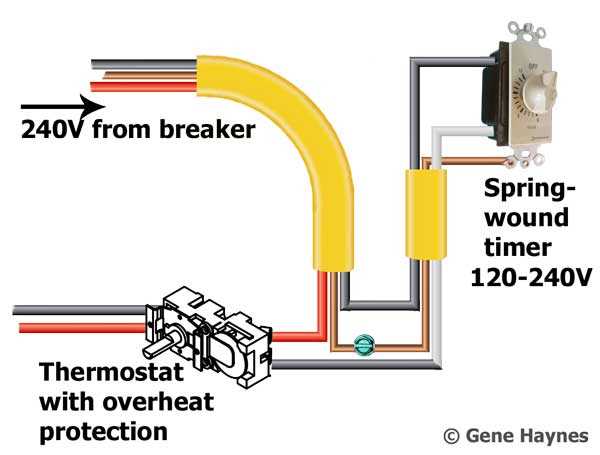

Line-voltage wall thermostats should be mounted on a dedicated junction box with built-in cable clamps. For 240V setups, ensure the thermostat is rated for the voltage–some mechanical models only support 120V. Always test continuity between thermostat terminals before energizing the circuit.
- Turn off breaker at the source before handling conductors.
- Tug lightly on connections to confirm mechanical security–loose wires cause arcing.
- Use a non-contact tester to verify de-energized state before touching bare wires.
Zoned installations benefit from relay-based control. Run low-voltage thermostat wiring (18 AWG) to a relay panel, then distribute 120/240V feeds through the relays to individual units. This approach simplifies troubleshooting and reduces high-voltage wiring at each thermostat location. Relays must be rated for inductive loads to handle the initial inrush current.
Ground-fault protection is critical near water sources. Install a GFCI breaker for circuits serving units in bathrooms, basements, or outdoor enclosures. For non-GFCI circuits, bond the metal enclosure to the ground bus using green or bare copper wire, no smaller than 12 AWG. Test GFCI devices monthly using the integrated test button.
Multi-unit sequences in large spaces demand load balancing. Distribute units across multiple circuits to avoid overloading a single breaker. For example, three 2000W units on a 20A circuit at 120V will trip the breaker–split them into two circuits instead. Use a clamp meter to measure actual draw under load, not just calculated values.
Emergency disconnects must be accessible within 3 feet of the unit. Install a fused disconnect switch or dedicated breaker for each circuit. In commercial settings, comply with local codes requiring lockable disconnects. Always verify the disconnect interrupts all ungrounded conductors–some cheap toggle switches only break one leg.
Resolving Electrical Faults in Wall-Mounted Climate Units via Schematic
First, verify the terminal block connections align with the manufacturer’s color-coding. Black (L1) and red (L2) conductors must secure to their designated screws–swap or loose contacts trigger thermal overloads or intermittent operation. Trace each lead from the thermostat back to the power source, ensuring no wire nicks expose copper. Use a multimeter set to continuity mode: probe the disconnected leads–zero ohms confirms intact circuits; infinite resistance indicates breaks requiring splice repair or replacement of the affected segment.
If the unit cycles but fails to reach target temperature, inspect the limit switch. Locate the bimetallic disc behind the grille; test with a paperclip bypass–momentary bridge should restore normal function. Persistent failure demands disc replacement. For silent units despite power confirmation, check the thermistor: disconnect, measure resistance–values between 8–12 kΩ at 70°F validate functionality; outliers suggest defect. Replace the component if readings stray ±2 kΩ.
Burn marks or acrid odors near the control panel signal overheated resistors or shorted capacitors. Disconnect the main breaker before probing. With a non-contact voltage tester, confirm zero load at all terminals. Remove the panel; visually scan for discolored solder joints or swollen components. Reflow questionable joints with a soldering iron; replace any bulging or leaking capacitors–typically rated 50V/100μF. Reassemble only after all traces of scorching are cleaned with isopropyl alcohol and a brush.
Ground faults often manifest as erratic behavior or mild shocks. Using an insulation tester, apply 500V DC between the ground screw and neutral bus–readings below 1 MΩ require immediate correction. Strip back insulation at suspected fault points, wrap with liquid electrical tape, and re-secure with crimp connectors. For persistent issues, reroute the entire lead bundle, avoiding sharp metal edges that may compromise the jacket over time.
