Place the piezoelectric sound emitter at the output stage of any low-power signaling system, ensuring it connects directly to a microcontroller’s GPIO pin or a dedicated driver IC. Use a 220Ω resistor in series with a 5V supply to limit current and prevent overheating–this extends operational life by 30% without sacrificing volume. For 3.3V systems, omit the resistor entirely; the lower voltage inherently protects the component from thermal stress. Always orient the device with the positive terminal toward the control signal to match polarity markings on most standard models.

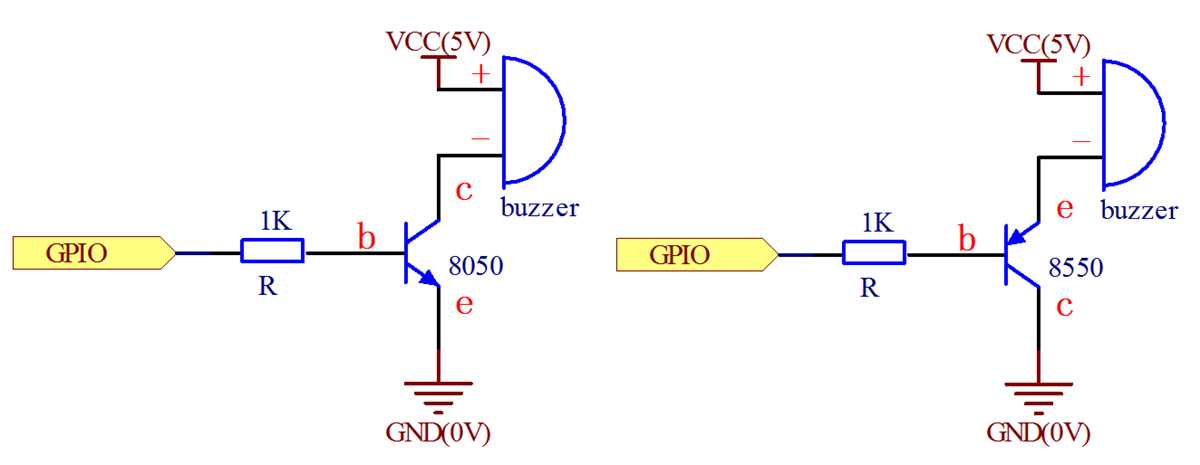

Select a transistor or MOSFET switch if driving the emitter above 10mA, particularly for continuous tones exceeding 500ms. A common 2N3904 NPN transistor handles up to 200mA, sufficient for most 8Ω-32Ω emitters. Wire the base through a 1kΩ resistor to the microcontroller, the collector to the emitter’s positive lead, and the emitter to ground. This topology isolates the control signal from high-current draw, preventing brownouts on shared power rails.
Label the emitter in schematics with a clear notation–“ALARM” or “BEEP”–and position it near the associated control logic. Avoid clustering it with capacitors or inductors; stray reactive components can create parasitic oscillations, distorting the intended 2-5kHz square wave. For frequency-critical applications, pair the emitter with a 555 timer IC or a dedicated PWM peripheral on the microcontroller to generate precise 1kHz-4kHz signals, the range where human hearing is most sensitive.
Power the emitter from a stable, noise-free source. Linear regulators outperform switching regulators here; even minor ripple degrades tone clarity. If battery-operated, opt for a 3.0V lithium coin cell over alkaline–its flat discharge curve maintains consistent volume until depletion. Include a flyback diode (1N4007) across the emitter if driven by an inductive load; sudden disconnection generates voltage spikes that can exceed 50V, damaging adjacent components.
Test the emitter’s sound pressure level (SPL) before finalizing board placement. Most miniature piezoelectric devices produce 85-95dB at 10cm–sufficient for desk alarms but inadequate for noisy environments. For louder outputs, switch to an electromagnetic type with a resonant chamber, which delivers 105dB+ at the cost of higher current draw (20-50mA). Verify the specified frequency matches application needs; some emitters peak at 4kHz, ideal for smoke detectors, while others favor 2.5kHz, better for medical alerts.
Integrating Audible Alerts in Schematic Layouts

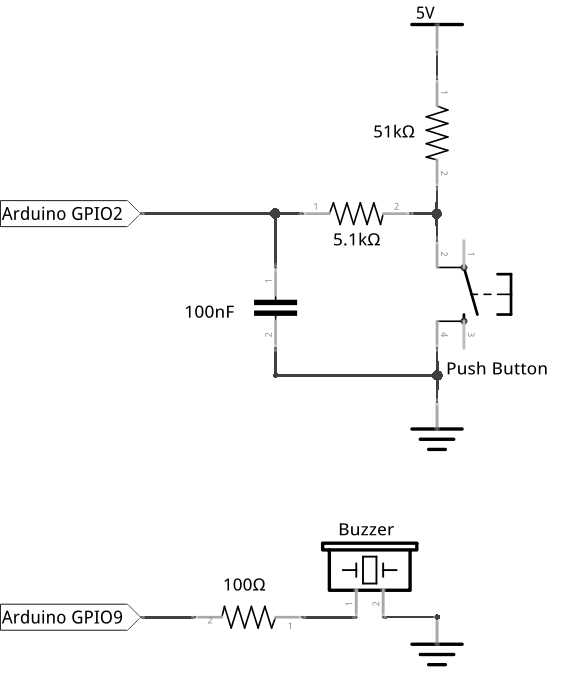

Place the piezoelectric tone emitter between the microcontroller’s PWM output and ground, ensuring current-limiting resistance. A 100–220 ohm resistor prevents excessive draw that distorts sound or damages terminals. Verify polarity on polarized variants–positive to signal source, negative to common return. For non-polarized types, orientation is irrelevant but consistent wiring within the board reduces debugging time.
- Use a flyback diode across terminals when driving via transistor to absorb voltage spikes during deactivation.
- Avoid mounting near high-frequency switching components, harmonics can mix into audible output.
- Test with 50% duty-cycle square wave at resonant frequency (typically 2–4 kHz for standard units) for maximum volume without clipping.
- If prolonged tone risks overheating, interleave bursts of 100 ms duration with equal silence periods.
- Colors: red/black wires for polarized, two black wires for non-polarized–match board footprint to avoid reversed connections.
- For battery-powered designs, add a 1 µF capacitor between emitter leads to smooth transients and extend coin-cell lifespan.
Locating Acoustic Alert Indicators in Electrical Blueprints
Start by scanning printed plans for a circular outline measuring 7–10 mm in diameter – the standard depiction of an electroacoustic signal generator. This circular mark typically contains two perpendicular lines intersecting its center: a vertical line for the driving coil and a horizontal baseline indicating the piezoelectric disc or moving armature.
Examine any accompanying arrows or slash marks within the circle. A single diagonal slash identifies a passive element, while double slashes denote a self-oscillating type. Three vertical lines stacked inside the circle signal a magnetic transducer variant, often found in automotive warning systems.
| Graphic Marker | Component Variant | Typical Voltage Range |
|---|---|---|
| Single diagonal slash | Passive piezo | 3–24 V |
| Double slashes | Active piezo oscillator | 5–12 V |
| Three vertical bars | Electromagnetic coil | 6–48 V |
Pinpoint labels adjacent to the circle; these usually consist of paired designators–commonly “BZ” followed by a sequential number (BZ1, BZ2). In older industrial schematics, you may encounter “LS” (loudspeaker), though this notation now specifically excludes dynamic cones. Verify the presence of a ground connection: passive models require a return path, whereas active units integrate their own.
Contrast the circular depiction against nearby symbols. Rectangular outlines with wavy internal lines represent speakers, while zigzag shapes denote resistive loads like resistors. An adjacent transistor or IC suggests an integrated driver stage, confirming the circular symbol’s function as a sonic emitter.
Trace outgoing lines from the circle–these terminate at either power rails, logic outputs, or microcontroller ports. A direct connection to a battery symbol indicates continuous operation; conversely, links to switch contacts or relay coils imply user-triggered activation.
Annotate polarity where relevant: the positive terminal is conventionally marked by a “+” sign or designated pad number, essential during prototyping to prevent reverse voltage damage to sensitive piezo layers.

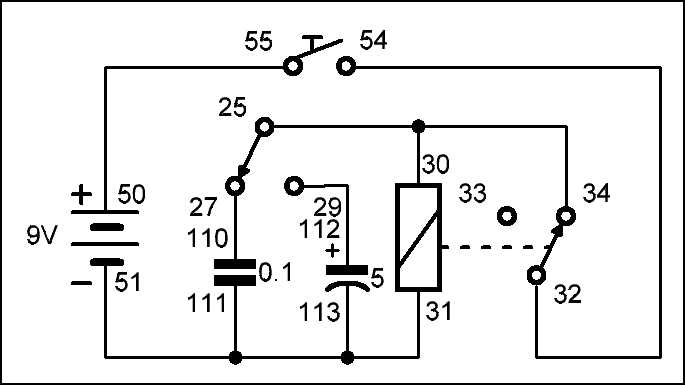

Connecting an Acoustic Signal Device to a Basic Electrical Setup
Prepare a 5V power source, a 220Ω resistor, and a piezoelectric tone generator. Position the resistor in series with the signal component to limit current–this prevents overheating. Connect the positive lead of the tone emitter to the resistor’s free end, then attach the resistor’s opposite terminal to the power supply’s positive rail. Ground the emitter’s negative lead directly to the supply’s negative terminal. Verify polarity: reversing connections may mute or damage the device. For active emitters (3–28V), omit the resistor and wire directly to the voltage source matching the emitter’s specifications.
Test functionality by applying power. A faint click or continuous tone confirms correct assembly. If silent, check solder joints, loose wires, or reversed polarity. Adjust frequency output by replacing the fixed resistor with a 10kΩ potentiometer wired as a voltage divider, allowing tone pitch modulation between 1kHz and 4kHz. Use a multimeter to measure voltage across the emitter–expect ~3V for passive types, full supply voltage for active variants.
Selecting the Right Acoustic Alert for Your Electronics Build
Opt for a self-driven sound emitter if your design prioritizes simplicity and immediate signal generation. These components integrate their own oscillator, requiring only a DC supply–typically 3V to 24V–to produce a fixed-frequency tone. Ideal for applications where consistent pitch and volume suffice, such as basic alarms, confirmation beeps, or low-power devices. Their compact SMD versions (e.g., 5×5 mm) fit tight PCB layouts without external parts.
For adjustable frequency or tone variation, a transducer without built-in drive logic is the only viable choice. These demand an external square-wave signal–often between 500 Hz and 5 kHz–generated by a microcontroller, timer IC (e.g., 555), or dedicated PWM module. While this adds design complexity, it enables precise control over acoustic patterns, including multi-tone melodies, Morse code, or volume modulation via duty cycle adjustment.
- Current draw: Self-contained units consume 10–60 mA (e.g., 25 mA at 12V for KY-006); externally-driven types draw
- Sound pressure level (SPL): Typical self-driven emitters peak at 85 dB (measured at 10 cm); externally-driven versions reach 95 dB with 5Vpp input but require impedance matching (commonly 16–50 Ω).
- Frequency response: Self-driven types operate at a single frequency (±5%), e.g., 2.3 kHz or 4 kHz; externally-driven units offer flat response from 20 Hz to 20 kHz, limited only by driver capabilities and component resonance (check manufacturer specs for optimal range).
Match the alert’s voltage rating to your system to avoid damage or weak performance. Self-driven models list both minimum startup voltage (e.g., 3V) and maximum continuous voltage (e.g., 24V). Exceeding this risks thermal failure; undervolting produces inaudible output. Externally-driven transducers tolerate wider voltage swings (e.g., 1V to 30V) but require signal amplitude matching–standard microcontroller GPIO (3.3V/5V) suffices for most, though amplification may be needed for 12V+ systems.
- Schematic footprint: Self-driven types need only a series resistor (if voltage exceeds rating) and flyback diode (for DC); externally-driven versions add a signal source (e.g., MCU timer output) and often a transistor or MOSFET for switching currents >20 mA.
- PCB placement: Mount both variants >5 mm from edges to reduce parasitic capacitance; externally-driven units benefit from a ground plane beneath to minimize EMI.
- Polarity: Self-driven emitters are polarity-sensitive (longer lead = positive); externally-driven types are typically non-polarized but verify datasheets–some piezoelectric versions specify orientation for peak SPL.
Self-driven emitters excel in cost-critical or high-volume applications where fixed output is acceptable. Prices range from $0.10 to $0.50 per unit (e.g., CUI CFM-2065S-120 at $0.23 for 1k+ volumes). Externally-driven transducers start at $0.30 but can drop below $0.15 for bulk piezoelectric disks (e.g., Murata PKM13EPYH4000-A0 for $0.12 in 10k quantities). Factor in additional components (MCU, driver IC) when comparing total bill-of-materials.
Evaluate the acoustic environment’s noise floor. Self-driven emitters struggle in settings above 70 dB ambient SPL (e.g., factory floors, crowded public spaces) due to their moderate output. Externally-driven transducers, paired with a single-transistor amplifier (
Prioritize EMI compliance based on regulatory requirements. Self-driven emitters generate minimal RF noise, qualifying for unshielded consumer electronics (FCC Part 15 Class B). Externally-driven versions, especially when driven at >5 kHz or with steep PWM edges, may require ferrite beads (e.g., Murata BLM18HE152SN1 for $0.05) in series or a low-pass filter (RC
