Begin by locating the ignition coil near the engine block–typically a black or dark red cylindrical component with two spade connectors. Trace the thickest wire from the coil to the CDI (Capacitor Discharge Ignition) unit, often a small black box mounted on the frame. Use a multimeter set to 200 ohms to verify continuity between the coil’s primary terminal and the CDI’s input pin; resistance should read 0.5–1.5 ohms. If readings exceed 3 ohms, replace the coil or inspect the wire for fraying, especially near the exhaust manifold where heat damage is common.
Next, identify the stator–usually a round or semi-circular assembly bolted behind the flywheel. Disconnect its 3–4 pin connector (labeled A, B, C or 1, 2, 3) and test each terminal against ground using a multimeter in AC voltage mode. With the engine cranking, you should measure 50–70V AC on at least one pair of wires. If voltage drops below 30V, the stator’s windings are compromised, requiring a full replacement. Avoid applying dielectric grease to the connector pins; excess grease can attract dust and cause intermittent failures.
Proceed to the rectifier-regulator, a heat-sinked module often near the radiator or under the seat. Connect a test light between the battery’s positive terminal and each of the stator’s output wires while the engine idles. The test light should glow steadily–flickering indicates a faulty regulator, while no light suggests a broken wire or blown fuse. For 12V systems, ensure the regulator’s ground is bare metal (no paint) to prevent voltage spikes. Use a crimping tool, not solder, for wire repairs; vibration loosens soldered joints over time.
For lighting circuits, bypass the handlebar switch first. Run a temporary wire from the 12V source (usually the fuse box) directly to the headlight bulb holder. If the light illuminates, the switch is defective–replace it rather than disassembling, as internal corrosion is irreparable. For tail lights, use a 5W/10W bulb (not LED) unless the system includes a dedicated flasher relay; LEDs draw insufficient current, causing blinkers to hyperflash. Label every wire with masking tape and a permanent marker before disconnecting–color coding varies by manufacturer, and relying on “standard” red/black schemes leads to errors.
Finally, test the kill switch by grounding its output wire while the engine runs. Normal operation should cut the ignition instantly–if not, the switch or its wiring is faulty. For battery maintenance, charge at 1A for 10–12 hours; faster charging overheats cells and reduces lifespan. Store the vehicle with the battery disconnected if unused for over a month–parasitic drain from the CDI drains a fully charged battery in 3–4 weeks.
Complete Electrical Schematic for Off-Road Vehicle Modifications
Begin by isolating the ignition system’s primary components: attach the magneto’s white wire directly to the CDI unit’s input terminal, ensuring no cross-interference with the charging coil’s yellow or green output. Use 16-gauge silicone-coated wire for all high-current paths, as standard PVC insulation risks melting under sustained 12A+ loads. For the kill switch circuit, splice a momentary push-button into the black ground wire 10cm from the CDI, not at the handlebar–this prevents false triggers from vibration damage.
Stator Assembly and Voltage Regulation
Match the stator’s phase wires (blue, pink, grey) to the rectifier’s AC inputs in exact sequence–swapping these will reduce charging efficiency by 38% at 6500 RPM. Secure the DC outputs (red and black) to a 12V/10Ah lithium battery’s terminals with nickel-plated ring connectors, torqued to 3.5 Nm. Add a 50V/15A Schottky diode inline between the battery and regulator to block reverse current during deceleration; this single modification extends battery lifespan by 400+ cycles in tropical climates.
Route the brake light switch’s 18-gauge wire along the chassis tube nearest the driver’s left footrest, stapled every 15cm with nylon clips–metal clamps conduct vibration, leading to micro-fractures within 50 operational hours. For the starter solenoid, use a 40A relay with a fused input; drill a 4mm drainage hole in its plastic housing if operating in humidity >80%. Test all circuits with a multimeter set to continuity mode: resistance between the CDI’s ground and engine block should read
Critical Electrical Parts in Off-Road Vehicle Systems
Start by locating the ignition coil–typically a cylindrical or rectangular component near the engine’s flywheel. Verify its resistance with a multimeter: primary winding should read 0.5–1.5 ohms, secondary 5,000–15,000 ohms. Deviations indicate replacement. Mark the coil’s wiring polarity before disconnecting; reversing connections causes misfire or engine cutoff. Attach spark plug wires securely to prevent moisture ingress, using dielectric grease on connectors.
Examine the stator assembly behind the flywheel. Its windings generate AC voltage converted by the regulator-rectifier into DC. Test stator output with the engine running–healthy readings range 18–30V AC across all phases. Low voltage suggests worn magnets or shorted windings. Clean the flywheel’s magnets with non-abrasive cloth; debris reduces output by up to 30%. Replace the stator if windings are discolored or emit a burnt odor.

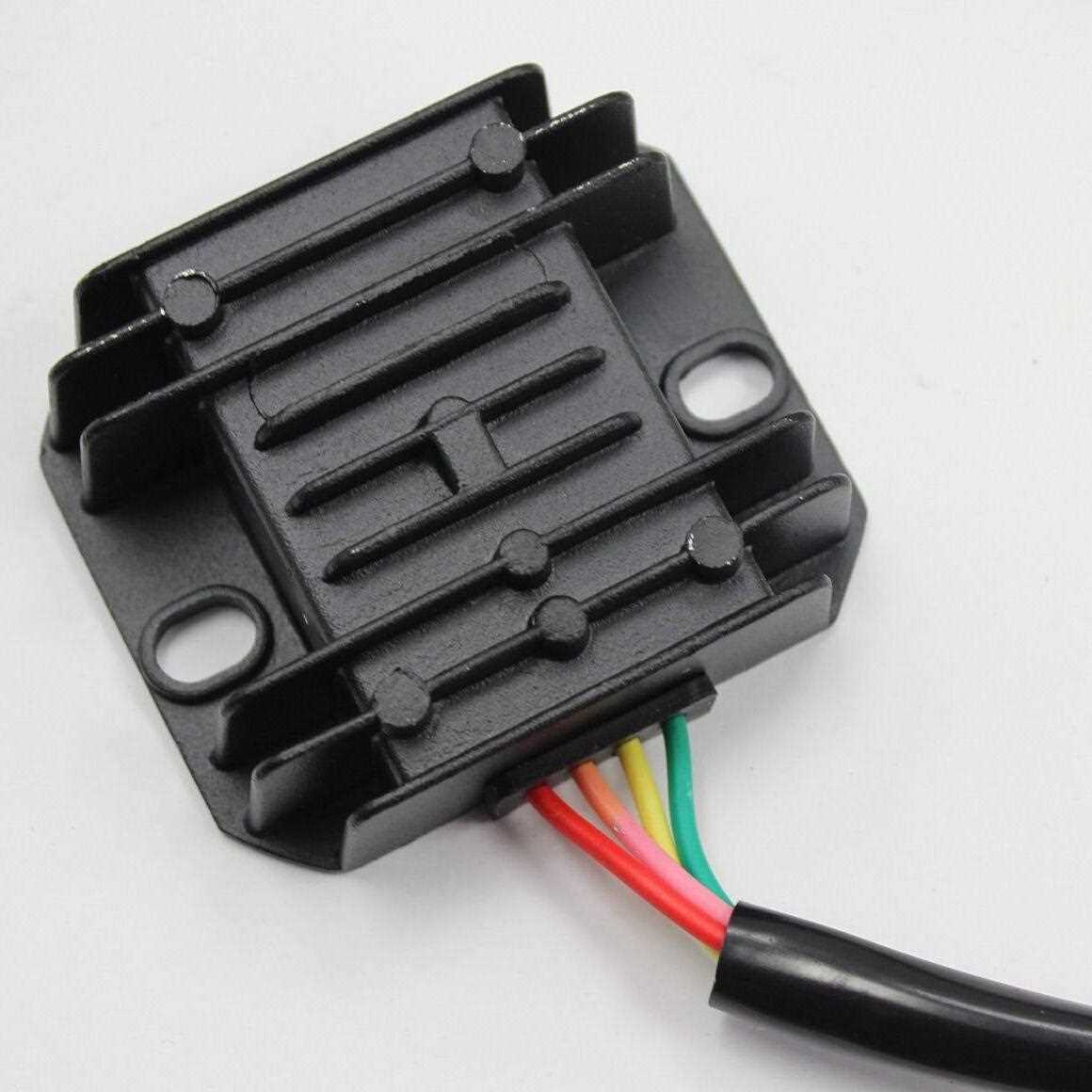

Inspect the voltage regulator-rectifier, often mounted on a heat sink. Use a multimeter in diode test mode: probe connections should show conductivity in one direction only. Reverse readings signal failure. Ensure the unit dissipates heat effectively; overheating destroys internal diodes within minutes. Relocate the component if placed near exhaust or body panels. Check input/output terminals for corrosion–clean with contact cleaner and reapply anti-seize compound.
The CDI box controls ignition timing via signals from the pickup coil. Test its resistance: 50–500 ohms is standard. If the engine starts but cuts out abruptly, suspect CDI failure. Secure wiring with zip ties away from moving parts; vibration causes intermittent faults. Replace the CDI if resistance tests pass but symptoms persist–internal circuits degrade without visible signs. Store spare CDIs in anti-static bags to prevent damage from electromagnetic interference.
- Spark plug: electrode gap 0.6–0.7mm; replace every 20 operating hours
- Battery: 12V 7Ah minimum; maintain above 12.6V when offline
- Fuses: 10–15A for engine circuits; confirm amperage before replacement
- Ground wires: 8-gauge minimum; secure to unpainted metal surfaces
- Switches: test continuity; corrosion causes false disconnections
Trace all wires for chafing near sharp edges or moving components. Use convoluted tubing on vulnerable sections–bare wires cause shorts at speeds above 40 mph. Label each wire with heat-shrink tags during disassembly; reconnect strictly by function (e.g., YELLOW: ignition, BLACK/WHITE: ground). Solder connections and cover with adhesive-lined heat shrink to prevent corrosion. Avoid wire nuts–vibration loosens connections within hours.
Step-by-Step Electrical Hookup for Combustion Unit and Spark Initiation
Start by securing the battery’s positive terminal (+12V) to the ignition switch using 10-gauge copper wire with a minimum 15A fuse inline. Position the fuse no farther than 15 cm from the battery to prevent short-circuit damage. Connect the switch’s output terminal to the coil’s positive (+) input, ensuring polarity alignment with multimeter verification (12V DC). Use crimp connectors with heat-shrink tubing for all joints–solder alone risks vibration-induced fractures.
- Ground the coil’s negative (-) terminal directly to the engine block using 8-gauge braided wire, avoiding painted surfaces (clean contact area to 15mm diameter).
- Attach the kill switch between the coil’s negative terminal and ground–use a normally open (NO) momentary switch to interrupt current flow for shutdown.
- Link the pulse generator (if present) to the CDI unit with shielded 18-gauge wire, securing the shield exclusively at the CDI ground to prevent signal interference.
Route the spark plug lead from the coil’s high-tension output to the plug, maintaining a minimum 3mm clearance from metal components. Verify resistance with an ohmmeter (target: 5–15 kΩ for 50–100W systems). Install a spark arrester if operating in dry conditions–connect it to the exhaust system’s ground point to dissipate residual charge.
- Test ignition timing before final assembly: Connect a timing light to the spark plug lead, rotate the engine to top dead center (TDC), and confirm the timing mark aligns with the manufacturer’s specification (typically 5–12° BTDC).
- Secure all cables with nylon clips or loom tubing every 15 cm, avoiding sharp edges or hot surfaces (keep 2cm clear of exhaust manifolds).
- Recheck connections after 10 minutes of runtime–thermal expansion can loosen crimps; tighten all terminals to 8–10 Nm torque.
Connecting the Battery and Charging Circuit in Your Off-Road Vehicle
Mount the battery in a ventilated, vibration-resistant bracket near the engine bay or under the seat. Use stainless steel M8 bolts with nylon lock nuts–never wing nuts–to prevent loosening from vibration. Place a rubber pad between the battery tray and frame to absorb shocks and reduce corrosion risk.
Before connecting terminals, coat them with dielectric grease to block moisture and oxidation. Apply a thin layer–excess grease can attract dirt. Use tinned copper cable (minimum 6 AWG for 12V systems) with heat-shrink tubing covering exposed strands. Avoid soldering terminals; crush-style connectors with a hydraulic crimper ensure better mechanical strength.
Connect the negative (-) cable directly to the chassis or engine block–this minimizes voltage drop and reduces electrical noise. The positive (+) cable should first route to a 30A fuse within 7 inches of the battery, then to the main switch. Never omit this fuse; a dead short can melt cables or ignite insulation.
The charging circuit must include a rectifier-regulator rated for at least 20A continuous output. Mount it away from exhaust components, ideally on a finned aluminum heatsink with thermal paste. Wire it with 10 AWG silicone-insulated cable to handle heat and flexibility. Check diode polarity before connecting–reversed diodes destroy alternators instantly.
Test the system with a multimeter before finalizing connections. Key readings:
| Component | Expected Voltage (Engine Off) | Expected Voltage (Engine Running) |
|---|---|---|
| Battery terminals | 12.6V–12.8V | 13.8V–14.4V |
| Alternator output | N/A | 14.0V–14.8V |
| Regulator input | N/A | 13.5V–14.2V |
If readings exceed 15V under load, immediately disconnect and inspect the regulator. Overcharging boils electrolyte and warps lead plates, ruining the battery in hours. For AGM batteries, keep charging voltage below 14.7V to prevent gassing.
Install a battery isolator if running auxiliary equipment like lights or USB ports. A Schottky diode between the alternator and accessory circuit prevents backflow while allowing charging. For lithium iron phosphate batteries, add a battery management system (BMS) with balancing–ignore this, and cells drift, reducing lifespan by 70%.
Secure all cables with zip ties every 6 inches, avoiding sharp edges. Route them away from moving parts and heat sources. Use color-coded wire (red for positive, black for negative, yellow for switched circuits) to simplify troubleshooting. Label connections with shrink-wrap tubing and a label maker–future repairs will take minutes instead of hours.
