For projects requiring stable output voltages despite fluctuating input levels–such as battery-powered systems, solar chargers, or motor controllers–use a four-switch topology with an inductor as the energy storage element. This configuration allows seamless transitions between step-up and step-down modes without switching between separate stages. Ensure the inductor’s saturation current exceeds the peak operating current by at least 20% to prevent efficiency drop under load. For example, a 22µH coil rated for 3A continuous current suffices for a 12V-to-5V conversion at 2A output.
Select MOSFETs with low RDS(on) (below 50mΩ) and fast switching speeds (under 50ns) to minimize conduction and switching losses. Pair them with a gate driver capable of 10V-12V output to ensure full enhancement. For synchronous designs, integrate dead-time control (typically 20-50ns) to prevent shoot-through, which degrades performance by up to 15% in high-frequency applications. Use Schottky diodes as backup for asynchronous operation if cost constraints rule out MOSFETs.
Pulse-width modulation (PWM) frequency directly impacts component sizing: 100kHz allows smaller inductor and capacitor values but increases switching losses, while 50kHz reduces noise at the cost of bulkier passive components. For a 10W design, a 70kHz PWM yields optimal balance. Always include a 100nF ceramic capacitor close to the controller’s power pin to suppress high-frequency noise, which can cause erratic behavior in feedback loops. Feedback resistors should divide output voltage within the controller’s 0.8V-1.2V reference range, with values between 10kΩ and 100kΩ to avoid loading effects.
Thermal management is non-negotiable: estimate power dissipation (Pdiss = Irms² × RDS(on)) and attach a heatsink if dissipation exceeds 0.5W per device. For example, a MOSFET with 30mΩ RDS(on) handling 3A RMS dissipates ~270mW–safe for ambient temperatures up to 50°C without additional cooling. Test prototypes under worst-case scenarios: full load at minimum input voltage, where efficiency often dips below 85%. If ripple exceeds 2% of output voltage, increase the output capacitor’s value or use low-ESR polymer types.

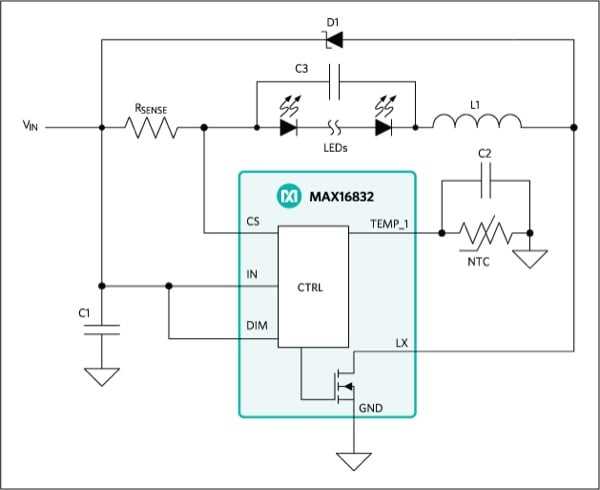

Key Elements of a Voltage Conversion Schematic
Begin by selecting a switch-mode regulator with a dual-output capability, such as the LM2577 or LT1054, to handle both step-down and step-up operations within a single layout. Ensure the feedback loop resistors (R1 and R2) are precision 1% types to maintain tight output regulation; values around 10kΩ and 30kΩ respectively provide a stable 5V output from a 3-15V input range. Avoid ceramic capacitors below 22µF for the output stage–electrolytic types with low ESR deliver better transient response under dynamic load conditions.
Component Placement for Thermal Stability
Position the inductor adjacent to the input capacitor with a trace width of at least 2mm to minimize resistive losses. Thermal vias beneath the regulator IC should connect directly to a ground plane, spaced at 1.27mm intervals, to dissipate heat efficiently. For high-current variants (above 2A), use a MOSFET like the IRFZ44N with a gate driver to reduce switching losses–gate resistor values between 10Ω and 47Ω prevent ringing while maintaining rapid transition times.
Implement a snubber network (10Ω resistor in series with a 1nF capacitor) across the diode to suppress voltage spikes during switching transitions. The diode should be a Schottky type (e.g., 1N5822) with a forward voltage drop under 0.5V to improve efficiency. For layouts handling over 10W, reinforce input/output traces with 2oz copper and avoid 90° bends–45° angles reduce EMI emissions by up to 30%.
Troubleshooting Common Issues in the Layout
If output voltage fluctuates, verify the feedback path is routed away from noisy traces–keep it at least 3mm from the inductor. Replace the compensation capacitor (typically 100nF) with a low-leakage polypropylene film type if instability persists. For audible noise, increase the inductor’s core size (e.g., switch from 10µH to 22µH) and use a ferrite material with higher saturation (e.g., Kool Mu). Measure input/output ripple with a differential probe–values exceeding 50mVpp indicate insufficient decoupling or excessive trace inductance.
Optimize the switching frequency between 50kHz and 200kHz; lower frequencies reduce core losses but increase inductor size, while higher frequencies minimize capacitance needs but elevate switching losses. Use a current-mode controller if the load varies by more than 20% to prevent subharmonic oscillations. Finally, test the schematic under worst-case conditions–cold start, maximum load, and borderline input voltage–to confirm stability across the full operating range.
Key Components for an Adjustable Voltage Regulator Design
Select an inductor with a saturation current rating at least 1.5 times the peak operating current. For a 3A output, use a 4.7µH core with a 5A+ saturation threshold, such as the Coilcraft MSS1048-472ML. Core material matters–ferrite (e.g., 3F3, 3F4) reduces losses at frequencies above 100kHz, while powdered iron (e.g., -2, -8) suits lower switching speeds.
MOSFET selection hinges on gate charge (Qg) and RDS(on). For 500kHz operation, target Qg ≤ 20nC to minimize switching losses–Infineon BSC010N04LS (40V, 1mΩ) fits 5-10A designs. Pair with a gate driver like the TI UCC27517, capable of 2A peak current to ensure rapid transitions and prevent shoot-through.
Critical Passives and Their Specifications
| Component | Parameter | Recommended Value (Example) | Key Consideration |
|---|---|---|---|
| Input Capacitor | ESR | ≤ 5mΩ (Murata GCM32ER71C475K) | Low ESR reduces input ripple; X7R dielectric for stability. |
| Output Capacitor | Voltage Rating | 2x Vin (max) (Rubycon 16V, 470µF) | Polymer types preferred for ripple current handling (≤ 3A rms). |
| Feedback Resistors | Tolerance | 0.1% (Vishay TNPW0402) | Precision avoids ±2% output voltage error. |
| Snubber (RC) | Time Constant | τ = 1/10 × Switching Period (e.g., 2Ω + 470pF) | Target ringing frequency ≥ 5× Fsw to dampen EMI. |
PWM controllers dictate efficiency–prioritize parts with adjustable dead-time (e.g., LT8471) to prevent cross-conduction. For wide input ranges (3-36V), use a controller with built-in UVLO and soft-start (e.g., Analog Devices ADP2384). Avoid fixed-frequency ICs if load transients exceed 50% of output current; consider hysteretic controllers (LM5118) for dynamic response.
Schottky diodes like the STMicroelectronics STPS20L45C (45V, 20A) reduce conduction losses but require attention to reverse recovery. For synchronous designs, replace diodes with a second MOSFET (e.g., ON Semi NVD5C40N) to eliminate forward drop losses–critical for efficiencies above 95%. Ensure the driver IC supports anti-cross conduction (e.g., Texas Instruments DRV8305).
PCB layout ranks equal to component selection. Place the input capacitor within 2mm of the switching node; vias to ground planes must handle 2× the ripple current. Separate analog (feedback) and power grounds, connecting them only at a single star point near the output capacitor. Route high-current paths (input → switch → inductor) with ≥ 4mm trace width for 5A+ designs.
Thermal and Protection Considerations
Avoid thermal vias under MOSFETs–use a copper area equal to the IC’s pad size, extending to the backside for heat spreading. For derating, ensure junction temperature (Tj) remains ≤ 125°C under worst-case conditions (e.g., 50°C ambient). Add a thermistor (10kΩ NTC) near the inductor to implement temperature foldback if T > 85°C.
Overcurrent protection should trip within 1µs of a short-circuit. Use a sense resistor (≤ 5mΩ) with a fast comparator (e.g., LM393), feeding back to the controller’s enable pin. For automotive applications, add a TVS diode (e.g., Littelfuse SMAJ40A) across the input to clamp transients per ISO 7637-2. Test load dump scenarios up to 60V, even if the nominal input is 12V.
Building a Voltage Converter on a Prototyping Board: Practical Guide
Select a switching regulator module with adjustable output–LM2596 or XL6009–and confirm its input voltage range matches your power source (e.g., 3–12 V). Secure the module to the board using a small breadboard chunk or double-sided tape to prevent movement. Connect the positive and negative rails of the power supply to the corresponding terminals on the module, ensuring polarity is correct; reverse voltage can damage the components instantly. Use 22-gauge solid-core wire for all connections–stranded wire frays and complicates insertion into the board’s holes.
Add an electrolytic capacitor (minimum 47 µF, 25 V) across the input terminals to stabilize voltage fluctuations, especially if using batteries. Attach a 100 µF capacitor at the output to reduce ripple to under 100 mV, critical for sensitive loads like microcontrollers. Insert a Schottky diode (e.g., 1N5822) in series with the output if the module lacks reverse polarity protection–banded side faces the output terminal. Test each connection with a multimeter set to continuity mode before applying power; a single short can destroy the regulator in under 500 ms.
Common Pitfalls in DC-DC Converter Wiring and Solutions
Incorrect grounding technique ranks as the most frequent error, leading to noise, instability, or component failure. Always establish a single, low-impedance ground point connecting the input source, output load, and control electronics. Use thick traces or dedicated ground planes for high-current paths–especially in layouts handling more than 2A. Separate analog and power grounds, then tie them together at one point near the power stage to prevent ground loops. For compact designs, verify ground connections with a multimeter in continuity mode before applying power.
Skipping input/output capacitor selection causes voltage spikes and inefficient operation. Input caps (typically 10-100μF ceramic) must match the switching frequency–higher frequencies require lower ESR values. Output caps (22-220μF) stabilize load transients; include both bulk (electrolytic) and bypass (ceramic) types. Place capacitors within 5mm of the switching regulator pins to minimize trace inductance. In 12V-to-5V applications, under-sizing output caps by even 30% can increase ripple from 20mV to over 100mV under dynamic loads.
Trace Width Mismatches and Layout Errors
Undersized conductor widths for high-current paths (e.g., 0.5mm for 3A) create resistive losses and overheating. Use PCB trace width calculators (IPC-2221 standard) to determine safe dimensions–typically 2.5mm per ampere for 1oz copper. Route switching nodes (SW or LX pins) with short, wide traces to reduce EMI; avoid routing beneath sensitive components like feedback resistors. If reusing a reference design, verify trace widths against your current requirements–many layouts designed for 1A fail at 2A due to unchanged copper geometry.
