Start with 3-phase input terminals–never reverse polarity. Most controllers handle 6–24V DC, but verify specs for your model’s absolute maximum rating. Overvoltage risks instant silicon failure; under-voltage causes erratic phase firing. Use 18–20 AWG stranded copper for main leads–thicker wire reduces I²R losses at currents above 10A.

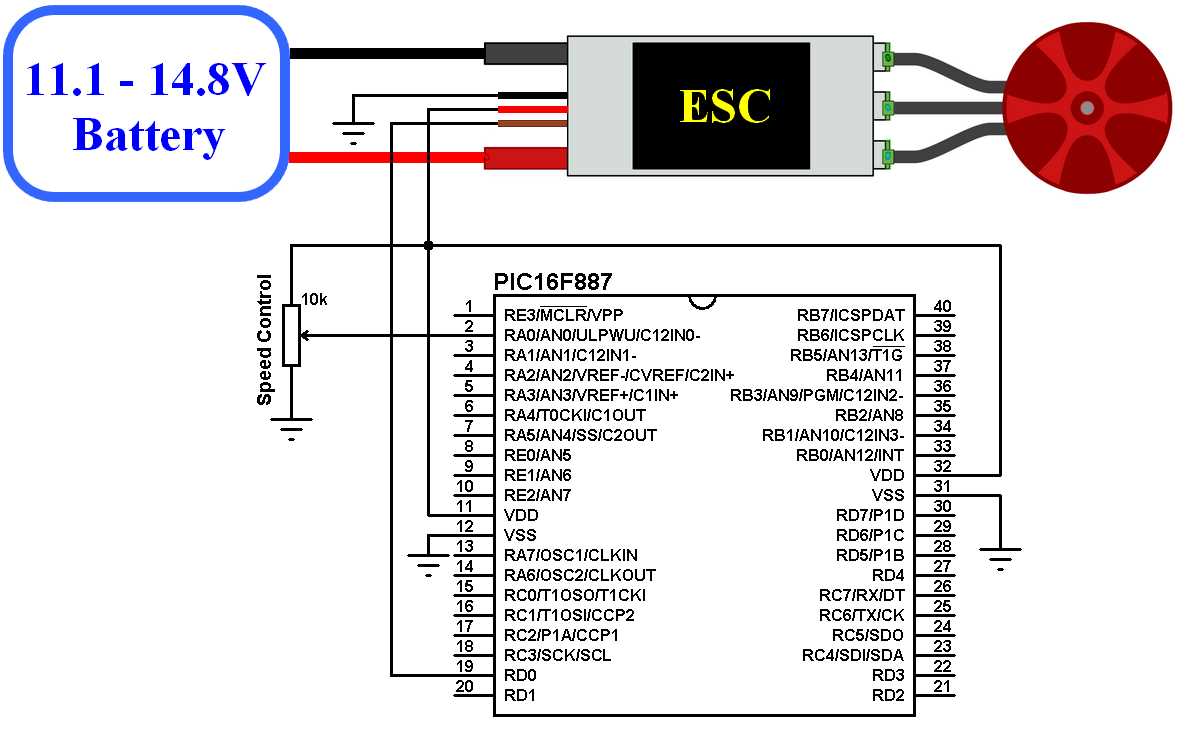

Signal cables demand twisted-pair shielding. Ground shielding at a single point–typically the controller’s chassis–prevents ground loops. Pulse-width input tolerates 3.3–5V logic levels; confirm thresholds if interfacing with microcontrollers running at lower voltages. Decouple power rails with 100nF capacitors across VCC/GND near the controller to suppress high-frequency transients.

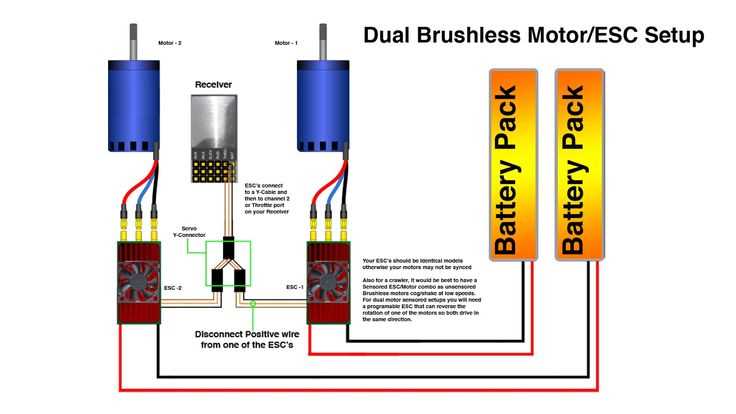

Thermal considerations dictate wiring gauge: 14 AWG for 30A sustained, 12 AWG for 60A. Heat-shrink tubing over soldered joints insulates against vibration and humidity. Avoid daisy-chaining power–run separate heavy-gauge wires from battery to each controller if driving multiple units. Voltage regulators integrated into speed regulators often drop 0.7–1.2V; factor this into battery selection.

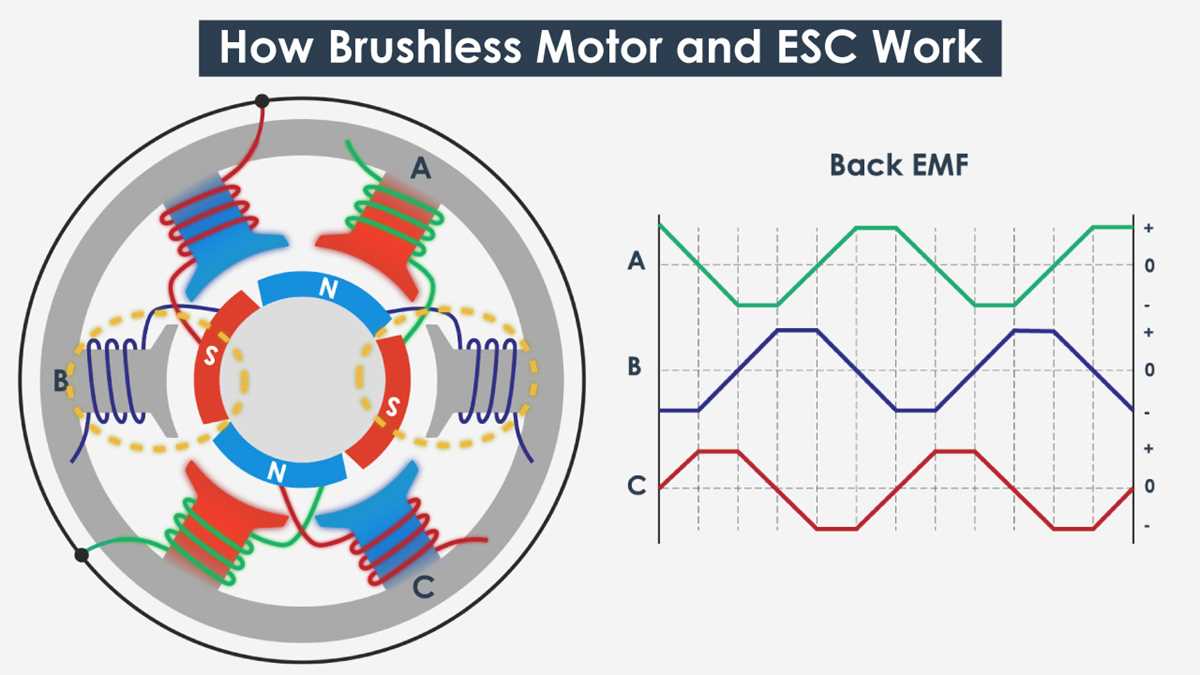

Phase detection relies on back-EMF sensing or Hall sensors–match wiring color codes (yellow/green/blue for Hall, U/V/W for sensorless). Miswiring causes immediate erratic startup or stall. For sensorless systems, 3.3kΩ pull-up resistors on signal lines stabilize signal integrity when no sensor is present. Final step: verify rotation direction before load attachment–reversing any two phase wires corrects inverted spin.
Connecting Your Three-Phase Drive Controller: Key Steps
Start by matching the phase wires from the rotor to the controller outputs exactly–swap any two leads to reverse rotation if needed. Most modern controllers label outputs U, V, W or A, B, C; verify colors against documentation as mismatches cause erratic behavior or damage. For 6-pin controllers, connect the sensor wires (HALL_A, HALL_B, HALL_C) to their corresponding pins–positioning errors lead to poor startup torque or stalling at low speeds.
- Use 16-18 AWG silicon-insulated wire for power leads–thinner gauges overheat under 50A loads.
- Secure all connections with ferrules or solder; stranded copper oxidizes quickly in humid conditions.
- Avoid twisting sensor wires around power cables–induced noise disrupts commutation, causing vibration.
- Test each phase with a multimeter (continuity mode) before power-up–shorts trip protection circuits instantly.
Common Pitfalls & Fixes
If the drive stutters or fails to start, check sensor alignment (typical offset: 120° electrical). Replace sensors if resistance drifts outside 500-1000Ω. For high-RPM setups (>20K), shorten phase wires to
- Calibrate throttle endpoints on first startup–most firmware requires full-range input signals (±1ms pulse width).
- Program low-voltage cutoff at 3.0V/cell for LiPo–undervoltage destroys cells permanently.
- Use a dedicated BEC (5V/3A) for receiver/flight controller–shared power rails cause brownouts.
Identifying Controller and Actuator Terminal Points
Locate the three output leads on your electronic speed regulator–typically marked with letters U/V/W or color-coded red/black/white. Match these precisely to the corresponding phases on the dynamo: reversing any two will cause erratic rotation or failure to spin. Verify polarity with a multimeter if labels are absent.
Many modern control units integrate built-in capacitors near the power input; avoid connecting these directly to the actuator terminals. Solder or crimp connectors should always face outward from the housing to prevent shorting against adjacent components during assembly.
For propulsion systems under 20A, use 18AWG silicone-coated cables; above 50A, upgrade to 12AWG or thicker to handle current spikes. Pre-tinned wire ends reduce oxidation and improve conductivity when inserted into bullet connectors or screw terminals.
Examine the actuator’s stator winding configuration–delta or star–before linking to the regulator. Delta setups (three wires only) require no additional ground connection, while star arrangements (four wires) need a dedicated neutral lead tied back to the controller’s common ground.
High-performance applications often include a sensor port; align the Hall-effect sensor cables (usually 5V, GND, and phase wires) to the corresponding headers on the control unit. Mistakes here will either disable closed-loop operation or trigger error codes.
Check manufacturer datasheets for maximum permissible voltage and amperage–exceeding these values risks destroying MOSFETs or frying PCB traces. Test continuity between the power input and ground terminals before applying full load to confirm no internal shorts exist.
When using a programmable regulator, update firmware via USB or Bluetooth prior to final installation. Factory defaults rarely optimize for custom torque curves or braking profiles, leading to unpredictable performance during operation.
Label every junction with heat-shrink tubing or colored tape immediately after connection. Unmarked setups become nearly impossible to troubleshoot after even minor disassembly, wasting hours diagnosing simple miswirings.
Step-by-Step Connection Guide for Tri-Phase Synchronous Drives
Begin by identifying the phase terminals on your controller, typically labeled U, V, W or A, B, C. Secure each lead from the drive’s stator to the corresponding output on the power regulator, ensuring polarity matches–swap any two connections if rotation direction is incorrect. For 6-wire sensors (Hall-effect), align the sensor wires H1–H3 with the controller’s feedback inputs, verifying pinout against the datasheet; mismatched signals cause erratic behavior or failure to start. Use silicone-insulated 18–20 AWG wires for phase links to handle current spikes without overheating, and twist conductors for each phase pair to minimize electromagnetic interference.

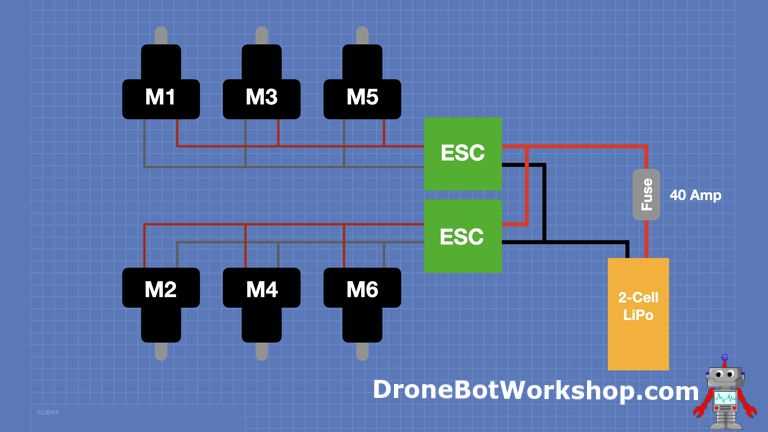

Attach the DC input–positive (+) and negative (-)–from your power source (battery or PSU) directly to the regulator’s main terminals, inserting an in-line fuse (calculate rating: max current × 1.3) to protect against shorts. Ground the system chassis to the negative line if metallic; for carbon-fiber frames, add a dedicated earth wire to prevent voltage leakage. Confirm all connections with a multimeter: continuity checks (
Common Mistakes When Connecting Power Leads to Speed Controllers
Reverse polarity remains one of the most immediate failures–hooking positive to negative terminals instantly damages components, especially in lithium polymer batteries or solid-state electronics. Verify terminal markings every time; even seasoned builders confuse identical connectors. Use a multimeter in continuity mode to confirm pinouts if labels are ambiguous.
Overlooking current ratings causes catastrophic meltdowns; leads rated for 30 A fail under a 60 A load. Match conductor gauge to maximum expected amperage: 14 AWG handles 50 A continuous, while 16 AWG suits 30 A. Below is a reference table for common configurations:
| Conductor Gauge | Maximum Continuous Current (A) | Typical Thermal Limit (°C) |
|---|---|---|
| 12 AWG | 70 | 80 |
| 14 AWG | 50 | 85 |
| 16 AWG | 30 | 90 |
| 18 AWG | 15 | 95 |
Twisting conductors too loosely introduces resistance, generating heat; strand count must exceed eight for reliable contact under vibration. Test crimps with a pull-force gauge–minimum 10 N for 22 AWG, scaling linearly with cross-section. Inspect connectors for oxidized contacts; clean with 600-grit sandpaper followed by isopropyl alcohol flush.
Neglecting transient suppression invites electromagnetic interference; capacitors rated ≥100 µF must shunt voltage spikes between power and ground rails. Place snubbers within 2 cm of controller outputs to clamp inductive kicks–values under 25 V deteriorate rapidly under full throttle conditions. Confirm dynamic behavior with an oscilloscope; ringing above 0.5 Vpp indicates insufficient filtering.
How to Test Controller Circuit Connections Before Full Activation
Use a multimeter in continuity mode to verify signal paths between the processor and power stage. Probe the solder joints on the control board–ensure resistance reads below 0.5 ohms for primary traces. High-resistance points often indicate cold solder or fractured copper, which fail under load.
Apply a low-voltage DC source (3–5V) to the input terminals while monitoring feedback lines with an oscilloscope. Stable PWM pulses should appear within 50 microseconds of command initiation; delayed or erratic waveforms suggest incorrect bus capacitance or ground loop interference.
Isolating Phase Outputs
Disconnect the stator leads and energize the drive with a current-limited supply set to 10% of nominal load. Touch each output terminal with a non-contact voltage detector–active lines should emit a steady 20–50 kHz carrier tone without dropout. Absence of tone or intermittent signals confirm open circuits or phase imbalance.
Measure differential voltage between each pair of stator connections with the drive idle. Expect readings below 0.1V; values exceeding 0.3V point to parasitic conduction or failed gate drivers. Swap the control signal lines sequentially to isolate faulty segments without power cycling.
Ground Reference Integrity
Connect a floating ground probe to the regulator’s common rail and sweep the chassis with a millivolt meter set to 1mV/division. Voltage fluctuations above ±2mV indicate inadequate bonding; reinforce high-current return paths with 12AWG braided straps soldered at both ends.
Simulate realistic load transients by toggling the throttle input at 2Hz with the stator disconnected. Check for voltage spikes on the logic supply rails–clamps should limit excursions below 1V; exceeding threshold damages microcontroller registers. Replace over-voltage protection diodes if leakage exceeds 1µA.
Log temperature rise at the heatsink interface using a K-type probe during the 10% load test. Gradients steeper than 5°C/minute reveal insufficient thermal compound or delaminated pad adhesion; reapply paste using 0.02mm stencil thickness.
