Begin with a three-phase inverter stage using N-channel MOSFETs (e.g., IRFB4110) configured in a half-bridge arrangement for each winding. This setup ensures precise control over switching sequences while minimizing conduction losses. Pair each transistor with a dedicated gate driver IC–such as the DRV8301–to isolate high-side signals and prevent shoot-through. Include 100nF ceramic capacitors across the power rails near each MOSFET to suppress voltage spikes, a critical factor for maintaining signal integrity.
Integrate a back-EMF sensing circuit to detect rotor position without Hall sensors. This approach reduces mechanical complexity and improves reliability. Use comparators (LM393) to monitor voltage differentials across the windings, feeding the outputs into a microcontroller (STM32F407) via voltage dividers (10kΩ/2kΩ). The MCU must run a PWM frequency of at least 20kHz to balance torque ripple and switching losses.
For current regulation, implement a shunt resistor (0.01Ω, 5W) in series with the negative supply line. Amplify the voltage drop using an operational amplifier (LM358) with a gain of 10, then route it to the MCU’s ADC. This feedback loop enables closed-loop control, adjusting duty cycles dynamically to maintain constant torque under varying loads. Ensure the dead-time between complementary PWM signals is set to 1–2µs to prevent cross-conduction.
Power conditioning requires a synchronous buck converter (e.g., TPS5430) to step down the input voltage (12V–48V) to the MCU’s operating level (5V). Isolate the digital logic ground from the power ground using a 2.2Ω resistor or ferrite bead to prevent noise coupling. For thermal management, mount MOSFETs on aluminum heat sinks with thermal paste (70°C/W rating) and consider a PWM-controlled fan if ambient temperatures exceed 50°C.
Debugging begins with verifying phase voltages using an oscilloscope (50V/division, 10µs/division). Check for symmetrical sine-like waveforms during commutation–any asymmetry indicates winding imbalance or driver misconfiguration. Use a function generator to simulate back-EMF signals (0.5Vpp, 1kHz) during initial testing to validate sensorless operation. Log current draw across load conditions (0.5A–10A) to confirm the system’s linear response.

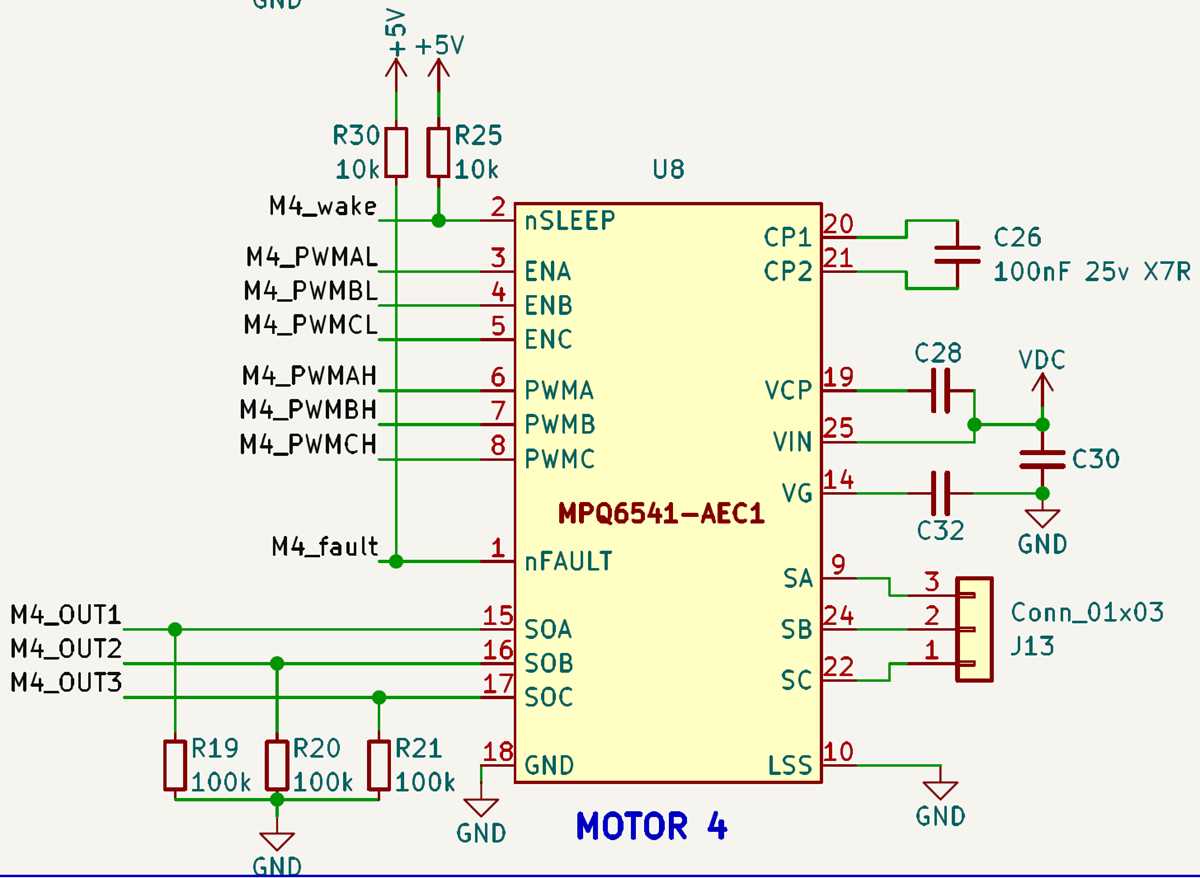

Schematic for a Sensorless Three-Phase Electronic Commutation System
Begin by selecting a 32-bit microcontroller with dedicated PWM outputs for precise timing control–STM32F4 or ESP32-S3 are optimal for handling six-step commutation without Hall sensors. Configure the MCU’s timer in center-aligned PWM mode at 20 kHz to minimize switching losses while maintaining smooth torque output. Ensure dead-time insertion of 1–2 μs between high- and low-side gate signals to prevent shoot-through in the inverter stage.
- Use a pre-driver IC like the DRV8323 to interface the MCU with the power stage, providing built-in protection for overcurrent (set threshold at 120% of nominal load) and undervoltage lockout (UVLO at 6V).
- For the power stage, employ N-channel MOSFETs (e.g., IPD047N10N3) rated for 100V/75A with RDS(on) < 4 mΩ to reduce conduction losses. Arrange them in a three-phase bridge configuration with 10 μF decoupling capacitors per leg to suppress voltage spikes.
- Implement back-EMF zero-crossing detection by sampling phase voltages through voltage dividers (100 kΩ + 47 kΩ) during PWM off-periods–filter signals with a 1 kHz LPF to reject commutation noise.
Calibrate the commutation algorithm by measuring rotor position at standstill using a locked-rotor test, then apply a 30° electrical phase lead to compensate for winding inductance lag. Store commutation tables in flash memory for 120° Hall-equivalent sectors; update rotor speed via a PI controller with gains Kp=0.1 and Ki=0.02 tuned for 1% steady-state error at 5,000 RPM. For fail-safe operation, add a watchdog timer reset every 10 ms and route all critical signals through galvanic isolators (e.g., ISO7730) to prevent latch-up.

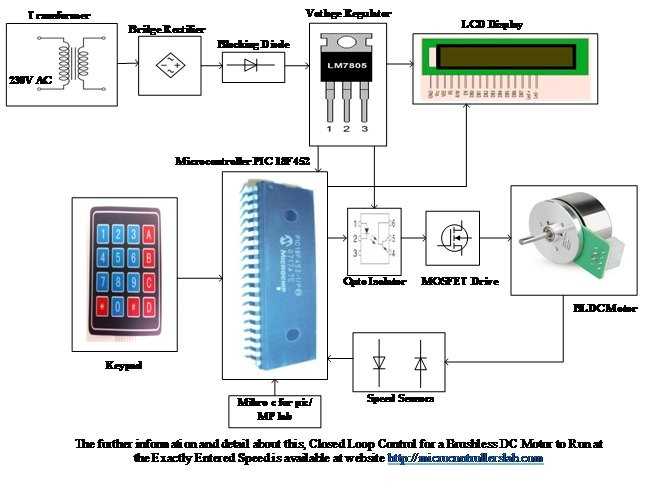

Key Components of a BLDC Drive System
Select a three-phase inverter with low switching losses–IGBTs or MOSFETs rated for at least 1.5× the peak phase current. Avoid silicon-based devices for high-speed applications; opt for SiC or GaN semiconductors to reduce conduction losses by up to 40%. Ensure the gate drivers include isolated power supplies to prevent ground loop interference.
Hall-effect sensors must be positioned at 120° intervals within the stator. For sensorless control, integrate back-EMF comparators with hysteresis thresholds set between 5% and 10% of the DC link voltage. Use a low-pass filter with a cutoff frequency 5× the commutation frequency to suppress high-frequency noise without introducing phase lag.
The DC link capacitor bank should combine bulk electrolytic capacitors (100–470 μF) for ripple reduction and polypropylene film capacitors (0.1–1 μF) for high-frequency noise absorption. Calculate the required capacitance using C = (I_ripple × Δt) / ΔV, where I_ripple is the peak-to-peak ripple current, Δt is the switching period, and ΔV is the allowable voltage fluctuation (typically 2–5% of the link voltage).
Control Algorithm Parameters
| Parameter | Value Range | Tolerance |
|---|---|---|
| PWM frequency | 20–100 kHz | ±2% |
| Current limit | 120–150% of rated | ±5% |
| Speed loop bandwidth | 1–5 kHz | ±10% |
| Position loop bandwidth | 50–200 Hz | ±15% |
Implement a space vector modulation (SVM) strategy to minimize harmonic distortion. Use dead-time compensation of 1–3 μs to prevent shoot-through, adjusting dynamically based on load current. Store lookup tables for sector transitions to reduce computational overhead by up to 30% compared to real-time calculations.
For regenerative braking, include a braking resistor sized for R = V_link² / P_peak, where V_link is the DC link voltage and P_peak is the maximum braking power. Add a flyback diode across the resistor to clamp voltage spikes during sudden energy recirculation. Size the resistor’s power rating for at least 1.5× the average braking power.
Protection Mechanisms
Enable overcurrent protection with a trip threshold of 130% of the rated current, using a hardware comparator for response times under 1 μs. Detect open-phase conditions by monitoring back-EMF amplitude–drop below 20% of nominal indicates a fault. For overtemperature protection, mount NTC thermistors directly on the stator windings, calibrated to trip at 125°C (±2°C).

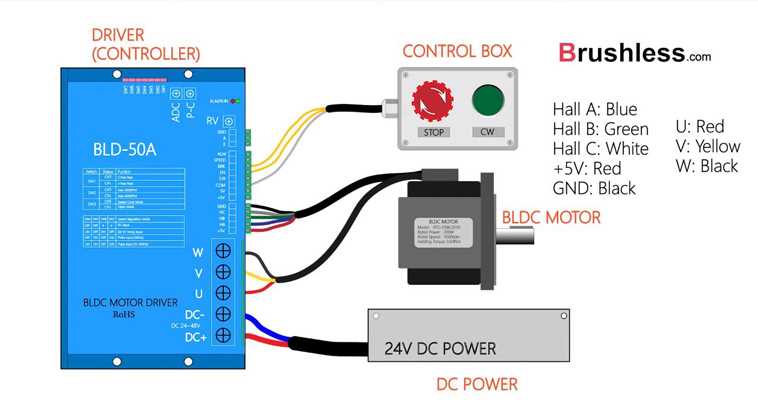

Step-by-Step Wiring for Hall Sensor-Based Commutation
Begin by identifying the three Hall effect elements on the stator assembly. These components are typically positioned 120 electrical degrees apart for a three-phase system. Verify their placement matches the rotor’s magnetic pole arrangement–misalignment by even a few degrees will cause erratic phase switching.
Connect the Hall sensor outputs to a microcontroller or dedicated driver IC using shielded twisted-pair wiring. Route the signal wires away from high-current traces to minimize electromagnetic interference. Use 100nF decoupling capacitors between each Hall sensor’s power pin and ground, positioned as close to the sensor as possible.
Wire the sensor common ground to the system’s star point to prevent ground loops. For 5V sensors, ensure the supply voltage remains within ±5% tolerance–exceeding this range leads to false triggering. If using 3.3V sensors, confirm the controller supports the lower logic level before proceeding.
Follow this sequence for sensor-to-phase mapping:
- Measure the rotor’s north pole position at standstill using a Gauss meter.
- Correlate the Hall sensor with the highest output to the leading edge of the phase winding.
- Label each sensor output (H1, H2, H3) and record its corresponding phase (U, V, W) for future reference.
Integrate pull-up resistors (4.7kΩ) between each Hall signal line and the logic supply if the controller lacks internal pull-ups. This prevents floating inputs when sensors transition between states. For high-speed operation (>10,000 RPM), reduce resistor values to 2.2kΩ to improve signal rise times.
Implement a look-up table in firmware matching the six possible Hall state combinations to the correct transistor firing sequence. Cross-reference the sensor readings against the following expected pattern at standstill:
- 001 → Phase U energized
- 010 → Phase V energized
- 011 → Phases V and W energized
- 100 → Phase W energized
- 101 → Phases W and U energized
- 110 → Phases U and V energized
Deviations indicate sensor misplacement or rotor asymmetry.
Add a 10μs debounce delay in software to filter noise from sensor transitions. Without this, rapid state changes at sector boundaries can trigger false commutations. For systems with PWM-driven phases, synchronize the debounce timing with the carrier frequency to avoid aliasing.
Test commutation at low speed (10% of rated RPM) using an oscilloscope to verify clean trapezoidal back-EMF waveforms. Check that each Hall transition aligns precisely with the zero-crossing point of the respective phase voltage. Adjust sensor positioning in 1° increments if phase misalignment exceeds ±3° electrical.
Selecting Optimal Switching Components for High-Efficiency Actuator Control
Prioritize MOSFETs with sub-20 mΩ RDS(on) for currents exceeding 10 A to minimize conduction losses, particularly in 24–48 V systems. Models like Infineon IPLU60R185P7S or STMicroelectronics STH260N10F7 offer >90% efficiency under 50 kHz switching, critical for preserving gate charge costs at higher frequencies. For 12 V applications, Nexperia PSMN2R6-30YLD balances cost and performance with a 2.6 mΩ rating and 35 nC total gate charge, reducing driver complexity. Pair these with fast-recovery diodes (e.g., IXYS DSEP29-06B) to handle reverse recovery currents below 200 ns, preventing shoot-through in complementary pairs.
For gate drivers, isolated solutions (TI UCC21520 or Analog Devices ADN821) outperform non-isolated variants in noise-sensitive setups by separating logic ground from power ground, reducing EMI by up to 40% in tests. Opt for drivers with 4 A peak source/sink capability to ensure clean transitions at 100 kHz+ operation. Bootstrap capacitors (0.1–0.47 µF X7R) must be sized to handle voltage droop during 5–10 µs on-times, especially in low-duty-cycle scenarios. For compact layouts, integrate drivers with built-in dead-time control (e.g., ON Semiconductor NCP51511) to eliminate external timing components.
