Identify the ignition module connection first–labeled as “MAG” or “ARM” on most versions. Trace it directly to the flywheel alternator coil output; a faulty link here causes no-start conditions. Use a multimeter set to AC voltage (200V range) and measure between the module terminal and engine ground while pulling the starter cord. Expected readings: 20–35V for 5–7 amp systems, 40–60V for 10–12 amp variants. Values below 15V indicate coil degradation or broken wire strands.
Inspect the kill switch circuit next. On single-cylinder setups, a normally-closed (NC) switch interrupts the ignition module ground path. If corrosion forms inside the switch housing, the engine may fail to shut off or start intermittently. Bypass the kill circuit by jumpering the switch wires temporarily–if the engine runs, replace the switch. Always reconnect the original wiring after testing to prevent accidental grounding dangers.
Locate the voltage regulator–typically a small black rectangular unit bolted near the flywheel. On models with electric start, this component manages battery charging. Disconnect the battery positive cable first, then detach the regulator’s three-pin connector. Check for continuity between the “BATT” pin and “GRD” pin using a resistance setting (Ω). Infinite resistance confirms a failed regulator; 0.5–2Ω signals proper function. Swap in a model-specific replacement–mixing part numbers risks overcharging and battery failure.
For electric-start engines, verify the solenoid’s 12V supply. Attach a test light between the battery positive terminal and the solenoid’s small control wire terminal. Activating the ignition switch should illuminate the light–no signal points to wiring breaks or ignition switch faults. Measure cable gauge on long runs: minimum 14AWG for 10+ amp starters, 12AWG for 20+ amp variants. Undersized wires cause voltage drop, leading to slow cranking.
Document every connection with heat-shrink labels. Use color-coded vinyl tape (red for power, black for ground, yellow for signals) matching the manufacturer’s service manual. Store backup schematics in waterproof sleeves and cross-reference with actual components before reassembly. One reversed wire can destroy modules costing $50–$120.
Engine Electrical Schematics: Key Connections for Reliable Performance
Start by locating the ignition coil on your motor’s left side–it connects to the flywheel via a single wire (typically 14–16 AWG) terminating at the spark plug boot. Ensure the coil’s ground strap bonds securely to the engine block; corrosion here causes intermittent misfires. For models with a charging system, trace the stator’s output wires (red/white for AC, white for neutral) to the rectifier-regulator–voltage should read 13.5–14.7V at 3600 RPM. If readings drop below 12.8V, inspect the stator’s resistance (0.2–1.0 ohms) with a multimeter; values outside this range indicate winding failure.

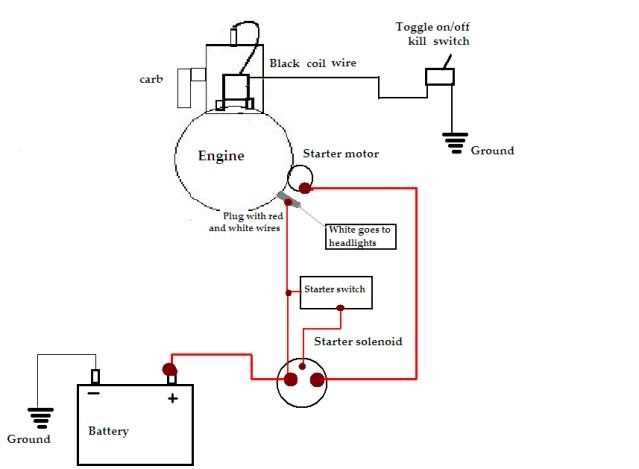

Check the kill-switch circuit: the green wire from the ignition module must run uninterrupted to the switch, then terminate at ground when activated. Shorted or frayed leads here prevent the engine from shutting off. For electric-start variants, verify the solenoid’s terminal connections–battery cable (positive), starter motor (thick gauge), and ignition input (smaller gauge). Use dielectric grease on all couplings to prevent moisture ingress, which leads to voltage leaks. Always disconnect the negative battery terminal before probing circuits to avoid accidental shorts.
Locating Critical Parts in Your Engine Electrical System
Trace the ignition module’s connections first–it’s typically a small rectangular box near the flywheel with 2–4 spade terminals. Label each wire by color and terminal designation: black/yellow (kill switch), red (battery positive), and brown (ground). Missing or corroded spades cause intermittent starting failures. Use a multimeter to test continuity; resistance should read below 0.5 ohms between the module and ground.
Common Terminal Functions
| Wire Color | Function | Test Probe Placement |
|---|---|---|
| Black/Yellow | Interrupt circuit | Module terminal to chassis ground |
| Red | 12V input | Battery positive to terminal |
| Brown | Ground return | Terminal to bare metal |
| Purple | Alternator output | Terminal to battery negative |

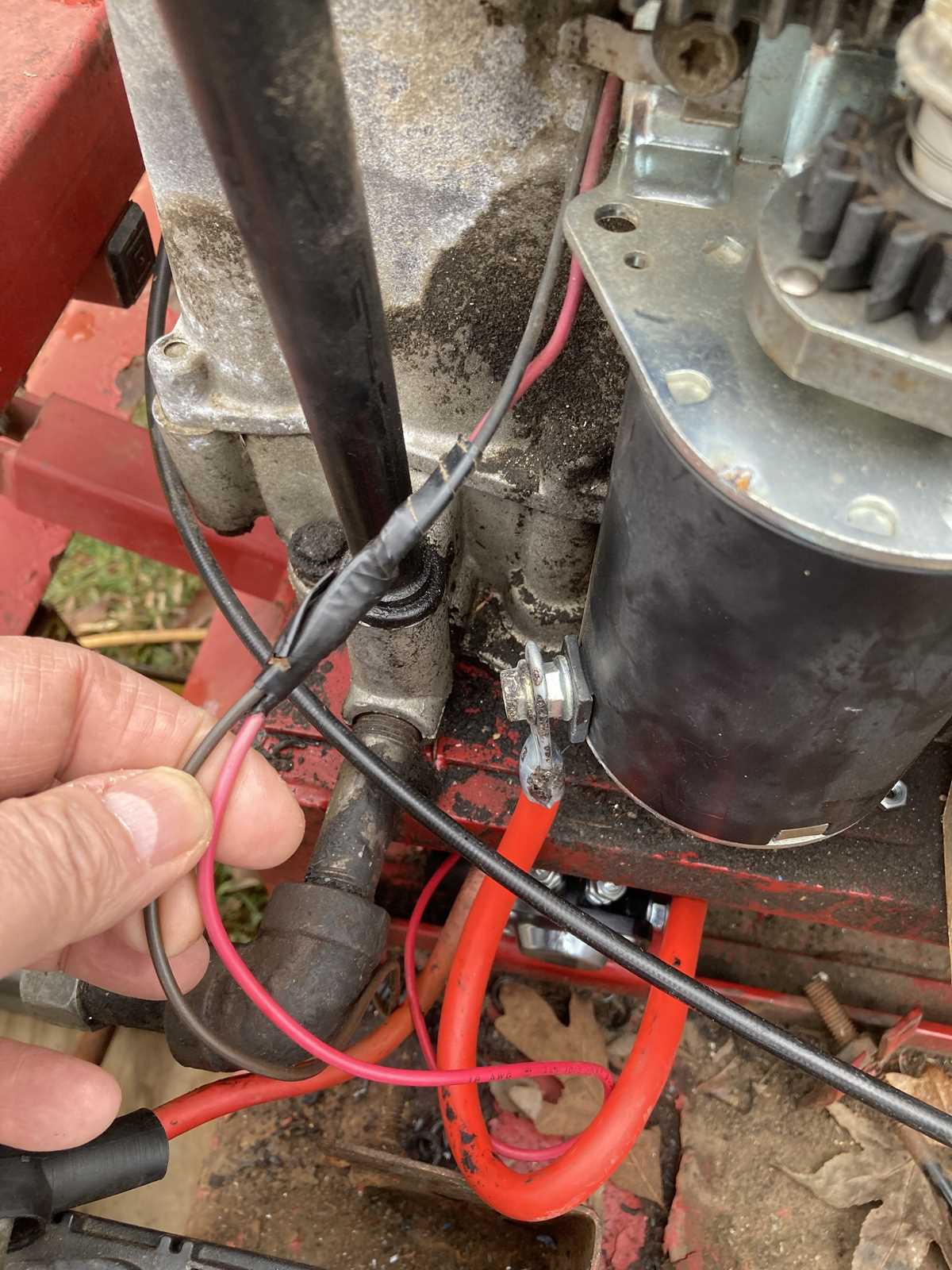

Inspect the solenoid: a cylindrical unit bolted to the starter motor, featuring a thick copper stud for battery cable and a thin control wire (often blue or white). The control wire must connect to the ignition switch; a loose crimp here causes starter engagement without cranking. Replace the solenoid if clicking persists after verifying battery voltage at both terminals–internal contacts may be welded shut. Check voltage drop across the copper stud while cranking; readings above 0.2V indicate corroded connections requiring cleaning or replacement.
Step-by-Step Guide to Reading a Small Engine Electrical Schematic
Identify the power source first–locate the battery or magneto symbol, typically marked with “+” and “-” terminals or a coil icon. Trace its connections outward to switches, solenoids, or ignition components. Color-coded lines (red for positive, black for ground) simplify this step, but verify labels on the original plan if colors are missing.
Decipher Component Symbols
Common symbols include rectangles for resistors, circles for lights, and curved lines for capacitors. A solid dot indicates a permanent connection; intersecting lines without a dot mean no contact. Refer to the legend if symbols deviate from standard IEC or ANSI representations. For example, an engine’s starter motor appears as a rectangle with a “M” label, while fuses use a zigzag line.
Follow the current path sequentially: power source → switch → load → ground. Break the circuit into segments to isolate potential issues. If a solenoid isn’t engaging, check for 12V at its input terminal when the ignition key is turned. Use a multimeter to confirm voltage drops–any deviation over 0.5V suggests resistance or corrosion in the line.
Document modifications immediately. Label splices, added relays, or accessory components (e.g., electric clutches) directly on the schematic to avoid future confusion. Store a digital copy with annotated notes for quick reference during troubleshooting. Cross-check wire gauge against circuit requirements–undersized conductors cause voltage sag under load.
Common Electrical Setup Errors and Solutions
Reverse polarity on ignition coils causes immediate engine failure. Verify connections against a reference schematic before startup–black (ground) to the engine block, red (power) to the 12V source, and yellow (signal) to the kill switch. Swap wires if the engine refuses to crank or dies instantly.
- Loose battery terminals create voltage drops under load. Clean corrosion with baking soda and water, tighten clamps with a 10mm wrench until resistance exceeds 15 Nm.
- Skipping the fuse near the battery leads to melted harnesses. Install a 15A fuse within 7 inches of the positive terminal on garden equipment models rated under 20 HP.
- Ground straps routed near fuel lines risk shorts. Relocate straps to a dedicated bolt on the engine block, minimum 3 inches from any fuel components.
Incorrect spark plug cap installation reduces performance by 30%. Push caps fully onto plugs until resistance clicks–partial seating allows moisture ingress and misfires. Test gap with a feeler gauge: 0.030 inches for most models, 0.045 inches for high-compression variants.
Faulty solenoid engagement often stems from improper relay positioning. Mount relays away from exhaust manifolds–heat degrades internal contacts. Use dielectric grease on relay sockets to prevent oxidation. If the starter motor spins without engaging the flywheel, replace the relay and check the pinion gear clearance: 0.020 to 0.080 inches between gear teeth.
Electrical Schematic Differences in Small Engine Configurations
Start by identifying the ignition system layout before troubleshooting any engine series. Classic horizontal-shaft units like the 11HP Intek feature a single-coil magneto with a simplified two-terminal connection, whereas vertical-shaft counterparts often integrate a dual-coil setup for enhanced spark management under load. Verify coil resistance values–primary circuits typically range 0.5–2.0 ohms; secondary peaks at 10–15k ohms. Deviations suggest component failure requiring replacement rather than adjustment.
Charging circuits vary significantly between basic recoil-start models and those with electric start functionality. A 3-amp stator assembly on entry-level engines (e.g., 550e series) outputs ~12V AC under 3600 RPM, barely sufficient for minimal lighting tasks, while high-output stators (10+ amps) in premium units include integrated rectifiers converting AC to DC for battery charging. Always test stator output at engine speed; readings below 10V AC indicate stator degradation or flywheel magnet demagnetization.
Safety interlock mechanisms introduce additional complexity in late-model engines. The presence of a low-oil shutdown switch, governed by a float sensor, requires precise voltage monitoring across three terminals–common, normally open, and normally closed–prior to bypassing for diagnostics. Miswiring here risks unintended engine cutoff or failure to start despite adequate oil levels. Consult specific engine codes (e.g., 31C777 vs. 31P707) for exact terminal assignments, as variations exist even within ostensibly identical series.
Grounding paths differ notably between cast-aluminum and steel-engine blocks. Aluminum demands star-washers between grounding lugs and metal surfaces to prevent electrochemical corrosion, particularly critical for electric-start models drawing 200+ amps during cranking. Steel blocks may suffice with direct bolt connections, though oxidation risks persist. Check continuity between the battery negative terminal and engine block–resistance exceeding 0.2 ohms warrants cleaning or replacement of grounding points.
Electric-start models integrate solenoids whose coil voltages vary by application. Starter solenoids on air-cooled units typically activate at ~8V DC, while liquid-cooled variants may require 10–12V for reliable engagement. Test solenoid plunger movement under load rather than relying on click-testing alone; weak plunger action often correlates with internal wear rather than insufficient voltage. Replace solenoids exceeding 0.5 ohms between activation terminal and ground, indicating internal degradation.
Reverse-engineering an unknown engine configuration demands tracing all leads back to their origin point on the schematic unique to that unit. Secondary safety circuits–for instance, brake-switch inputs on riding mower variants–often share color codes with ignition wires but serve distinct functions. Label each wire with its function during disassembly to avoid misconnection; hallmark errors include swapping ignition kill wires with PTO switch inputs, resulting in erratic operation or unintended shutdowns during blade engagement.
