Start by positioning the power source at the upper left corner. This includes batteries, AC/DC adapters, or voltage regulators. Arrange them vertically if multiple sources exist to maintain clarity. Keep traces short and direct–avoid unnecessary bends to prevent signal interference or voltage drops.
Place ground symbols along the bottom edge. Use a single ground plane unless separate analog and digital grounds are required for noise-sensitive designs. Connect all grounds at one common point near the power source to avoid ground loops.
Group active components (ICs, transistors, microcontrollers) near the center. Orient pins logically–input signals on the left, outputs on the right, power pins at the top. Label each pin with its function rather than just the number to simplify debugging.
Position passive elements (resistors, capacitors, inductors) between active components and power/ground. Keep decoupling capacitors (usually 0.1µF) within 2cm of an IC’s power pin to suppress high-frequency noise. Place pull-up/down resistors close to their associated signals to minimize trace length.
Draw signal flow from left to right. Use thicker traces (0.5–1mm) for power rails and thinner (0.2–0.3mm) for signals. Route high-speed or sensitive traces first, keeping them away from noisy components like switching regulators. Add test points for critical signals to simplify probing during validation.
Include reference designators (R1, C3, U2) near each component. Add a bill of materials block in the lower-right corner listing values, tolerances, and part numbers. Reserve the top-right for metadata: title, revision date, and designer initials. Use consistent spacing (e.g., 10mm between parallel traces) to improve readability.
Avoid crossing traces–use vias or component placement to reroute. For multi-page diagrams, split at natural boundaries (e.g., MCU section on one page, power supply on another) and label nets clearly at both ends. Highlight critical paths (e.g., clock signals) with bold or color if the tool supports it.
Key Principles of Organizing Electrical Circuit Drawings
Place the power sources at the top left or top center of the drawing. This convention ensures engineers scan designs from supply to load, mirroring how current flows through components. Reserve vertical alignment for ground symbols, grouping them at the bottom to avoid cluttering signal paths. Rotate symbols only when necessary–consistent orientation prevents misread connections.
Separate functional blocks with horizontal spacing equivalent to two standard component widths. Each block should encapsulate one logical stage–amplification, filtering, or control–so troubleshooting requires inspecting only one section rather than tracing across the entire sheet. Label every block with a concise phrase inside a rectangular box, positioned directly above or to the right, avoiding overlap with lines.
- Signal lines – thin continuous lines, weight 0.25mm.
- Power rails – thick continuous lines, weight 0.7mm, labeled with voltage values adjacent.
- Ground nets – thin dashed lines, weight 0.2mm, never intersecting power rails.
- Control buses – thick dot-dash lines, weight 0.4mm, numbered at both source and destination.
Create a solitary reference designator for every component, starting with a letter indicating its class–R for resistors, C for capacitors, U for ICs–followed by sequential numbers. Place these identifiers immediately above or to the left of each symbol, never inline with connecting lines. Reserve horizontal orientation for resistors and capacitors, vertical for transistors and diodes to preserve visual symmetry.
- Scan left-to-right, top-to-bottom to establish flow.
- Group identical functions–oscillators by output frequency, sensors by parameter sensed.
- Draw straight horizontal or vertical lines; angled connections only for unavoidable space constraints.
- Minimize crossings; when necessary use a small arc–never a dot–to keep clear which line continues.
Include a small legend in the blank space at the lower right corner listing unique symbols used in the drawing. Add test points as open circles labeled TP plus sequential numbers, positioned near critical signals like clock inputs, reset lines, or analog outputs. Ensure each net crossing a block boundary carries a label at entry and exit–identical labels confirm continuity without excessive line tracing.
Signal Flow Optimization
Prioritize arranging components so current follows a downward path from supply through logic stages to load. Cluster feedback loops tightly around their op-amps or comparators, keeping associated resistors and capacitors within a 15 mm radius to reduce trace length and parasitic capacitance. Use a subtle grid–2.5 mm snap-to–keeping all connector pads aligned along this grid for predictable wire routing.

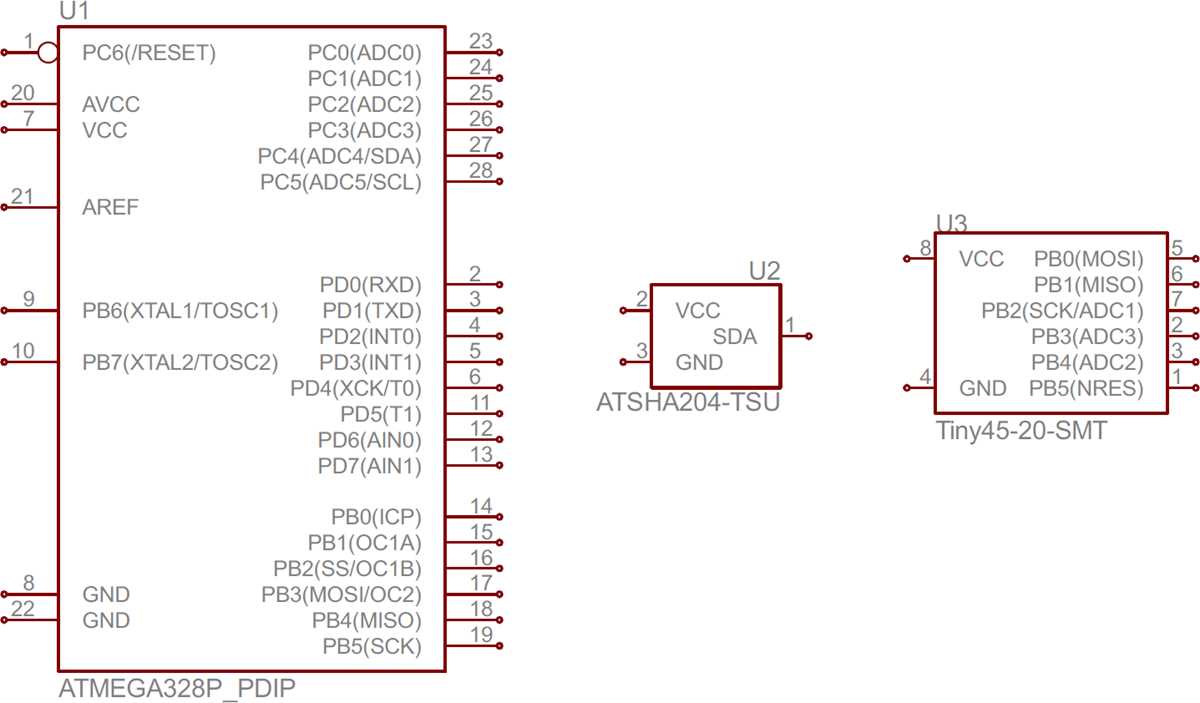

Hide internal construction details of integrated circuits, representing them as simple rectangular outlines with power pins at the top and bottom, signal pins grouped by function along the sides. Reserve detailed sub-schematics for complex chips, linking via page connectors annotated with matching alpha-numeric codes on both parent and child sheets.
Critical Elements for Every Circuit Blueprint
Begin with power sources: label voltage rails (VCC, GND), current ratings, and polarity. Include decoupling capacitors (typically 0.1µF) adjacent to IC pins to suppress noise. For high-speed designs, add bulk capacitors (10µF–100µF) near power entry points to stabilize transient loads.
Signal Path Essentials
- Input/output connectors: specify type (
pin headers,BNC,USB-C), pinout, and signal names. - Resistors: denote values (
kΩ,MΩ), power rating (1/4W), and tolerances (±1% metal film). - Active components: annotate ICs with part numbers (
LM358,ATmega328P), pin functions, and bypass requirements. - Inductors/transformers: list inductance (
10µH), saturation current, and core material for EMI-sensitive circuits.
Grounding strategies must be explicit: isolate analog/digital grounds, star-point configurations, or chassis connections. Use net labels (AGND, DGND) to clarify separate domains. For mixed-signal designs, insert ferrite beads or 0Ω resistors between grounds to prevent coupling. Always denote test points (TP1) at critical nodes–voltage dividers, feedback loops, and microprocessor reset lines–with reference designators matching the PCB layout.
Arranging Circuit Symbols for Maximum Clarity
Place signal flow symbols left-to-right or top-to-bottom to match natural reading patterns. Ground symbols should drop vertically from components, never slant or cross signal paths. Keep power rails parallel, with positive above and negative below active circuitry on a 0.5-inch grid spacing. Group related elements within 3-inch bounding boxes, leaving 0.25-inch margins between blocks. Use horizontal alignment for series components and vertical stacking for parallel branches to reduce visual clutter.
| Symbol Type | Spacing (inches) | Orientation Rule |
|---|---|---|
| Resistors | 0.3-0.5 | Align horizontally |
| Capacitors | 0.4 | Positive terminal up |
| IC pins | 0.2 | Clockwise numbering |
| Connectors | 0.6 | Pin 1 top-left |
Avoid diagonal connections–90° bends improve tracking by 40%. Label nets above components (inputs) and below (outputs), using 0.1-inch font height for visibility. Highlight critical paths with 0.05-inch dashed outlines, reserving solid lines for power nets. Maintain uniform spacing between similar symbols: 0.2 inches for passive parts, 0.15 inches for logic gates. Color-code recurring elements (red for high voltage, blue for grounds) to accelerate pattern recognition.
Common Mistakes When Arranging Circuit Components
Place power sources at opposing edges of the design to prevent signal interference. Ground symbols should overlap vertically when shared across subcircuits–this reduces redundant connections and clarifies return paths. Avoid scattering decoupling capacitors; cluster them near IC pins with orthogonal routing exclusively: diagonal traces complicate PCB replication and introduce parasitic capacitance. Keep resistor networks parallel; perpendicular alignments obscure current flow direction.
Crossing signal paths unnecessarily forces longer traces and increases loop area, aggravating EMI susceptibility. Maintain uniform spacing between component pads–mixed pitch values disrupt automated placement tools and skew assembly tolerances. Label nets consistently: “VCC” ≠ “V_CC”, causing errors during netlist export. Avoid placing transistors mirrored across axes; identical orientations simplify troubleshooting. When using connectors, align pins numerically left-to-right or top-to-bottom to match physical part numbering.
Best Practices for Labeling Nodes and Connections
Use consistent naming conventions across all elements. Prefix power rails with VCC_ and GND_, followed by descriptive identifiers like VCC_5V_ANALOG or GND_DIGITAL. Avoid generic labels such as VCC1 or GND–they obscure functionality in dense designs.
Adopt hierarchical labeling for multi-stage circuits. For amplifiers, append stage numbers: IN_AMP1, OUT_AMP2, FB_AMP1. This clarifies signal flow without relying on separate legends. Microcontroller pins benefit from port-based tags: PA5_LED, PB3_UART_TX.
Include units in component labels where ambiguity exists. Resistors use R1_1k, capacitors C5_100nF, and inductors L3_10uH. Omit units only for standardized values like pull-ups (R_PU_10k) or decoupling caps (C_DECOUPLE_100n).
Label nets with explicit signal types. Differentiate analog, digital, and control lines: SDA_I2C, CLK_SPI, PWM_OUT. For buses, use incremental suffixes: DATA[0..7] or ADDR_8BIT[0:7]. Avoid cryptic abbreviations unless documented elsewhere.
Anchor node labels near the point of connection for direct visibility. Place text above horizontal nets, to the right of vertical ones, ensuring 2–3mm clearance from traces. Rotate labels to match net orientation–misalignment forces readers to mentally adjust, slowing interpretation.
Color-code labels sparingly but deliberately. Reserve red for high-voltage warnings (VIN_24V), green for ground references, and blue for communication lines. Use standard black text for most signals to maintain baseline contrast. Never rely solely on color–redundancy with text is mandatory.
Group related labels logically. Cluster power delivery labels (VCC_3V3, GND_A) near their decoupling components. Keep I/O labels near connectors (USB_DP, USB_DM) rather than centralizing them in a separate block. Proximity reduces trace-following errors.
Validate label consistency through automated tools. Check for duplicates, missing references, and mismatched cases (e.g., clk vs. CLK) using DRC scripts. Export netlists to CSV and sort alphabetically–orphaned or misaligned labels become immediately visible. Manual reviews catch edge cases tools miss, like homoglyphs (l vs. 1, O vs. 0).
